Collection: ABAC Three Phase Air Compressors

ABAC Three Phase Air Compressors

Once a building has three phase at the panel, the compressor choice opens up: motors start easier, run cooler and draw less current per leg, and the larger frames are only built this way. Every ABAC machine on this page is available in a three phase build, from a 5 HP rotary screw up to a 30 HP one, and the decision comes back to airflow, duty cycle and how much floor space the unit gets.

Seventy two of these are AS rotary screws, all on 208-230-460V, rated 125, 150 or 175 PSI and running 63 to 71 dBA. Twenty seven are base mount for a shop that already has a receiver, and forty five are tank mount on a 71 or 131 gallon receiver. Thirty one of those arrive with an integrated refrigerated dryer, which saves plumbing a separate dryer and sizing a second circuit for it.

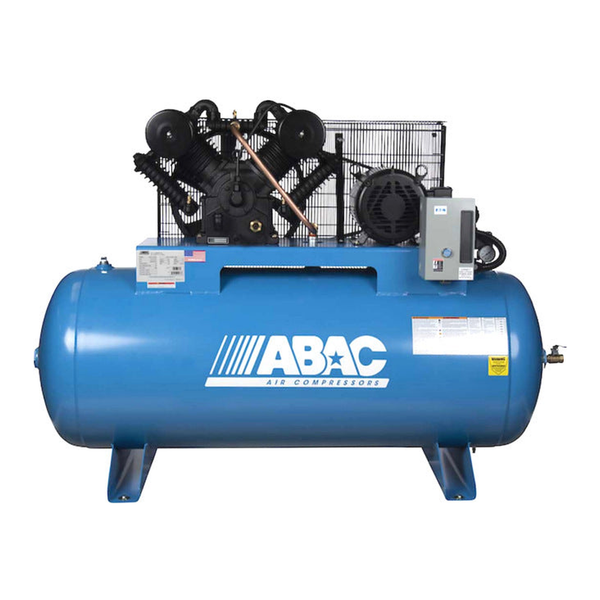

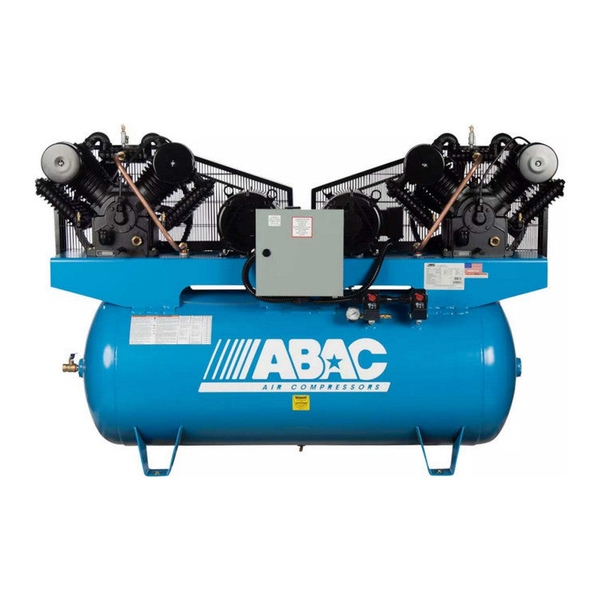

The other thirty two are two-stage piston compressors at 175 PSI, wired for 460V or 575V, on 80, 120 or 200 gallon ASME tanks in vertical and horizontal layouts. Twenty two are Ironman machines on C1 and C2 cast iron pumps and eight are Hybrid Pro on the T39 mixed pump. Nine are duplex pairs that put two pumps and two motors on one receiver with alternating control, so one head can be serviced without shutting the shop down.

Thirty nine of these models are also sold in a single phase build if the service will not support three phase. Browse the whole brand in ABAC air compressors, or compare by size in 10 to 15 HP and 20 to 30 HP.
