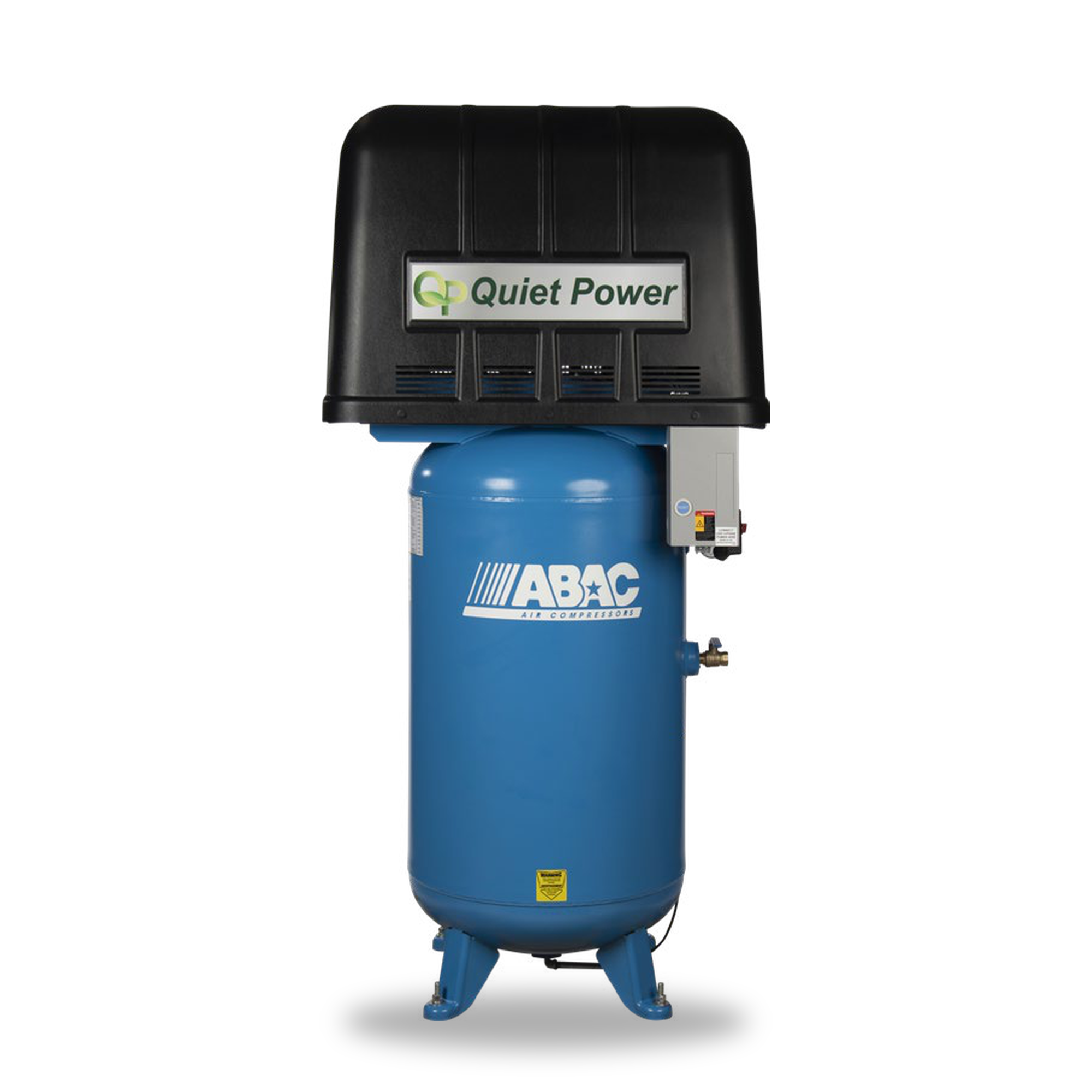

ABAC AB5-2180VQP 5 HP Quiet Power Two-Stage Air Compressor - 80 Gallon Vertical, 175 PSI, 16.6 CFM, 66 dBA
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
8090304307
|
 Horsepower |
|
 Max PSI |
|
 Max CFM |
|
| Dimensions | |
 Weight |
527.0 lb
|
The ABAC AB5 VQP runs at just 66 dBA, about the level of normal conversation, by wrapping the pump and motor in a low sound enclosure cooled by a 600 CFM fan. You still get the full 16.6 CFM at a maximum 175 PSI of ABAC's 5 HP two-stage T39 platform, so nothing is traded away on airflow or pressure to buy the quiet. That is what lets a real compressor sit inside a working space instead of being banished to an outbuilding or a closet. Choose 230V single-phase (AB5-2180VQP) or 230V three-phase (AB5-2380VQP).
Key specifications
- Models: AB5-2180VQP (230V/1, part number 2021119412) / AB5-2380VQP (230V/3, part number 2021119413)
- Noise level: 66 dBA
- Motor: 5 HP
- Pump: T39 two-stage hybrid, aluminum with cast iron cylinders
- Air delivery: 16.6 CFM at max pressure
- Maximum pressure: 175 PSI
- Tank: 80 gallon vertical, ASME tank and safety valves
- Dimensions: 39 x 24 x 80 in
- Weight: 527 lbs single-phase, 513 lbs three-phase
- Enclosure: low sound cabinet with 600 CFM cooling fan
- Standard: automatic tank drain, magnetic starter, high temperature switch, low oil level switch
- Warranty: 2 year full, assembled in the USA
How it compares
Against the open frame AB5-2180VP, which drives the same T39 pump to the same 16.6 CFM at 175 PSI on the same 80 gallon vertical tank, the VQP gives up nothing on output. What you pay for is the cabinet and the fan. Step up to the 7.5 HP AB7-2180VQP and you get 22.3 CFM at 69 dBA in an identical 39 x 24 x 80 in cabinet, so the choice between the two is airflow first: take the AB5 when 16.6 CFM covers the tools and the quietest possible machine matters most, and the AB7 when a second operator or a continuous sander will outrun it.
Typical applications
Dental and medical suites, dealership service areas next to a showroom, cabinet and finish shops, equipment rooms sharing a wall with offices, and any floor where staff or customers are within earshot of the compressor all day. The vertical 80 gallon receiver holds the footprint to 39 by 24 inches, so the machine sits against a wall rather than eating bay space, and the automatic tank drain means nobody has to remember to crack a petcock at the end of a shift.
Pair it with a refrigerated air dryer and a filter regulator if the air feeds paint, plasma, or instrument work. Part of ABAC's 2-Stage Quiet Power Series from the Atlas Copco group. See the full range of piston air compressors and all air compressors.
NOTE: Actual product may be different from pictured!
