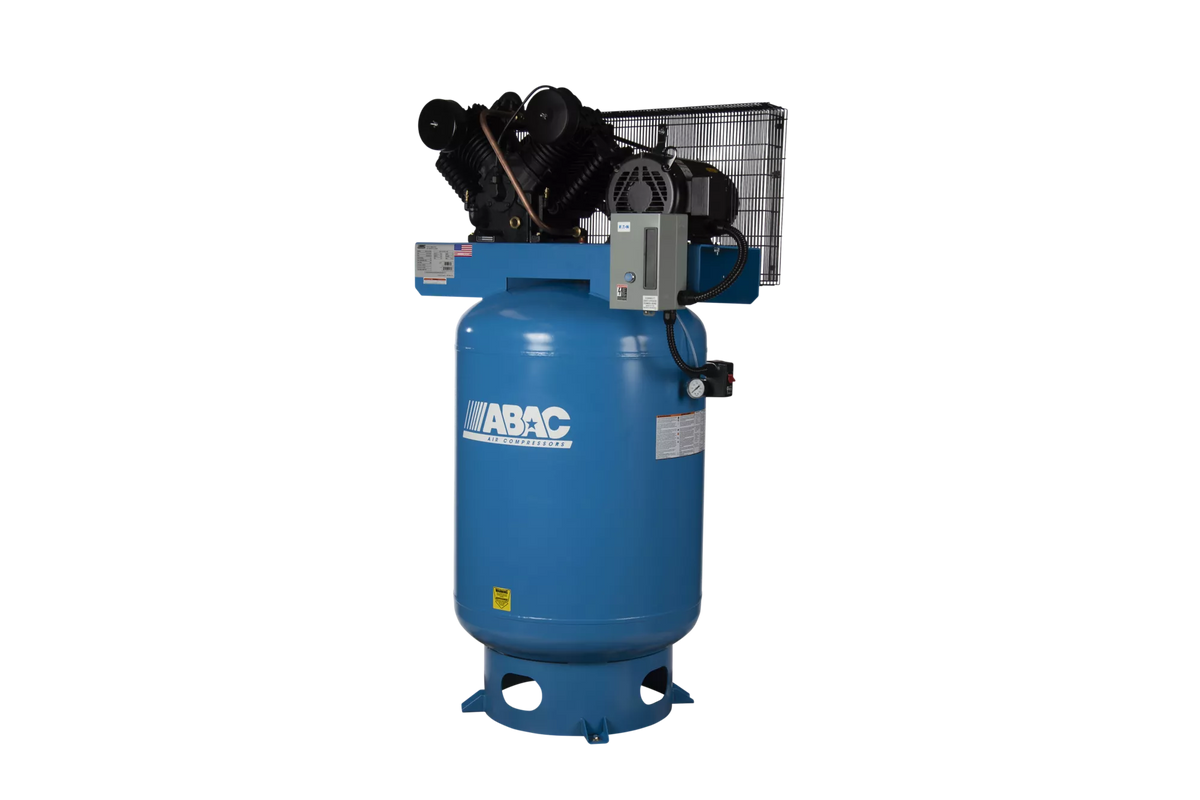

ABAC ABC10-2312VP 10 HP Two-Stage Ironman Air Compressor - 120 Gallon Vertical, 175 PSI, 32 CFM C2 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
2020141031
|
The ABAC ABC10-2312VP pairs a 10 HP motor with the C2 two-stage cast iron pump on a 120 gallon vertical tank, delivering 32 CFM at a maximum 175 PSI. The vertical tank puts the full 120 gallon reserve into a small floor footprint, which suits shops that have ceiling height to spare but not much open floor. This is a three-phase machine only. Choose 230V three-phase (ABC10-2312VP) or 460V three-phase (ABC10-43120VP).
Key specifications
- Models: ABC10-2312VP / ABC10-43120VP
- Motor: 10 HP
- Pump: C2 two-stage, cast iron cylinders
- Air delivery: 32 CFM
- Maximum pressure: 175 PSI
- Tank: 120 gallon vertical
- Power supply: 230/3/60 or 460/3/60
Typical applications
Production shops, fabrication and welding bays, truck and fleet maintenance, tire shops running multiple lifts, and any operation where several air tools or a plasma cutter draw at the same time and the compressor needs to hold pressure through the shift rather than recover between jobs.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. The 120 gallon reservoir cuts motor starts and holds a steadier line pressure than an 80 gallon build, while the vertical tank frees up the floor space a horizontal receiver of the same capacity would take.
NOTE: Actual product may be different from pictured!
