Aluminum Blue Pipe for Compressed Air by Prevost (9.5ft or 18ft)

Prevost aluminum blue pipe is a modular compressed air piping system built to be assembled by hand, in place, without threading, soldering or specialist tools. The pipe is compact, lightweight and corrosion-free on the inside, so it delivers clean, dry air at the pressure you paid to make, and the push-to-connect fittings let you re-route or extend a run later without cutting the whole system apart.

Available in 9.5 ft and 18 ft lengths from 1/2" through 6" outside diameter, it ships via freight in custom containers designed for safe delivery. Explore the rest of the aluminum air pipe range and matching air pipe and fittings.

Which size do you need

Pick pipe by the compressor's CFM and the length of the main run, not by the compressor's outlet thread. As a working rule for a loop or a main under 100 feet: 3/4 inch carries up to about 30 CFM, 1 inch up to 70 CFM, 1.25 inch up to 110 CFM, 1.5 inch up to 180 CFM, 2 inch up to 300 CFM, and 2.5 inch and 3 inch for 400 CFM and above. Go one size up for runs over 100 feet or if you plan to add a compressor later; the pipe is the cheapest part of the system to oversize. Drops to each workstation are normally 1/2 or 3/4 inch. Send us a sketch through the piping plan request page and we will size it and list every fitting.

What else goes on the order

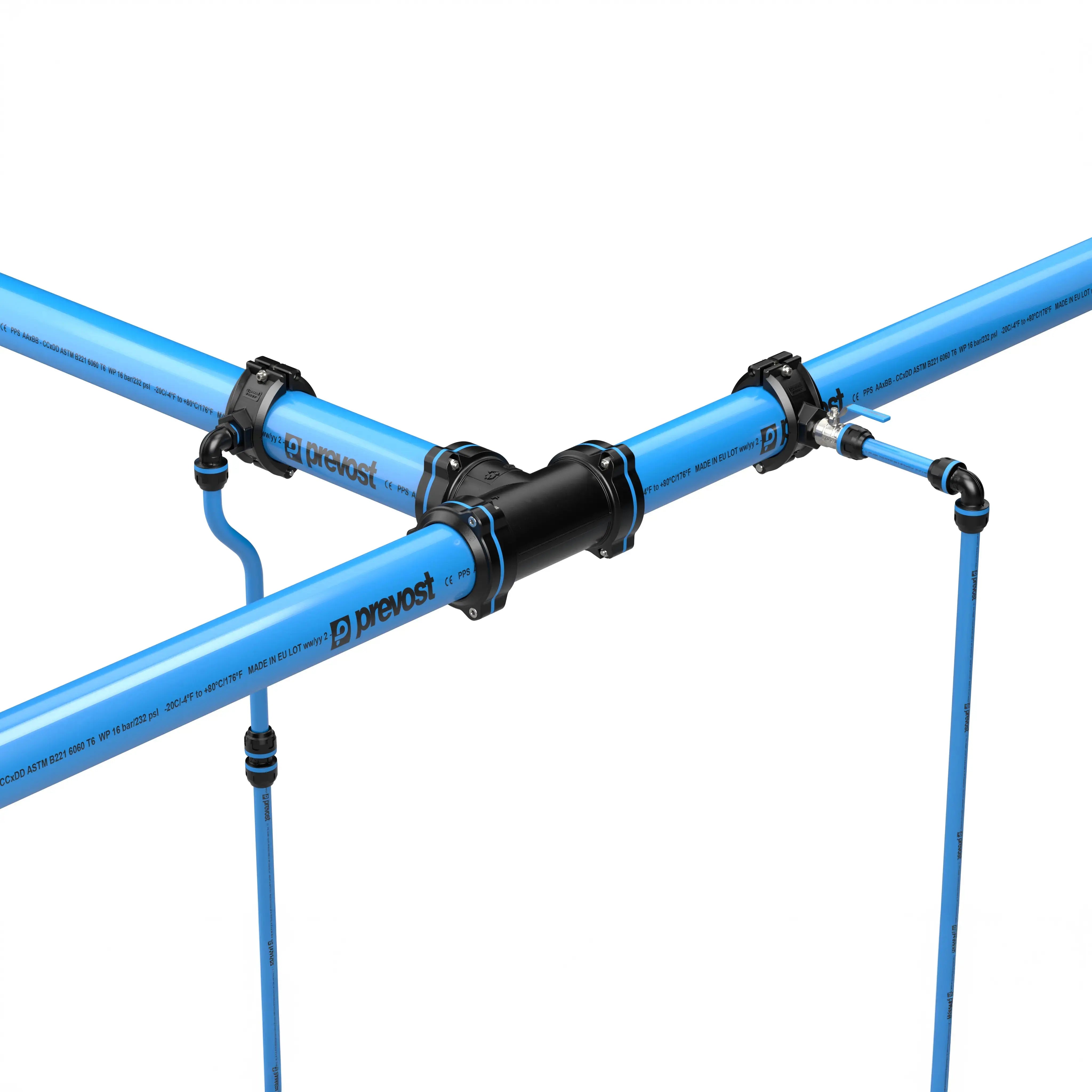

Each joint uses a Prevost push in compression fitting; you will want unions, elbows, tees and threaded adapters to the compressor and dryer, a support bracket every 6 to 8 feet, wall manifolds at each drop, and one chamfering tool for the install. The 1 inch garage kit bundles 78 feet of pipe with the fittings for a typical two bay shop. Pipe ships by freight in protective containers; the shipping rules by length and size are on the Prevost pipe and fittings page.

Available Variants & SKUs

All 16 variants and part numbers for this product are listed below for easy reference and ordering.
