Collection: Nano Purification Solutions

nano Purification Solutions is a U.S. manufacturer of compressed air and gas treatment equipment, based in Charlotte, North Carolina. Warthog Air Compressor Store carries the full nano line: refrigerated and desiccant air dryers, performance validated compressed air filters, aftercoolers, condensate drains and oil water separators, breathing air purifiers, membrane nitrogen generators and process chillers. The collection below holds every nano product we sell, more than 200 listings. Use the family pages to narrow it down.

nano product families

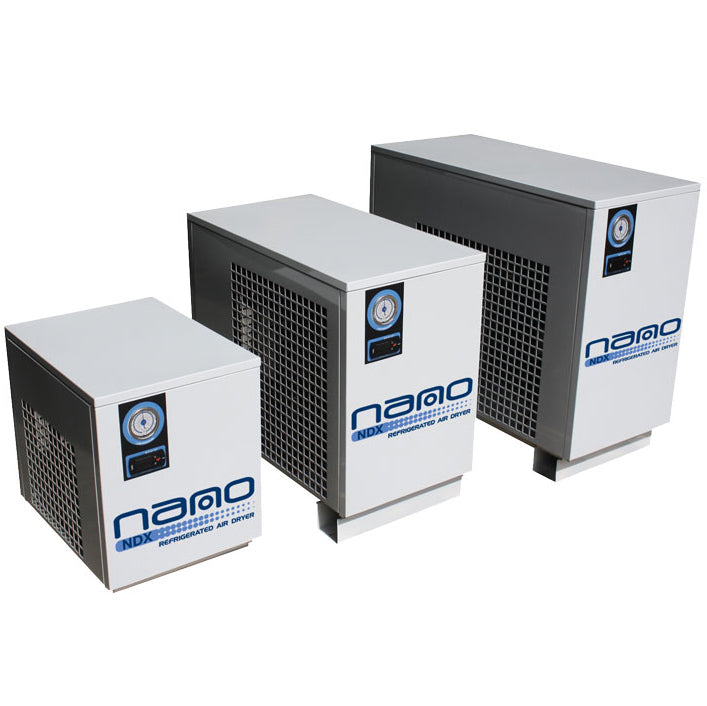

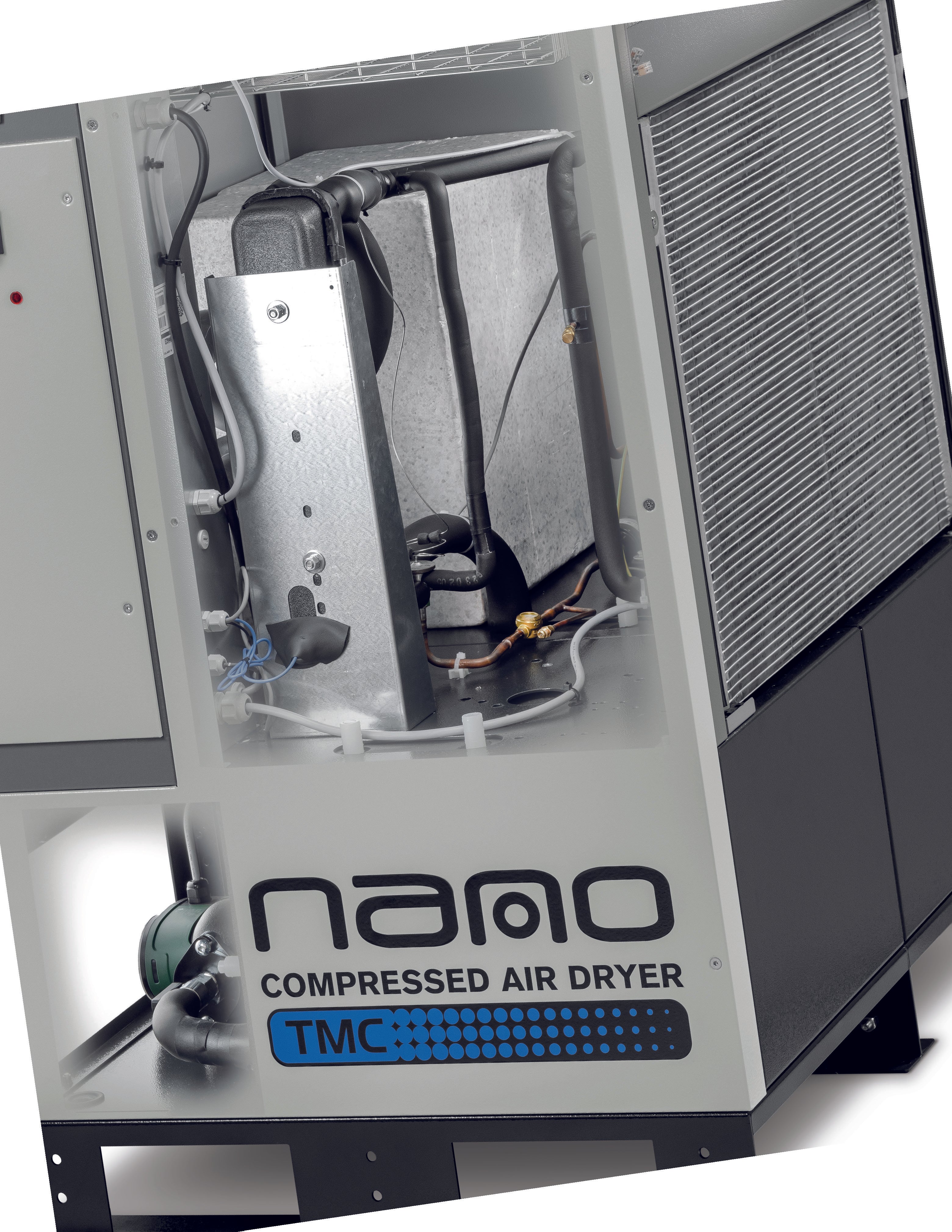

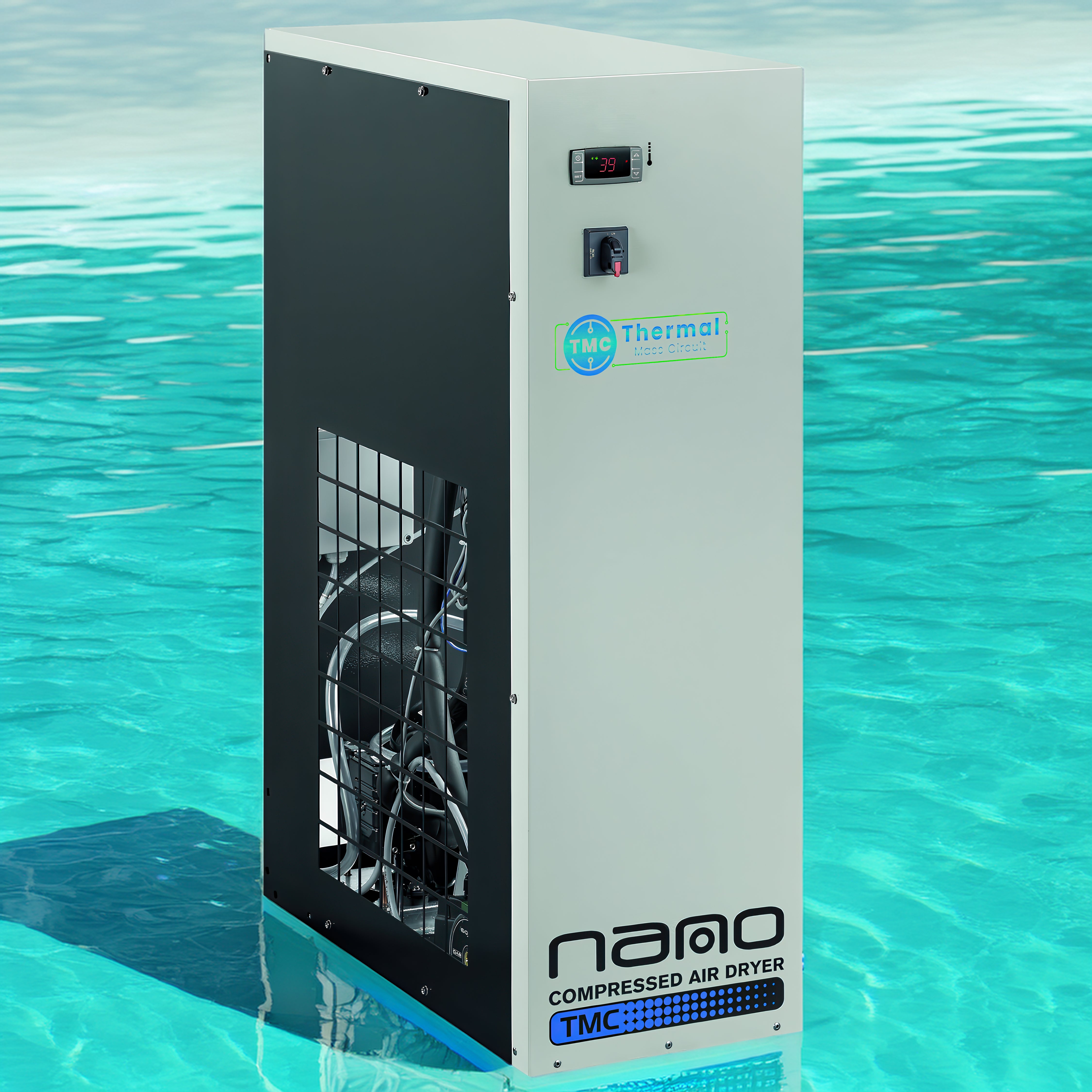

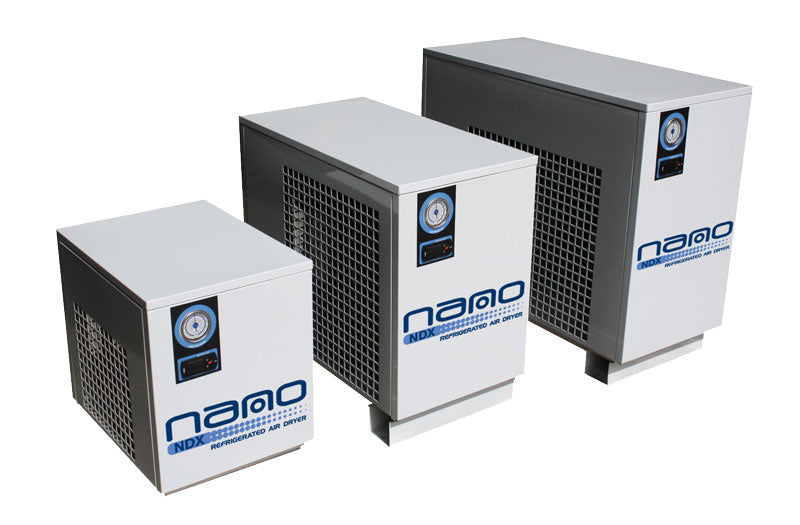

• nano refrigerated air dryers: DXR non cycling, TMC thermal mass cycling, VDR variable speed, HTR high temperature and AXHP high pressure, 10 to 8450 SCFM, 38 degree F pressure dew point.
• nano desiccant air dryers: NDL and NDM heatless modular, D5 HL and CDP heatless twin tower, EH externally heated, ABP blower purge, BHD breathing air and NDC lab gas, minus 40 and minus 100 degree F dew points.
• nano compressed air filters: GFN, G50N mid pressure, NFZ and F2 flanged, F1 sterile, F4 high pressure stainless, GMV medical vacuum, GHTN high temperature, GF water separators, AKC and NVR oil vapor removal.
• nano aftercoolers: X-CC air cooled aftercoolers 100 to 3500 CFM and X-AOC combination aftercooler and oil coolers.

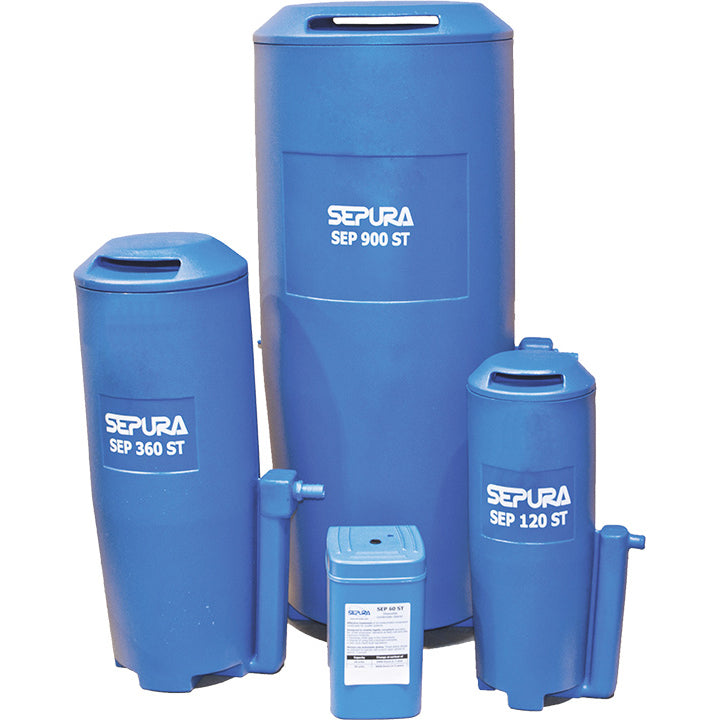

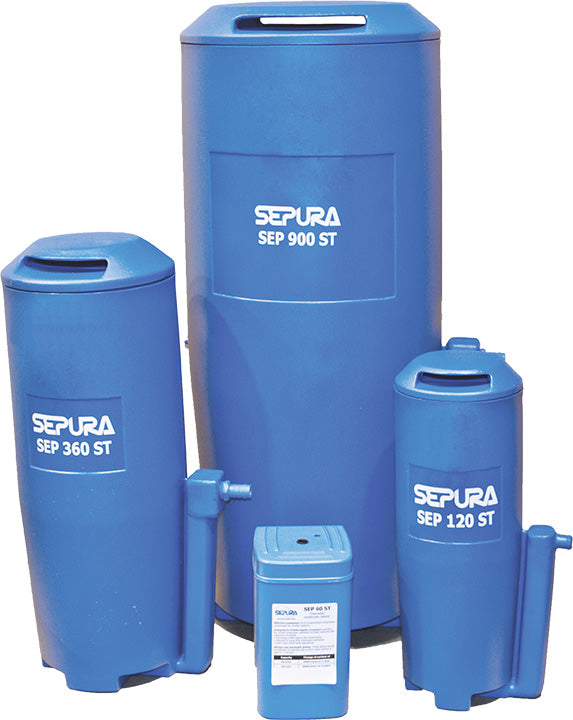

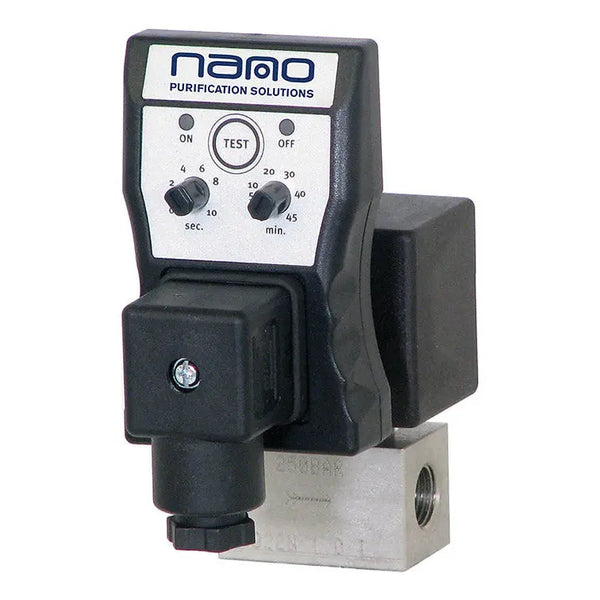

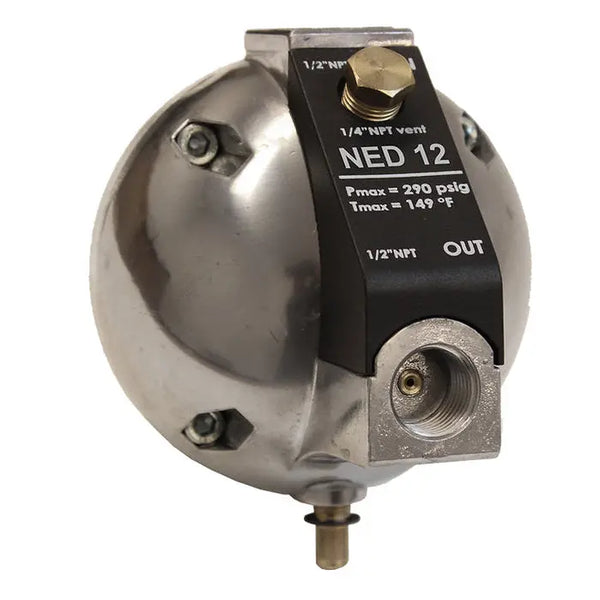

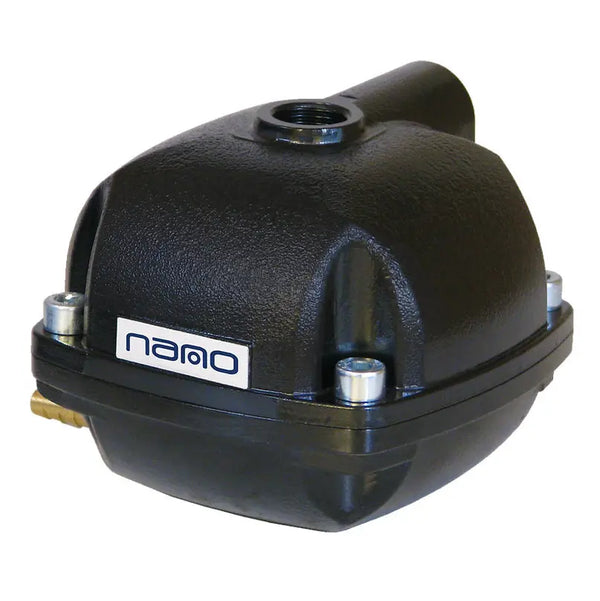

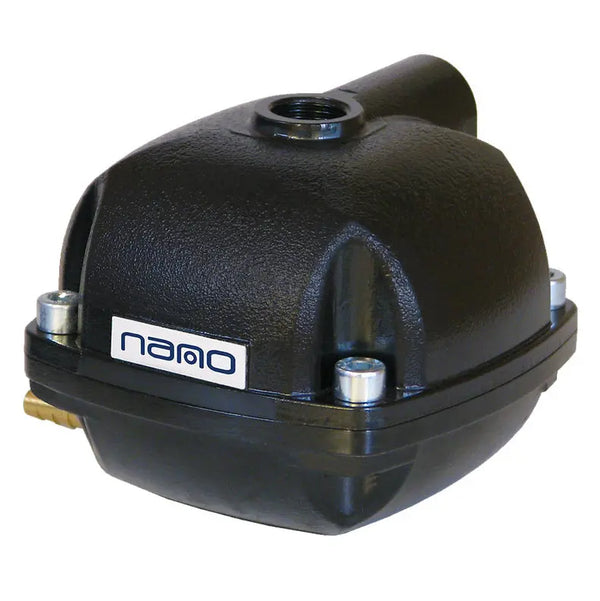

• Condensate drains: NMD magnetic and NED float zero air loss drains, NHD heated, NETD economy, NPTD premium and NHPTD high pressure timed solenoid drains to 6000 PSI, and the S1 Sepura oil water separator.
• Breathing air: BAP and BAC panels and portable cases, NBM modules and NBA modular systems for OSHA Grade D air.

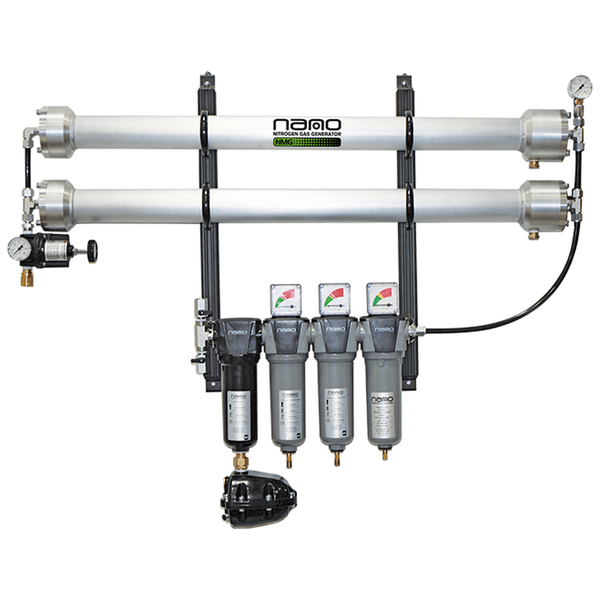

• Gas generation and cooling: NMG membrane nitrogen generators and NCS process chillers in ferrous, non ferrous and high ambient builds.

Which nano dryer fits which job

Refrigerated or desiccant

Start with the dew point your process needs. A 38 degree F refrigerated dryer is enough for most shops, body shops and plants with indoor piping: the air will not condense in the lines as long as the pipe stays above 38 degrees. Choose a desiccant dryer when the piping runs outdoors in a climate that freezes, when the air feeds powder coating, paint, pharmaceutical or food packaging equipment, or when an instrument or control spec calls for minus 40. Within refrigerated, pick non cycling for a steadily loaded compressor and cycling or variable speed for one that idles; within desiccant, go heatless under about 300 SCFM and heated or blower purge above it. Every dryer needs a coalescing filter upstream and a particulate filter downstream, and a compressor without an aftercooler needs one of the X-CC aftercoolers or the HTR dryer. The dryer CFM calculator walks through the correction factors for inlet temperature, ambient and pressure.

We size the dryer and filter train against your compressor rather than your pipe size, and we carry the replacement elements, desiccant kits, valve kits and drains to keep the system running. If you are matching a dryer to a compressor you bought elsewhere, call or chat with the compressor model, the room temperature and what the air feeds, and we will specify the dryer, filters and drain together.
