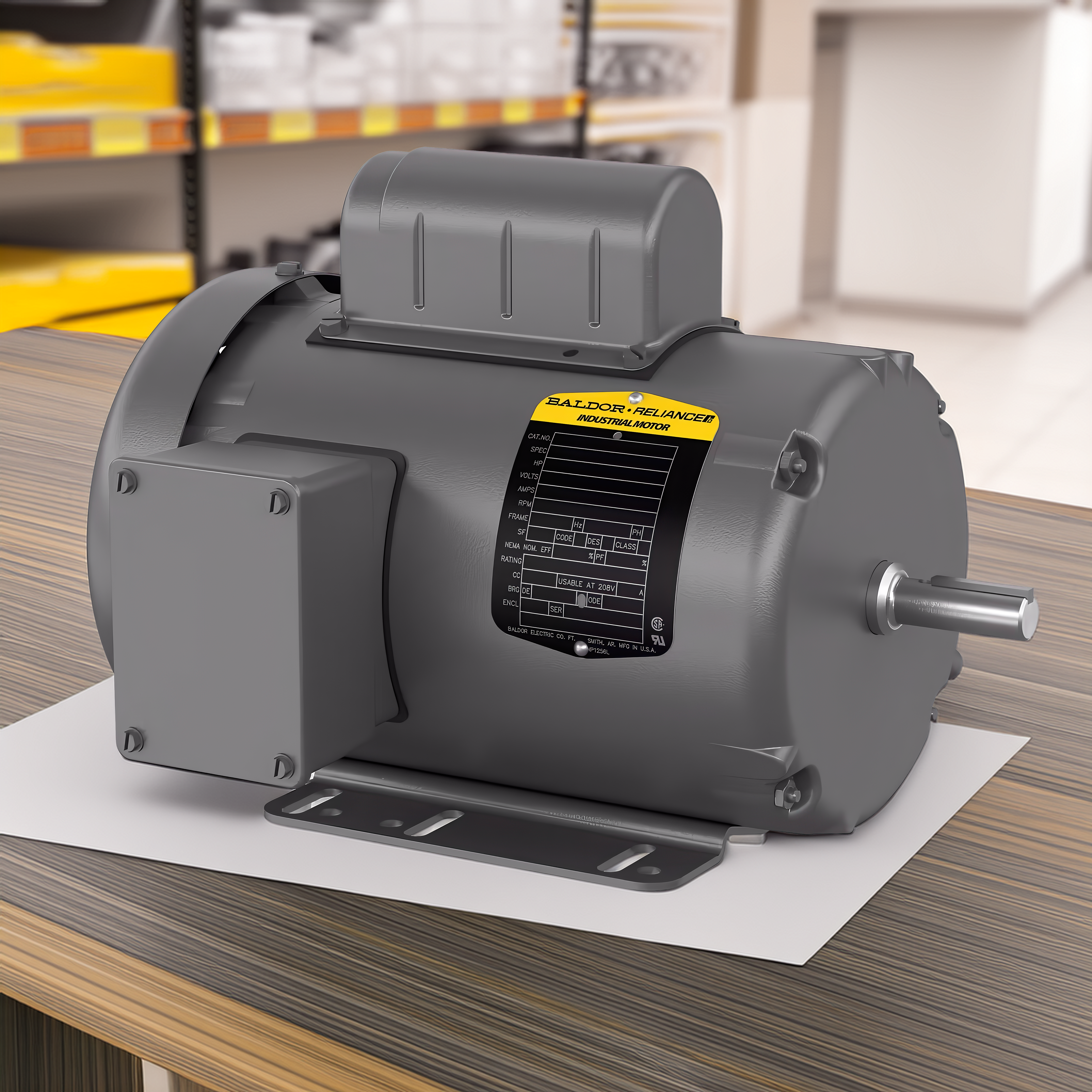

Sale Baldor 5 HP Single Phase Electric Compressor Motor - 184T - 208-230V $672.00 Regular price $992.00 -
Sale Baldor 5HP Motor on a 56HZ Frame at 3450 RPM Rolled Steel Compressor Motor Duty - Foot-mounted $519.42 Regular price $799.90 -
Sale BALDOR 7.5 HP Air Compressor Motor 215T FRAME 208-230v REVERSIBLE - L1510T $900.00 Regular price $1,449.00 -
Weg Rolled Steel 2 HP Motor 4P 143/5T 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted $600.00 -
Sale Weg Rolled Steel Compressor Duty Motor 5 HP 2P 56H 1Ph 230 V 60 Hz - Foot-mounted $420.00 Regular price $630.00 -
Sale WEG 5 HP Rolled-Steel Compressor-Duty Motor (184Y Frame) $495.00 Regular price $742.00 -

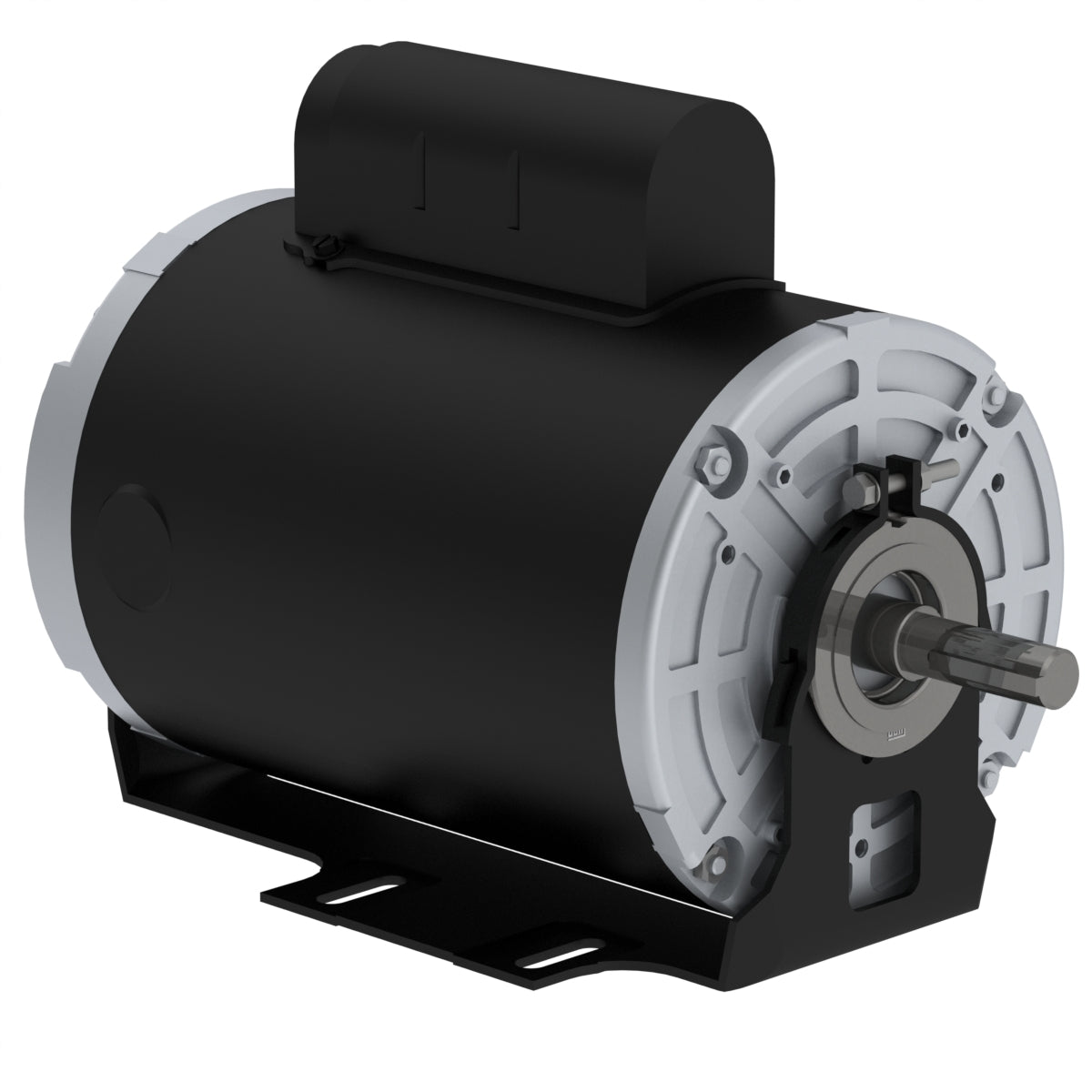

1 Hp, 56 Frame, 115/ 208-230 Volt, Electric Motor by WEG $363.15 -

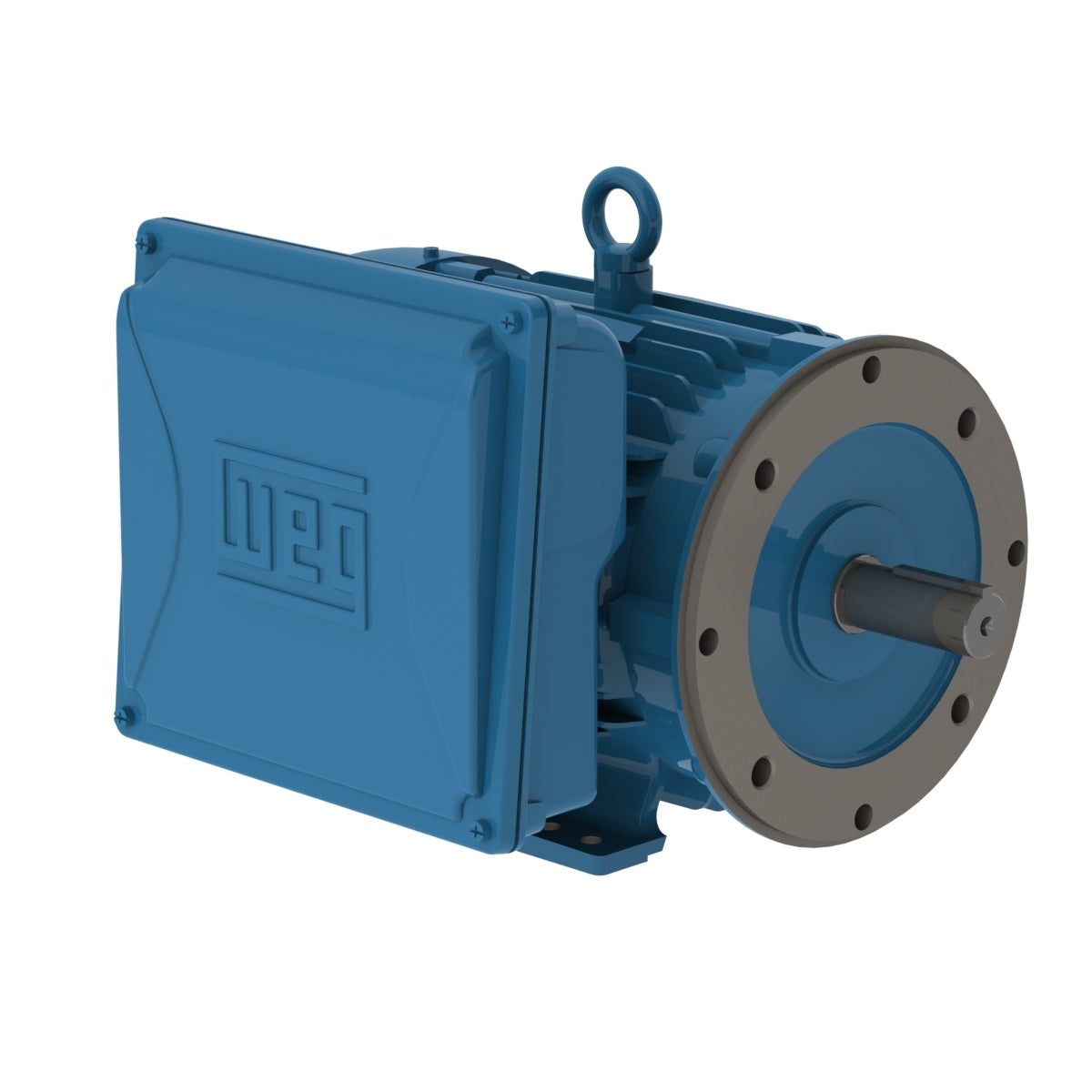

3HP 182/4TC 1Ph 208-230/460 Volt Motor 6 - TEFC - Foot-mounted by WEG $913.00 -
Sale Leeson 5 HP 1740 RPM 184T ODP 208-230 V Single Phase Air Compressor Motor, 131537 $734.00 Regular price $881.00 -
Leeson 5 HP 1740 RPM 184T ODP 208 V Single Phase Air Compressor Motor, 131560 $815.00 -
WEG 5 HP Single-Phase Electric Compressor Motor, 184T $1,305.00 -

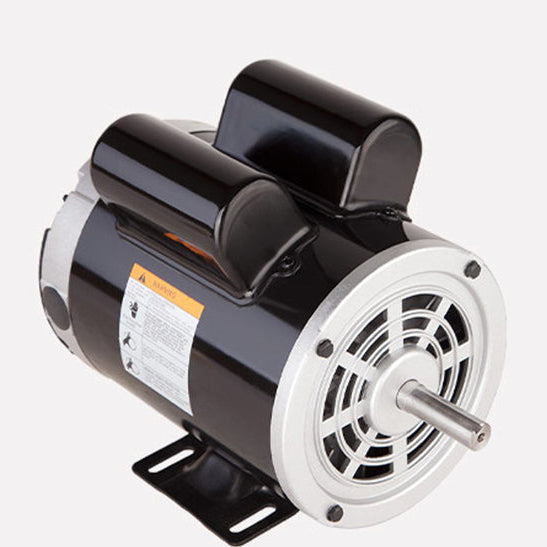

Sale EMZ EM2-56 / 2 HP 56 FRAME 115/230 VOLT NON REVERSIBLE CCW $243.00 Regular price $292.00 -
Sale EMZ EM3-56 | 3 HP | 56 FRAME | 230 VOLT | NON REVERSIBLE CCW $291.00 Regular price $349.00 -
Sale EMZ EM4-56 (5HP SPL) / 4 HP 56 FRAME 230 VOLT NON REVERSIBLE CCW $350.00 Regular price $420.00 -
Sale 5 HP 56HZ, Frame 230 Volt Non Reversible CCW Motor - EM5-56HZ $319.00 Regular price $399.00 -
Sale General 5 HP 4P 184T 1Ph 208-230 V 60 Hz IC01 - ODP - Foot-mounted by WEG $617.00 Regular price $924.00 -

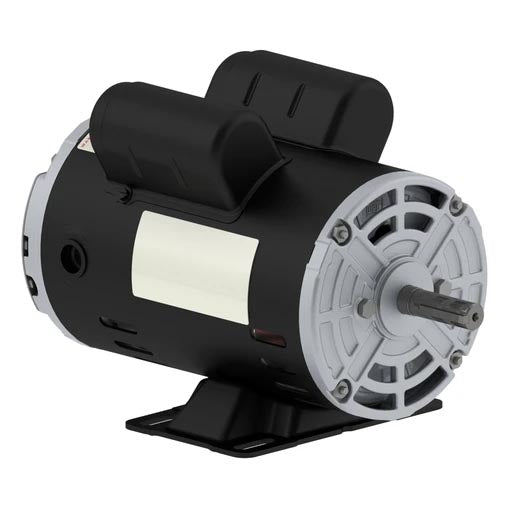

Rolled Steel 0.5 HP 4P W56 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted $225.00 -
Sale Rolled Steel 1 HP 2P 143/5T 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted $520.00 Regular price $780.00 -

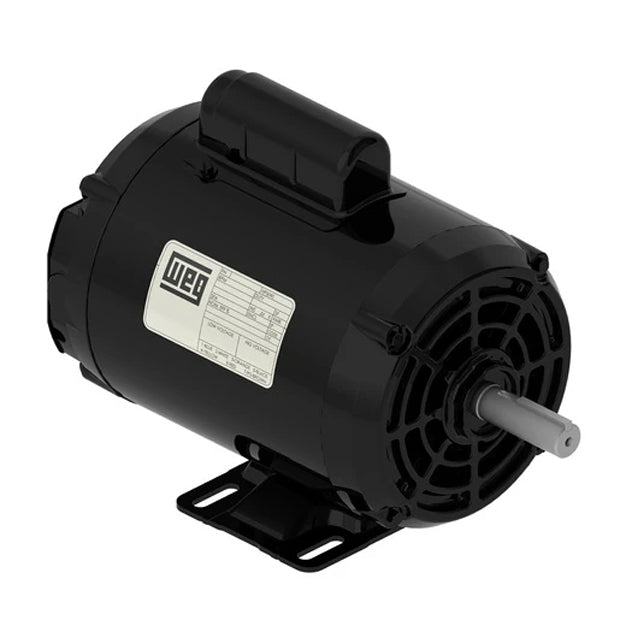

Sale Rolled Steel 1 HP 2P 56 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted $354.00 Regular price $532.00 -

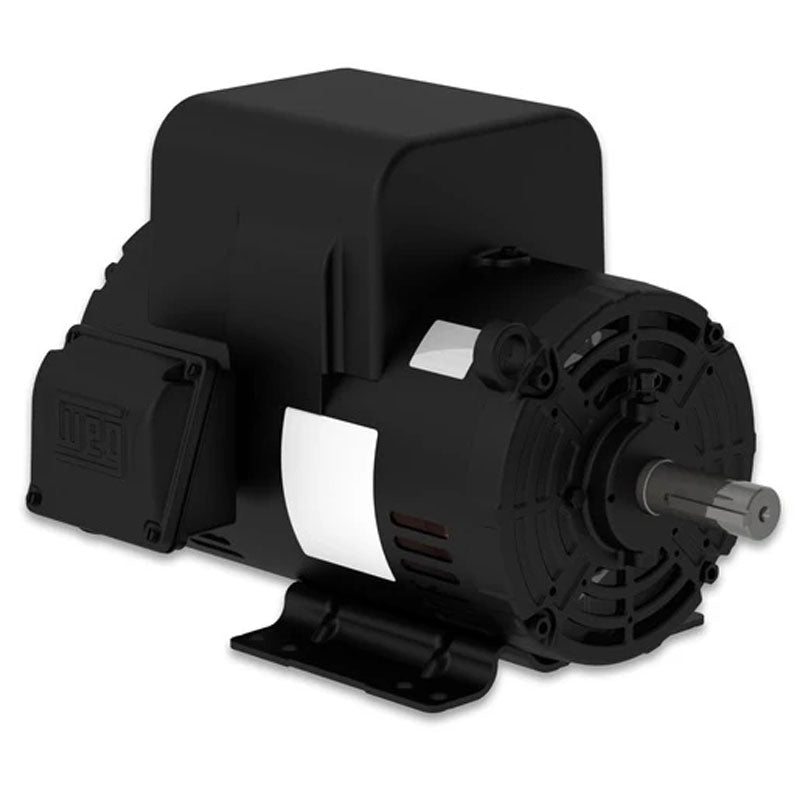

Sale Rolled Steel 1 HP 4P 143/5T 1Ph 208-230/460 V 60 Hz IC411 - TEFC - Foot-mounted $500.00 Regular price $749.00 -
Sale Rolled Steel 1.5 HP 2P 143/5T 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted $566.00 Regular price $850.00 -
Sale Rolled Steel 1.5 HP 4P 56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted $429.00 Regular price $643.00 -
Sale Rolled Steel 1.5 HP 4P 56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted $406.00 Regular price $608.00 -
Sale Rolled Steel 2 HP 4P 143/5T 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted $578.00 Regular price $868.00
A compressor duty motor has to start against a loaded pump, which is why it carries a 1.15 to 1.25 service factor where a general purpose motor sits at 1.0. Put a farm duty or generic surplus motor on a two stage pump with a weak unloader and you will trip the overload or cook the windings inside a season.
Match four things off the old nameplate and you will be right: horsepower, RPM, voltage and phase, and NEMA frame. RPM is the one people miss. A 1725 and a 3450 are not interchangeable on a belt drive without changing the sheave, and the frame controls bolt pattern, shaft diameter and shaft height. A 56 frame and a 184T both exist at 5 HP, and they will not swap without a new base.
The mistake that costs the most
Buying on horsepower and ignoring the panel. A 5 HP single phase motor at 230V draws about 28 amps running and far more on inrush, so it needs a 40 amp circuit and wire to suit. The same 5 HP in three phase draws roughly 15 amps and starts easier on the service. If three phase is available, use it. If it is not, check the breaker before you check the price.
A motor is also the wrong fix sometimes. If the pump is worn, new iron on the drive side will not bring CFM back, and on most portable and small direct drive units the motor is not sold separately at all.
Replacing one? The NEMA frame comparison tool overlays the old and new frames to scale so you can see whether the holes and shaft line up, and the motor running cost calculator shows whether a premium efficiency motor pays back at your hours. For matching one to a specific air compressor, start with the motor selection guide.
