When a scroll air compressor makes sense

Choose a scroll when you need:

• Exceptionally quiet operation – ideal for spaces where people work right next to the compressor
• Oil-free air – for dental, medical, lab, food, and electronics applications
• Clean, controlled environments – where contamination and noise are not acceptable
• Smaller air demands – lower CFM requirements running for long periods

If you mainly need general shop air for tools, impact wrenches, or blast cabinets, a piston or rotary screw compressor is usually a better fit for your wallet and your system.

How scroll compression works

Scroll compressors use a unique, highly engineered compression mechanism:

1. Two scrolls: one fixed scroll and one orbiting scroll
2. Air intake: air is drawn into outer pockets formed between the two scrolls
3. Compression: as the orbiting scroll moves, these pockets get smaller and move toward the center, compressing the air
4. Discharge: compressed air exits through a port in the center of the scroll set

The clearances between the scrolls are incredibly tight. That precision is what delivers high efficiency and oil-free air, but it’s also why manufacturing and repairs are more expensive.

Key advantages of scroll air compressors

Main benefits you get with a scroll design:

• Continuous-duty operation (100% duty cycle) – built to run for long periods without the “rest cycles” typical of small piston units
• Truly oil-free, high-quality air – no oil introduced into the compression chamber
• Very low noise levels – often 5–15 dBA quieter than comparable compressor technologies
• Fewer moving parts – less friction and fewer wear items than many traditional compressors
• Compact footprint – small but efficient, easy to tuck into tight mechanical rooms or office spaces

These features are exactly what you’re paying for when you choose a scroll machine over a piston or rotary screw in the same HP range.

What to consider before buying a scroll

Scroll compressors are not the right choice for every system. Keep these factors in mind:

• Higher initial cost – the precision parts and tight tolerances raise the purchase price
• More expensive repairs – if something fails inside the scroll set, component replacement is costly

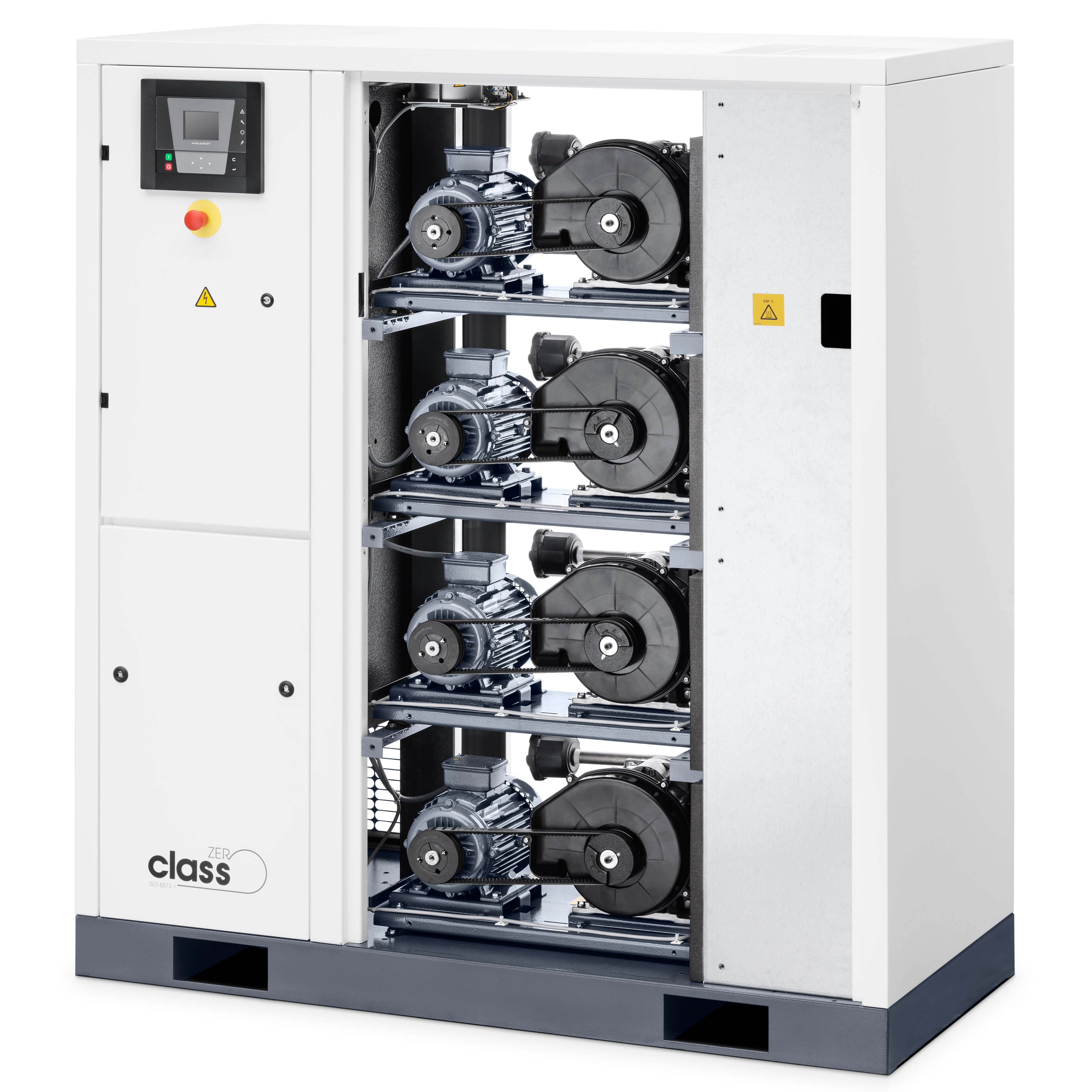

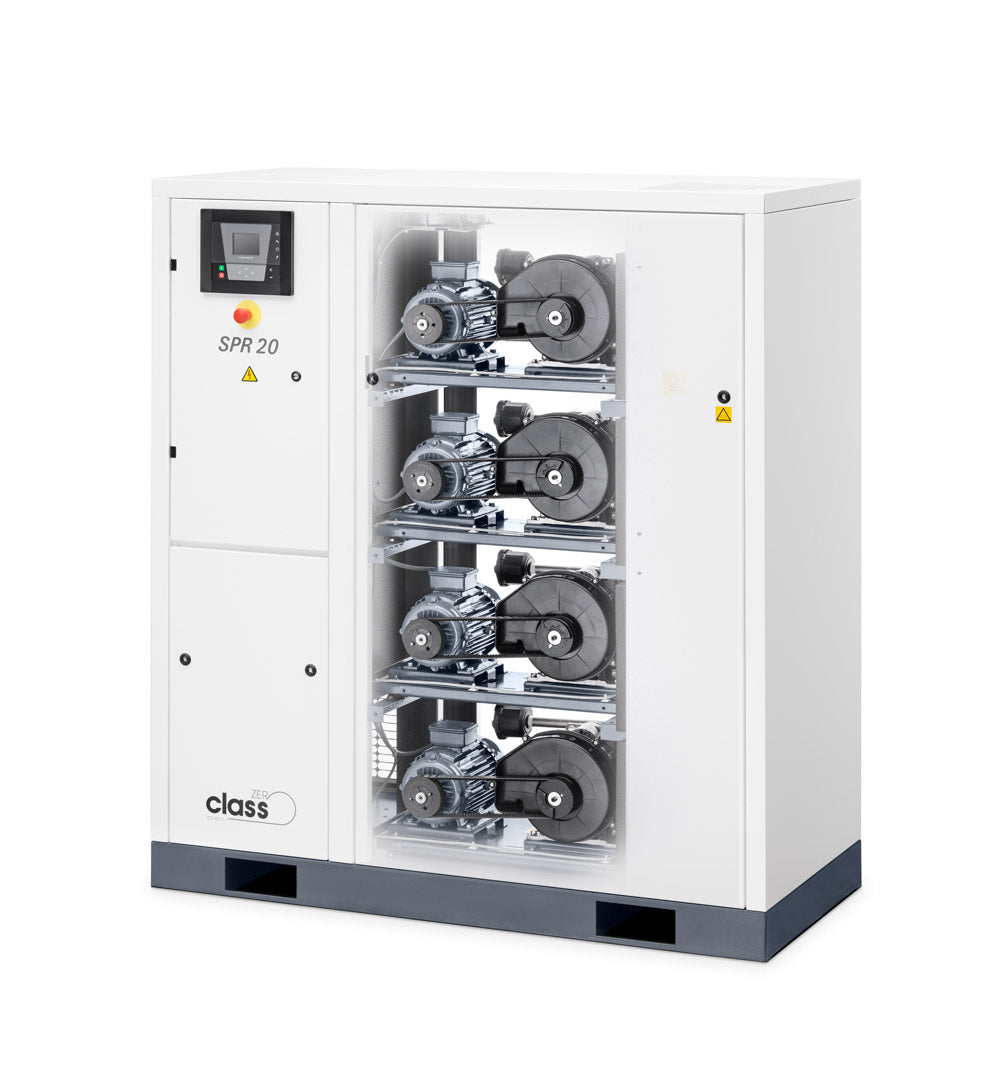

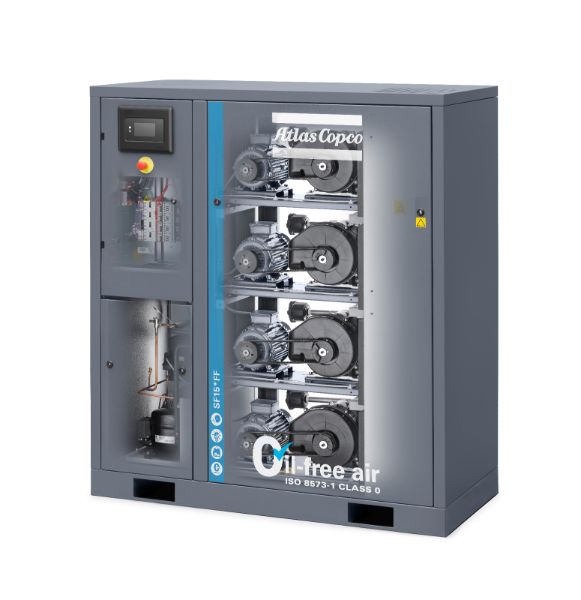

• Limited size range – individual scroll elements only go so large before efficiency drops; bigger units use multiple scroll pumps in one package
• Best for clean, quiet spaces – dirty, harsh environments shorten life and undermine the advantages

If your application doesn’t truly require oil-free air and very low noise, a different compressor type may give you better value.

Best uses for scroll air compressors

Scroll air compressors are an excellent fit for:

• Dental and medical offices
• Laboratories and R&D facilities
• Cleanrooms and electronics manufacturing
• Food, beverage, and pharmaceutical processes needing oil-free air
• Light manufacturing or packaging lines with lower air volume needs

Take the time to match the compressor to your actual demand instead of defaulting to the first recommendation you hear. Getting the right technology for your system up front saves money, downtime, and frustration over the long run.
