What particulate compressed air filters actually do

A particulate removal air filter uses a woven or sintered media to catch solid contaminants and larger liquid droplets. In a typical system, these filters:

• Remove dust, dirt, rust, and scale before they reach downstream components
• Collect pockets of condensate so dryers and coalescing filters are not overloaded
• Protect regulator seats, valves, and sensitive instrumentation from erosion and sticking
• Extend the life of hoses, tools, cylinders, and automated equipment

If you use compressed air in any serious way, you need dust removal filters. Skipping them is how you end up with scored cylinders, leaking valves, and piping that wears from the inside out.

Why sizing and selection matter

To get filtration that works in the real world, you have to size and select your filters correctly.

Key factors when choosing your particulate removal air filter:

1. Micron rating and extraction efficiency

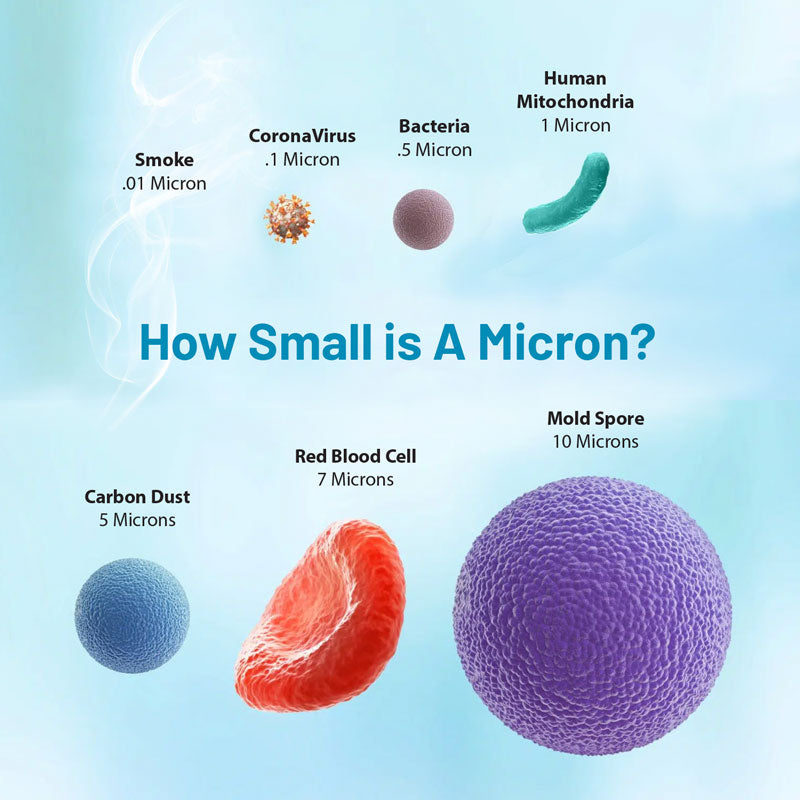

• Micron rating tells you the smallest particle size the filter is designed to trap.
• General-purpose filters commonly range from 5 to 1 micron, with finer options down to 0.01 micron for polishing air.
• Extraction efficiency is the percentage of particles a given size that are removed from the airstream.

2. Flow rate (cfm) and connection size

• Your filter must match your true system flow, not just the compressor label.
• Undersized filters cause pressure drop, starve tools, and create nuisance problems.
• Larger flow rates demand larger housings, correct port sizes, and proper piping layout.

3. Pressure drop and dust capacity

• As dust loads up on the element, pressure drop increases.
• Look for elements with a good dust-holding capacity and low initial pressure drop so you are not constantly burning energy.

4. Maintenance and element changes

• Plan on changing elements on a schedule or based on differential pressure indicators.
• Do not wait until the filter is a solid plug – that is when regulators misbehave and tools slow down.

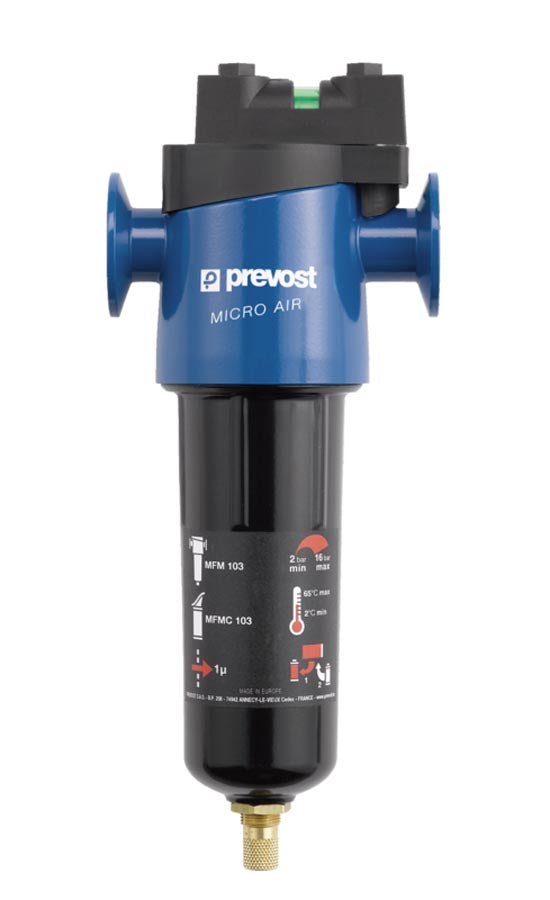

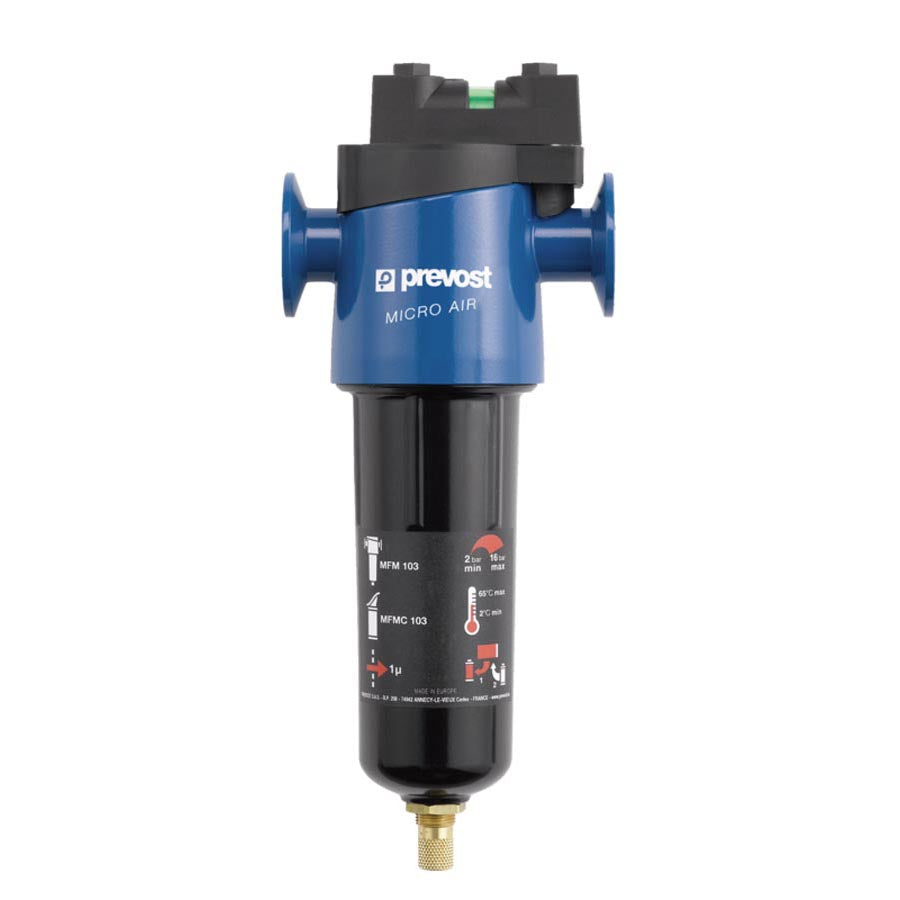

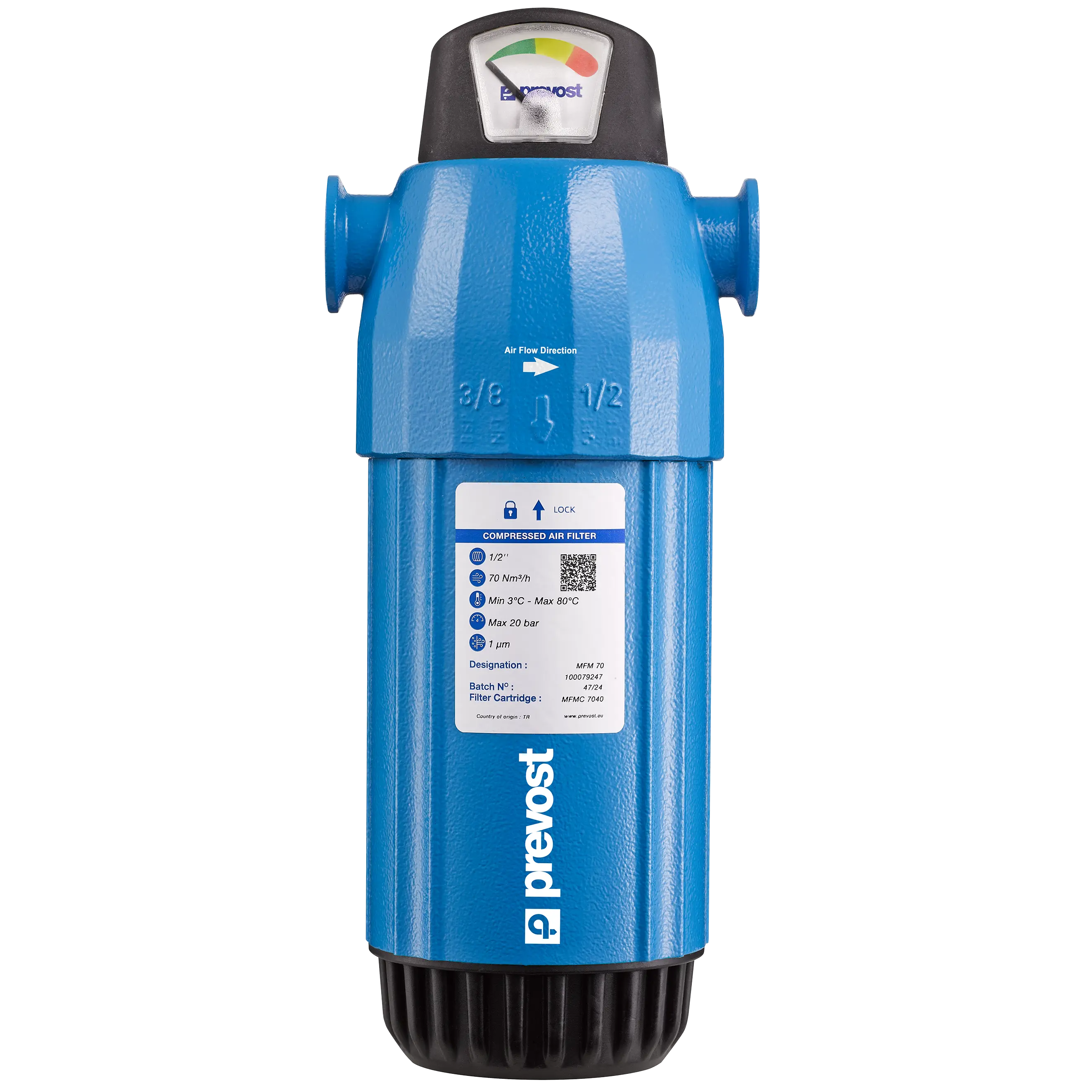

Prevost particulate filters at Warthog Air Compressor Store

At Warthog Air Compressor Store, we lean heavily on Prevost for compressed air treatment, just like we do for couplings and aluminum air pipe. Prevost filtration units are built for real industrial environments and are a solid choice when you need reliable particulate removal.

Prevost particulate filters and assemblies typically offer:

• High-efficiency elements for solid and liquid particle removal
• Robust housings sized for common industrial flows and pressures
• Sintered or high-performance media elements for long service life
• Manual drains or automatic drain options to remove collected condensate

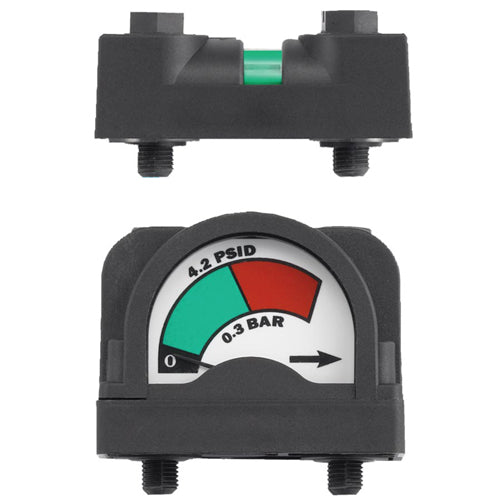

• Clog indicators so you actually know when to replace the element

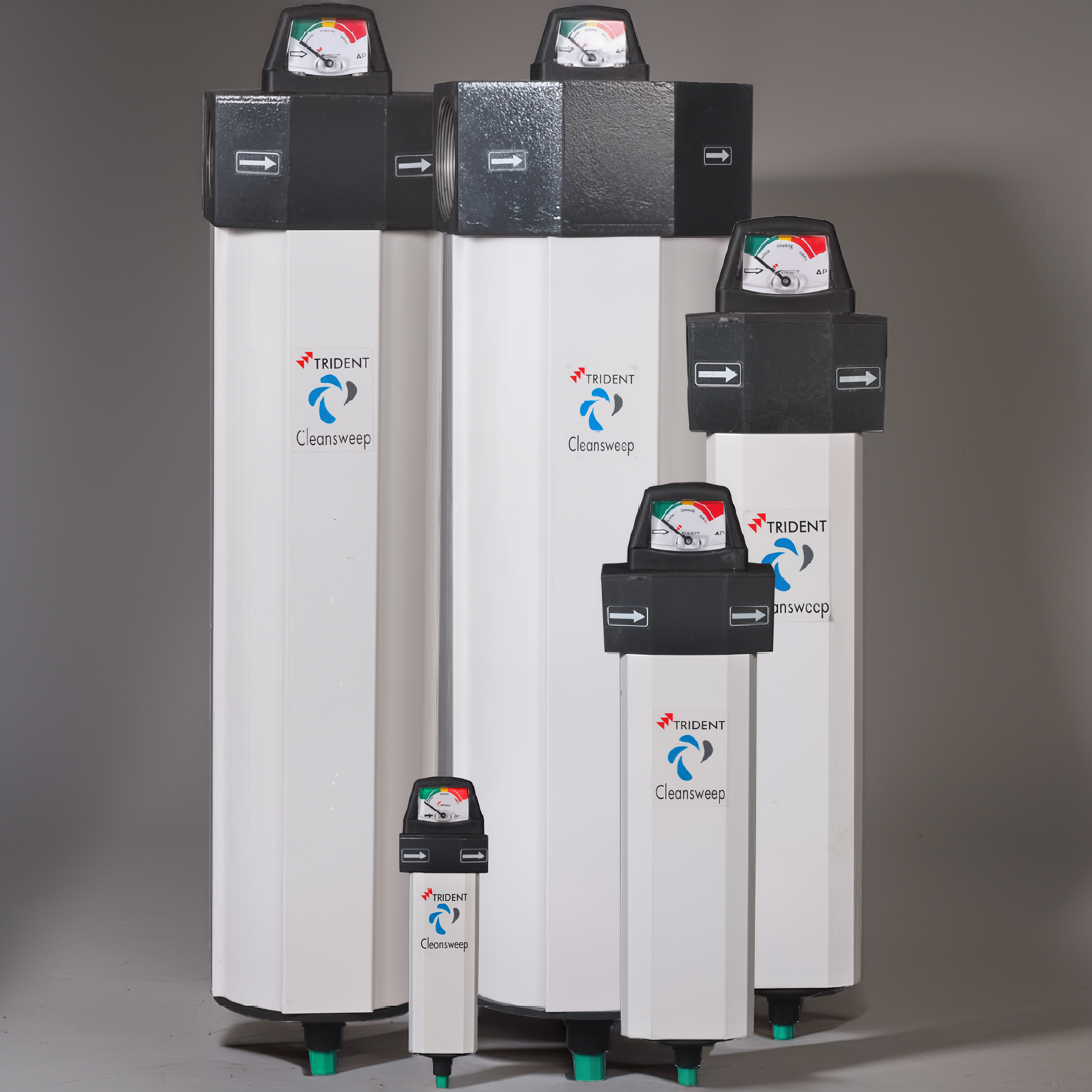

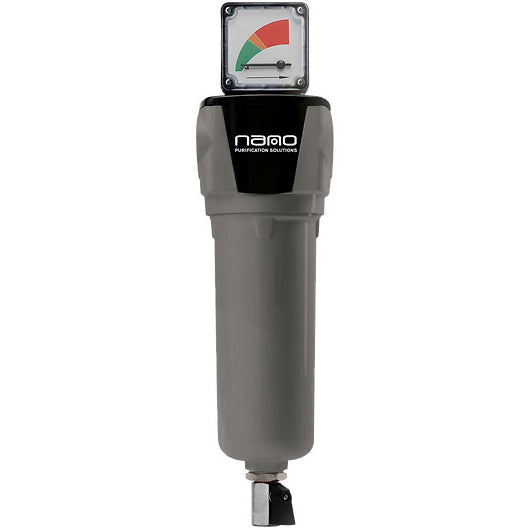

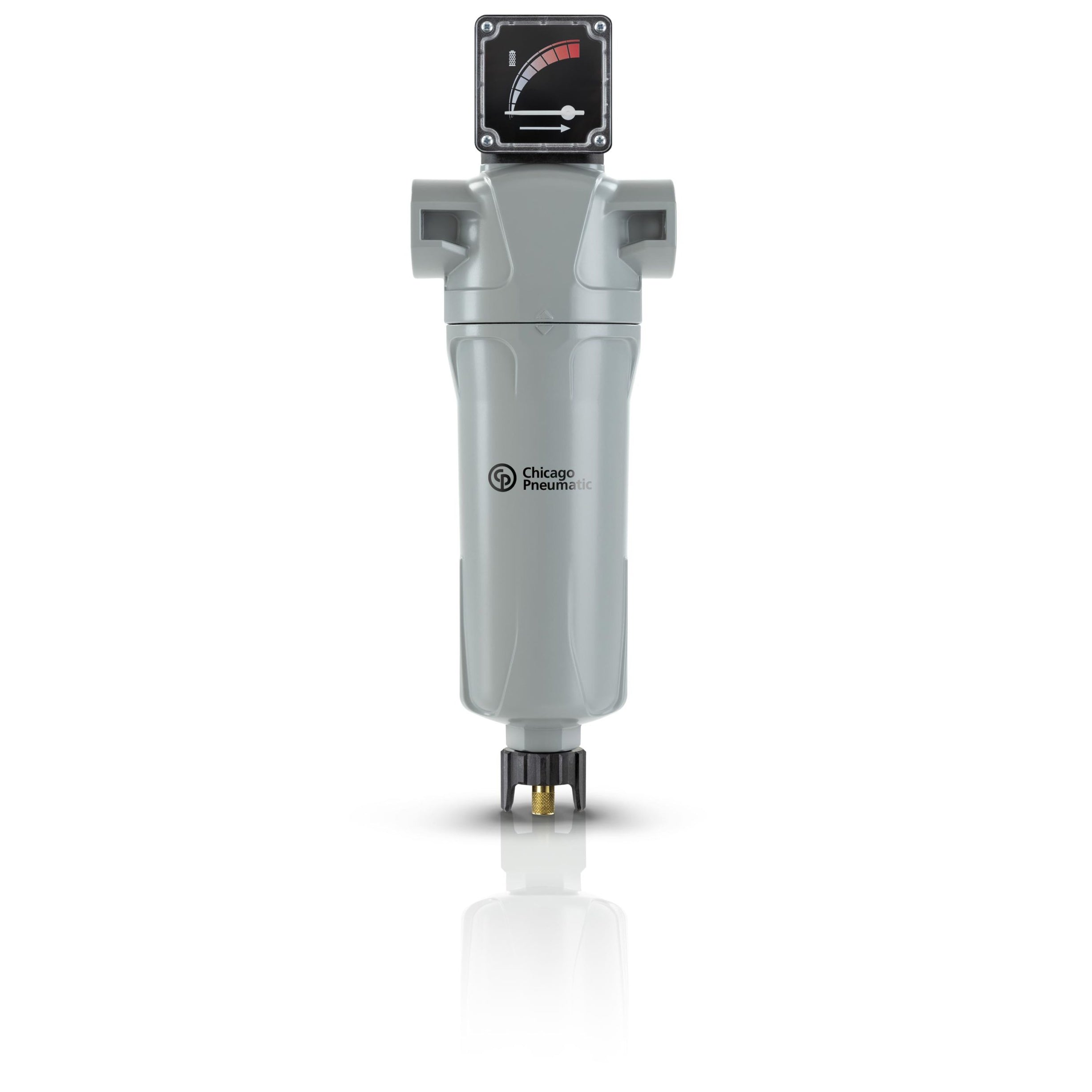

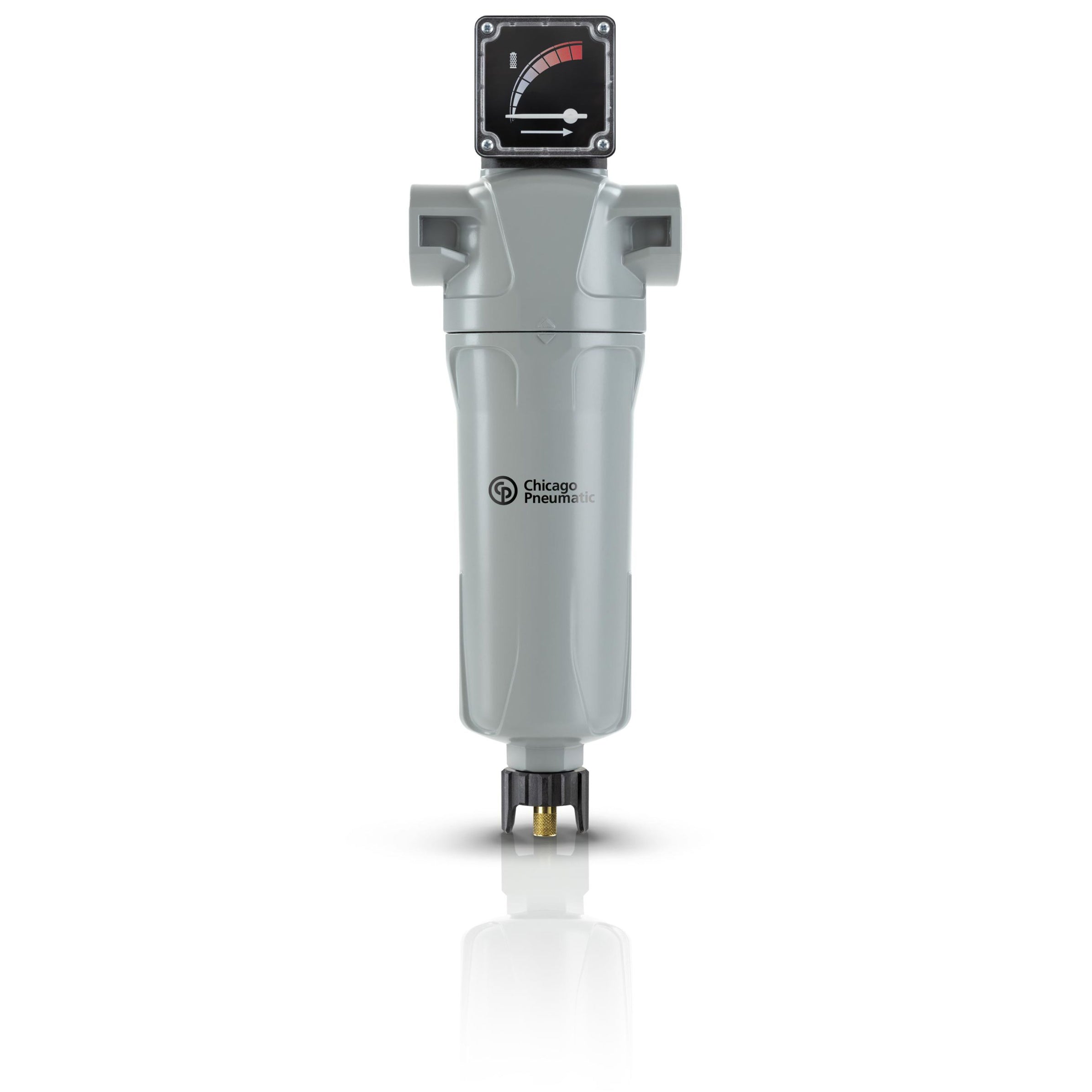

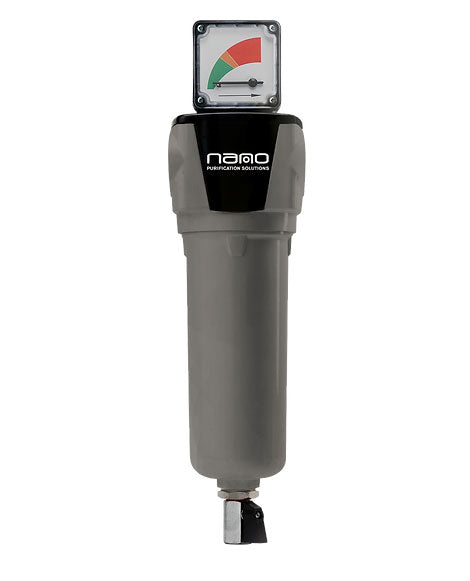

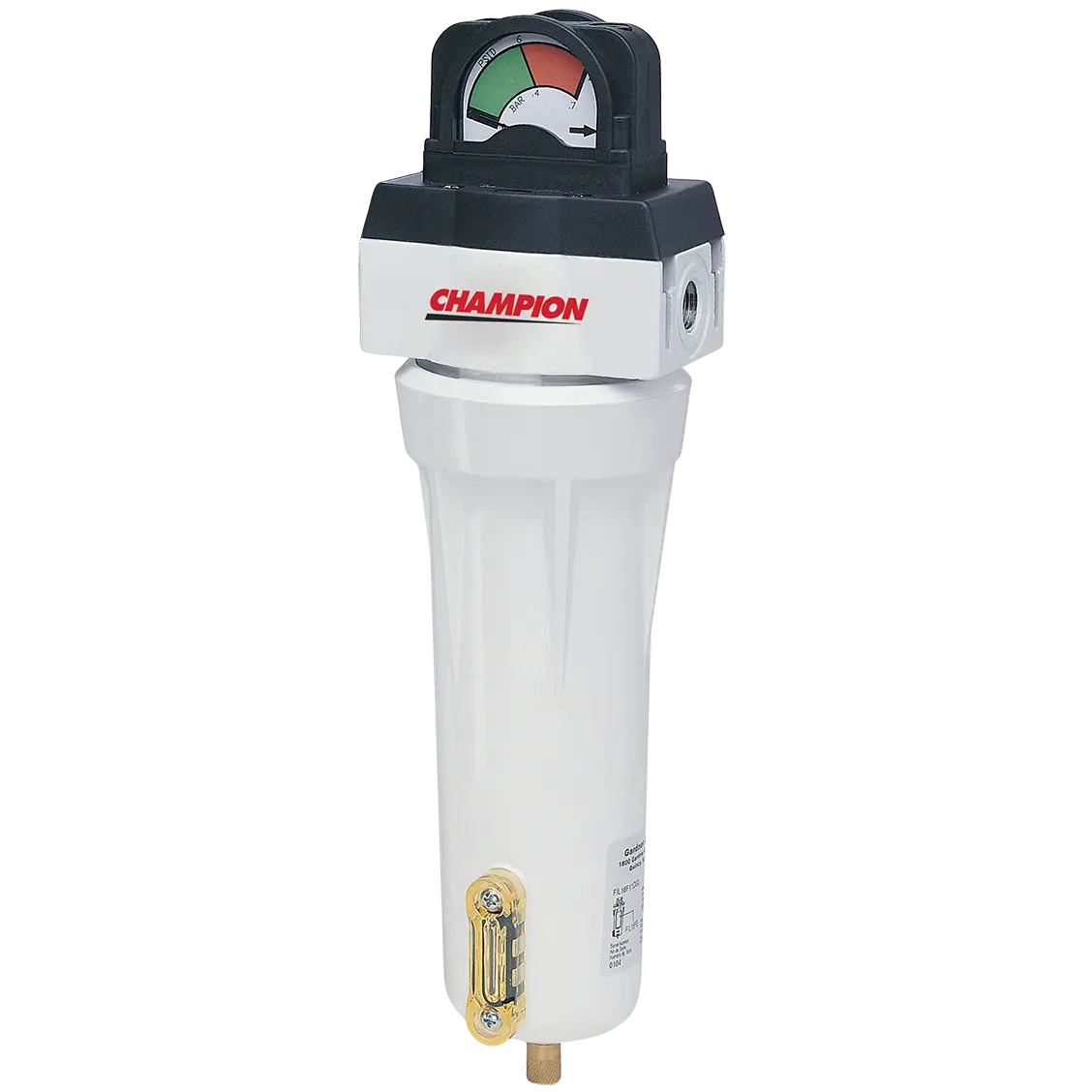

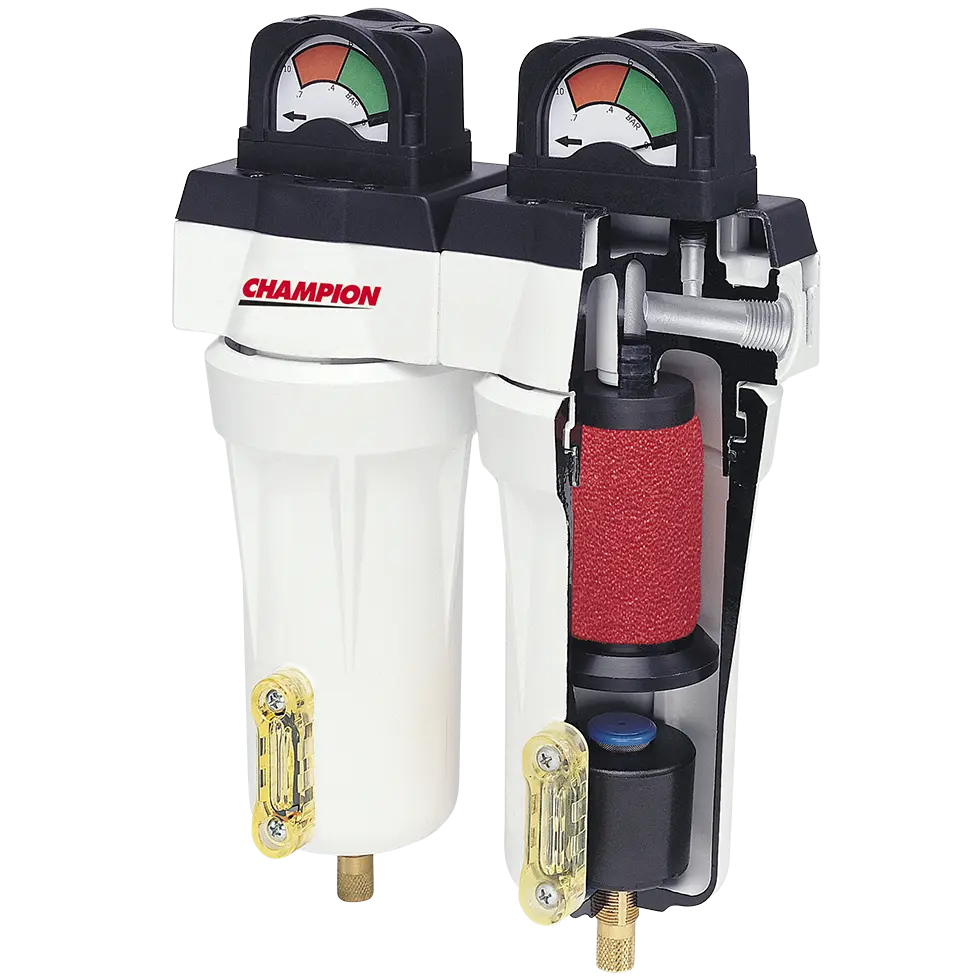

Alongside Prevost, this collection also includes compatible particulate filters and elements from other trusted brands, so you can match what is already installed in your plant or upgrade to a more efficient option without rebuilding your entire system.

In this collection you will find:

• Stand-alone particulate filters in common NPT and BSP port sizes

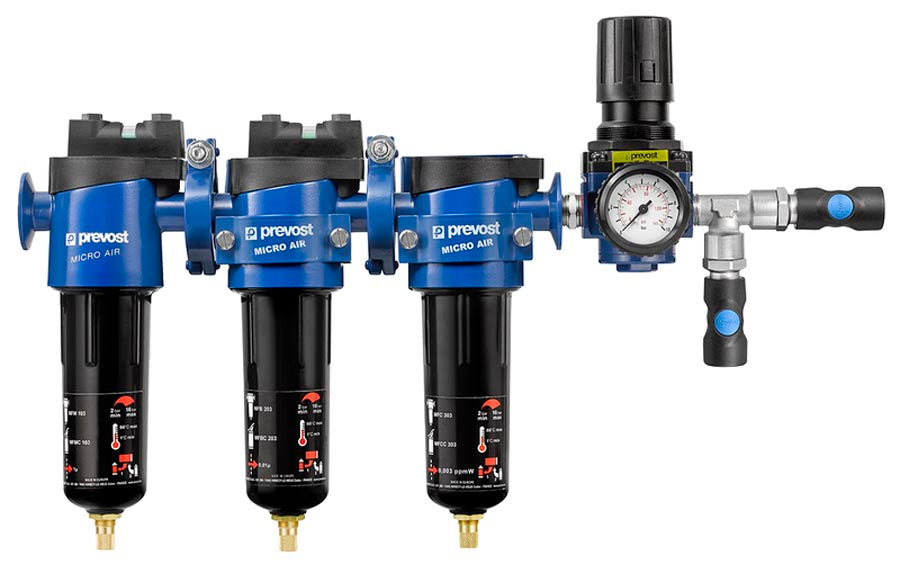

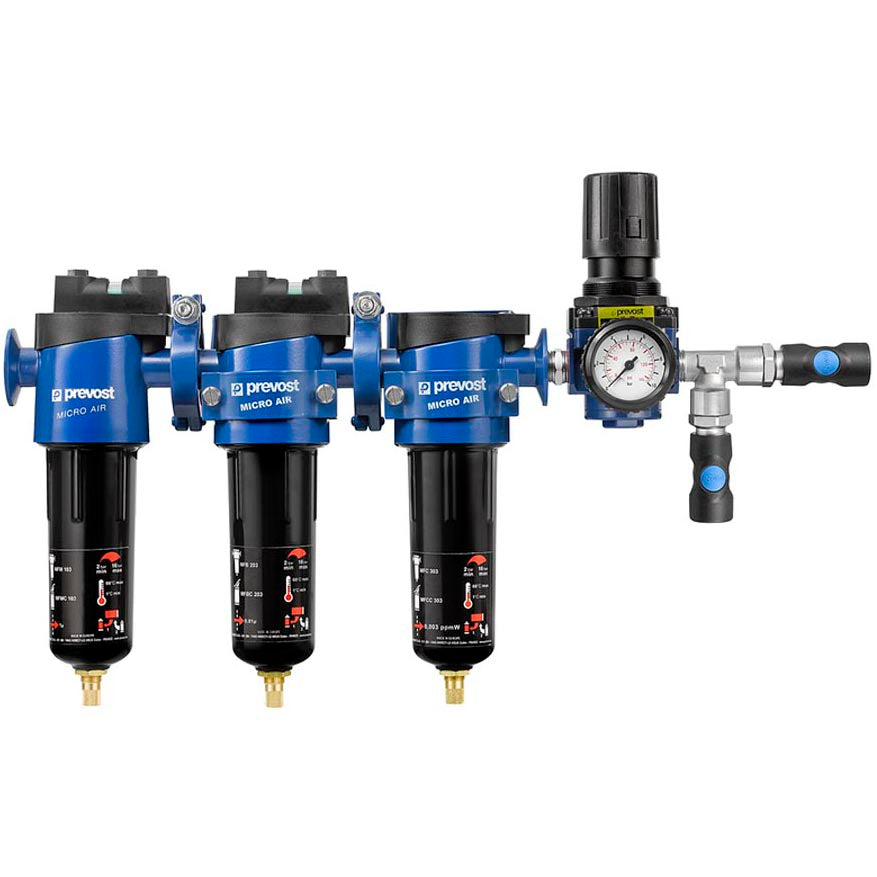

• Filter-regulator or full FRL assemblies that combine filtration, pressure control, and lubrication

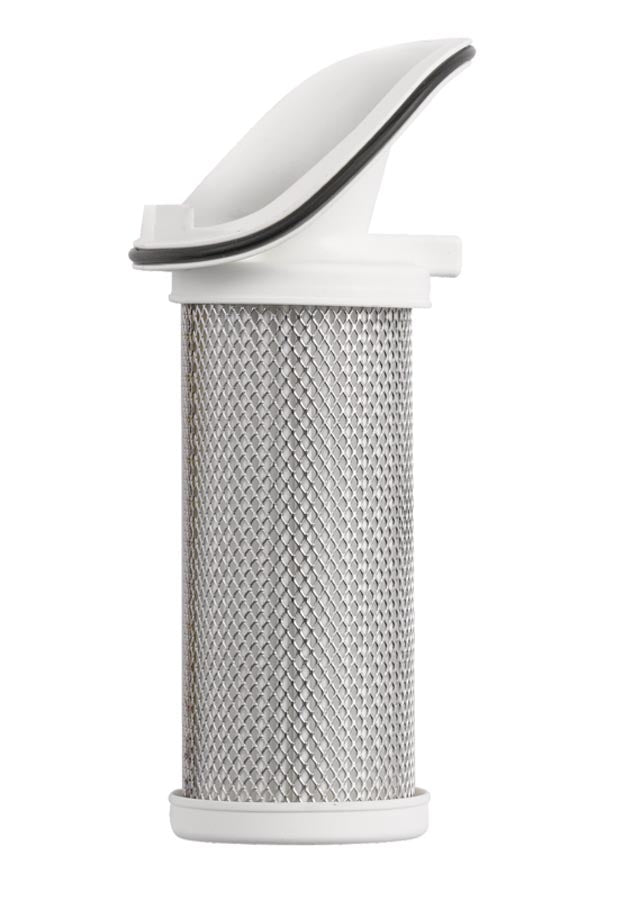

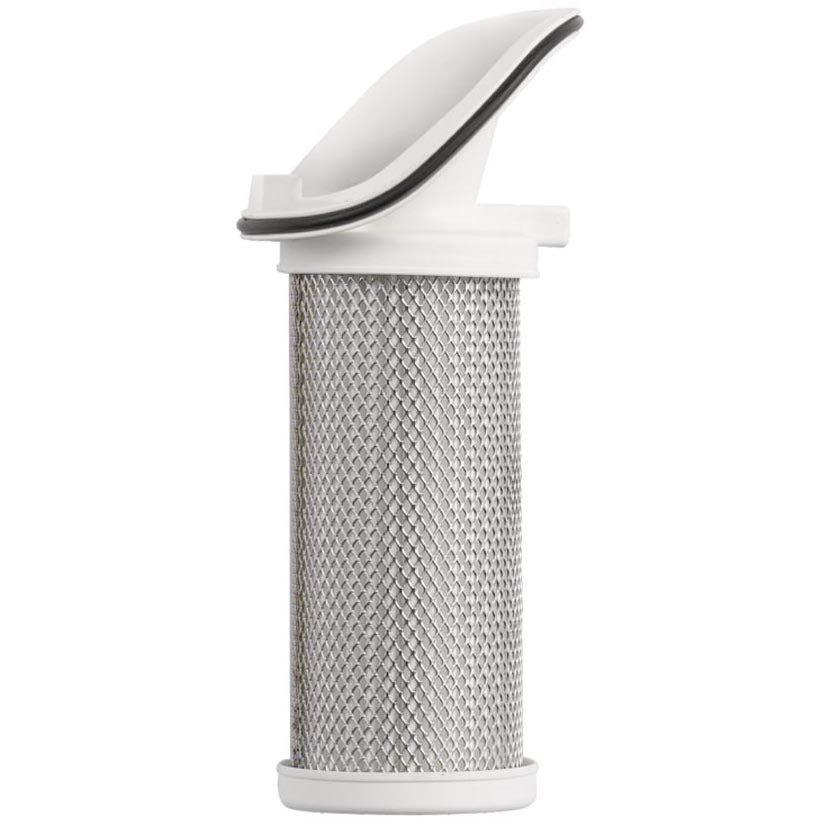

• Replacement elements and bowls for your existing housings
• Options tailored to shop air, production lines, automation, paint and finishing, and more

Where particulate filters belong in your system

Particulate removal air filters should be used anywhere you need clean, reliable compressed air:

• After the compressor and aftercooler, as the first cleanup stage
• Upstream of refrigerated or desiccant dryers to keep them from loading with debris
• Before regulators feeding paint guns, cnc machinery, robotics, and instrumentation
• At point-of-use drops for high-value air tools and sensitive equipment

If you are pushing compressed air through anything that matters to your operation, a properly sized particulate compressed air filter is cheap insurance. This collection is built so you can choose the right micron rating, flow capacity, and brand – with a strong focus on Prevost particulate filtration – and keep your compressed air system clean, efficient, and protected.
