ABAC ABC10-2320DHP 20 HP Ironman Duplex Air Compressor - 200 Gallon Horizontal, 175 PSI, 64 CFM C2 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
2020141039
|

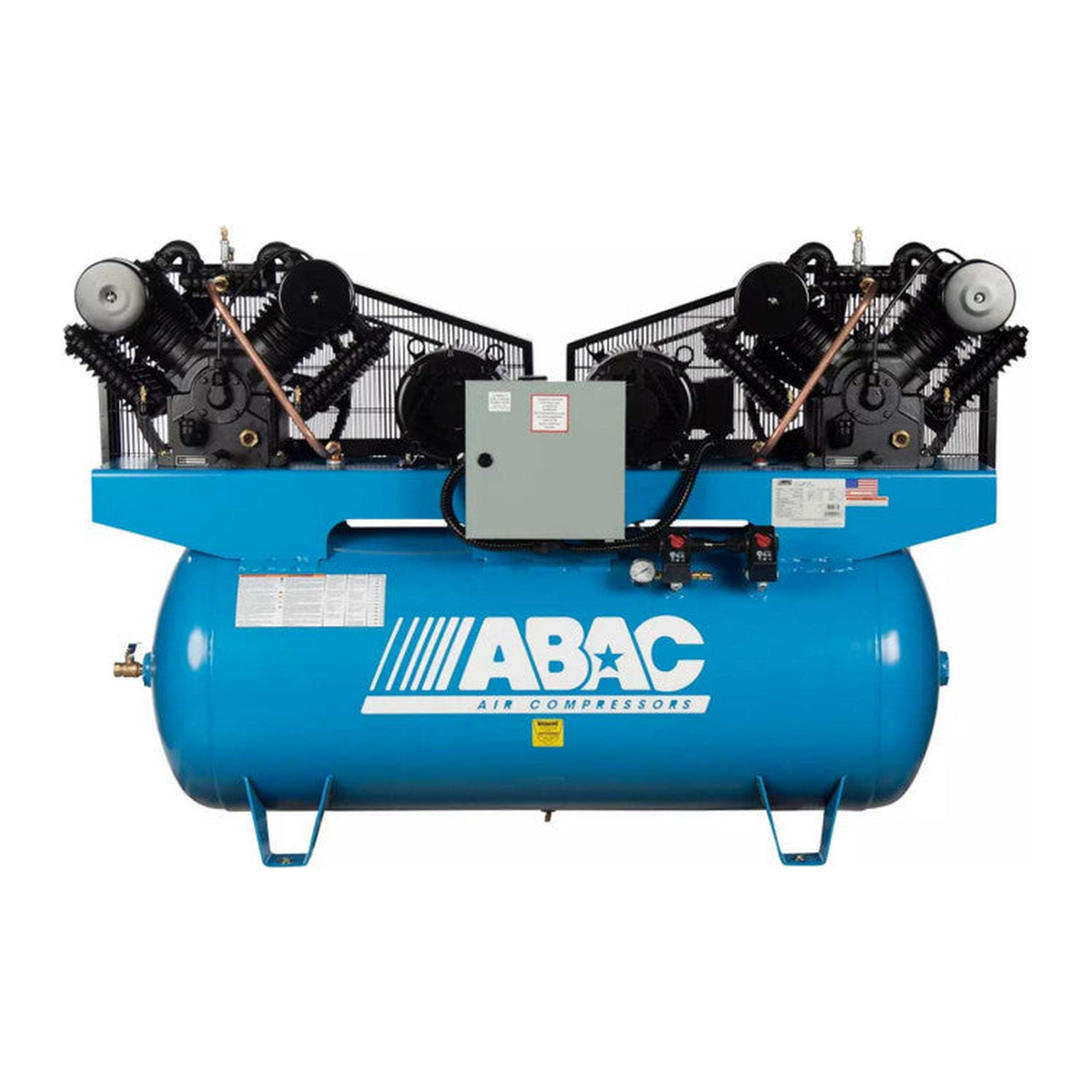

The ABAC ABC10-2320DHP Ironman duplex puts two independent 10 HP motor and pump assemblies on a single 200 gallon horizontal tank. Each side runs a C2 two-stage cast iron pump rated 32 CFM, for 64 CFM combined at a maximum 175 PSI. The larger 200 gallon receiver gives the pair more stored air to draw against, so the pumps cycle less under a swinging load. Because the two assemblies are separate, one can come down for service while the other keeps air on the line. Choose 230V three-phase (ABC10-2320DHP) or 460V three-phase (ABC10-4320DHP).
Key specifications
- Models: ABC10-2320DHP / ABC10-4320DHP
- Power: 20 HP total (2 x 10 HP)
- Pumps: two C2 two-stage pumps, cast iron cylinders
- Air delivery: 64 CFM combined (32 CFM per pump)
- Maximum pressure: 175 PSI
- Tank: 200 gallon horizontal
- Power supply: 230/3/60 or 460/3/60
- Belt drive with fully enclosed belt guards
Typical applications
Production floors, multi-bay service and collision centers, fabrication and welding shops, and fleet maintenance operations running several air tools at once, where a compressor going down stops the whole floor.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. A duplex pair delivers the output of a larger single machine while spreading run time across two pumps, which keeps each one cooler and shortens recovery under heavy demand. Pairing that with a 200 gallon receiver suits shops with high peak draw and long tool runs.
NOTE: Actual product may be different from pictured!
