Collection: Horizontal Air Compressor Tanks

A horizontal receiver takes up more floor than a vertical of the same volume, not less. An 80 gallon horizontal runs roughly five feet long. You buy one anyway because it is low, it is stable, and it bolts to things.

That is the real split between the two shapes. Low ceilings, mezzanines, truck beds, skid packages, and anywhere the tank doubles as the base for the pump and motor: horizontal. Tight floor space under a normal ceiling: vertical. Capacity and pressure rating are the same either way, typically 200 PSI ASME in shop sizes.

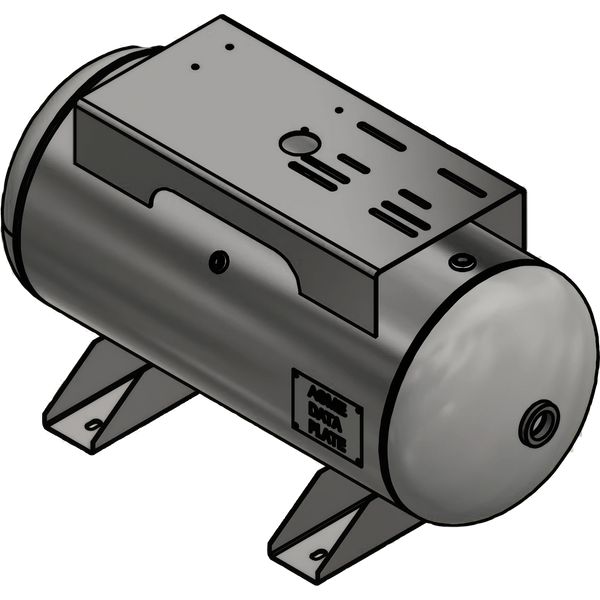

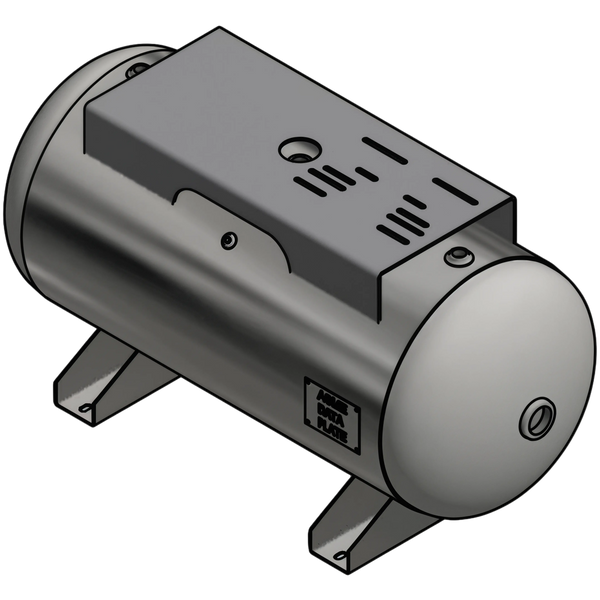

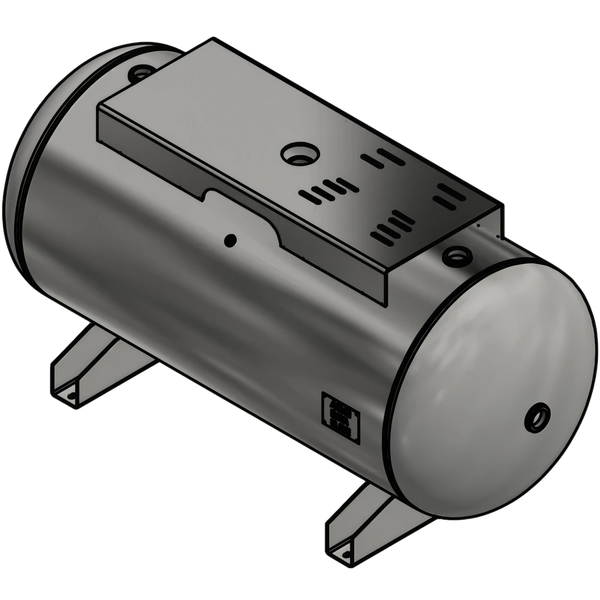

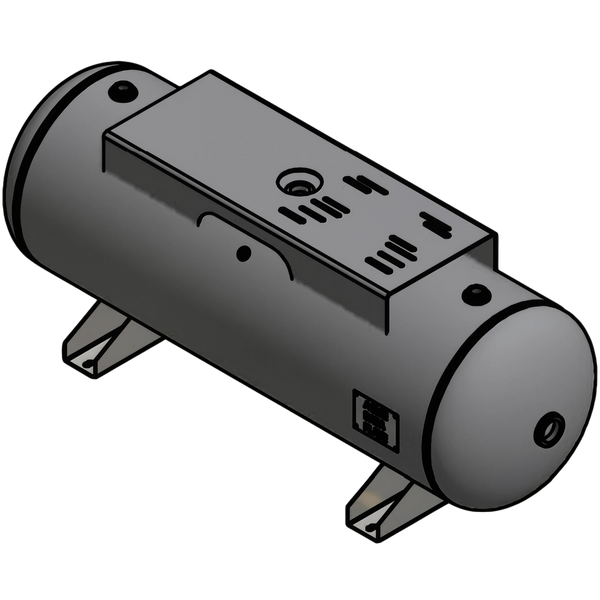

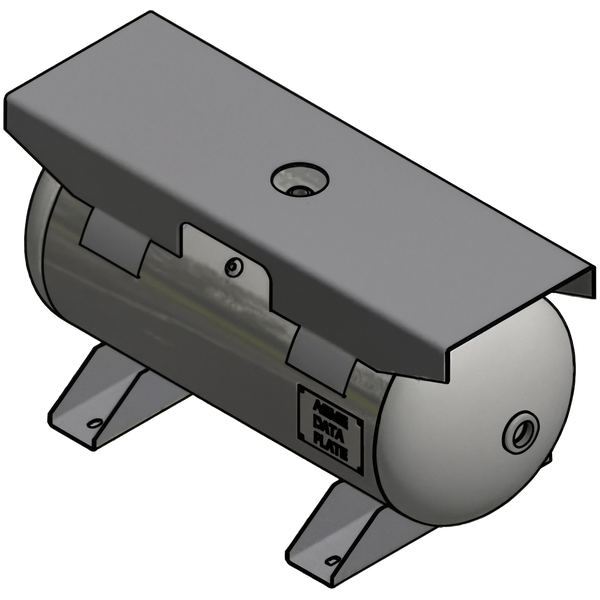

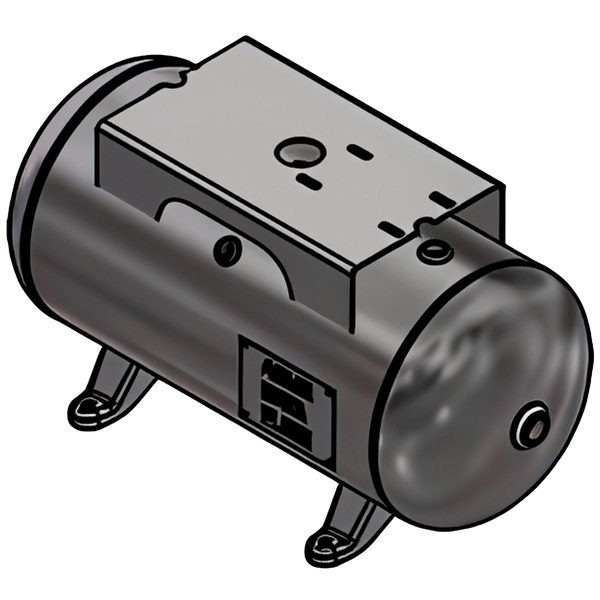

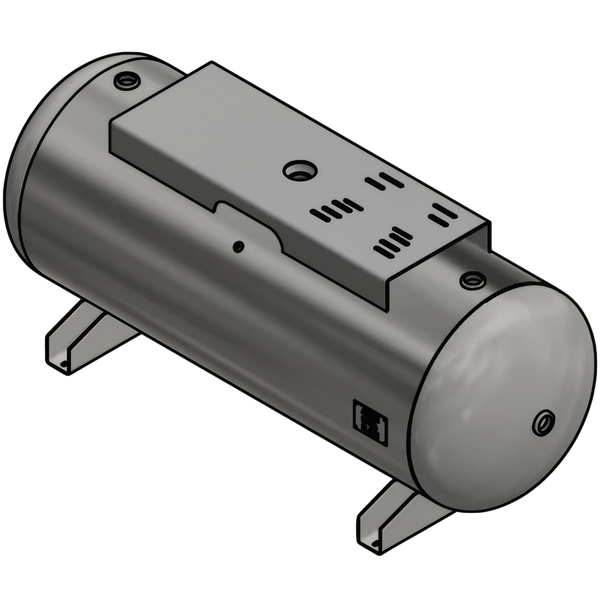

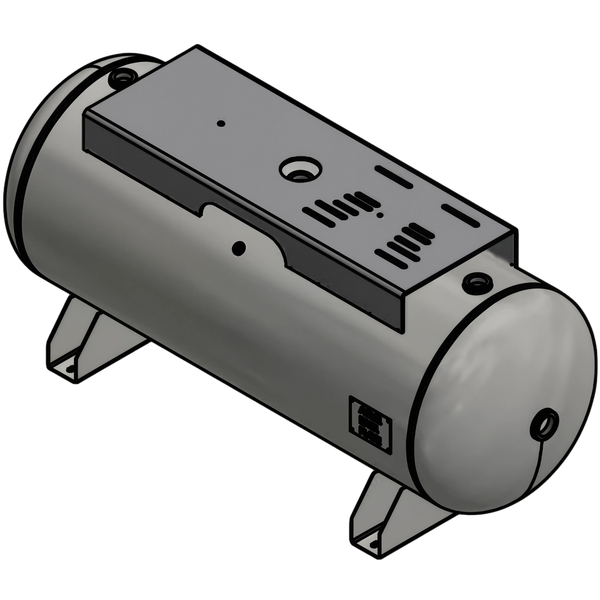

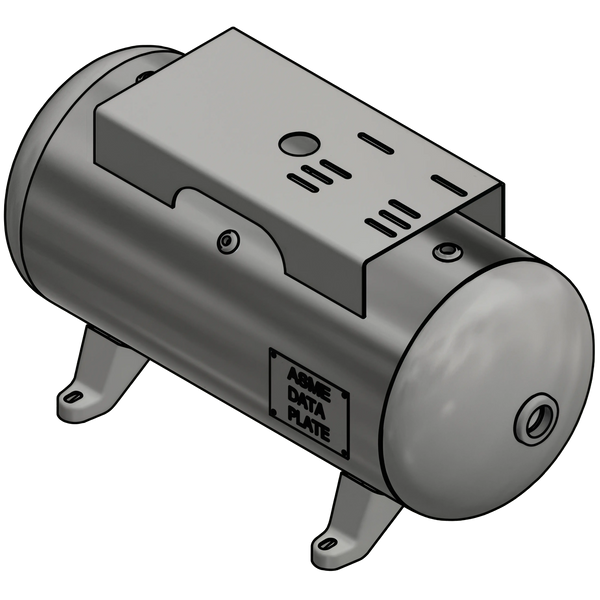

Two practical things horizontal tanks do better. The saddle feet give you a stable platform for a mounted pump and motor without anchoring to a slab, which is what makes them the default on service trucks and rental skids. And the drain port sits at one end at floor level where a person can actually get to it, which is more than can be said for most vertical installs.

Figure about 4 gallons of receiver per CFM for a piston compressor, more if one tool takes a big bite at once. The storage sizing article has the detail. The mistake worth naming is buying storage to make an undersized compressor keep up. A tank buys you minutes, not CFM. If your 5 HP machine already runs continuously to feed a sander, a bigger tank lets it hold pressure slightly longer and then runs the pump hot for longer. Storage fixes short cycling and peak draws. It does not fix undersized. If you are still deciding on orientation, the full air compressor tank range is here.
