Collection: Compressed Air Tanks With Top Plates

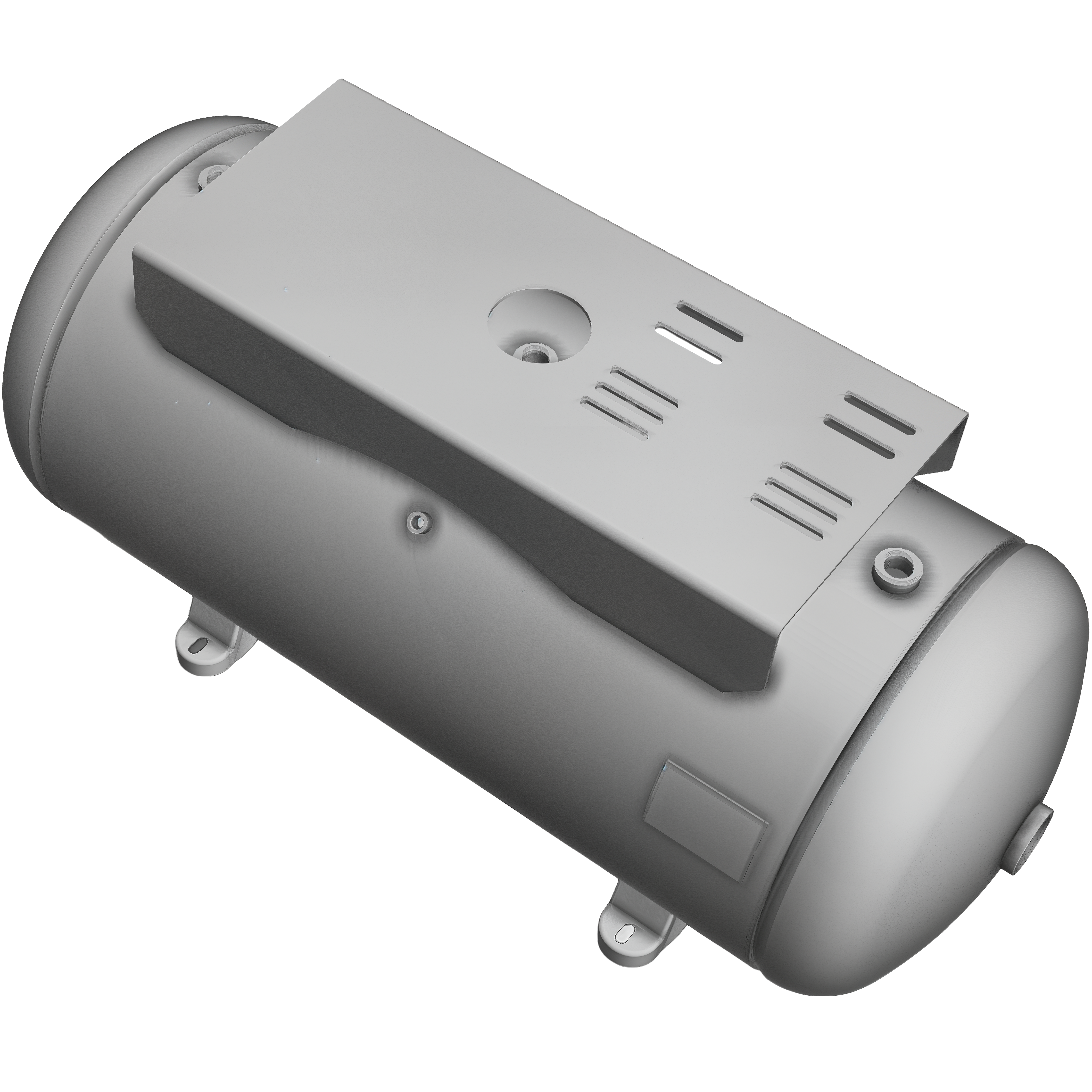

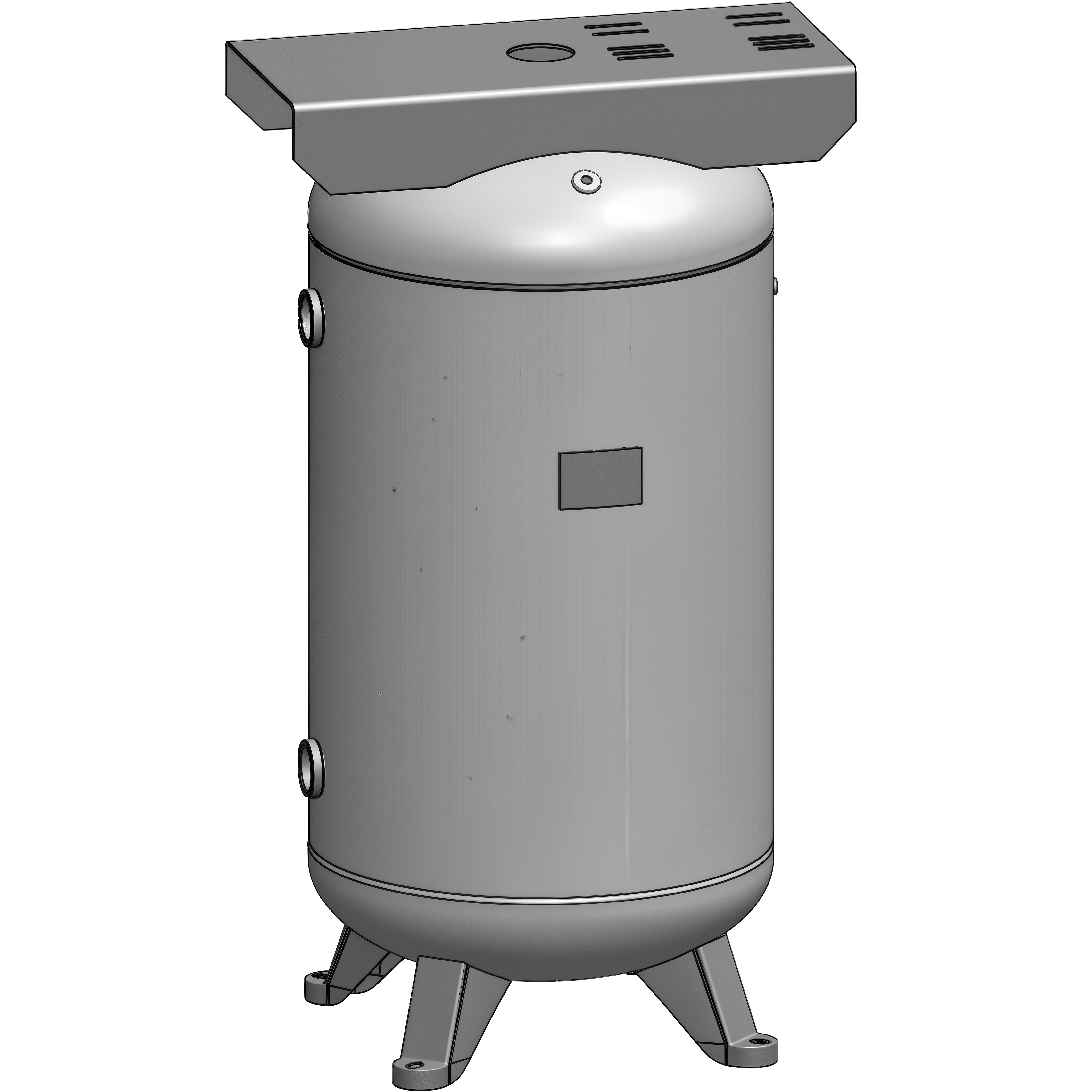

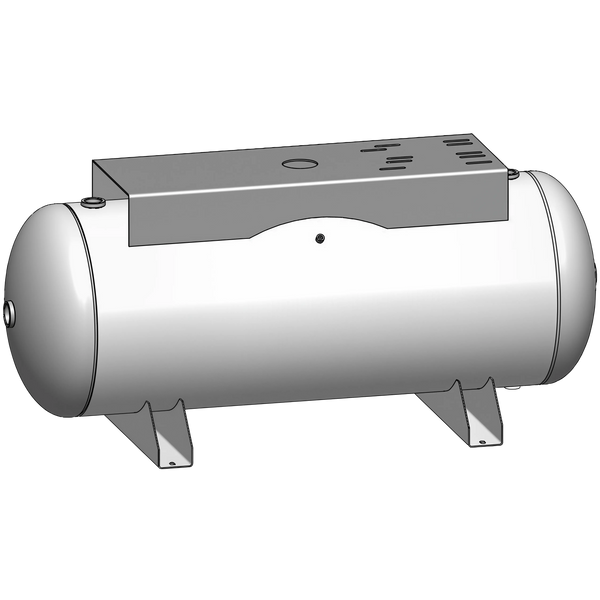

A top plate is a steel platform welded to the receiver so the pump and electric motor bolt straight to the tank instead of to a separate base. On a typical 80 gallon build that saves 4 to 6 square feet of floor, and it keeps the pump flywheel and the motor sheave in line because both are fixed to the same rigid structure.

Most plates are slotted rather than drilled. The slots let you slide the motor fore and aft to set belt tension, which should deflect about 1/2 inch at the midpoint of the span under moderate thumb pressure. Too loose and the belts slip and glaze. Too tight and you side load the motor and pump bearings and they fail early.

Measure before you order

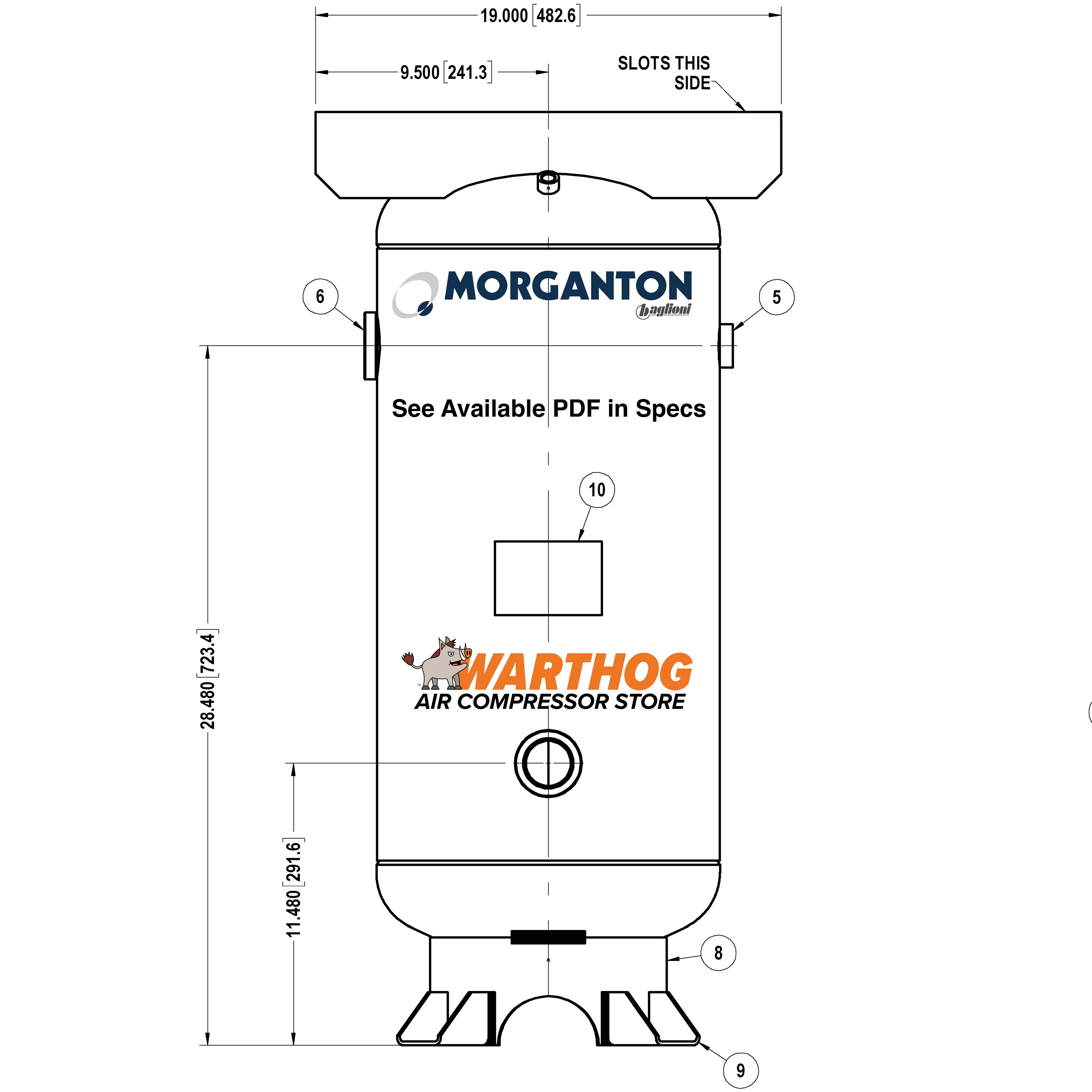

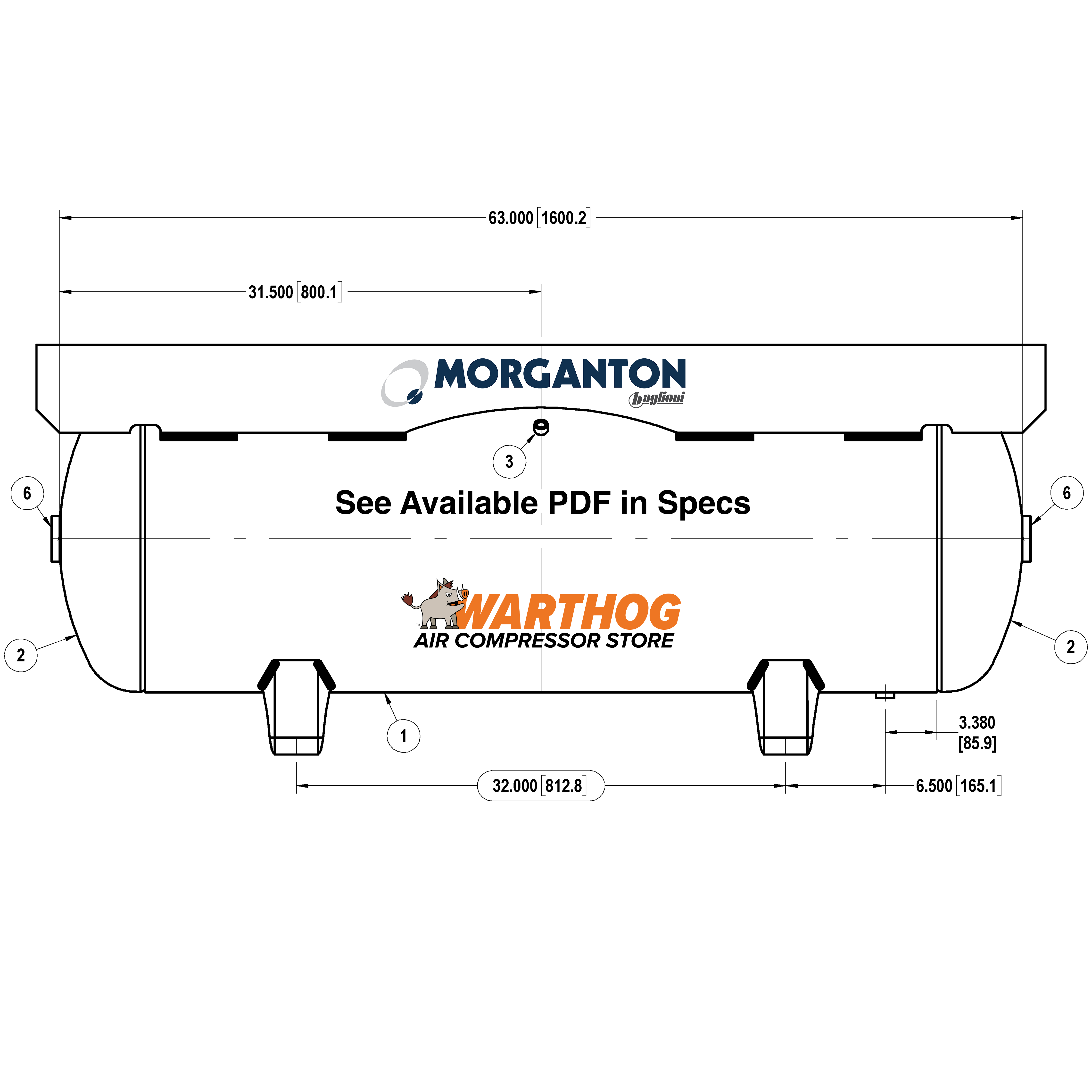

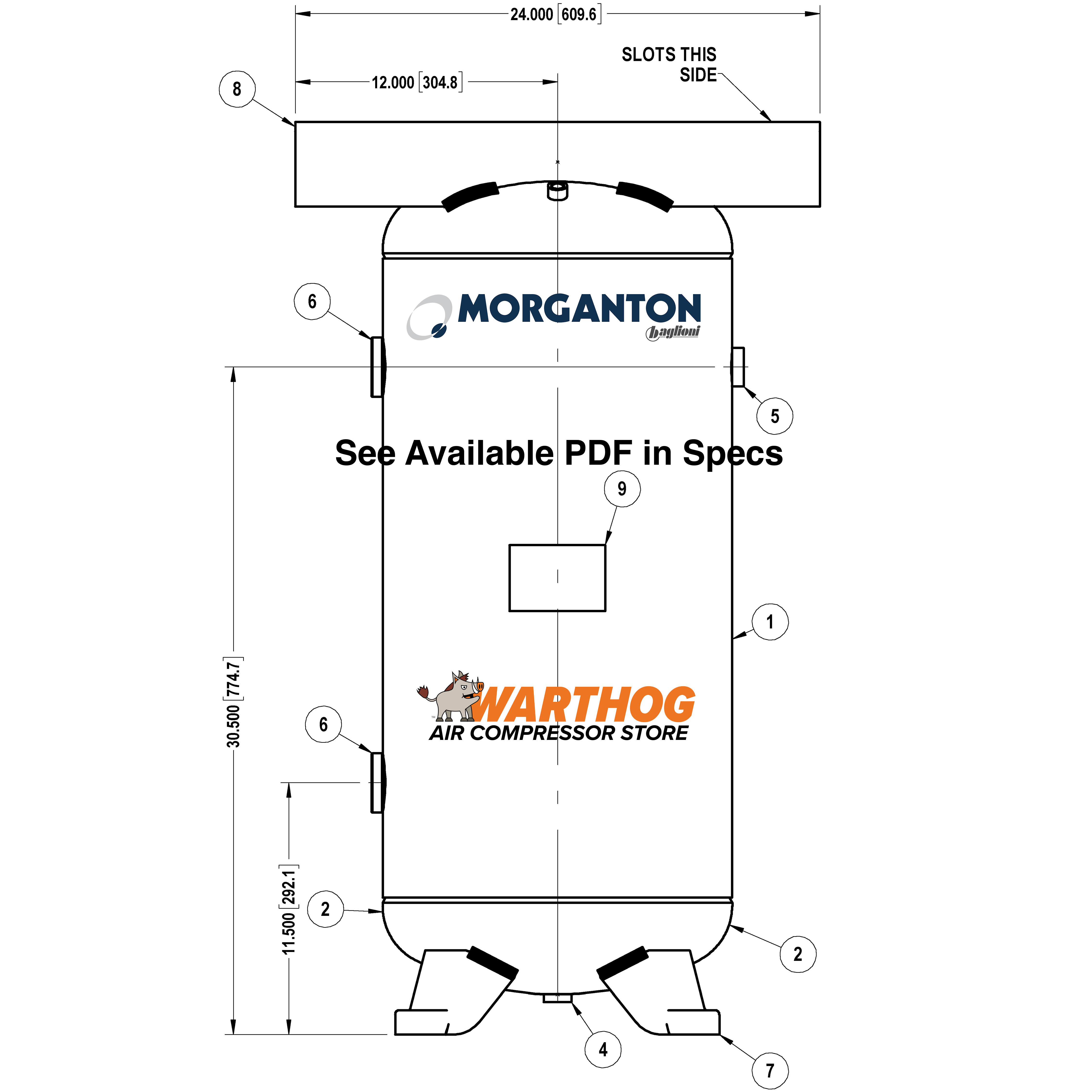

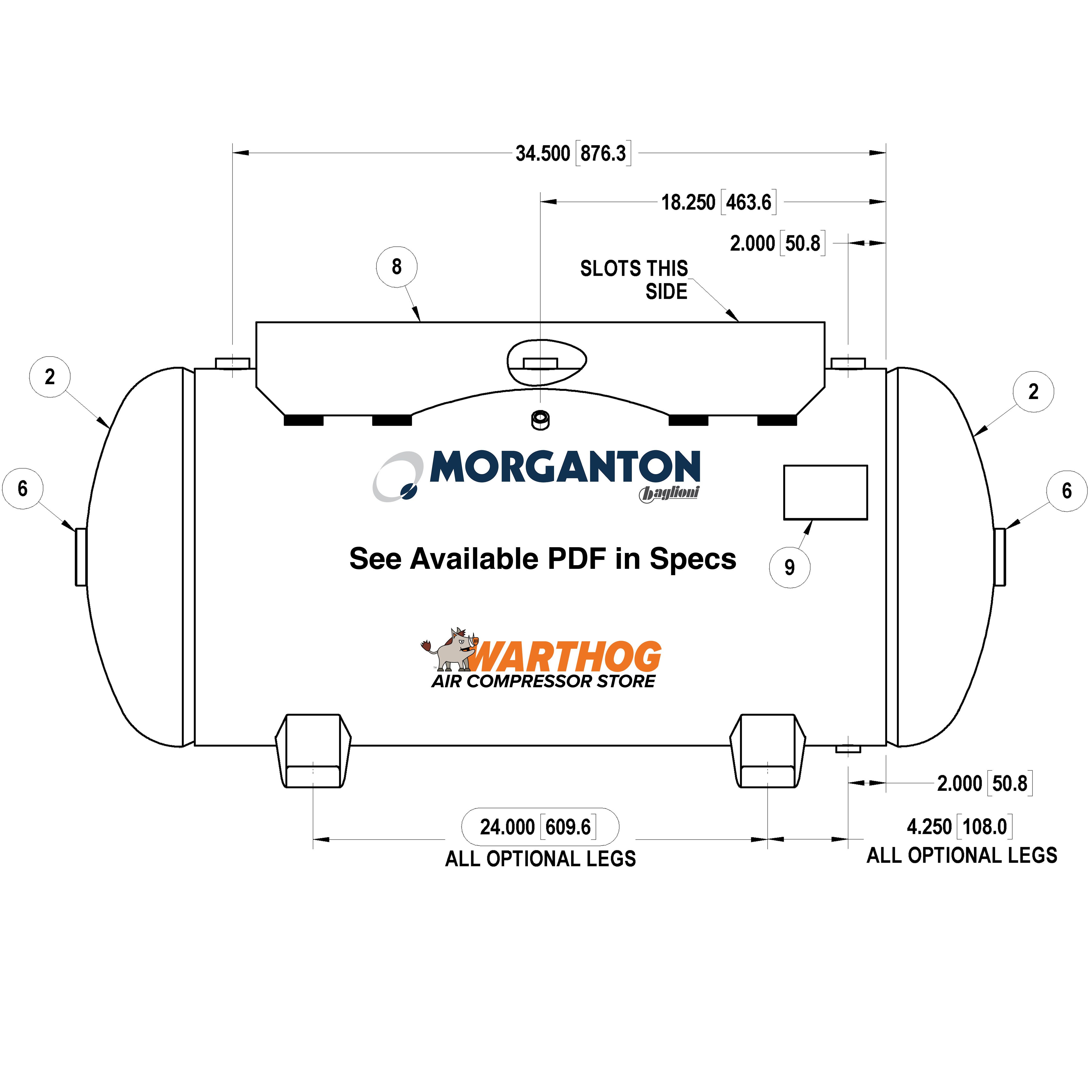

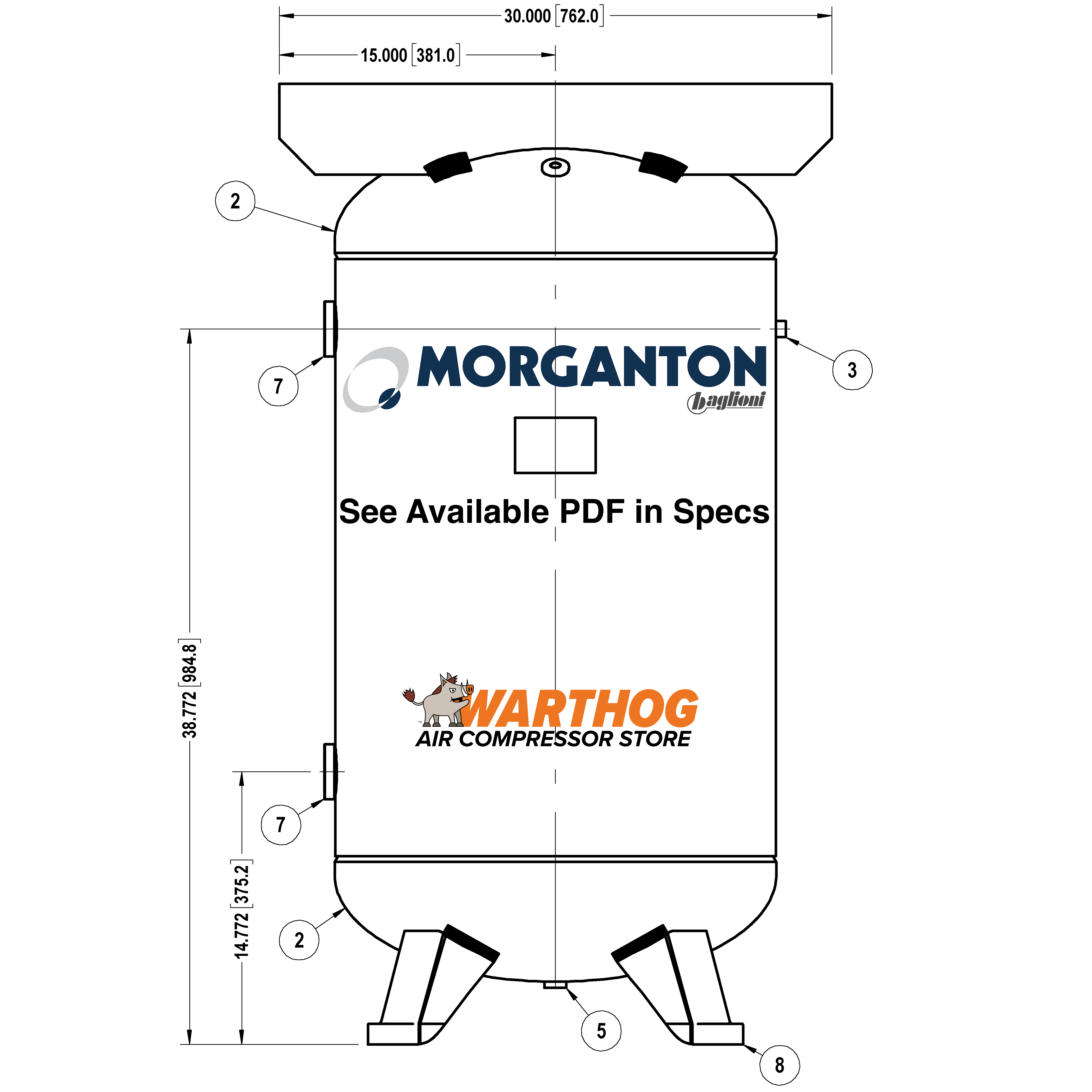

Check gallon capacity, working pressure (most shop receivers are 200 PSI ASME), port sizes and locations, and the plate dimensions against your pump and motor footprint. A 5 HP two stage pump with a 184T frame motor needs far more plate than a 3 HP single stage on a 56 frame, and the slot spacing has to clear both bolt patterns. Measure the old plate instead of assuming the new one matches.

The mistake we see is ordering a tank to match the old one without looking at the pump. A two stage 5 HP pump makes about 17 CFM at 175 PSI and wants 60 to 80 gallons behind it. Undersized storage makes the pump cycle constantly, which runs the head hot and shortens valve life.

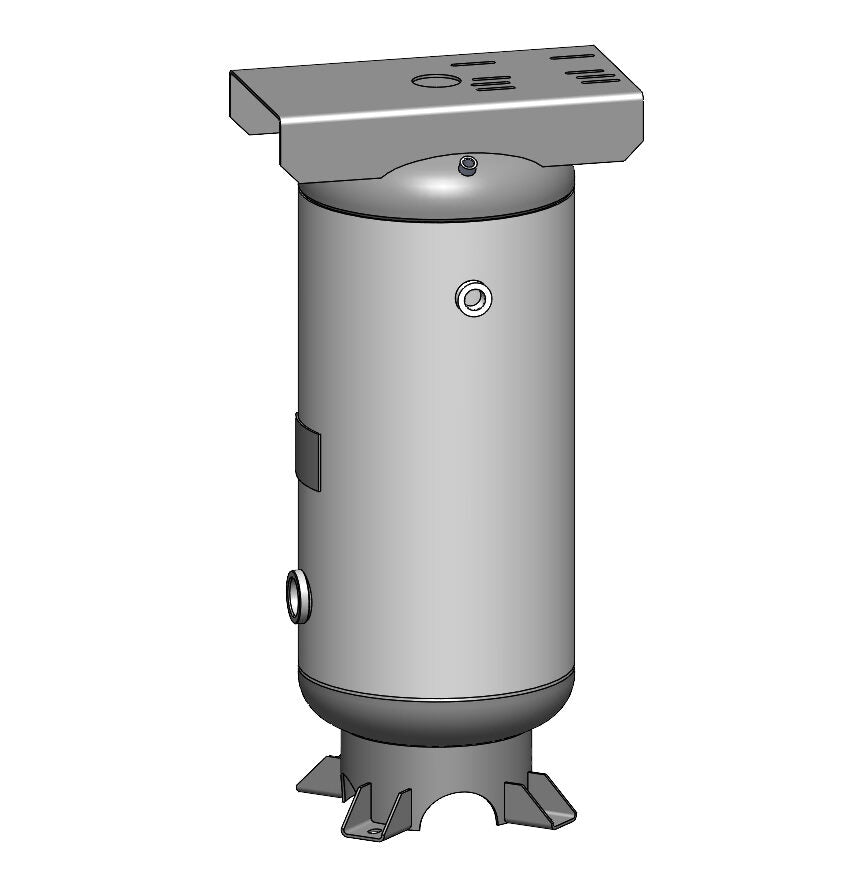

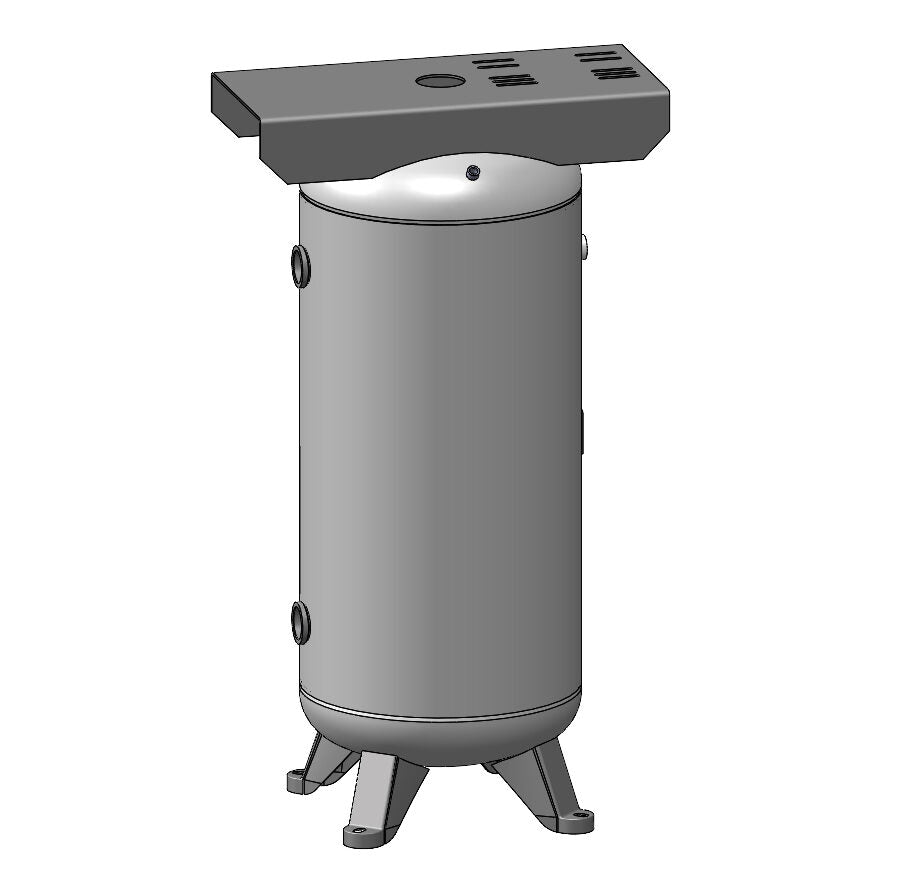

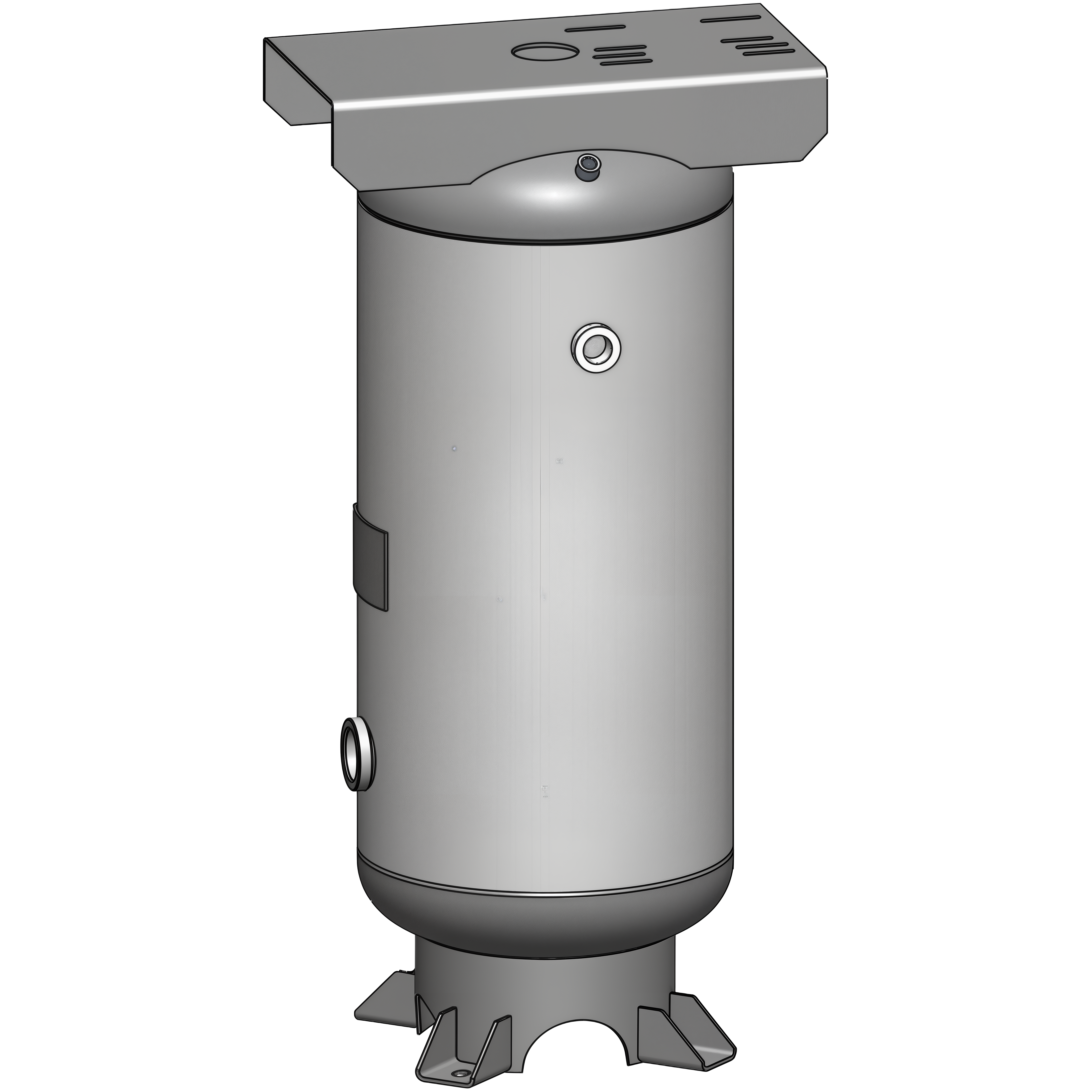

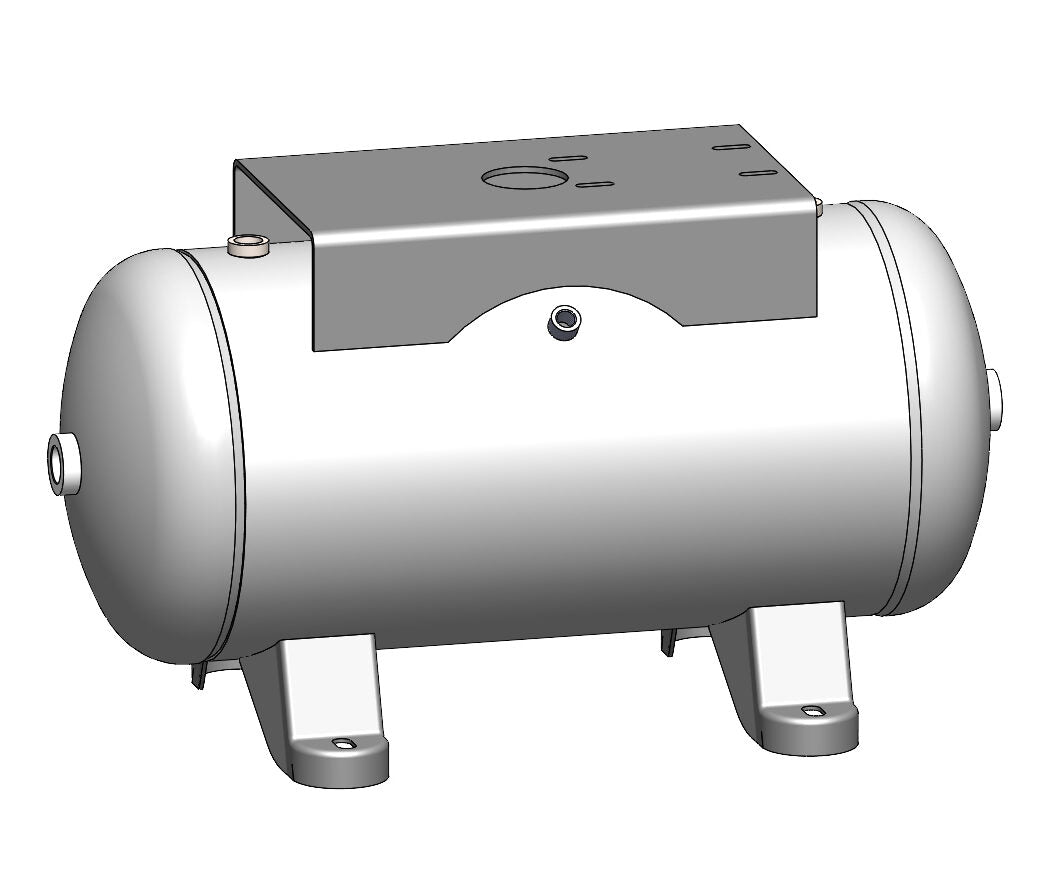

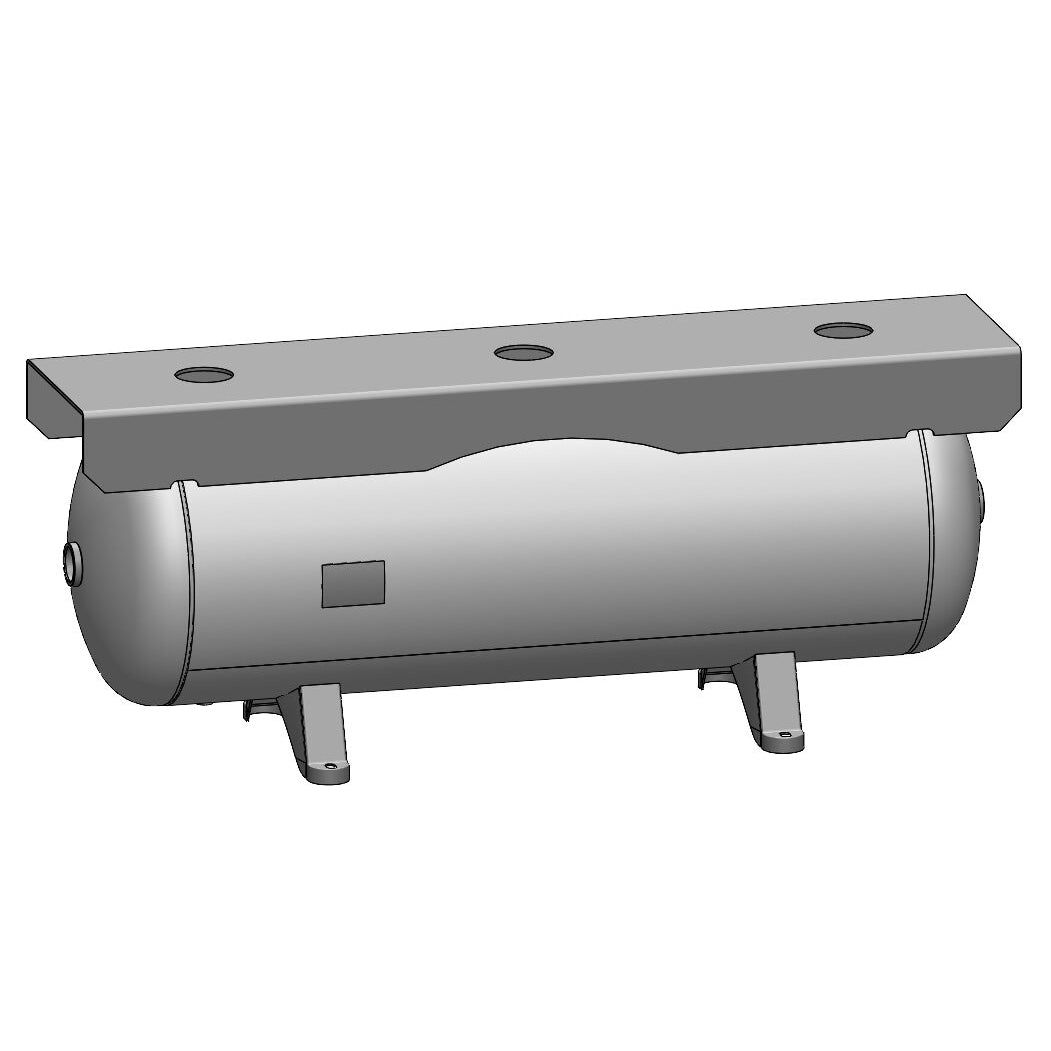

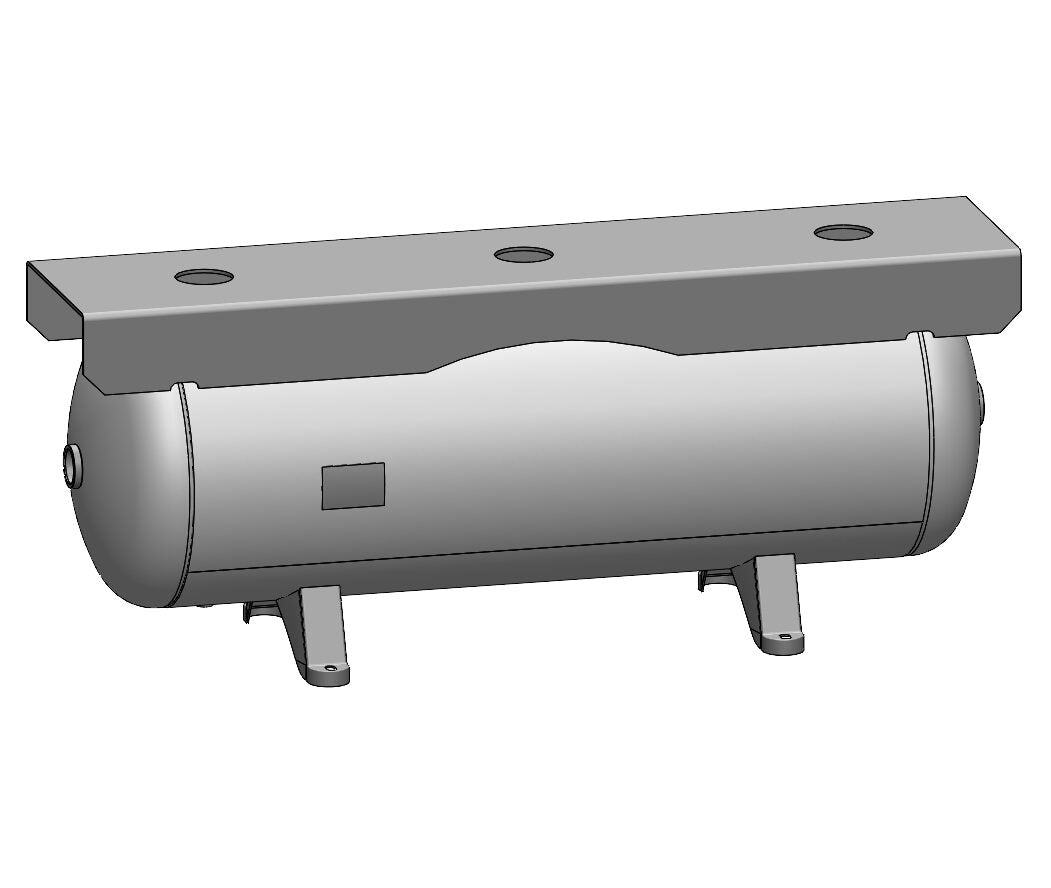

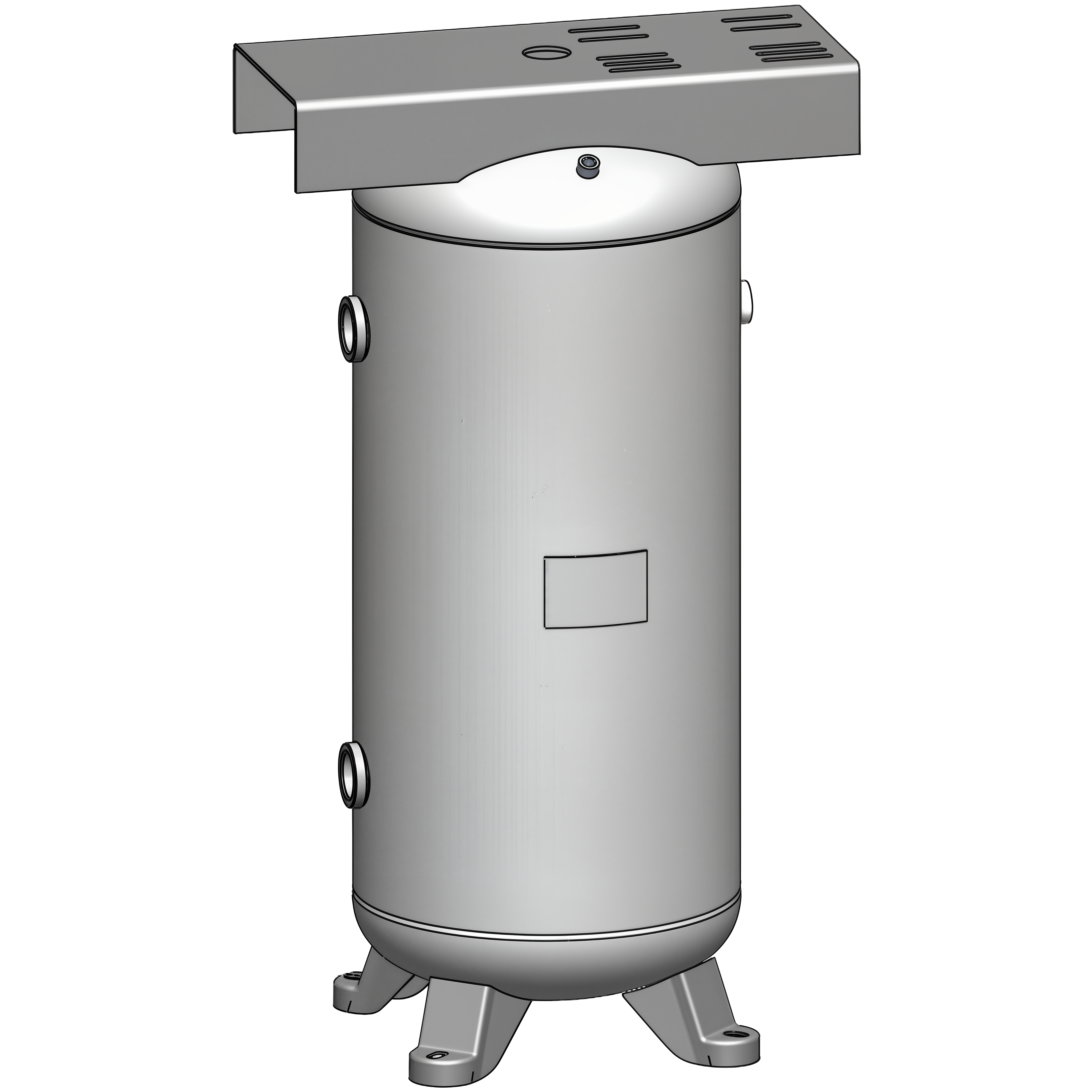

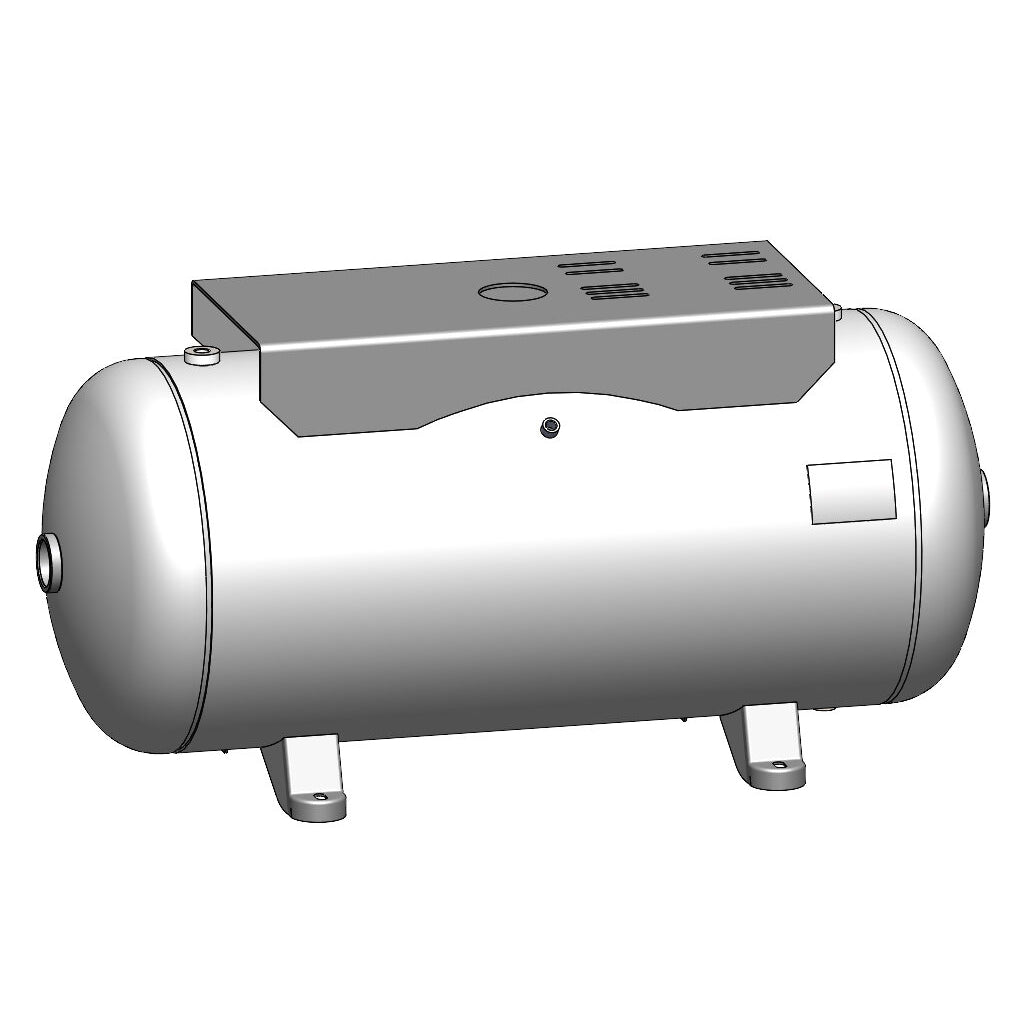

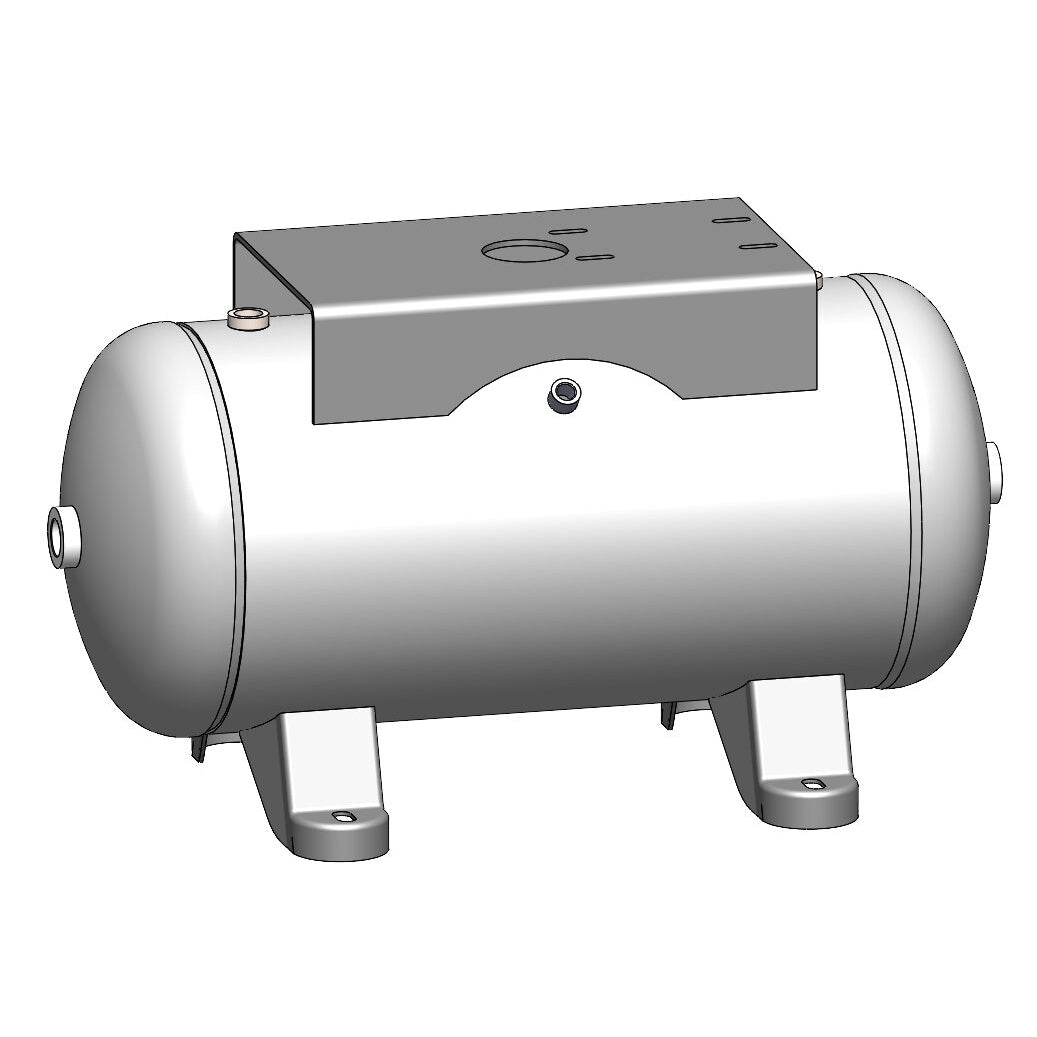

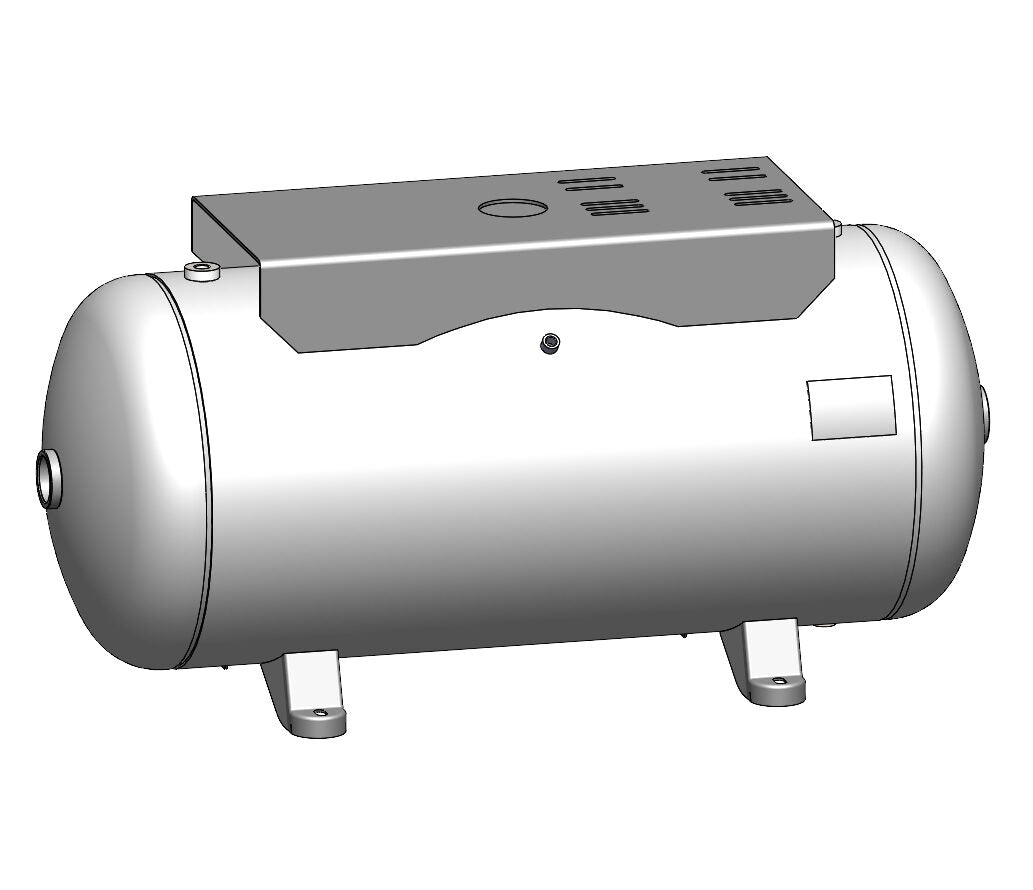

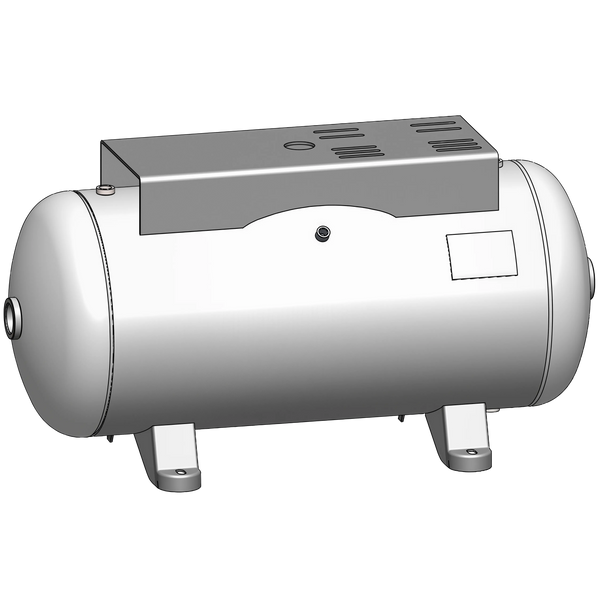

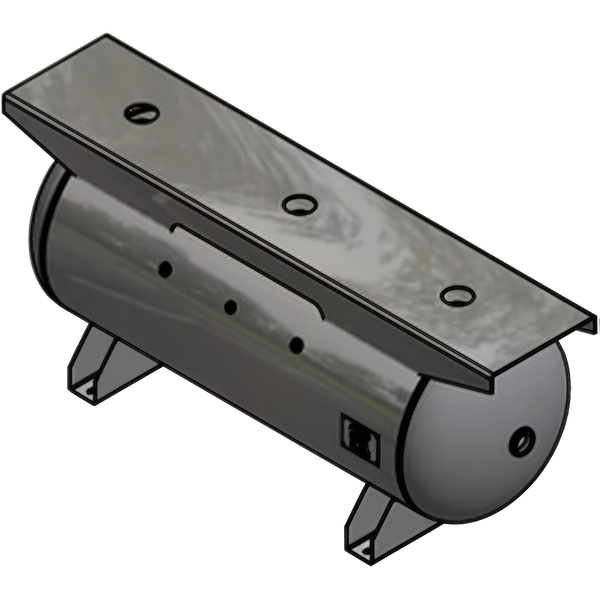

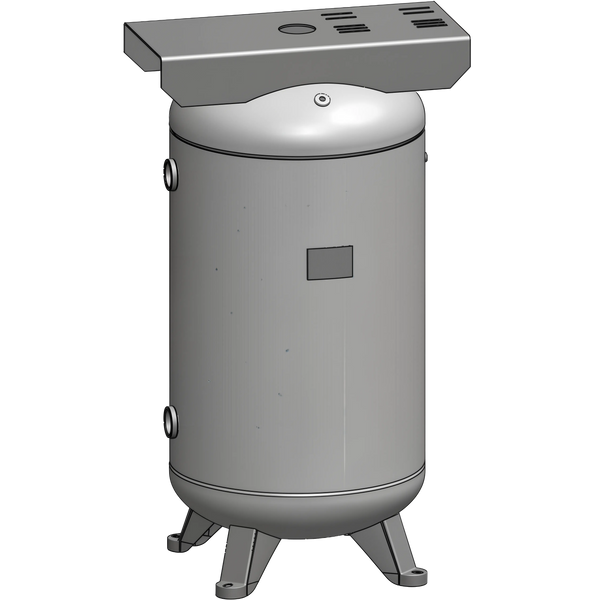

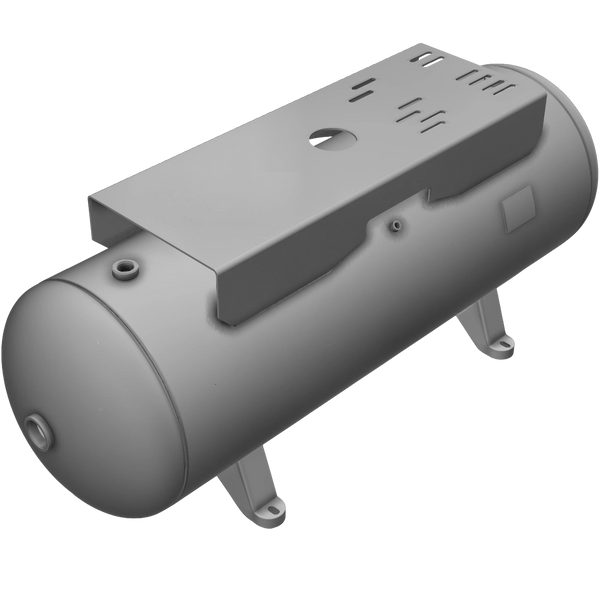

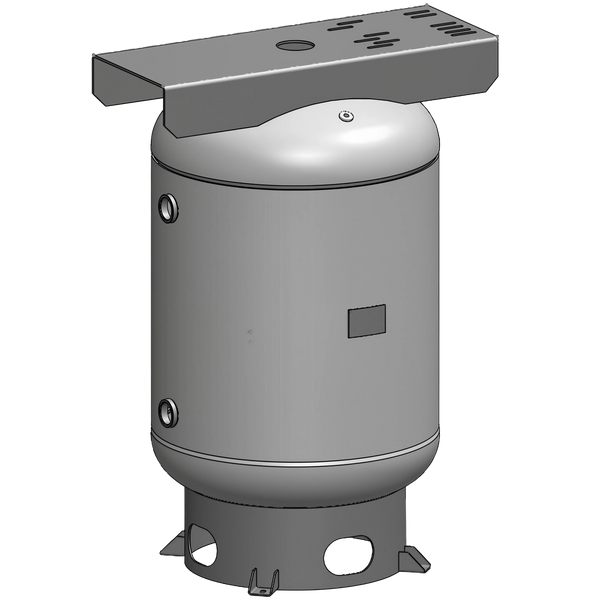

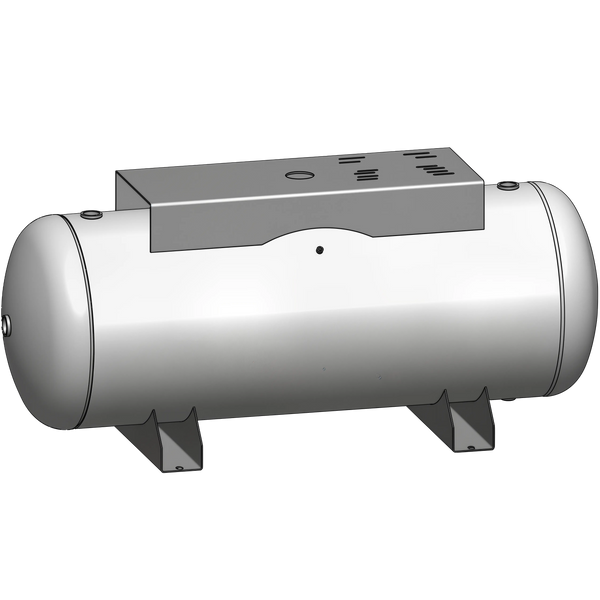

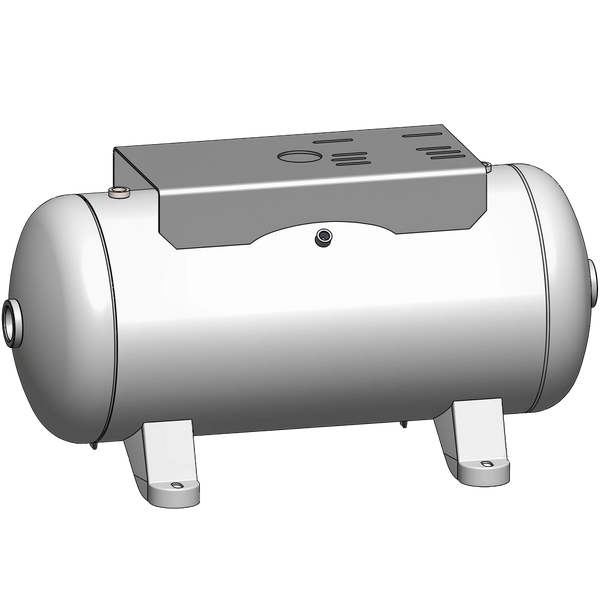

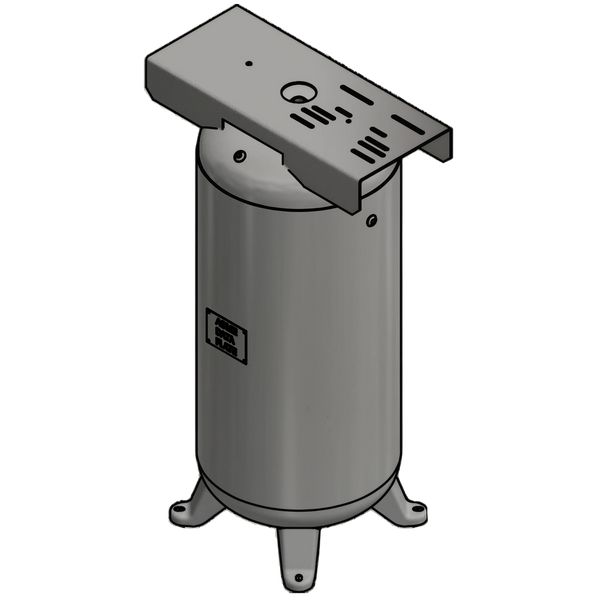

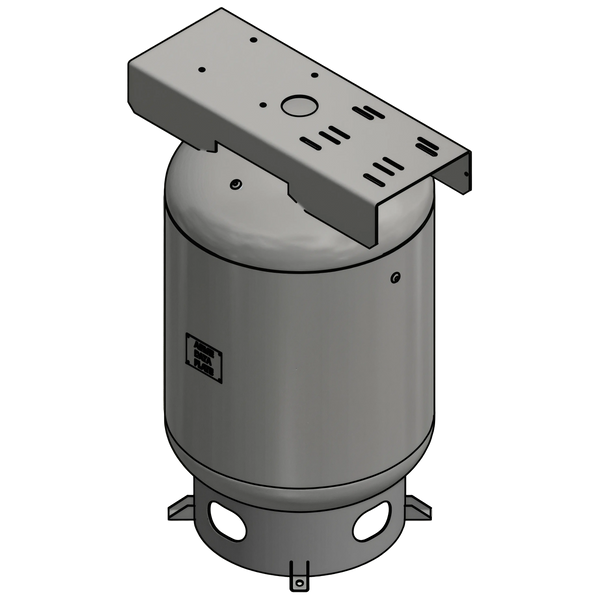

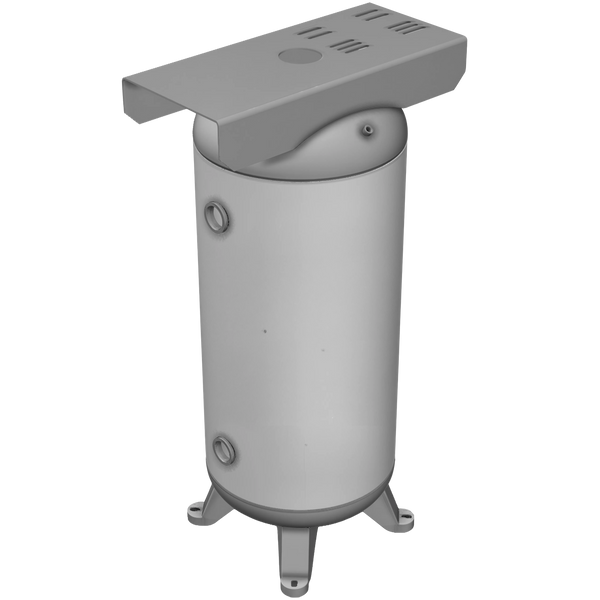

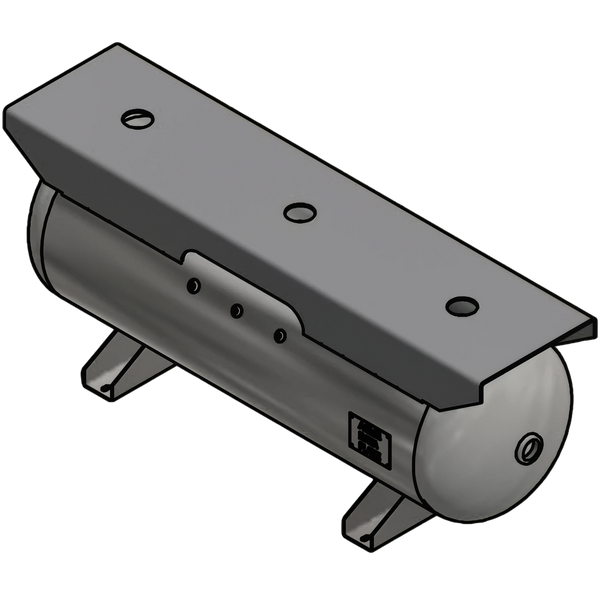

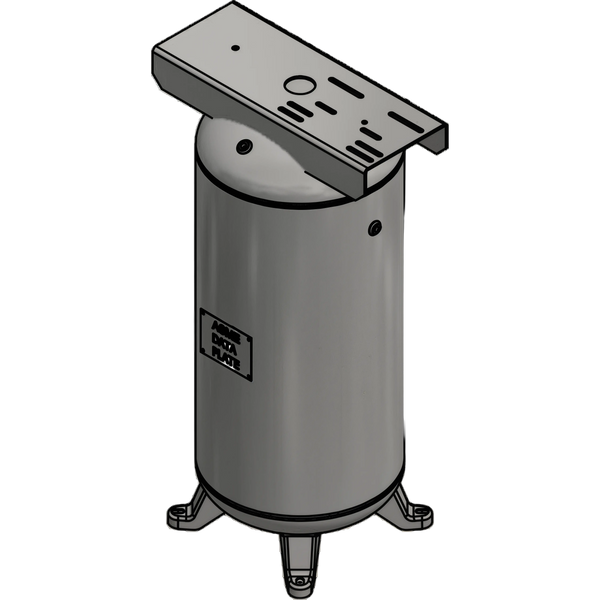

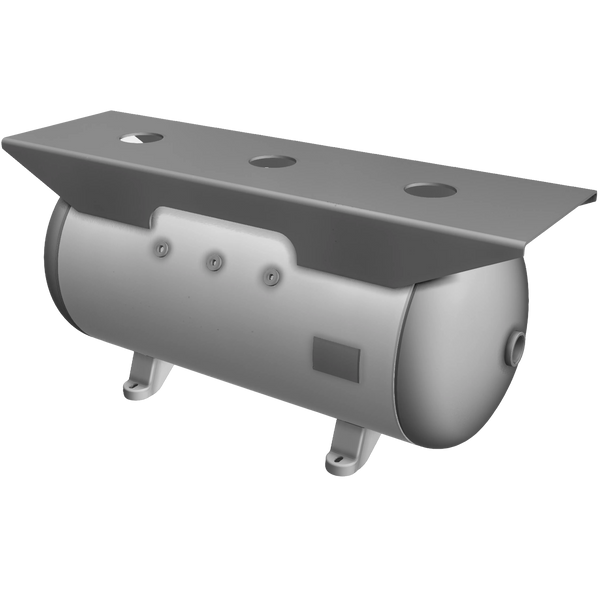

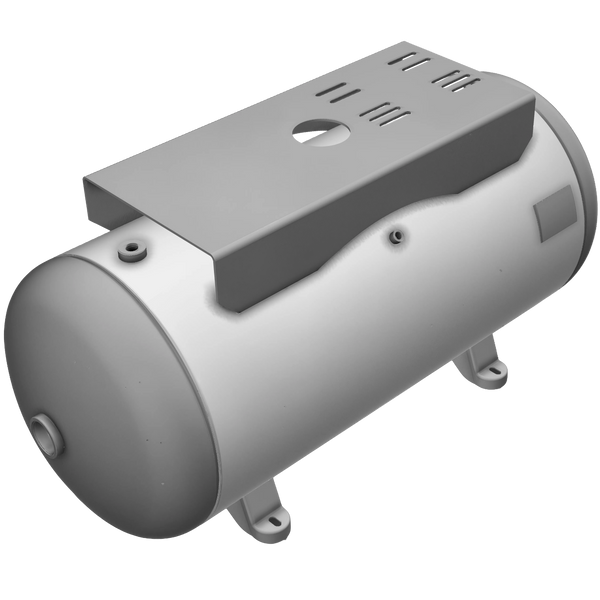

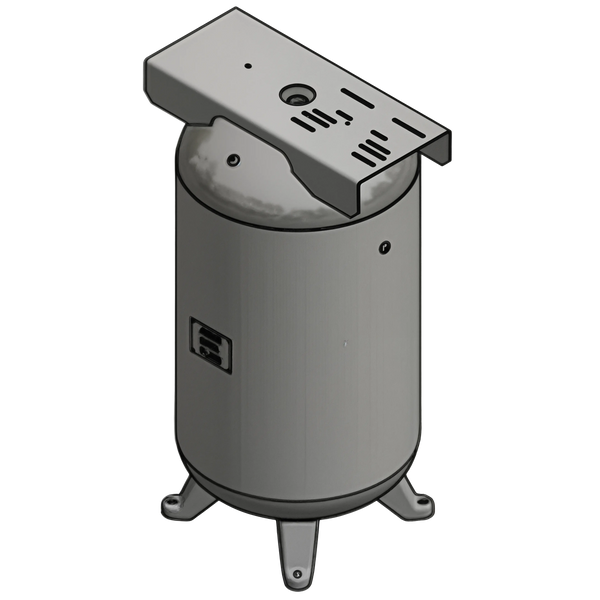

Vertical tanks save floor space. Horizontal tanks sit lower and are easier to service under a low ceiling, but a horizontal receiver takes up more floor than a vertical of the same volume, not less. Both work for simplex and duplex reciprocating compressor builds.
