Collection: ABAC Horizontal Tank Air Compressors

A horizontal tank lays the receiver on its side, so the machine sits low and wide instead of tall. Where a vertical unit needs headroom and a bolted-down corner, a horizontal one slides under a mezzanine, rides in a service truck bed, or lives in a bay with a low ceiling. Airflow and pressure do not change with orientation, so this is a siting decision rather than a performance one.

What is in this range

ABAC builds horizontal machines from 30 to 200 gallons and 7.5 to 20 HP, all rated at 175 PSI:

  • 30 gallon gas drive: the AB13-30GH on the hybrid T39 pump, and the Ironman ABC11-30GH, ABC13-30GH, ABC14-30GK and ABC16-30GV on fully cast iron pumps, 22 to 32 CFM behind Honda, Kohler and Vanguard engines. No shore power needed, which is why they go on service trucks and remote job sites.
  • 80 gallon two-stage: the AB7-2180HS and the premium AB7-2180HFF, 7.5 HP on the hybrid T39 pump, 22.2 CFM.

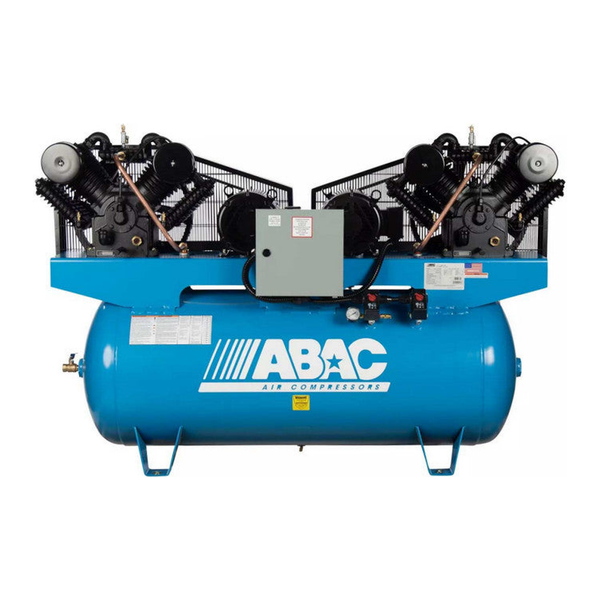

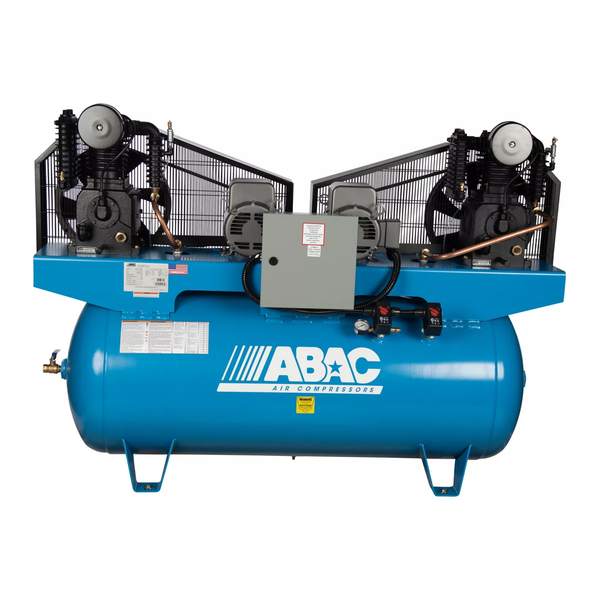

  • 120 gallon Ironman: the largest group here. Simplex ABC10 machines at 32 CFM on a C2 cast iron pump, plus duplex ABC5, ABC7 and ABC10 pairs from 32 to 64 CFM.
  • 200 gallon duplex: the 20 HP ABC10-23200HD and ABC10-2320DHP, 64 CFM on C2 cast iron pumps, with alternating control so the two pumps share the hours.

Why buyers choose duplex

More than half of this range is duplex: two pumps and two motors on one receiver, alternating so each runs about half the time. A duplex machine covers a peak that a single pump cannot, keeps producing air when one side is down for service, and starts in smaller electrical steps than one large motor. If the shop runs air all day and cannot afford a stoppage, that redundancy is usually worth more than the extra CFM. See the full set in ABAC duplex air compressors.

Sizing and setup

Size on the CFM your tools draw at once, plus roughly 30 percent of headroom, then check the panel: the electric machines here are set to 230V, 460V or 575V three-phase at build, and the gas drive units need no panel at all. If the air feeds paint, plasma or tires, pair the compressor with a dryer from the ABAC COOL range. For the same sizes standing on end, see ABAC vertical tank air compressors, or browse the full brand in ABAC air compressors. ABAC is part of the Atlas Copco group.
