ABAC ABC5-21120HD 10 HP Ironman Duplex Air Compressor - 120 Gallon Horizontal, 175 PSI, 32 CFM C1 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
8090303721
|

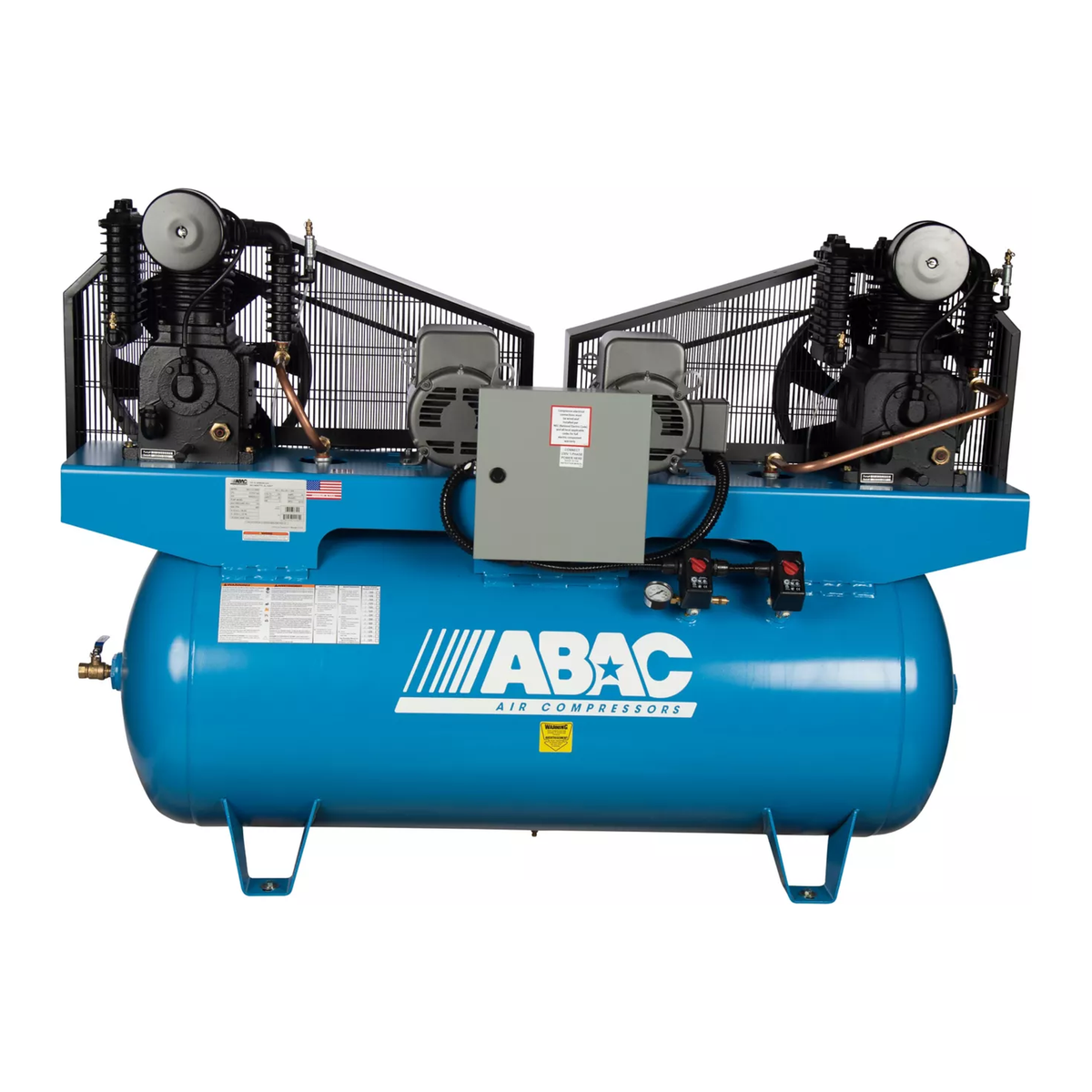

The ABAC ABC5 Ironman duplex mounts two independent 5 HP motor and pump assemblies on a single 120 gallon horizontal ASME tank. Each side runs a C1 two-stage cast iron pump rated 16 CFM, for 32 CFM combined at a maximum 175 PSI. Because the two assemblies are separate, one can come down for service while the other keeps air on the line, which is the reason most shops step up to a duplex in the first place. Choose 230V single-phase (ABC5-21120HD), 230V three-phase (ABC5-23120HD), or 460V three-phase (ABC5-43120HD).
Key specifications
- Models: ABC5-21120HD / ABC5-23120HD / ABC5-43120HD
- Power: 10 HP total (2 x 5 HP)
- Pumps: two C1 two-stage pumps, cast iron cylinders
- Air delivery: 32 CFM combined (16 CFM per pump)
- Maximum pressure: 175 PSI
- Tank: 120 gallon horizontal, ASME tank and safety valves
- Power supply: 230/1/60, 230/3/60, or 460/3/60
- Belt drive with fully enclosed belt guards
Typical applications
Production shops, multi-bay service centers, fabrication and welding bays, and fleet maintenance operations where several air tools draw at once and a compressor going down stops the whole floor.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. A duplex pair delivers the output of a larger single machine while spreading run time across two pumps, which keeps each one cooler and shortens recovery under heavy demand.
NOTE: Actual product may be different from pictured!
