ABAC ABC10-23200HD 20 HP Ironman Duplex Air Compressor - 200 Gallon Horizontal, 175 PSI, 64 CFM C2 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
8090304091
|

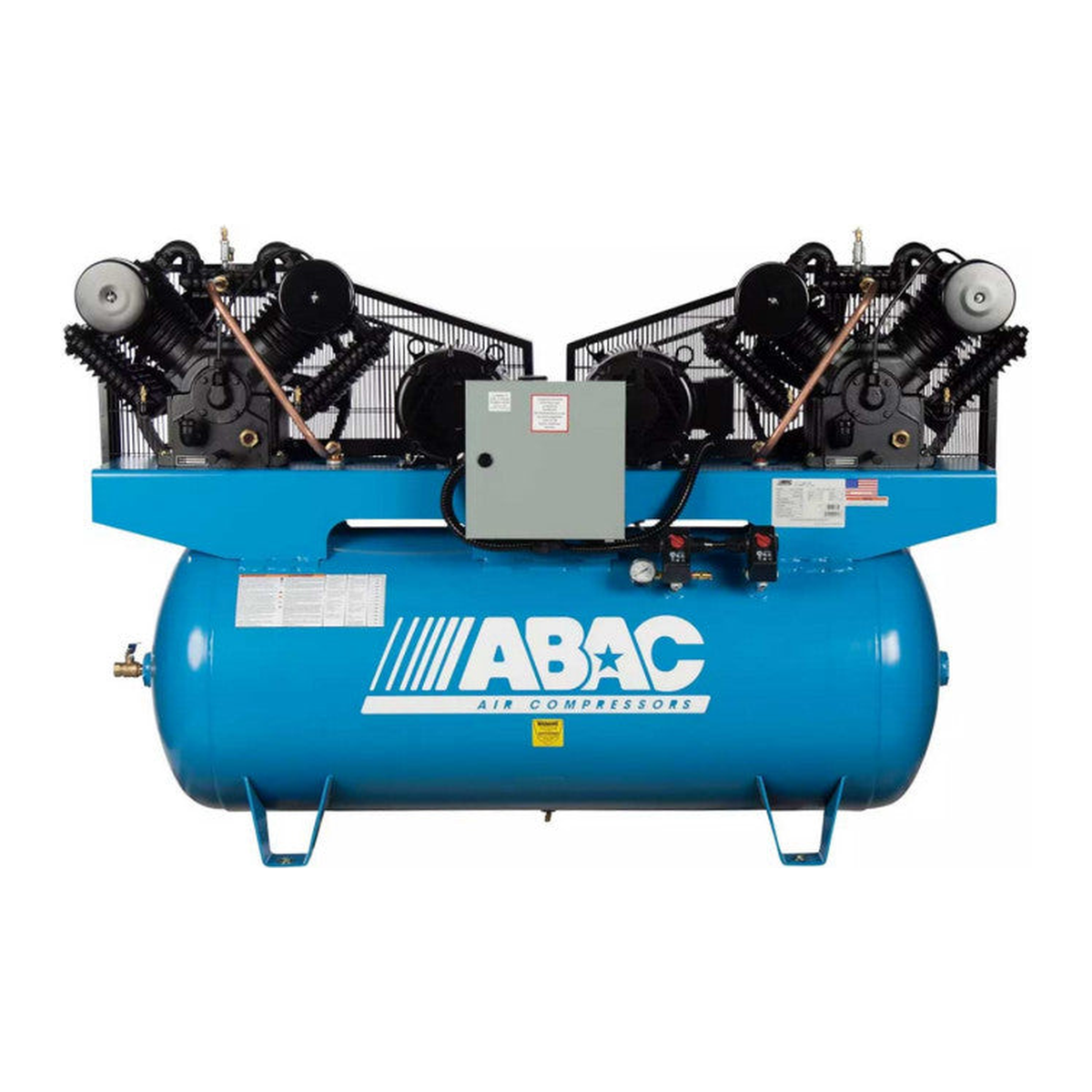

The ABAC ABC10 Ironman duplex mounts two independent 10 HP motor and pump assemblies on a single 200 gallon horizontal ASME tank. Each side runs a C2 two-stage cast iron pump rated 32 CFM, for 64 CFM combined at a maximum 175 PSI. The 200 gallon receiver is the reason to pick this one over the 120 gallon version: the extra storage rides out heavy intermittent draws so the pumps cycle less. Because the two assemblies are separate, one can come down for service while the other keeps air on the line.
Key specifications
- Models: ABC10-23200HD / ABC10-43200HD
- Power: 20 HP total (2 x 10 HP)
- Pumps: two C2 two-stage pumps, cast iron cylinders
- Air delivery: 64 CFM combined (32 CFM per pump)
- Maximum pressure: 175 PSI
- Tank: 200 gallon horizontal, ASME tank and safety valves
- Power supply: 230/3/60 or 460/3/60
- Shipping weight: 1646 lbs
- Dimensions: 25 x 80 x 50 in
- Belt drive with fully enclosed belt guards
Typical applications
Production shops, multi-bay service centers, fabrication and welding bays, and fleet maintenance operations where several air tools draw at once and a compressor going down stops the whole floor.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. A duplex pair delivers the output of a larger single machine while spreading run time across two pumps, which keeps each one cooler and shortens recovery under heavy demand. Alternating control rotates which pump leads, so wear is shared rather than concentrated on one unit.
NOTE: Actual product may be different from pictured!
