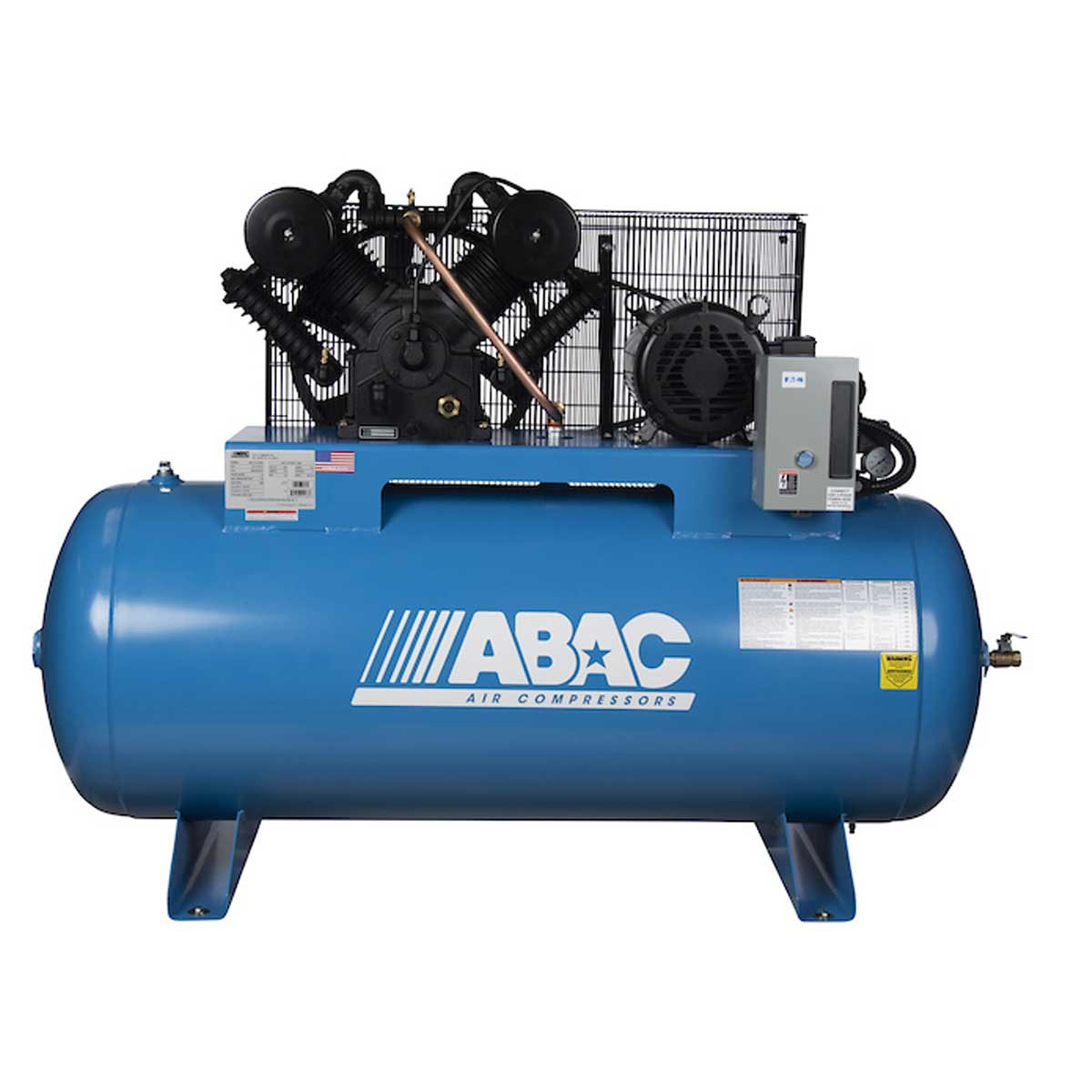

ABAC AB7-2180HFF 7.5 HP Two-Stage Air Compressor - 80 Gallon Horizontal Premium, 175 PSI, 22.2 CFM T39 Pump

The ABAC AB7-2180HFF is the Full Feature build of the 80 gallon horizontal AB7 platform. The belt-driven T39 two-stage pump pairs an aluminum head and aftercooler with cast iron cylinders, so heat comes out of the air before it reaches the receiver, and the FF specification adds a pressure-actuated automatic tank drain and a low oil level switch. It delivers 22.2 CFM at a maximum 175 PSI on a low-profile tank that fits under benches, mezzanines and low ceilings where a 75 inch vertical machine will not. The same build is offered on 230V single-phase, 230V three-phase and 460V three-phase power.

Key specifications

• Models: AB7-2180HFF (230V/1, part 8090304380), AB7-2380HFF (230V/3, part 8090304430), 460V/3 horizontal Full Feature (part 8090304471)
• Full Feature additions: pressure-actuated automatic tank drain, low oil level switch
• Motor: 7.5 HP
• Pump: T39 two-stage hybrid, aluminum head and aftercooler with cast iron cylinders
• Air delivery: 22.2 CFM at max pressure
• Maximum pressure: 175 PSI
• Tank: 80 gallon horizontal, ASME tank and safety valves
• Fully enclosed belt guard
• Start/stop pressure switch control
• Weight: 413 lbs | Dimensions: 25" x 71" x 48"
• Warranty: 2 year full, assembled in the USA

How it compares

Every 80 gallon AB7 runs the same T39 pump and the same 22.2 CFM at 175 PSI, so the choice is footprint and fitted equipment rather than output. The AB7-2180HS is this same horizontal machine without the automatic drain and the oil level switch. The AB7-2180VFF is the Full Feature specification on a vertical tank, 25 x 34 x 75 in, for shops with ceiling height but tight floor space, and the AB7-2180V is the standard vertical. Where 22.2 CFM is more than the shop draws, the 5 HP AB5-2180VPFF runs 16.6 CFM in the same Full Feature trim. If a fully cast iron pump suits the duty better than the aluminum and cast iron hybrid, the Ironman ABC7-2180V delivers 21 CFM from a C1 pump.

Typical applications

Multi-bay auto repair and body shops, tire stores, welding and fabrication bays, woodworking shops and farm buildings with a height restriction: impact wrenching, grinding, orbital sanding, fastening, and air or water spraying where tools run through most of the shift. A two-stage pump recovers faster than a single-stage machine of the same horsepower, so several technicians can stay on tools without waiting on pressure, and the 80 gallon receiver keeps the pump from short cycling between tool triggers. The automatic drain and the oil level switch cover the two daily checks most often skipped where nobody is assigned to the compressor.

Installation notes

Specify the voltage and phase that matches your panel before ordering. The 230V single-phase version draws the highest current of the three and normally wants a dedicated circuit sized to the motor nameplate, while the 230V and 460V three-phase versions suit shops already running three-phase service. Allow for the 25 by 71 inch floor footprint and 48 inches of height, leave service clearance on the drain side where the discharge and tank drain sit low on a horizontal tank, and keep the intake away from paint fumes and sanding dust. Belts, filters and oil are the routine service items on this range.

A two-stage pump still pushes warm, wet air into the line, so size a refrigerated dryer above the 22.2 CFM output, such as the ABAC COOL 35, before the air reaches paint, tires or pneumatic controls. Part of ABAC's 2-Stage Hybrid Pro range from the Atlas Copco group. Browse the rest of our piston air compressors and our compressed air dryers.
