Collection: ABAC Vertical Tank Air Compressors

A vertical tank stands the receiver on end, so the machine occupies a footprint closer to a filing cabinet than a workbench. For a shop where floor space is the scarce resource, that is the whole argument: the same stored air against a wall or in a corner instead of across the middle of the bay.

What is in this range

ABAC builds vertical machines from 24 to 120 gallons and 2 to 10 HP, covering single-stage belt drive units for a home garage through to three-phase two-stage Ironman machines for a production floor:

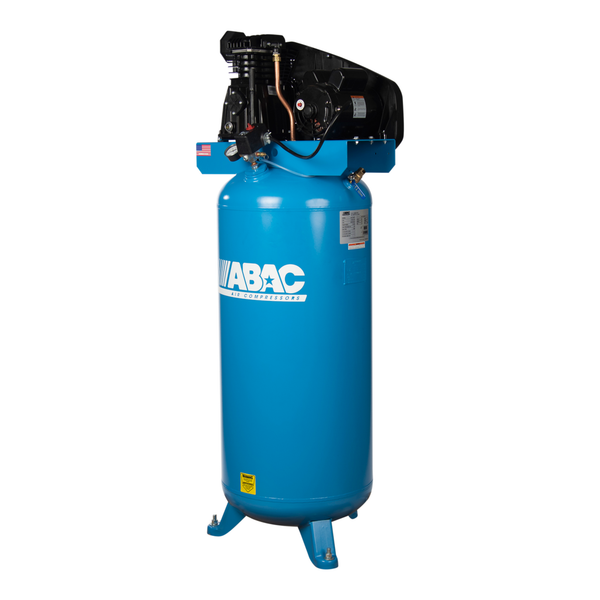

  • 24 and 60 gallon single-stage: the AB-224VP, AB2-2160V1 and AB3-2160V1, belt driven on aluminum PAT pumps, 115V or 230V single-phase. Intermittent air for tires, fastening and blow-down.

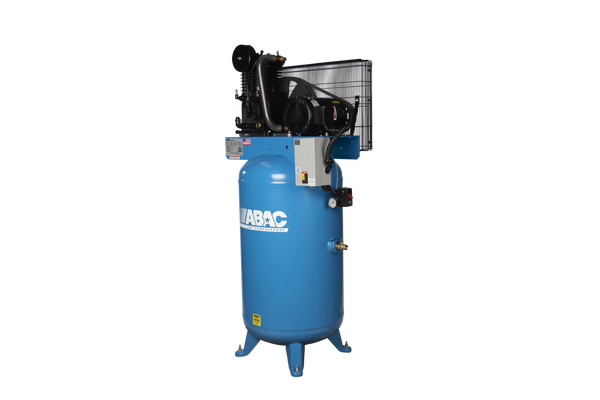

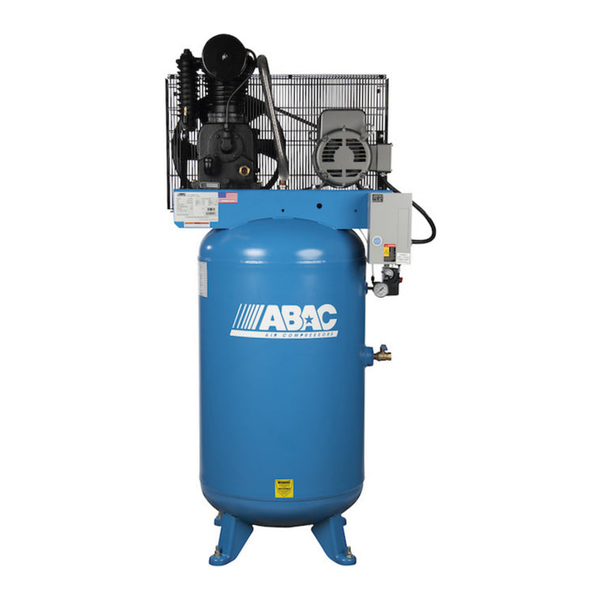

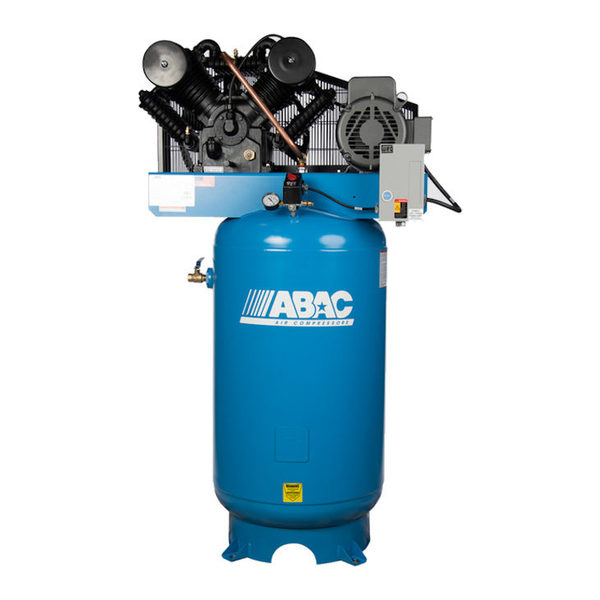

  • 80 gallon two-stage: the largest group here. AB5 and AB7 machines on the hybrid T39 pump, and ABC5 and ABC7 Ironman machines on fully cast iron C1 and C2 pumps, 14.6 to 24 CFM at 175 PSI.

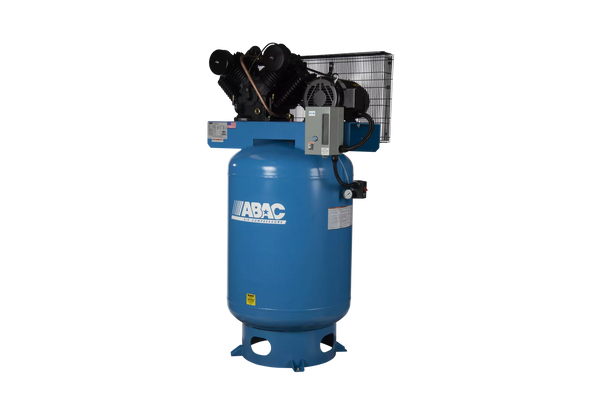

  • 120 gallon Ironman: the 10 HP ABC10 verticals, 32 CFM at 175 PSI on a C2 cast iron pump, three-phase.

Choosing between vertical and horizontal

Airflow and pressure do not change with tank orientation, so this is a siting decision, not a performance one. A vertical machine is bolted down once and stays there, and it needs headroom: an 80 gallon vertical stands around five and a half feet tall before you add clearance to pull the belt guard. A horizontal tank sits low, moves more easily, and is the better answer for a service truck or a low ceiling. Our 120 gallon and 80 gallon pages cover both orientations at those sizes.

Size on the CFM the tools draw at once, plus about 30 percent of headroom, and check the panel before ordering: the smaller machines run on 115V or 230V single-phase and the Ironman verticals are set to 230V, 460V or 575V three-phase at build. If the air feeds paint, plasma or tires, pair the compressor with a dryer from the ABAC COOL range. See the full brand in ABAC air compressors. ABAC is part of the Atlas Copco group.
