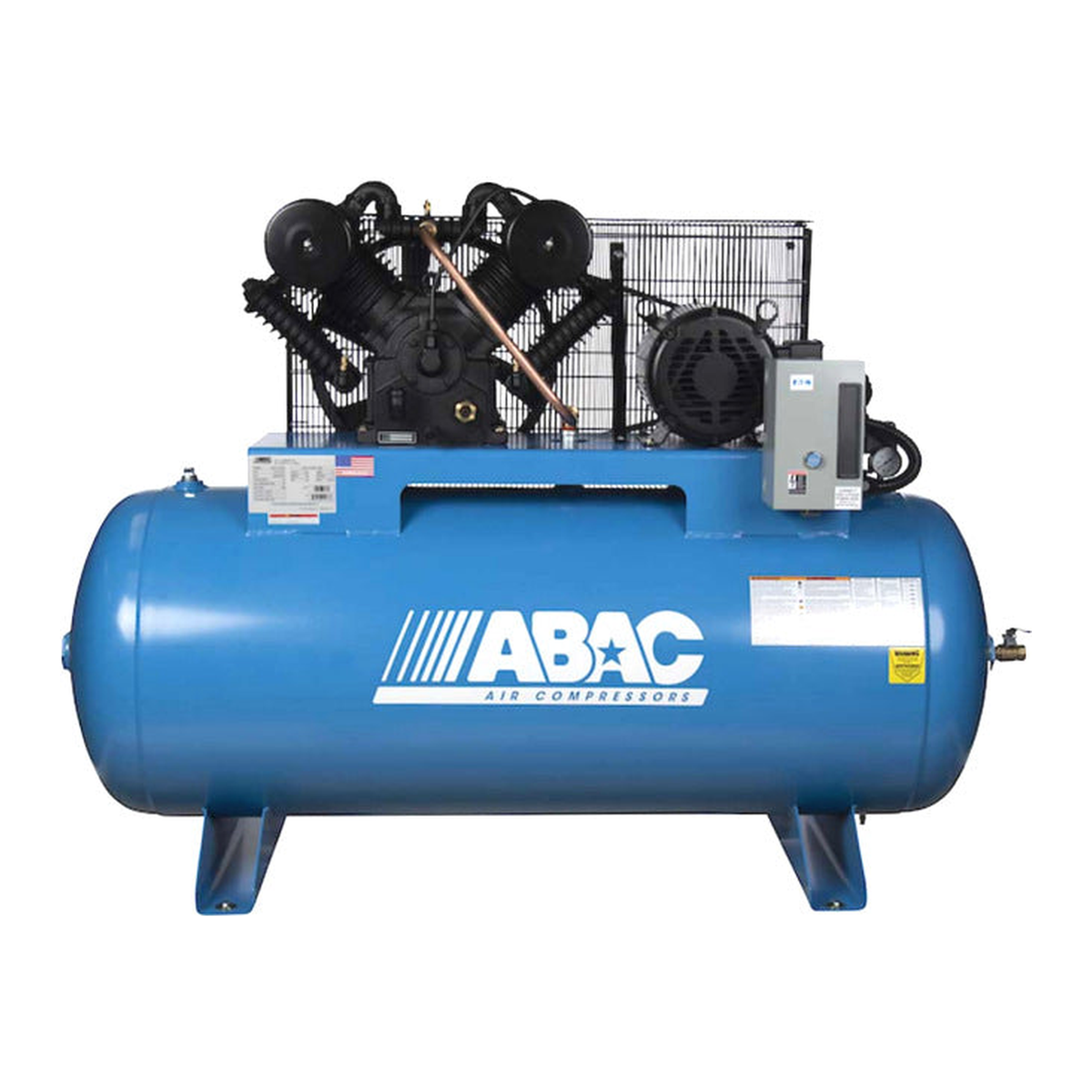

ABAC ABC10-23120H 10 HP Two-Stage Ironman Air Compressor - 120 Gallon Horizontal, 175 PSI, 32 CFM C2 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
8090303952
|
The ABAC ABC10 horizontal is the 10 HP Ironman on a 120 gallon horizontal ASME tank, driving the C2 two-stage cast iron pump to 32 CFM at a maximum 175 PSI. The horizontal layout sits low and long, which suits shops that would rather run the compressor along a wall or under a mezzanine than give up a vertical footprint. This is a three-phase machine only. Choose 230V three-phase (ABC10-23120H), 460V three-phase (ABC10-43120H), or 575V three-phase (ABC10-53120H).
Key specifications
- Models: ABC10-23120H / ABC10-43120H / ABC10-53120H
- Motor: 10 HP
- Pump: C2 two-stage, cast iron cylinders
- Air delivery: 32 CFM at max pressure
- Maximum pressure: 175 PSI
- Tank: 120 gallon horizontal, ASME tank and safety valves
- Power supply: 230/3/60, 460/3/60, or 575/3/60
- Belt drive with fully enclosed belt guard
- Assembled in the USA
Typical applications
Production shops, fabrication and welding bays, truck and fleet maintenance, tire shops running multiple lifts, and any operation where several air tools or a plasma cutter draw at the same time and the compressor needs to hold pressure through the shift rather than recover between jobs.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. The extra 120 gallons of storage over an 80 gallon build cuts motor starts and holds a steadier line pressure, while the horizontal tank keeps overall height down where ceiling clearance is tight.
NOTE: Actual product may be different from pictured!
