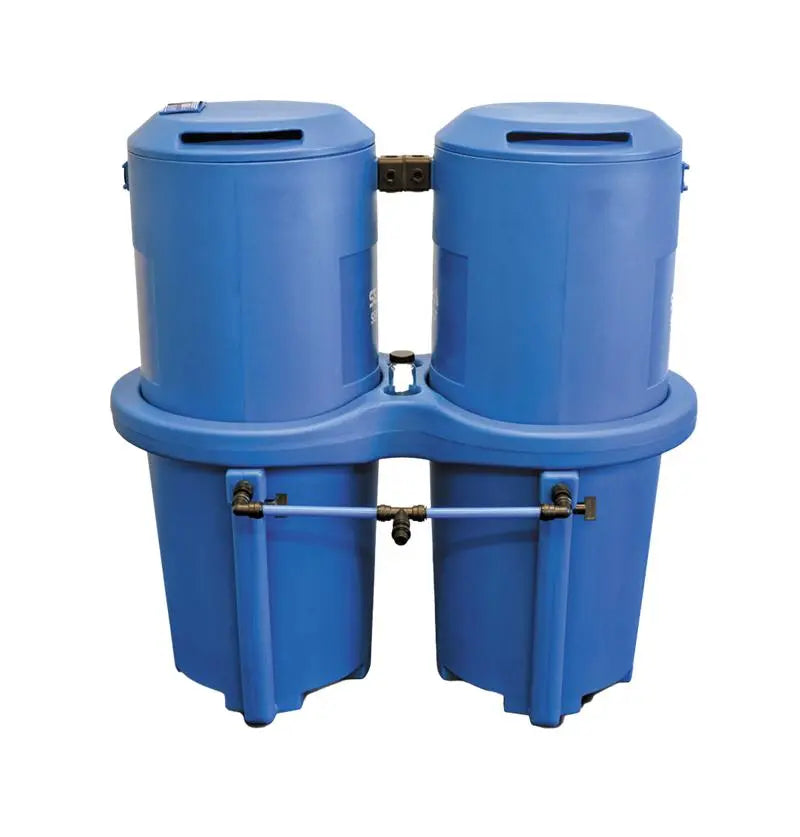

S1 Sepura Oil Water Separator By Nano

The nano S1 Sepura oil water separator treats the oily condensate discharged by your compressed air system so it can be disposed of safely and economically — no messy carbon bags, no settling tanks, and no external oil-collection containers. At its core is nano's patented STERLING filtration media, a non-carbon, 100% recycled media engineered to absorb oil while repelling water, delivering clean condensate with outlet oil concentrations down to 5 ppm or less.

How it works

Condensate first enters a primary filter that depressurizes the flow, traps solid particles, and captures bulk hydrocarbons in a high-capacity oil absorbent. The pre-treated condensate then passes through a deep bed of STERLING media, which absorbs the remaining oil and releases clean water ready for drain. A time-based service-life indicator shows the remaining service interval at a glance — up to a full year between changes.

Key features

• Patented STERLING media — non-carbon, 100% recycled, absorbs oil and repels water
• Outlet oil concentration down to 5 ppm or less
• Visual, time-based service-life indicator (service interval up to 12 months)
• No carbon bags, settling tanks, or oil-collection containers to manage

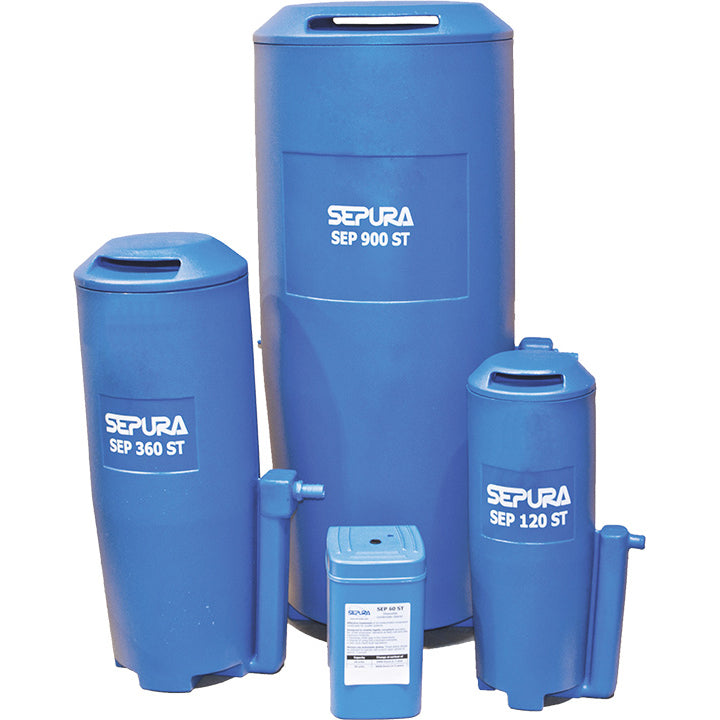

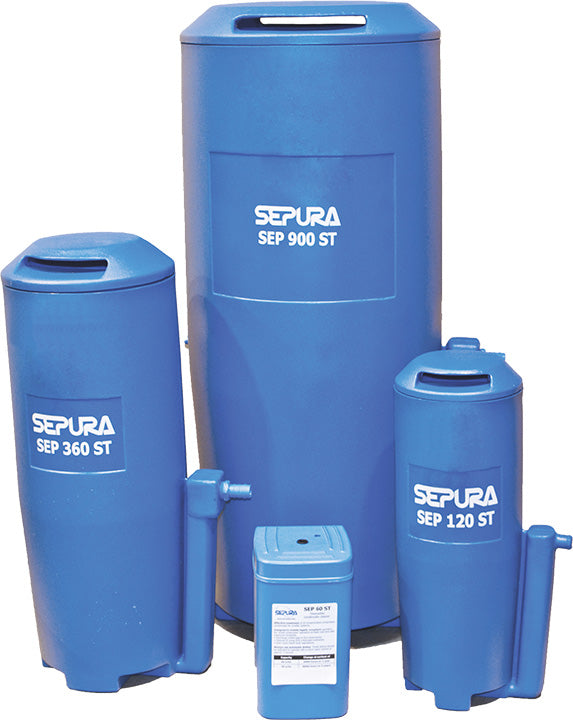

• Nine models from 60 to 7000 SCFM to match any compressor room
• For compressors using mineral or synthetic lubricant (max oil carry-over 5 mg/m³)

Specifications

• Rated flow: 60 – 7000 SCFM (nine models)
• Outlet oil quality: ≤ 5 ppm
• Maximum oil carry-over: < 20 ppm
• Maximum condensate inlet pressure: 232 psig
• Inlet condensate temperature range: 35 – 110°F
• Expected media life: 4,000 – 16,000 hours depending on model and flow
• Connections: push-to-connect or NPT inlet / barbed-hose or NPT outlet (by model)
• Warranty: 1 – 10 years depending on model

Model reference

Typical applications

The S1 Sepura is used wherever an oil-lubricated air compressor produces oily condensate that can't legally go to drain — automotive and manufacturing plants, machine shops, food and beverage packaging, printing, woodworking, and general industrial compressor rooms. It helps facilities stay compliant with EPA and local wastewater regulations while cutting the cost and hassle of hauling away contaminated condensate.

Choose the nano S1 Sepura STERLING oil water separator sized to your compressor's flow — from 60 to 7000 SCFM — for reliable, low-maintenance compressed air condensate treatment backed by nano-purification solutions.
