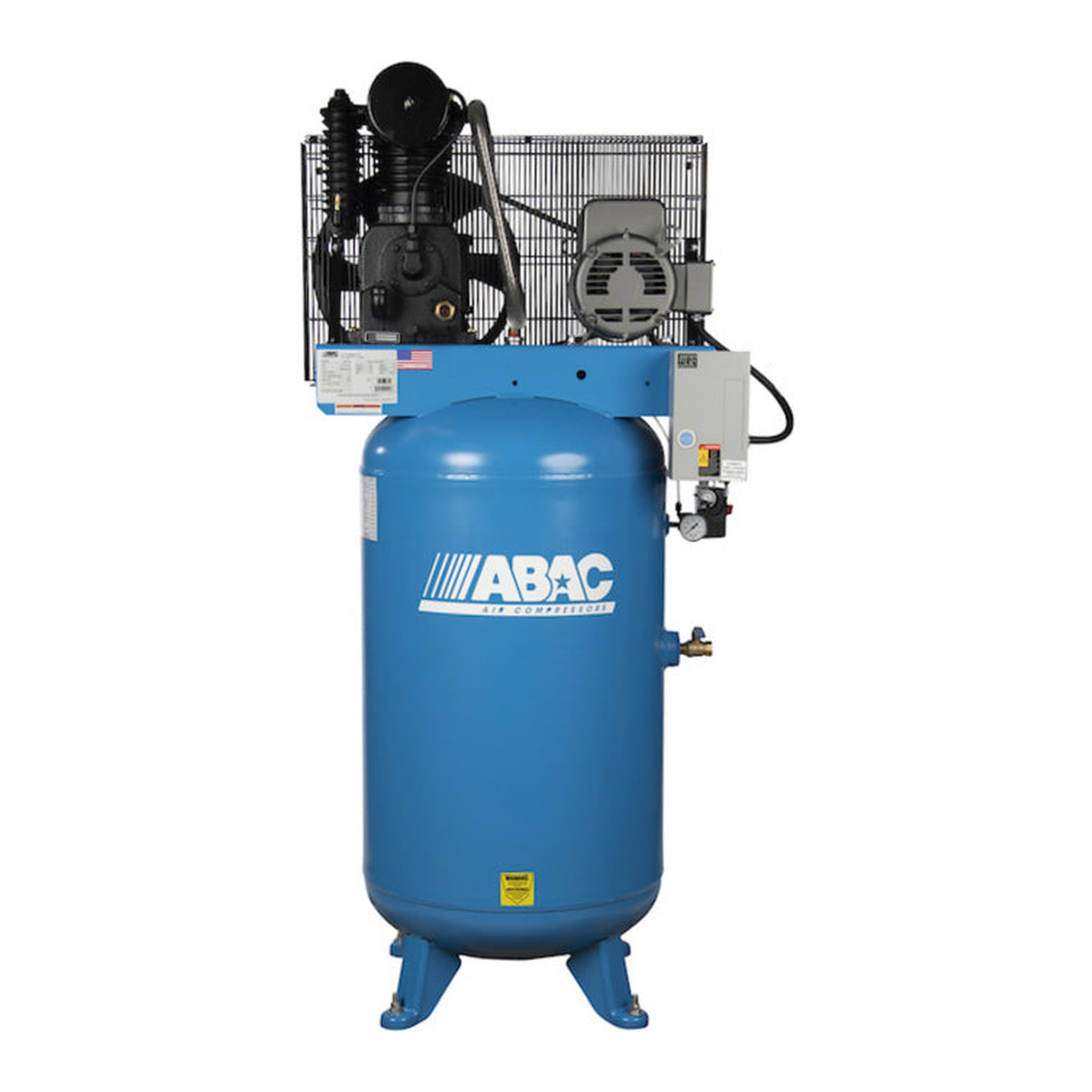

ABAC ABC7-2180VP 7.5 HP Two-Stage Ironman Air Compressor - 80 Gallon Vertical, 175 PSI, 21 CFM C1 Cast Iron Pump

The ABAC ABC7-2180VP pairs a 7.5 HP motor with the C1 two-stage cast iron pump on an 80 gallon vertical ASME tank, delivering 21 CFM at a maximum 175 PSI. It is the workhorse build of the Ironman simplex line, meant for a shop that needs genuine two-stage pressure through a full working day without giving up floor space, since the vertical receiver holds all 80 gallons of reserve in a compact footprint. Choose 230V single-phase (ABC7-2180VP), 230V three-phase (ABC7-2380VP), or 460V three-phase (ABC7-4380VP).

Key specifications

• Models: ABC7-2180VP / ABC7-2380VP / ABC7-4380VP
• Motor: 7.5 HP
• Pump: C1 two-stage, four cylinder V-shape, cast iron construction
• Air delivery: 21 CFM
• Maximum pressure: 175 PSI
• Tank: 80 gallon vertical, ASME tank and safety valves
• Power supply: 230/1/60, 230/3/60, or 460/3/60
• Belt drive with fully enclosed belt guard

Why the cast iron pump matters

ABAC builds the Ironman range around a fully cast iron pump because the extra mass absorbs heat and damps vibration, and that is what lets a compressor hold up under the long run times of a working shop rather than occasional weekend use. Two-stage compression works on the same principle from the other direction: the air is compressed in two steps with cooling in between, so 175 PSI arrives with far less heat than a single-stage pump straining for the same pressure. Cooler air means less moisture carried downstream, less thermal load on valves and rings, and oil that stays in condition longer between changes. The four cylinder V-shape layout keeps the pump balanced at working speed, and the fully enclosed belt guard and ASME tank with safety valves are standard across the Ironman simplex line.

Sizing and how it compares

Size on CFM, not on horsepower. 21 CFM runs impact wrenches, ratchets, blow guns, grinders and a spray gun with room to spare, and holds pressure when a second tool joins in for a while. On the same 7.5 HP vertical platform the ABC7-2180V2P steps up to the larger C2 pump for 24 CFM, which is the move if a continuous duty tool such as a dual action sander will run most of the day. Below it, the 5 HP ABC5-2180VP delivers 16 CFM on the same 80 gallon tank. Above it, the 10 HP ABC10-2312VP gives 32 CFM on a 120 gallon receiver for two operators working at once. The full feature ABC7-2180VFF is this same 21 CFM machine in ABAC's full feature configuration.

Typical applications

Auto and truck repair bays, tire and fleet service, woodworking shops, metal shops and light fabrication, where impact tools, sanders and spray equipment run through the working day and the compressor is expected to keep ahead of demand rather than catch up between jobs. The 80 gallon reserve is what smooths the pressure drops that come with running more than one air tool at a time.

Power and air quality

Take three-phase power if the panel has it, since a three-phase motor starts easier and runs cooler on a machine that cycles all day, and the 460V build keeps the wire size down on a long run. On single-phase, give it a dedicated circuit sized to the motor nameplate and keep the run short. Air leaves any piston compressor hot and saturated, so pair it with a refrigerated air dryer ahead of a paint booth, a plasma table, or any tool line you would rather not run water through.

Part of ABAC's Ironman cast iron range from the Atlas Copco group. See the rest of our 7.5 HP air compressors and the full piston air compressor range.
