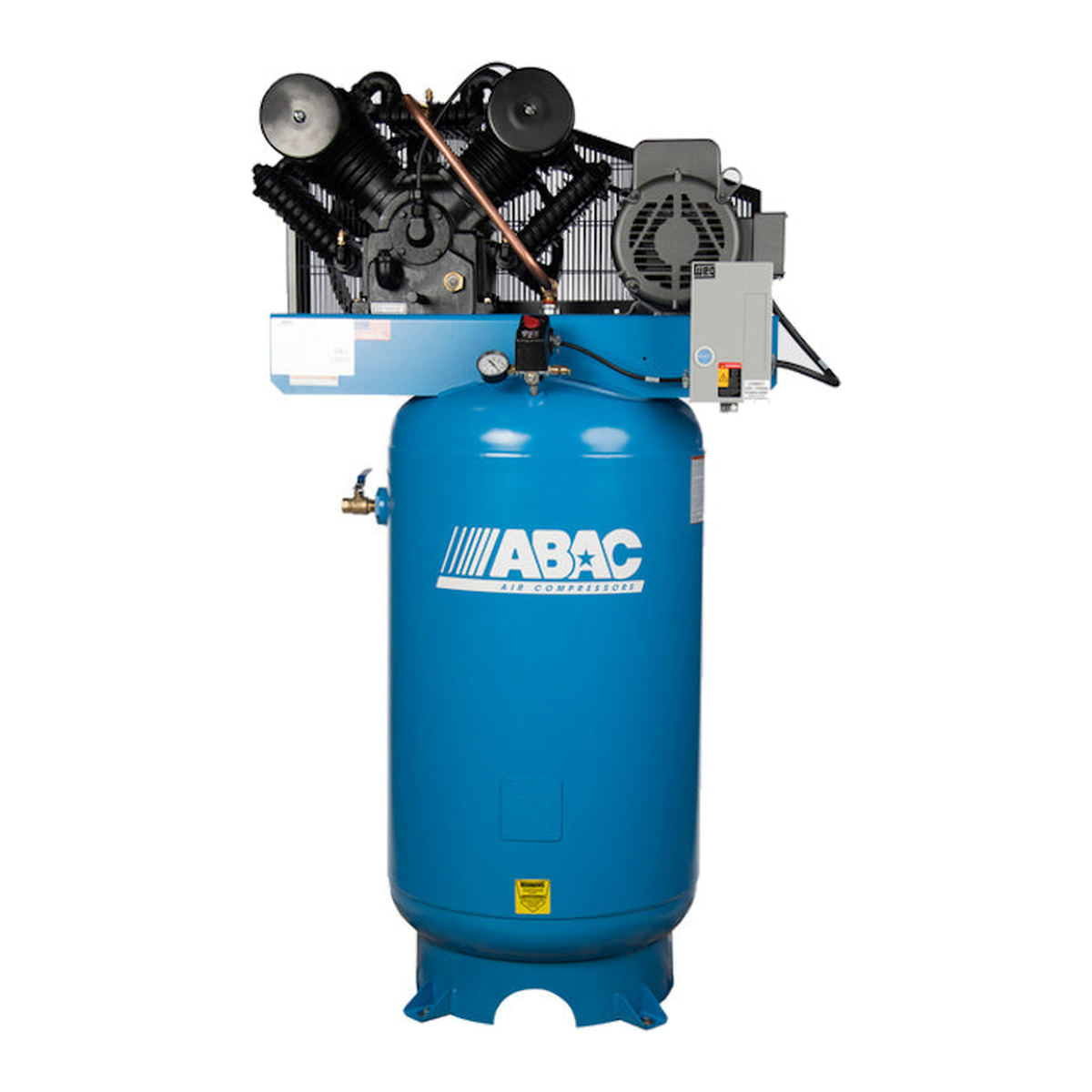

ABAC ABC7-2180V2FF 7.5 HP Two-Stage Ironman Air Compressor - 80 Gallon Vertical Full Feature, 175 PSI, 24 CFM C2 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
8090304158
|
The ABAC ABC7 V2 Full Feature pairs the larger C2 cast iron pump with ABAC's FF protection package, so the machine looks after itself between shifts. A 7.5 HP motor drives the C2 two-stage pump to 24 CFM at a maximum 175 PSI on an 80 gallon vertical ASME tank. Choose 230V single-phase (ABC7-2180V2FF), 230V three-phase (ABC7-2380V2FF), 460V three-phase (ABC7-4380V2FF), or 575V three-phase (ABC7-5380V2FF).
Key specifications
- Models: ABC7-2180V2FF / ABC7-2380V2FF / ABC7-4380V2FF / ABC7-5380V2FF
- Full Feature package: automatic tank drain, low oil level automatic shut off, and belt guard aftercooler
- Motor: 7.5 HP
- Pump: C2 two-stage, cast iron cylinders
- Air delivery: 24 CFM at max pressure
- Maximum pressure: 175 PSI
- Tank: 80 gallon vertical, ASME tank and safety valves
- Power supply: 230/1/60, 230/3/60, 460/3/60, or 575/3/60
- Belt drive with fully enclosed belt guard
- Assembled in the USA
Typical applications
Busy auto and truck repair shops, tire and fleet service bays, cabinet and woodworking shops, and light fabrication where several air tools run at once and the compressor is expected to keep up all day. The Full Feature build suits shops that would rather not rely on someone remembering to drain the tank or check the oil.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. The vertical 80 gallon footprint keeps floor space free while holding enough stored air to smooth out demand spikes, and the C2 pump adds roughly three more CFM over the standard 7.5 HP C1 build for shops that have outgrown it.
NOTE: Actual product may be different from pictured!
