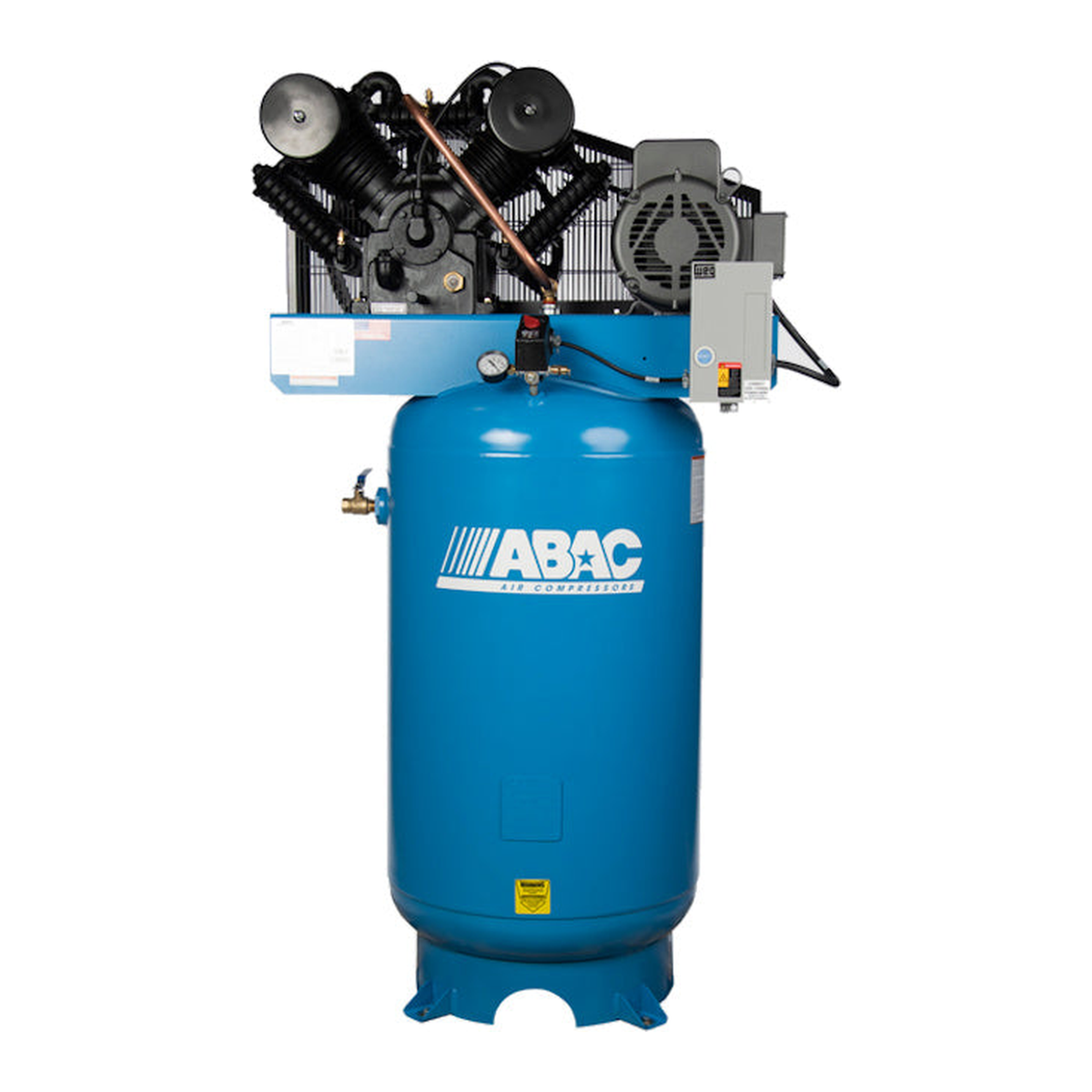

ABAC ABC7-2180V2 7.5 HP Two-Stage Ironman Air Compressor - 80 Gallon Vertical, 175 PSI, 24 CFM C2 Cast Iron Pump
| Specifications (As Configured) | |
|---|---|
 Vendor |
ABAC
|
 SKU |
8090304141
|
The ABAC ABC7 V2 is the Ironman 7.5 HP paired with the larger C2 cast iron pump instead of the C1. Same 7.5 HP motor, same 80 gallon vertical ASME tank, but the bigger pump turns slower for the same output and delivers 24 CFM at a maximum 175 PSI. If the shop is running more air than a standard 7.5 HP unit keeps up with, this is the step up without moving to 10 HP. Choose 230V single-phase (ABC7-2180V2), 230V three-phase (ABC7-2380V2), 460V three-phase (ABC7-4380V2), or 575V three-phase (ABC7-5380V2).
Key specifications
- Models: ABC7-2180V2 / ABC7-2380V2 / ABC7-4380V2 / ABC7-5380V2
- Motor: 7.5 HP
- Pump: C2 two-stage, cast iron cylinders
- Air delivery: 24 CFM at max pressure
- Maximum pressure: 175 PSI
- Tank: 80 gallon vertical, ASME tank and safety valves
- Power supply: 230/1/60, 230/3/60, 460/3/60, or 575/3/60
- Belt drive with fully enclosed belt guard
- Assembled in the USA
Typical applications
Busy auto and truck repair shops, tire and fleet service bays, cabinet and woodworking shops, and light fabrication where several air tools run at once and the compressor is expected to keep up all day rather than catch up between jobs.
Part of ABAC's Ironman cast iron range from the Atlas Copco group. The vertical 80 gallon footprint keeps floor space free, while the C2 pump adds roughly three more CFM over the standard 7.5 HP C1 build for shops that have outgrown it.
NOTE: Actual product may be different from pictured!
