80 Gallon 200 PSI Horizontal Air Tank with Feet + Top Plate by Morganton | VES04781
| Specifications (As Configured) | |
|---|---|
 Vendor |
Morganton
|
 SKU |
VES04781
|
 Max PSI |
|
Gallons |
|
 Material |
|
| Dimensions | |
 Weight |
312.0 lb
|
Dimension |
|
| Downloadable Files | |

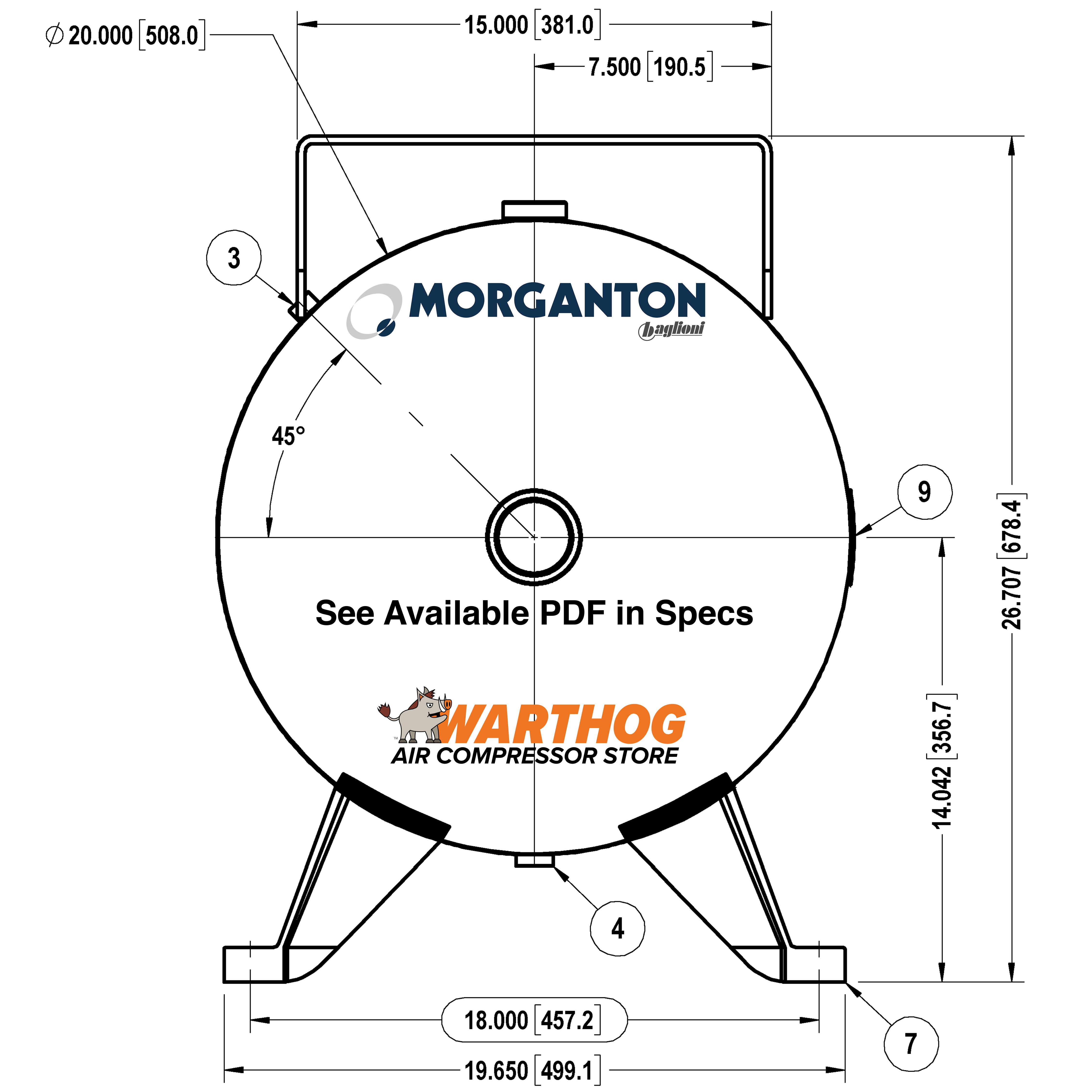

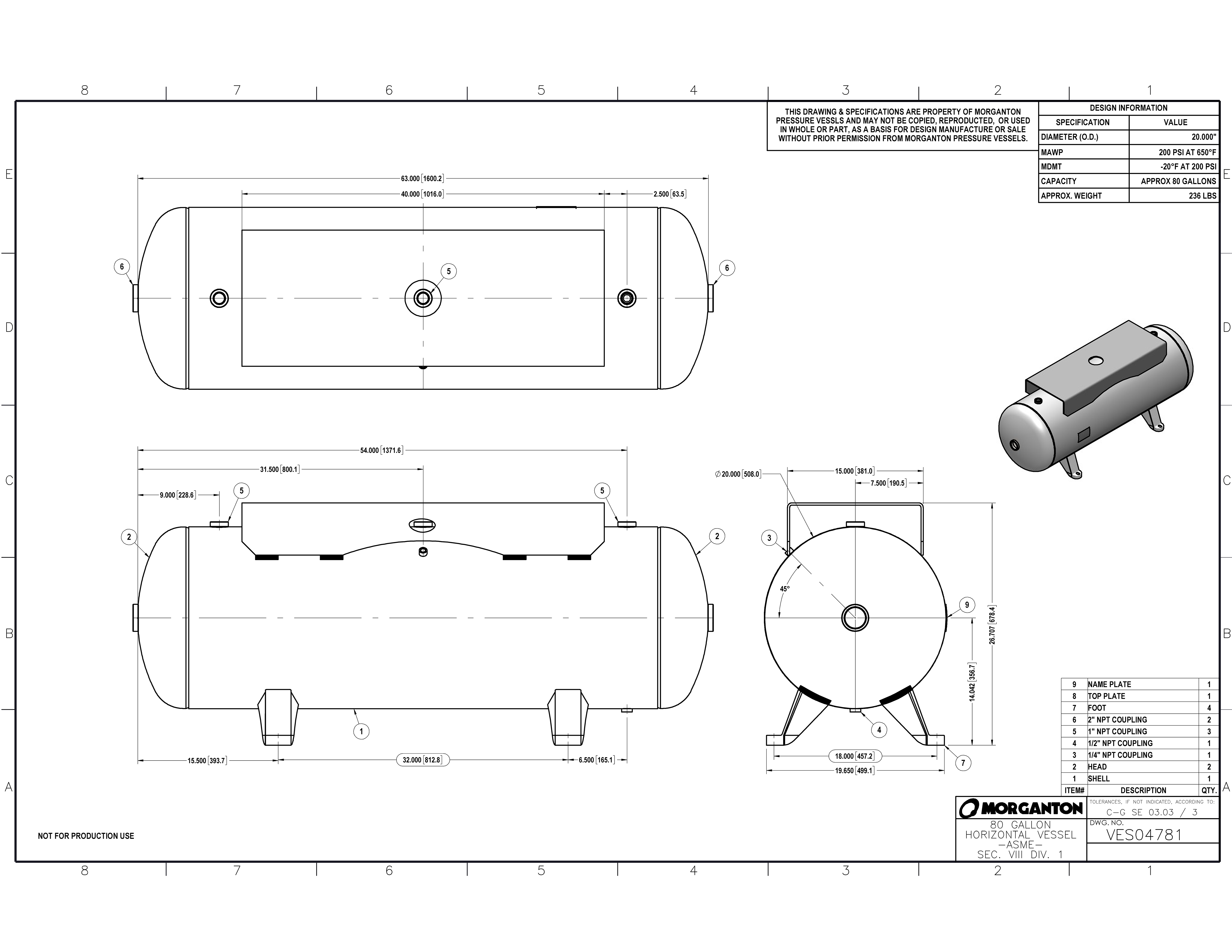

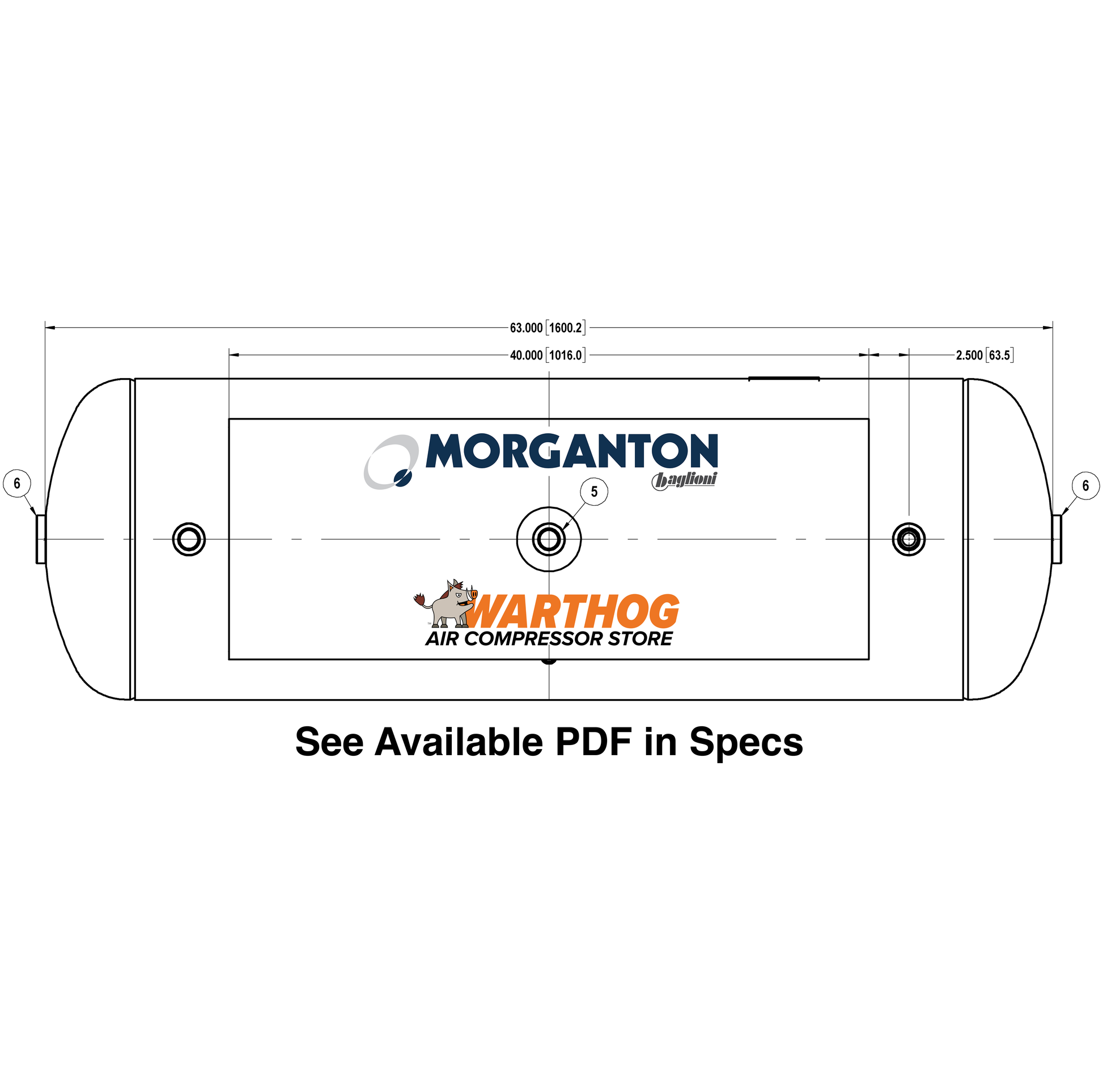

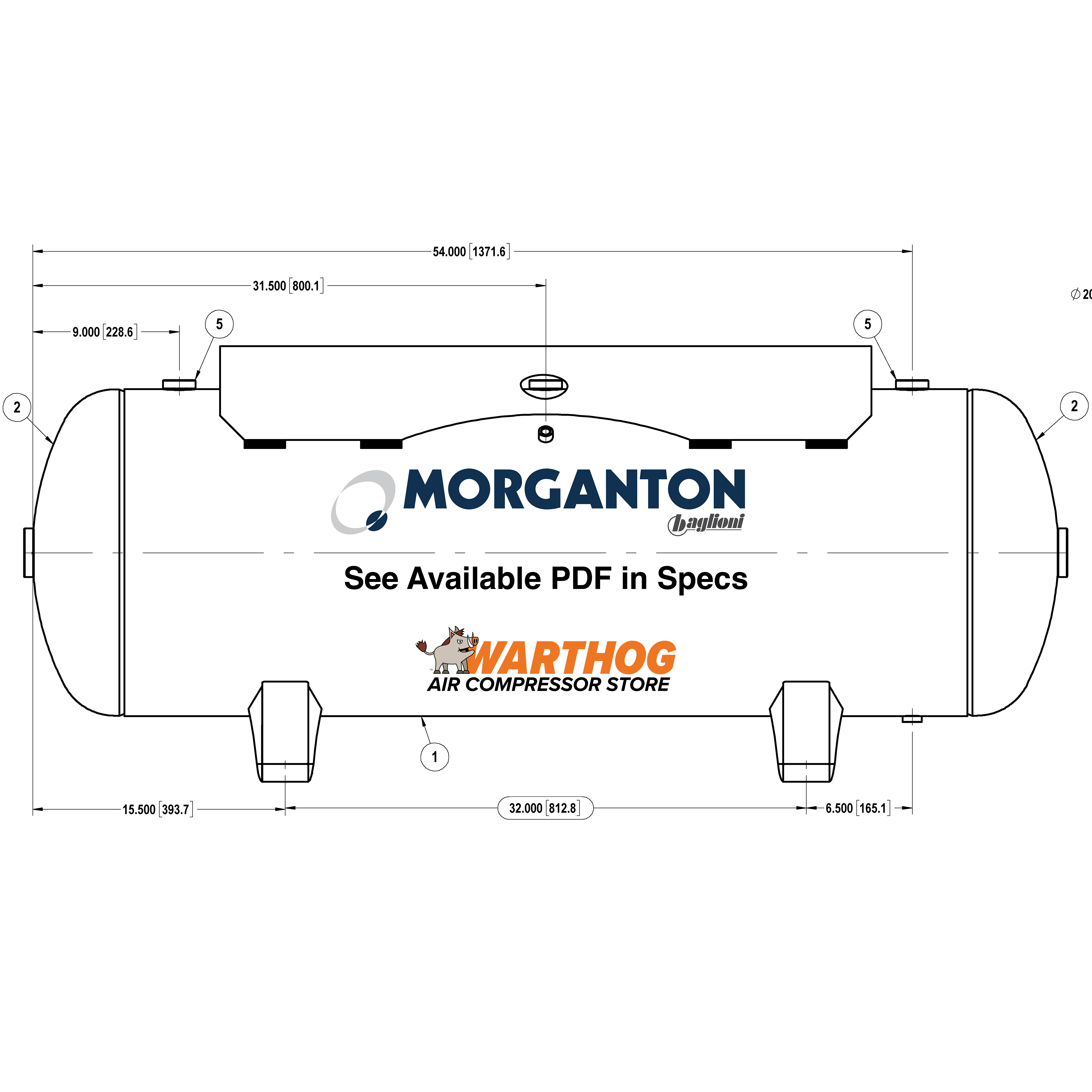

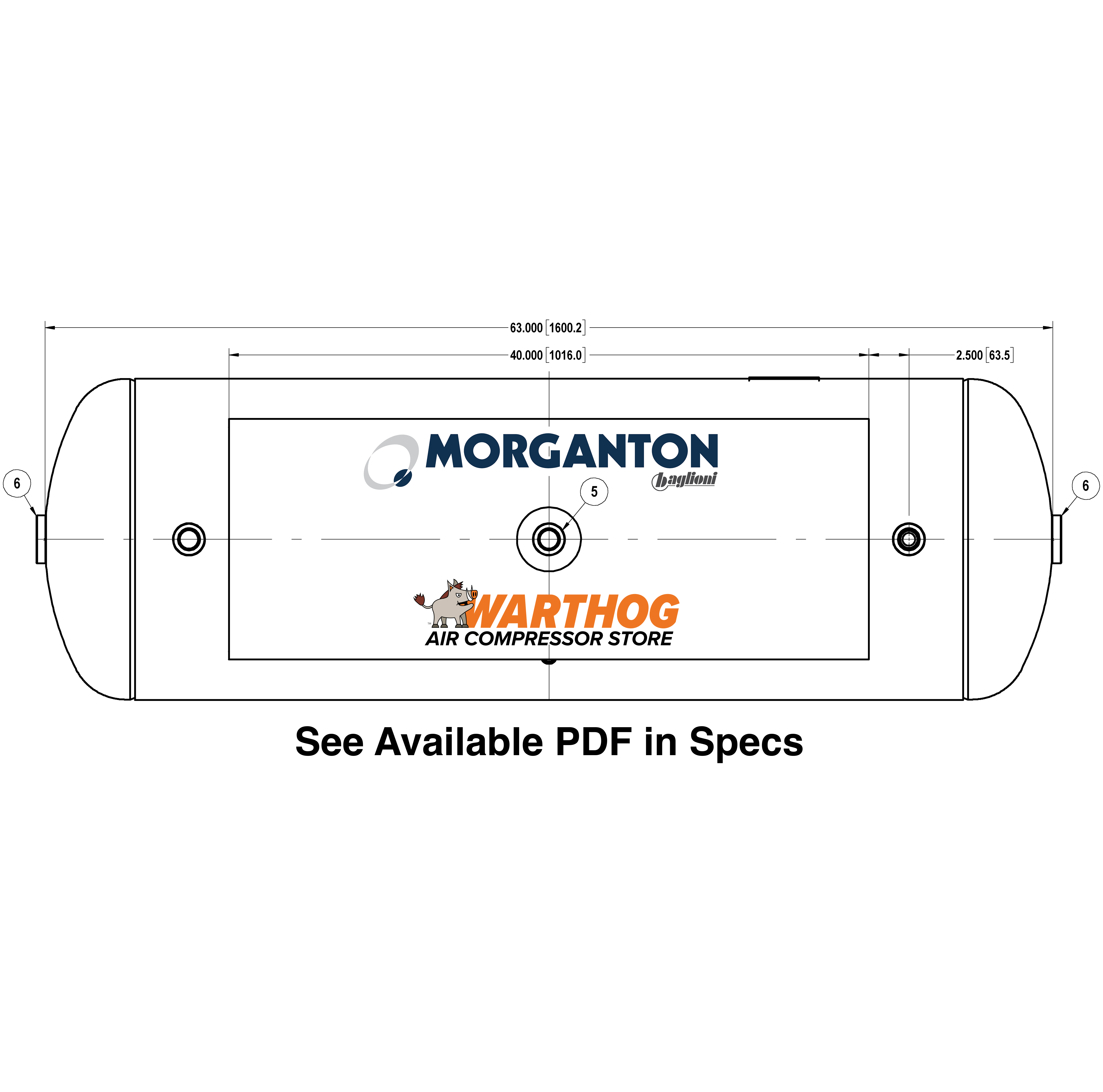

 Dimensional Drawing |
|
 Dimensional Drawing |
|
Morganton VES04781 80 Gallon Horizontal Air Tank, 200 PSI, Feet and Top Plate

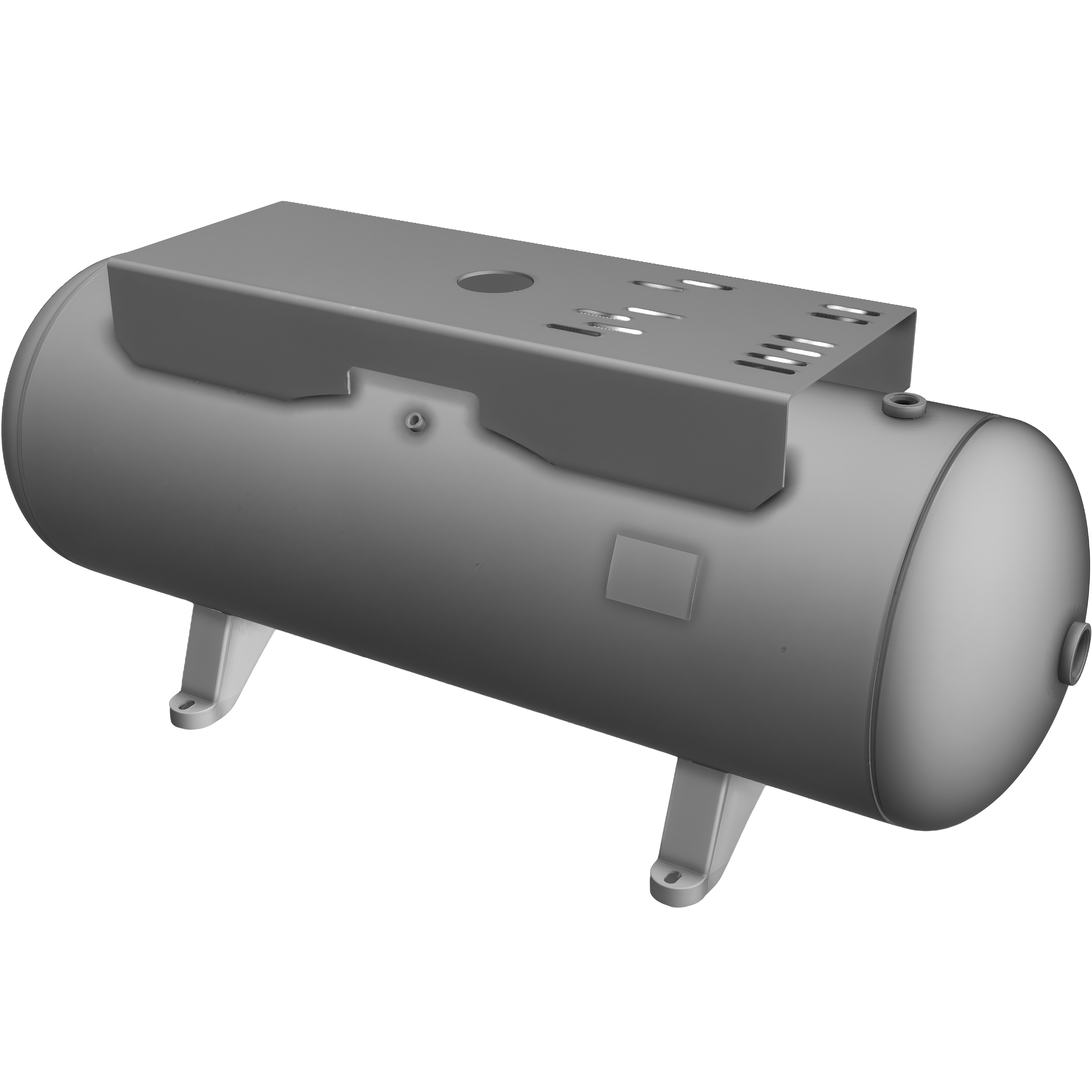

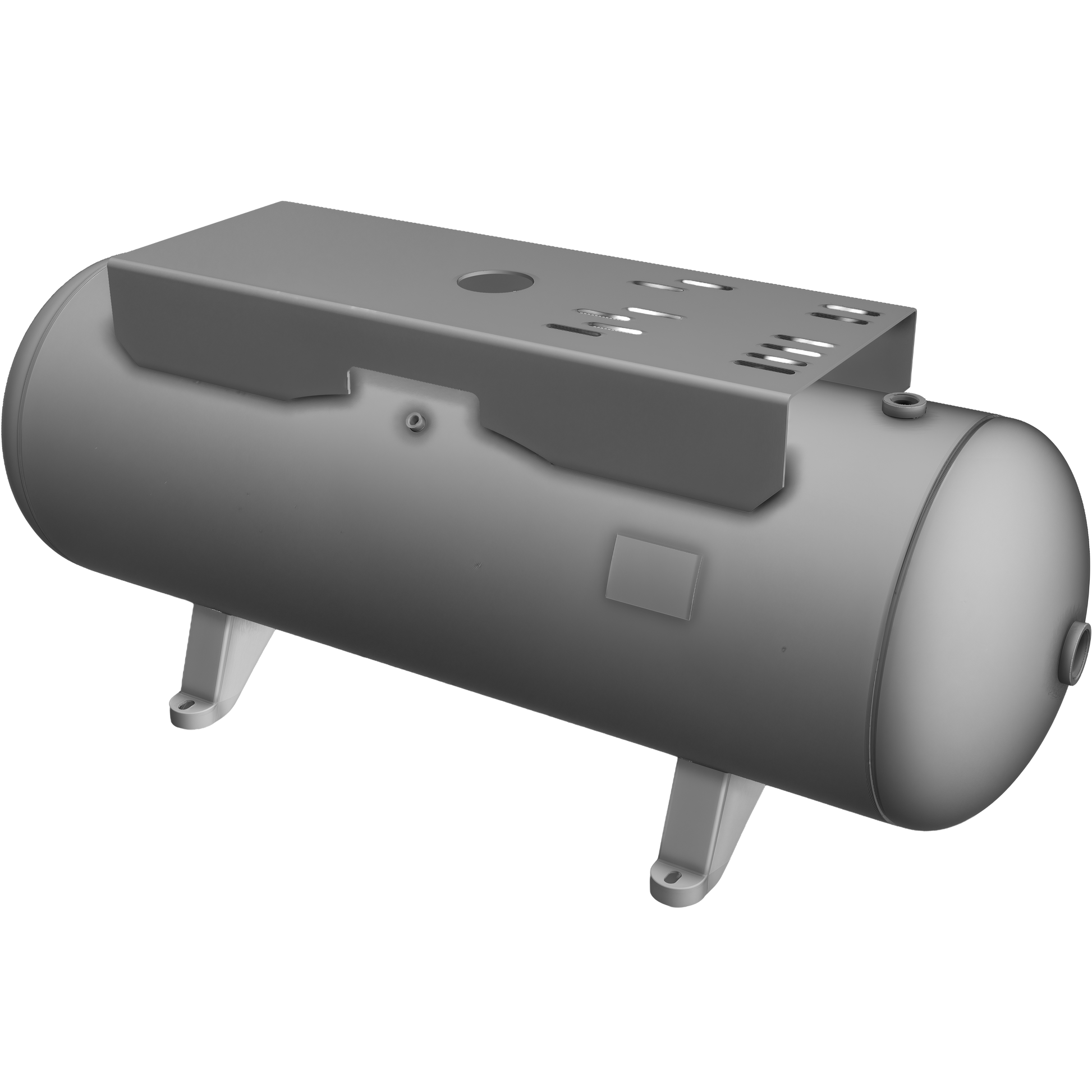

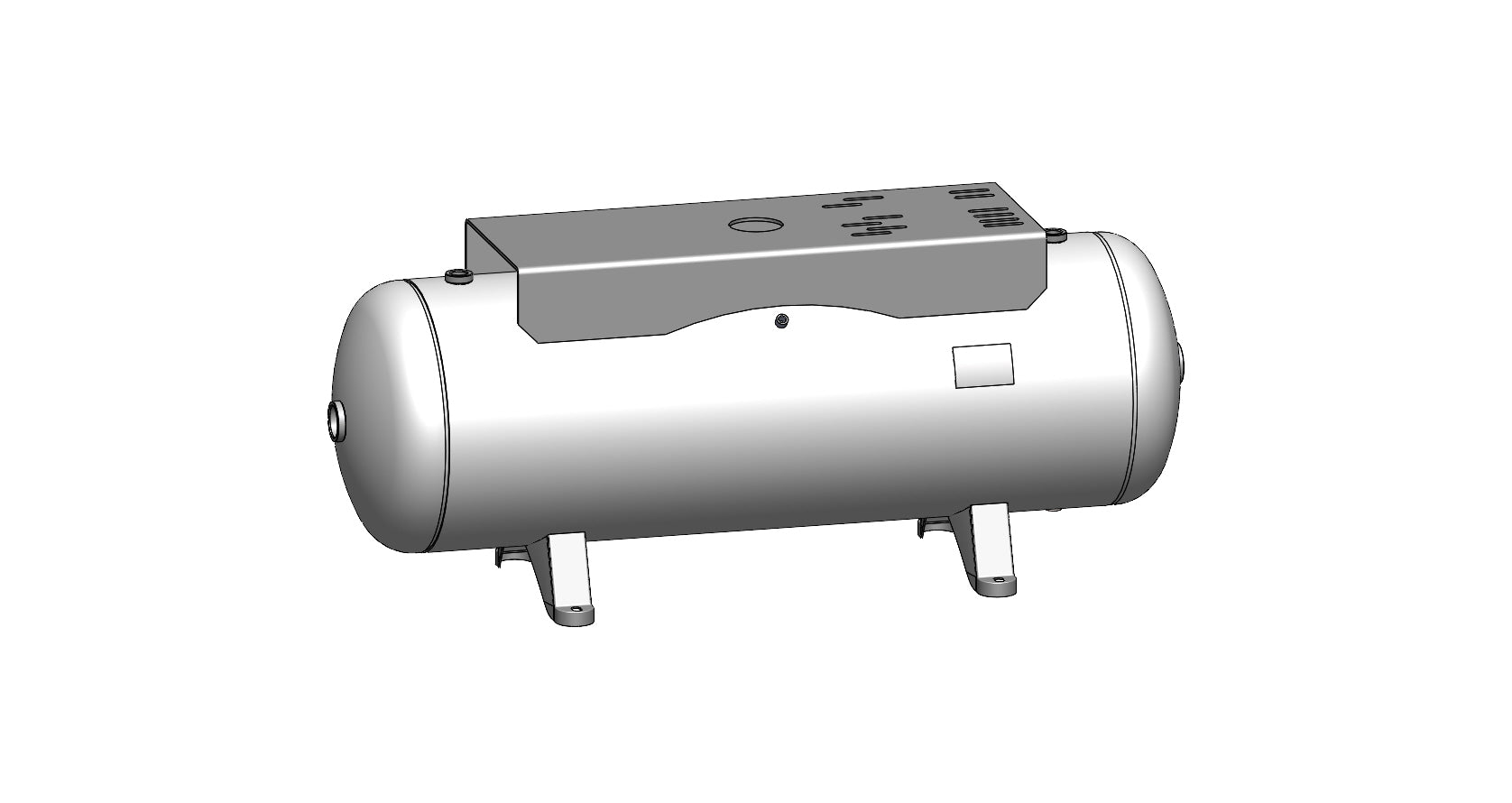

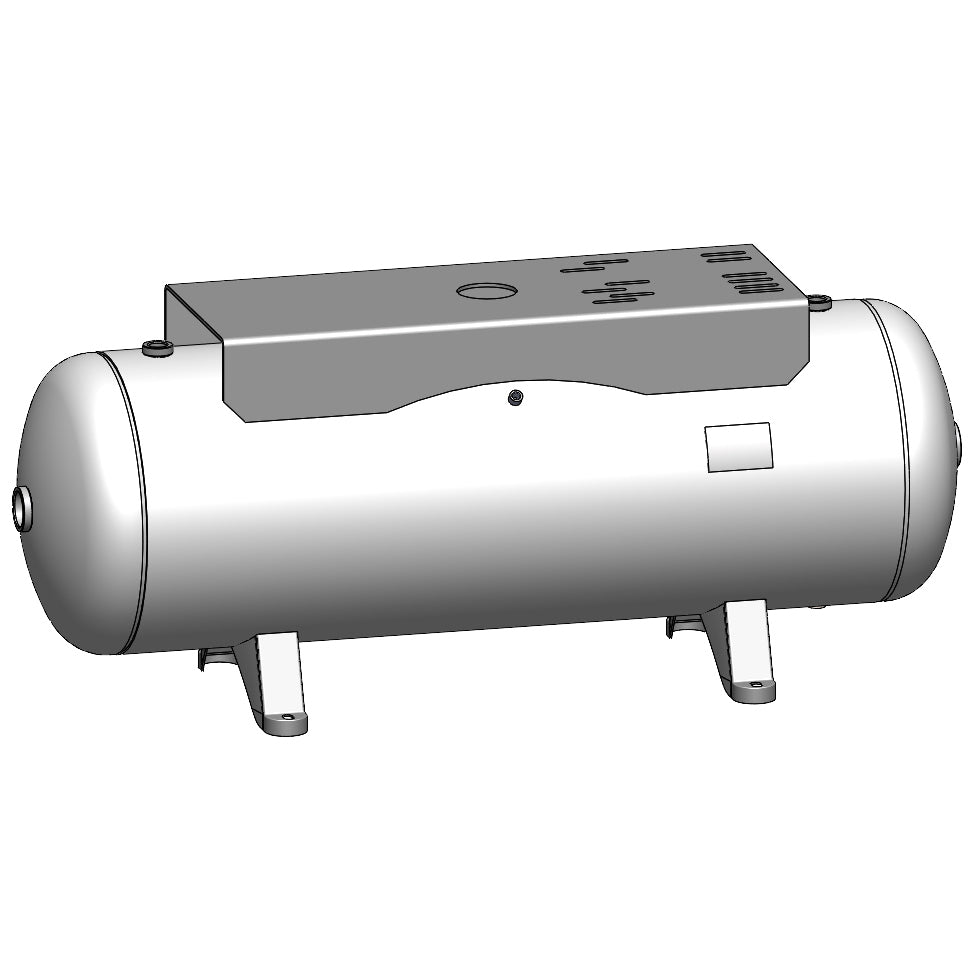

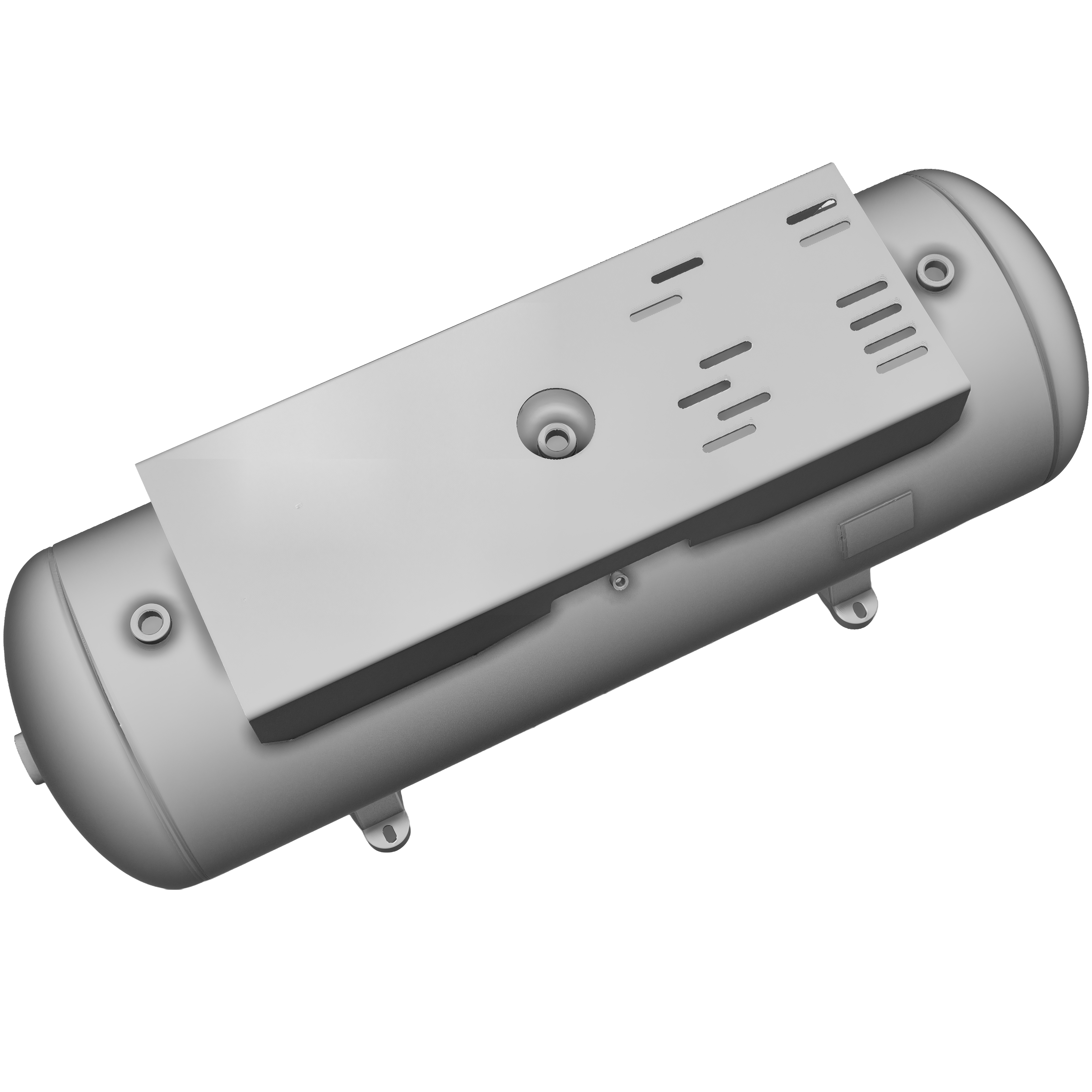

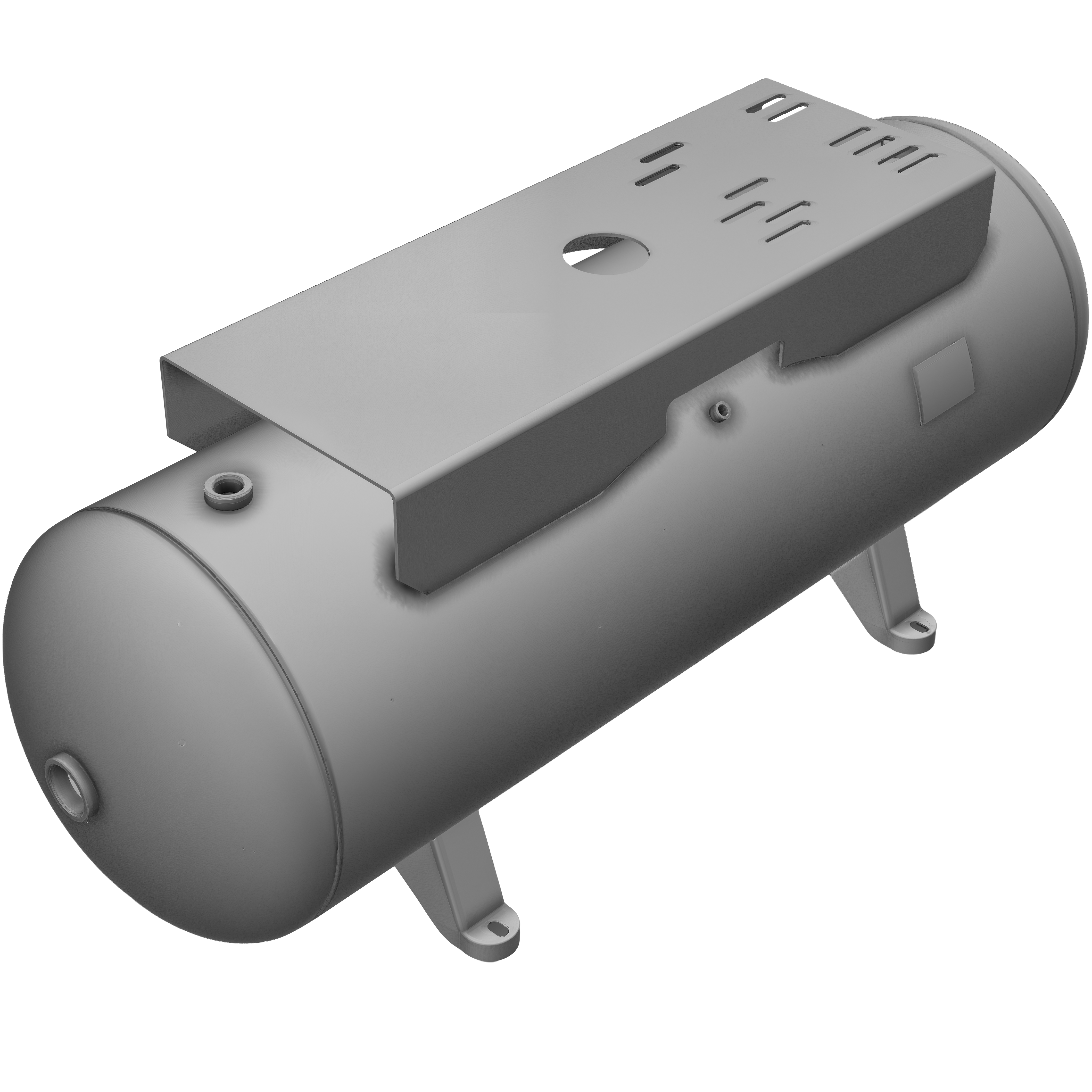

The VES04781 is an 80 gallon horizontal ASME receiver rated for 200 PSI with welded feet and a flat top plate. Eighty gallons horizontal with a top plate is the classic layout for a 5 to 7.5 HP two stage piston compressor: the pump and motor bolt to the plate, the belt guard sits over the tank, and the whole package stays low enough to roll under a bench or into a truck body. Buy it to replace a failed tank under an existing 5 HP unit, to build a package from a bare pump such as the Champion R-Series bare pump, or as a horizontal receiver where height is limited. Nothing to mount on top? The 80 gallon tank with feet only is the cheaper option.
Sizing and what to add
At 3 to 4 gallons of storage per CFM, 80 gallons suits pumps from about 17 to 25 CFM, which is the 5 to 7.5 HP range. Confirm the pump and motor footprint fits the plate before ordering. The tank ships bare: add a safety relief valve and gauge, a pressure switch, a check valve on the pump discharge and an automatic drain on the bottom port. If the compressor feeds a paint booth or any finishing work, plan a refrigerated dryer after the tank.
Finish and shipping
Grey primer is standard; eleven powder coat colors are available for outdoor or truck use and are listed with their part numbers below. An 80 gallon tank ships by LTL freight on a pallet.
Related
- Morganton 60 gallon horizontal, feet and top plate
- Morganton 120 gallon horizontal, saddle and top plate
- Morganton 80 gallon vertical, feet and top plate
- Compressed air tanks with top plates
- Horizontal air compressor tanks
- 80 to 120 gallon tanks
- Champion R-Series horizontal simplex (complete package)
Available Variants & SKUs
All variants and part numbers for this product are listed below for easy reference and ordering.
| SKU | Description |
|---|---|
| VES04781 | Grey Primer Paint |
| VES04781 - Broom Yellow | Broom Yellow Powder Coat |
| VES04781 - Signal Blue | Signal Blue Powder Coat |
| VES04781 - Signal Green | Signal Green Powder Coat |
| VES04781 - Signal White | Signal White Powder Coat |
| VES04781 - Matte Black | Matte Black Powder Coat |
| VES04781 - Raven Black | Raven Black Powder Coat |
| VES04781 - Raspberry Red | Raspberry Red Powder Coat |
| VES04781 - Metal Flake Silver | Metal Flake Silver Powder Coat |
| VES04781 - Iron Gray | Iron Gray Powder Coat |
| VES04781 - Light Gray | Light Gray Powder Coat |
| VES04781 - Window Gray | Window Gray Powder Coat |
NOTE: Actual product may be different from pictured!
