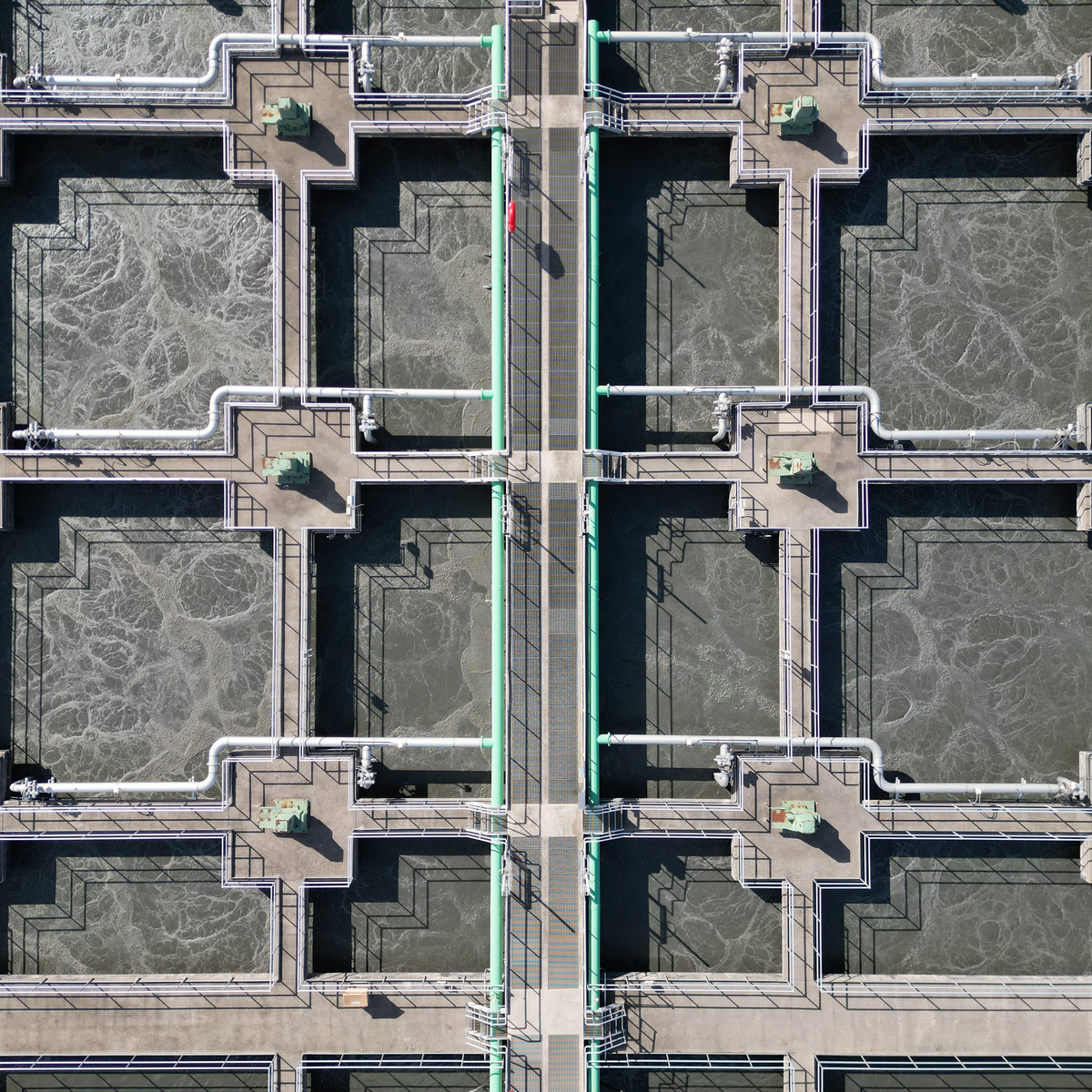

Ask an operator at a surface water plant what wakes them up at 2 a.m. and you will not hear "the high service pumps." You will hear about a butterfly valve on a filter that stopped stroking, or a chemical feed pump that quit mid-shift, or an ozone generator that tripped on high dielectric temperature. Trace all three back far enough and you land in the same room: the one with the air compressor in it.
Compressed air for water treatment plants is one of those utilities nobody thinks about until it fails, and then it takes the whole process down with it. A drinking water plant is not a factory. Nothing here is making widgets. What the air does instead is move valves, feed chemicals, scour filters and, in ozone plants, actually become part of the treatment train. That last one changes the spec completely, and it is where most plants get surprised.
What a water plant actually uses air for
Walk a conventional surface water plant from raw water intake to clearwell and you will find air doing five different jobs, each with its own requirement.
Instrument air for actuated valves
This is the big one by count. Every pneumatically actuated butterfly valve on your filter gallery, every rate of flow controller, every slide gate positioner and every I/P transducer runs on instrument air. A mid-size plant might have 60 to 120 actuators. Individually they use almost nothing. Collectively, with leaks, they set your baseline load.
Chemical feed
Air operated double diaphragm pumps show up everywhere in the chemical building: polymer, caustic, fluoride, sodium hypochlorite transfer, alum. They are simple, they self prime, they dead head without damage and they do not care if you run them dry. They also eat air. A 1 inch AODD pump running at moderate stroke rate will pull somewhere in the range of 10 to 20 CFM, and plants routinely underestimate this because the pumps only run intermittently until the day three of them run together.
Filter air scour
Here is where we will be straight with you. Air scour on a gravity filter is not a compressor job. The standard design rate is 3 to 5 SCFM per square foot of filter surface area, and on a 500 square foot filter that is 1,500 to 2,500 SCFM at maybe 5 to 8 PSI. That is positive displacement blower territory, not rotary screw territory. We do not sell air scour blowers and we are not going to pretend otherwise. If somebody is quoting you a 100 HP screw compressor for filter backwash, ask hard questions.
What we can help with is everything downstream of that decision: the instrument air that opens the backwash valves, the control air for the blower discharge valve, and the dryers and filters that keep both alive.
Pneumatic conveying and bulk chemical handling
If your plant takes lime, powdered activated carbon or soda ash in bulk, the truck unloads pneumatically and the silo needs bin aeration and a pulse jet bin vent filter. Bin vents fire short high volume pulses, which means the load looks like nothing on average and like a wall on the instant. Receiver storage near the silo solves this far more cheaply than a bigger compressor.
Ozone feed air
If you generate ozone on air instead of liquid oxygen, the compressed air system stops being a utility and becomes process equipment. More on this below, because it is the single most demanding air spec in the plant.
Instrument air is the part with an actual standard
Water plants get audited on a lot of things. Instrument air quality is rarely one of them, which is exactly why it drifts. The reference everyone in controls uses is ANSI/ISA-7.0.01, the Quality Standard for Instrument Air, and it says three useful things:
- Dew point. Pressure dew point must be at least 18 degrees F below the lowest ambient temperature any part of the air system sees, and it must not exceed 39 degrees F at line pressure regardless.
- Particulate. Maximum 40 micron particle size in the air at the instrument.
- Oil. Oil content as close to zero as possible, with 1 ppm w/w treated as the practical upper limit.
Read that dew point clause carefully, because water plants trip over it constantly. If any of your air piping runs through an unheated filter gallery, a pipe chase along an exterior wall, or outdoors to a raw water valve vault, your "lowest ambient" is not the 68 degrees in the control room. It is whatever January does to that vault. A plant in a climate that sees 10 degrees F needs a pressure dew point below minus 8 degrees F in that branch, and no refrigerated dryer on earth will do that. That is a desiccant job.
Inside a heated building that never drops below 65 degrees, the math gives you 47 degrees F, the standard caps you at 39 degrees F, and a properly sized refrigerated dryer holding 38 to 45 degrees F pressure dew point is both compliant and the cheaper machine to run. Most plants need both: refrigerated for the building, a smaller desiccant dryer for the branch that goes outside.
Ozone feed air is a different animal
Air fed ozone generators want feed gas at a dew point of minus 76 degrees F or lower. Not minus 40. Minus 76. The reason is chemistry, not fussiness: ozone generation in the presence of water vapor produces nitrogen oxides, those combine with the water to form nitric acid, and nitric acid eats dielectrics and the inside of the generator. High humidity also drops ozone yield, so you pay twice, once in maintenance and once in production.
Feed gas also has to be oil free and particulate free. That means an oil free compressor feeding a heatless or heated desiccant dryer sized generously, usually with a molecular sieve bed rather than straight activated alumina to hit that dew point reliably. Many air fed ozone systems arrive as a packaged air prep skid from the ozone vendor. If yours did, your job is keeping it fed with clean, cool, dry air at the right pressure, and replacing desiccant and elements before the dew point monitor tells you it is too late.
If your plant runs LOX fed ozone instead, none of this applies to the ozone side, and your compressed air system goes back to being a normal instrument air system.
Sizing it, with numbers
The mistake is sizing a water plant compressor on nameplate connected load. Nothing in a water plant runs continuously except leaks. Here is a realistic build for a 10 MGD conventional plant:
| Load | Typical demand | Duty | Notes |
|---|---|---|---|
| Actuated valves, 80 devices | 3 to 6 CFM average | Intermittent | Spikes hard during a backwash sequence |
| Chemical feed AODD pumps, 3 running | 25 to 50 CFM | Near continuous | Biggest single steady draw in most plants |
| Bin vent pulse cleaning | 2 CFM average, 40 CFM instant | Pulsed | Needs local receiver, not more compressor |
| Lab and maintenance air | 5 CFM | Occasional | Blow guns, small tools |
| System leakage | 15 to 30 percent of total | Continuous | Older plants routinely hit 35 percent |
Add it up honestly and that plant lands around 50 to 75 CFM average with short peaks well above it. Two 20 to 25 HP rotary screw air compressors in a lead lag arrangement, each able to carry the plant alone, is the configuration that keeps working for twenty years. One big machine is cheaper on day one and is the reason somebody gets called at 2 a.m.
Put real storage behind it. A 240 to 400 gallon receiver tank ahead of the dryer buys you ride through during a backwash sequence and stops the lead machine from short cycling every time a filter goes into wash. In a plant where the air system also holds critical valves in position, that stored volume is the difference between a graceful shutdown and a mess.
Redundancy is not optional here
A machine shop that loses air loses production. A water plant that loses instrument air can lose the ability to control flow, and in a plant with pneumatic fail positions on chemical feed, it can lose the ability to dose. State primacy agencies and most plant design standards treat air as a critical utility for exactly that reason. Build N+1. Run lead lag with automatic rotation so the standby machine is not seized when you need it. Keep the dryer redundancy question honest too: a single dryer in front of two compressors is a single point of failure dressed up as redundancy.
Mistakes water plants make
Treating the whole plant to the hardest spec. If ozone needs minus 76 degrees F, that does not mean the whole plant needs minus 76 degrees F. Treat the ozone branch at the ozone skid and let the rest of the plant run on a refrigerated dryer. Drying everything to the worst case is a permanent energy bill.
Ignoring the unheated branch. The valve vault, the intake structure, the outdoor run to the backwash tank. That is where ice plugs form and that is where the ISA dew point rule actually bites.
Dumping condensate down the floor drain. Your plant discharges to a sanitary sewer or back to the process. Lubricant bearing condensate belongs in an oil water separator, not the drain. Water utilities in particular have no business being sloppy about this.
Buying on horsepower instead of CFM. Two machines with the same nameplate HP can differ by 15 percent in delivered CFM. Compare the CAGI data sheets, not the badges.
Letting leaks become the load. In a plant where the air is mostly holding valves, leakage can quietly become the majority of your consumption. A walkthrough with an ultrasonic detector once a year pays for itself in a plant this size.
Frequently Asked Questions
Can I use the same compressor for instrument air and ozone feed air?
Only if it is oil free and you treat the ozone branch separately to minus 76 degrees F pressure dew point or lower. In practice most plants keep them separate, because the ozone system needs to keep running on a different schedule than plant air and because contaminating an ozone generator is an expensive mistake. If you do share a machine, it must be oil free, since even trace hydrocarbon in ozone feed gas is a problem.
What dew point do I actually need for instrument air at a water plant?
At least 18 degrees F below the coldest temperature any part of your air piping sees, and never above 39 degrees F at line pressure. For air that stays inside a heated building, a refrigerated dryer at 38 to 45 degrees F is fine. For any run through an unheated gallery, vault or outdoors, you need a desiccant dryer on that branch.
Is a rotary screw or a piston compressor better for a water plant?
Rotary screw, in almost every case. Water plant air demand is steady and around the clock, which is exactly what a screw machine is built for and exactly what kills a piston compressor on duty cycle. A piston compressor makes sense for a small well house or a remote booster station where the only load is a couple of actuators.
Do I need an oil free compressor for a water treatment plant?
For ozone feed air, yes. For general instrument air, no. A lubricated rotary screw with proper coalescing filtration will meet the ISA-7.0.01 oil limit comfortably. The honest reason to go oil free on plant air is simplifying your condensate handling and eliminating a contamination route, not a regulatory requirement.
How much storage should I put in?
A reasonable starting point is 4 to 8 gallons of receiver volume per CFM of compressor capacity, plus a dedicated local receiver at any pulsed load like a bin vent or a large actuator bank. Storage is the cheapest capacity you will ever buy, and in a plant with sequenced backwashes it does more for stability than another 10 HP.
Where to start
If you are specifying air for a new plant or replacing a compressor that has been limping for a decade, start by measuring what you actually use rather than adding up nameplates. Then split the plant into a normal instrument air system and whatever special branches you have, size for N+1, and put storage where the spikes are. That approach has never made a plant worse, and it is a lot cheaper than finding out during a backwash that you sized on paper.
For the treatment side of a wastewater facility, which has a different set of problems, see our guide to compressed air for wastewater treatment. And if you want the air quality classes explained in plain language, our breakdown of ISO 8573-1 air quality classes is the place to go.
