Champion Quick-Lock Quick Coupler - Industrial Socket and Safety Coupling Body

The coupler is the last six inches of a compressed air system and the part an operator touches a hundred times a day. Champion Quick-Lock couplers come in two families: the industrial interchange socket, which is the standard shop coupler, and the safety coupling body, which vents the downstream line before it releases the plug.

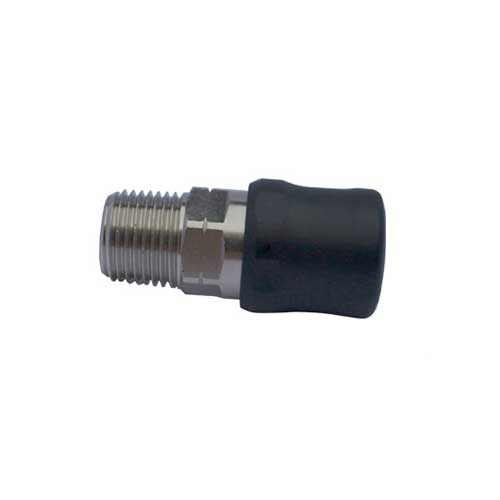

Industrial sockets are offered in three thread sizes and three connection styles: male NPT to screw into a manifold or an FRL, female NPT to take a nipple, and hose barb to go straight onto a hose.

Choose your coupler from the dropdown above.

Model Selection Chart

Industrial Socket or Safety Coupling?

A standard industrial interchange socket releases the plug as soon as the sleeve is pulled back. Whatever pressure is still in the hose goes with it, which is what makes a disconnected air hose whip. It is the long-standing shop default, the cheapest option, and the one every plug in your toolbox already fits.

A safety coupling body disconnects in two stages. The first movement vents the downstream air; only then does the plug release. The hose is already dead when it comes free, so it does not whip, and the plug does not become a projectile. It costs about $23 more at list.

Where the hose is long, where the air is high, or where the operator changing tools is not the person who installed the system, the safety body is the one to specify. Many plants now standardise on safety couplings at every drop and keep industrial sockets only on fixed, short connections. Champion catalogs the safety coupling body in 1/2 in only.

Shared Technical Specifications

Ideal Applications

Every point of use in a shop: bay drops, benches, hose reel ends, blow gun stations, tire inflation points, paint prep, and tool cribs. The male NPT versions screw straight into a Quick-Lock outlet manifold or the outlet of a filter regulator lubricator. The hose barb versions terminate a length of hose without an adapter.

Where the Coupler Sits in the System

A coupler delivers whatever the pipe brings it, good or bad. If the air arriving at the drop carries water or oil, the coupler passes it into the tool, and no coupler choice fixes that. The order that works is: dry the air at the compressor with an air dryer, filter it with coalescing filtration, take the drop off the top of the main or through a reduction outlet tee with water trap, regulate and lubricate at the point of use if the tool needs it, and then couple.

Building a Complete Quick-Lock System

• Outlet manifolds, which these couplers thread straight into
• NPT bushings, nipples, plugs and gauges to adapt between thread sizes
• Ball valves to isolate a drop before you work on it
• Quick-Lock aluminum tubing, 14mm to 63mm
• Filter regulators and FRL stations for the point of use

Ordering Notes

• All Quick-Lock products and accessories are NO CANCEL / NO RETURN, per Champion's current price list.
• Freight: freight collect from Huntersville, NC 28078 or Las Vegas, NV 89113.
• Shipping weights: Champion publishes no weight for the Quick-Lock accessory range, so no catalog weight is carried on these variants.

Why Buy from Air Compressor Store

Air Compressor Store is an authorized Champion Pneumatic distributor. If you are fitting out a shop, tell us how many drops and what hangs on each and we will quote the couplers alongside the manifolds, valves and pipe. If you are standardising on a safety coupling, say so early; it changes the plug inventory too.

Frequently Asked Questions

Will my existing air tool plugs fit these?

The sockets are industrial interchange, which is the most common profile in North American shops, so in most cases yes. Profiles are not universal though, and a plug that nearly fits will leak. If your plant runs a different interchange, check one plug against one coupler before you order a box; these are no-return items.

What is the difference between male NPT, female NPT and hose barb?

Male NPT screws into a female port such as a manifold outlet or an FRL outlet. Female NPT accepts a male nipple. Hose barb pushes into a hose and is clamped, with no threads at all. Pick the one that matches what is already there and you avoid an adapter.

Is the safety coupling worth the extra money?

Measured against a hose whipping across a bay, yes. The difference at list is about $23 a point. Most plants that have had one incident never buy a standard socket for a hand-held drop again.

Does the safety coupling take a different plug?

It is designed around the same industrial interchange plug profile, so the plugs your shop already uses are the starting point. Confirm with us against a sample before a large order.

Why is the 1/2 in hose barb more than the 1/4 and 3/8?

That is what Champion's August 2026 price list publishes: $42, $42 and $47. The 1/4 in and 3/8 in male and hose barb versions are all at $42 and the female versions step up to $49 and $50.

Can I use these for nitrogen?

Yes, the same couplers work on nitrogen and inert gas service. If the line is nitrogen, follow the colour code through to the drop with green tube so nobody downstream mistakes it for shop air.
