Sale Clip for Valve Body by Prevost $25.57 Regular price $28.17 -
Sale Valve Mounting Brackets by Prevost $8.40 Regular price $10.06Add to cart -
Sale Spacer for Piping Clamp by Prevost $1.28 Regular price $1.53Add to cart -
Sale Wrench Spanner / Tightening Key by Prevost $17.12 Regular price $20.48Add to cart -
Sale PPS1 Expansion Kit by Prevost $191.15 Regular price $228.69Add to cart -
Sale Energy Saving Kit by Prevost $756.57 Regular price $905.17 -
PPS1 Connection Flange by Prevost $0.00 -
Sale O-Ring Seal by Prevost $2.37 Regular price $2.84Add to cart -
Sale Viton Seal Kit by Prevost $7.93 Regular price $9.49Add to cart -
Sale Insertion Tool Guide for PPS Pipe & Fittings, 6", by Prevost $505.13 Regular price $604.35 -
Sale PPS1 Internal Parts Kit by Prevost $1.70 Regular price $2.03Add to cart -
Sale Lock Kit for Valve by Prevost $22.26 Regular price $26.80Add to cart -
Sale Aluminum Female Thread Straight Fitting for Pipe by Prevost $7.94 Regular price $9.50Add to cart -
Sale Aluminum Tapered Male Thread Straight Fitting for Pipe by Prevost $7.94 Regular price $9.50Add to cart -
Sale Aluminum Pipe Reducing Fitting by Prevost $14.81 Regular price $17.71Add to cart -
Sale PPS1 Aluminum Nut by Prevost $3.97 Regular price $4.75Add to cart -
Sale Compression-to-Compression Ball Valve for Air Pipe by Prevost $29.48 Regular price $32.48Add to cart -
Sale Ball Valve Body by Prevost $111.33 Regular price $122.63Add to cart -
Sale PPS1 Flanged Ball Valve Body, 6", by Prevost $353.28 Regular price $422.67 -
Sale PPS1 Aluminum Body Valve by Prevost $128.21 Regular price $153.39Add to cart -
Sale Aluminum Ball Valve, 4" Clamp x Clamp, by Prevost $342.88 Regular price $410.24 -
Sale Compression-to-FNPT Ball Valve for Air Pipe by Prevost $24.00 Regular price $28.71Add to cart -
Sale Compression-to-MNPT Ball Valve by Prevost $24.96 Regular price $29.85Add to cart -

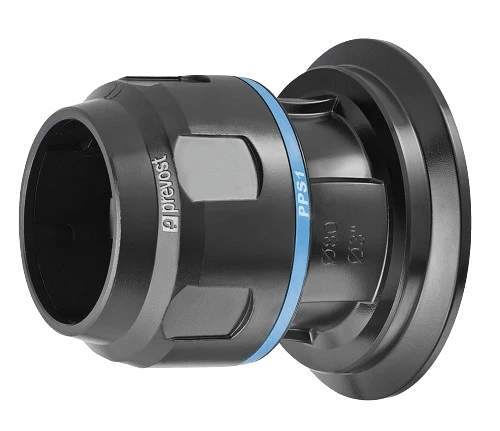

Sale Compact Connection Screw & Nut Set by Prevost $2.69 Regular price $3.21Add to cart
Aluminum compressed air pipe: Prevost, AIRnet and RapidAir compared
Aluminum pipe has replaced black iron as the default for new compressed air systems. It does not rust, so the air stays clean and the pressure drop stays where it was on day one; it weighs about a third of steel, so one person can hang a 18 ft stick; and the fittings go together with hand tools, so a shop can be piped in a day or two instead of a week. This collection holds every aluminum piping product we sell. The three systems below are the ones we install most, and they are not interchangeable: pick one system and stay with it for the whole building.
The three systems
| Prevost PPS | Atlas Copco AIRnet | RapidAir FastPipe and MaxLine | |
|---|---|---|---|
| Pipe sizes | 1/2 to 6 in OD (16 to 160 mm) | 3/4 to 6 in (D20 to D158), plus stainless and polyamide lines | FastPipe 3/4 to 6 in rigid; MaxLine 1/2, 3/4 and 1 in semi flexible tubing |
| Stick length | 9.5 and 18 ft | 9.8 and 19.7 ft | FastPipe 6 and 19 ft; MaxLine 25 and 50 ft coils |
| Joint | Aluminum compression fitting with nut and O ring, hand tightened | Aluminum push in fitting with locking ring and O ring | FastPipe push to connect compression; MaxLine compression with insert |
| Pressure rating | 188 PSI | 188 PSI (aluminum) | 190 PSI FastPipe; MaxLine 175 PSI |
| Point of use | Wall manifolds with Prevost safety couplers, drops, reels | Manifolds, drops, quick connect blocks | Outlet kits with ball valve and coupler |
| Best fit | Auto and body shops, industrial plants, anyone standardizing on Prevost couplers and reels | Plants with Atlas Copco compressors, stainless or large headers, engineered installs | Garages and small shops doing their own install; MaxLine where the run has to bend around a building |
| Starting price | 3/4 in from about $22 per 9.5 ft stick | 3/4 in from about $67 per stick | FastPipe 3/4 in from about $38 per 6 ft; MaxLine 1/2 in 50 ft from about $62 |
Prevost PPS is our lead system: the widest size range at the lowest cost per foot, compression joints that can be opened and reused, and the Prevost safety coupler and hose reel line to finish every drop. AIRnet is Atlas Copco's piping, with the same 188 PSI aluminum range plus 304L and 316L stainless pipe for food, pharmaceutical and outdoor runs and a polyamide line for small shops; it is the natural pick when the compressor room is Atlas Copco. RapidAir FastPipe is a rigid blue aluminum system sold in master kits (90 ft with 3 outlets, 235 ft with 5) that make a first install simple, and MaxLine is RapidAir's semi flexible aluminum core tubing that uncoils and bends by hand, which saves fittings in an older building with beams and ducts in the way.
Sizing any aluminum system
Size the main from the compressor's delivered CFM and the length of the run, not from the discharge thread. A 1 inch main handles a 10 to 15 HP compressor over 100 to 200 ft; 1 1/4 to 1 1/2 inch covers 20 to 40 HP; 2 inch and up is plant air. Loop the main where you can, drop off the top of the pipe, put a drain leg at every low point, and keep 3/4 inch drops for 1/2 inch couplers. The piping plan request turns a sketch of your building into a sized parts list for whichever system you choose, and the bulk order form takes that list in one shot.
Shipping
Pipe sticks of any brand ship LTL freight on a pallet; fittings, outlets, couplers, brackets and MaxLine coils ship UPS. Order fittings ahead if you want to stage the install.
