Ask a plant manager how much compressed air his shop uses and you will usually get a number off the compressor nameplate. Ask how much it actually uses and the room goes quiet.
That gap is where the money hides. A compressed air flow meter is the only instrument that closes it, and it is one of the few pieces of hardware that reliably tells you something you did not already know about your own plant.
Why a pressure gauge is not enough
Every shop has pressure gauges. Pressure tells you whether the system is keeping up right now. It tells you nothing about how much air you are moving, when you are moving it, or where it is going.
Two shops can both sit at a comfortable 100 PSI. One is running a 50 HP compressor at 40 percent load. The other is running the same machine flat out with a leak load eating a third of the output. The gauges look identical. The power bills do not.
Flow is the number that maps to dollars, because flow is what your compressor has to make. As a rough anchor, a decent lubricated rotary screw produces somewhere in the neighborhood of 4 to 5 CFM per horsepower at 100 PSI. Once you know your real CFM, you can put a cost on it.
How these meters work
Almost every meter sold for compressed air today is a thermal mass flow meter. There is a heated element in the air stream and a temperature sensor next to it. Moving air carries heat away from the heated element, and the amount of power needed to hold a constant temperature difference tracks the mass of air going by.
Two things make this the right technology for compressed air. It measures mass directly, so you get SCFM without having to correct for pressure and temperature separately. And there is nothing in the flow path to wear out or restrict flow, unlike an orifice plate.
The main weakness is that thermal meters care a great deal about the shape of the velocity profile in the pipe, which brings us to the part everybody gets wrong.
Straight pipe run is the whole game
A meter installed six inches after an elbow will give you a number. It will just be the wrong number, and it will be wrong consistently enough that you will trust it.
Elbows, valves, tees, and reducers all churn the flow into a swirling mess. The meter needs enough straight pipe in front of it for that to settle back into a predictable profile. Requirements are expressed in pipe diameters, so on a 2 inch line, 20 diameters is about 40 inches.
| Upstream disturbance | Straight run before meter | After meter |
|---|---|---|
| Single elbow | About 15 to 20 diameters | 5 diameters |
| Two elbows in different planes | 25 diameters or more | 5 diameters |
| Partially open valve | Avoid entirely, or 40 plus | 5 diameters |
| Reducer or expander | About 20 diameters | 5 diameters |
Manufacturers vary, so follow the number in your meter's manual rather than a general table. If you simply do not have the run, you have two outs: a flow conditioner plate ahead of the meter, or a multi-point averaging probe, either of which can cut the requirement dramatically. Both cost less than a year of acting on bad data.
One more installation note that costs people accuracy: mount the meter where the air is dry. Liquid water hitting a thermal sensor reads as a huge flow spike. Put the meter downstream of the dryer, not between the compressor and the air dryer.
Insertion or inline
Inline meters are a spool piece you plumb into the line. The bore is known exactly, so accuracy is generally better, and there is nothing to align. They make sense on smaller pipe, up to about 2 inches, and anywhere accuracy matters more than convenience.

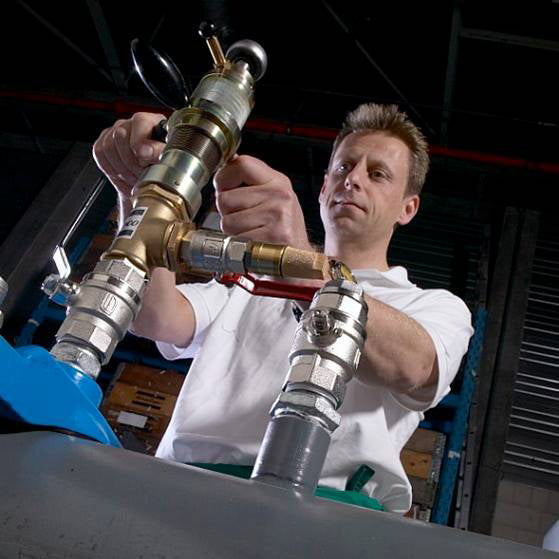

Insertion meters are a probe that goes through a hole in the pipe wall, usually on a hot tap so you do not have to shut the plant down. On 3 inch pipe and up they are the practical choice, and they are the only realistic option for retrofitting an existing header. The trade-offs are that insertion depth and probe orientation have to be right, and because they sample at a point they are fussier about velocity profile than an inline meter is.
Turndown, and why it matters more than accuracy
Turndown is the ratio between the highest and lowest flow a meter can read usefully. A 100 to 1 turndown meter rated for 1000 SCFM can still read sensibly at 10 SCFM.
This matters because the most valuable measurement you will ever take happens at 2 AM on a Sunday, when the plant is dark and every machine is off. Whatever the meter reads then is your leak load, and there is no cheaper way to find that number. A meter with poor turndown reads zero at low flow and hides exactly the thing you bought it to see.
Chasing extreme accuracy is usually the wrong priority. Plus or minus 2 or 3 percent is plenty for finding waste and trending a system. Wide turndown and a stable reading matter far more than the last decimal point.
What you do with the data
Installing the meter is the easy part. Here is the sequence that actually returns money.
- Get a baseline. Log flow for a full week, weekend included. You want the shape of the day, not an average.
- Read the night number. Off-shift flow with production down is leak load plus anything left running. If it is more than about 10 percent of your daytime average, you have real money on the floor.
- Find the spikes. Short, violent demand events are what force you to run a bigger compressor than your average load justifies. Those are the events that storage and a properly placed receiver can absorb.
- Submeter the departments. One meter on the main tells you the total. Meters on the branches tell you who is spending it, and that conversation changes behavior faster than any memo.
- Trend it over time. A slow creep upward month over month is a system developing leaks. You will see it in the data months before you hear it in the plant.
If you are working toward a formal energy assessment, ISO 11011 is the standard that covers compressed air system assessment, and metered flow data is the backbone of it.
Where to put meters in a plant
Start with one on the main discharge header downstream of the dryer. That single meter answers most of the questions. From there, in order of usefulness:
- One per compressor if you run multiple machines, so you can see how the controls are actually sequencing them.
- One on each major branch or department.
- One on any single machine with an outsized appetite, like a blow-off station or a big blasting cabinet.
You do not need to do all of that at once. One meter on the main, watched for a month, will usually pay for the rest. Browse the flow meters we carry, and if the install turns into a piping project, the fittings and spool pieces are under air pipe and fittings.
The short version
A pressure gauge tells you if the system is coping. A compressed air flow meter tells you what it costs. Buy one with wide turndown, put it downstream of the dryer with enough straight pipe in front of it, log a full week including the weekend, and read the overnight number. That one measurement is usually enough to justify the meter and everything you do after it.
Frequently Asked Questions
How much straight pipe does a compressed air flow meter need?
Commonly around 15 to 20 pipe diameters upstream of the meter and about 5 downstream, with more required after two elbows in different planes or a throttling valve. Follow the figure in your meter's manual, since it varies by design. If you cannot get the run, a flow conditioner plate or an averaging probe will reduce the requirement.
Should I buy an insertion or an inline meter?
Inline is generally more accurate and simpler to get right, and it suits pipe up to roughly 2 inches. Insertion is the practical choice on 3 inch and larger, and it is usually the only way to retrofit a live header without shutting the plant down.
Where should the meter go in the system?
Downstream of the dryer on the main discharge header. Liquid water hitting a thermal sensor produces wild readings, so keep the meter out of wet air. If you run multiple compressors, adding a meter per machine shows you how your controls are really sequencing them.
What is a normal leak load?
Well maintained systems tend to land under about 10 percent of average demand. Plenty of plants measure two or three times that without knowing it. Reading your flow overnight with production shut down is the simplest way to find your own number.
Do I need a meter if my compressor already reports its load?
Compressor controllers report load percentage, which is useful but not the same thing. Load percent tells you what the machine is doing, not what the plant is consuming or where it goes. A meter on the header, and ideally on the branches, is what lets you attribute the air to a department or a machine.
