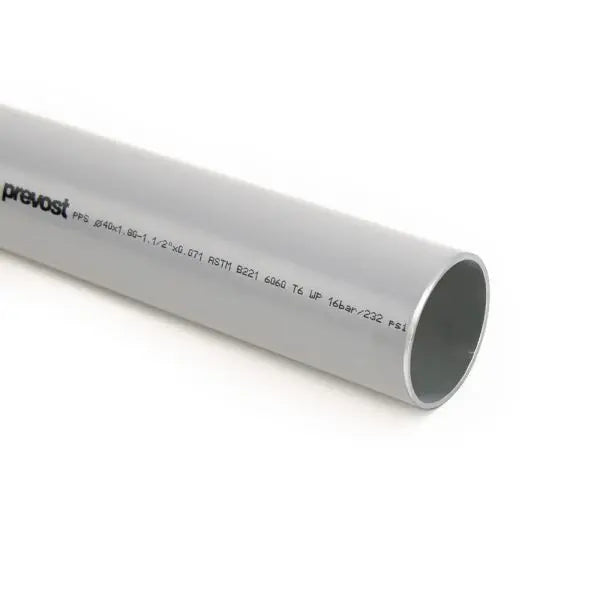

Aluminum Grey Pipe for Compressed Air by Prevost (10 to 18ft)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
PPS GTU1610
|
| Downloadable Files | |
 Additional Information |
|
13' or 18' - Compact, lightweight, Leak Free, 100% Customizable, Easy and Quick To Assemble Air Pipe
Ships via Freight in custom containers designed to prevent damange.
- Operating Pressure: 0 to 232 psi
- Vacuum Capability: - 29 inHG (vacuum 98%)
- Construction: Pipe and Fittings in Aluminum
- Temperature: -4°F to 176°F
- Meets standards: ASME B31 3 Reach
As a manufacturer of pipe fittings and subassemblies for compressed air and pressurized fluids systems, Prevost obtained the ASME QPS (Quality Program for Suppliers) General Industry certification. Consequently, our PPS products are guaranteed 10 years.
https://youtu.be/POpToGQo4-0
Benefits of a PREVOST PIPING SYSTEM
- Compact and lightweight The 100% aluminum composition of the PPS range creates a system that is compact, lightweight and durable.
- High tech, modern material Aluminum alloy, combined with external electrostatic paint and internal treatments all protect the pipe against the oxidation and corrosion.
- 100% customizable The wide range of sizes and fittings allows the system for modular and scalable construction.
- Easy and quick to assemble Simply insert the pipe into the PPS fitting then tighten the nut.
- Leak free with minimal pressure loss The "PPS Grip Concept" creates a secure, leak free connection. The smooth internal surface generates a laminar flow, a low friction coefficient and a maximum flow diameter which are all factors to reduce pressure loss.
- Compatible with compressor oils Aluminum and viton seals are compatible with compressor lubricants.
- Tough material Aluminum guarantees long term performance: mechanical strength, pressure resistance and shocks absorbent
Technical Characteristics of Prevost Aluminum Air Pipe
Material:
Extruded aluminum.
Aluminum alloy EN AW 6060 T6 UNI-EN 573-3
Aluminum alloy EN AW-6063 T6
Treatment:
Internal/external treatment (RoHS compliant)
Coating:
Electrostatic paint
Extrusion quality:
Calibrated without welding
Compatible fluids:
Compressed air, vacuum, neutral gases
Pipe lengths:
9.84’ or 18’
Density:
170 lb/ft3
Pipe outside diameter:
Ø 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 4, 6”
Air Piping Layouts For Your System
Submit Your Specs, Get a Design
The live listing shows the diameter and length options, and Prevost’s official PPS GTU data confirms the part-number structure, 232 psi max operating pressure, and -4°F to 176°F temperature range. The official 18 ft grey PPS GTU lineup starts at 3/4" OD, so I did not invent a PPS GTU1618 row. (Air Compressor Store)
I used the Warthog listing’s diameter and length options, plus Prevost’s published PPS GTU spec sheet for the actual SKU lineup. The valid SKU set does not include a 1/2" x 18' option. (Air Compressor Store)
| SKU | Pipe OD | Length | Product Description | Max Operating Pressure | Temperature Range | Application |
|---|---|---|---|---|---|---|
| PPS GTU1610 | 1/2" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU2010 | 3/4" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU2510 | 1" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU3210 | 1 1/4" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU4010 | 1 1/2" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU5010 | 2" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU6310 | 2 1/2" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU8010 | 3" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU10010 | 4" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU16010 | 6" Outside Diameter | 10' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU2018 | 3/4" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU2518 | 1" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU3218 | 1 1/4" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU4018 | 1 1/2" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU5018 | 2" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU6318 | 2 1/2" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU8018 | 3" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU10018 | 4" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
| PPS GTU16018 | 6" Outside Diameter | 18' | Prevost PPS GTU Grey Aluminum Pipe | 232 psi | -4°F to 176°F | Vacuum, compressed air, neutral gases |
Get Your Free Layout Today
NOTE: Actual product may be different from pictured!
