Metal Support Bracket by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
CS 200L
|
| Dimensions | |
 Weight |
0.95 lb
|
Dimension |
|
Shipping Length |
|
| Downloadable Files | |
 Technical Data |
|

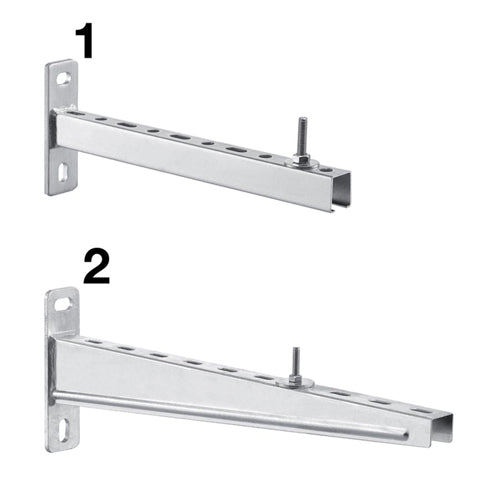

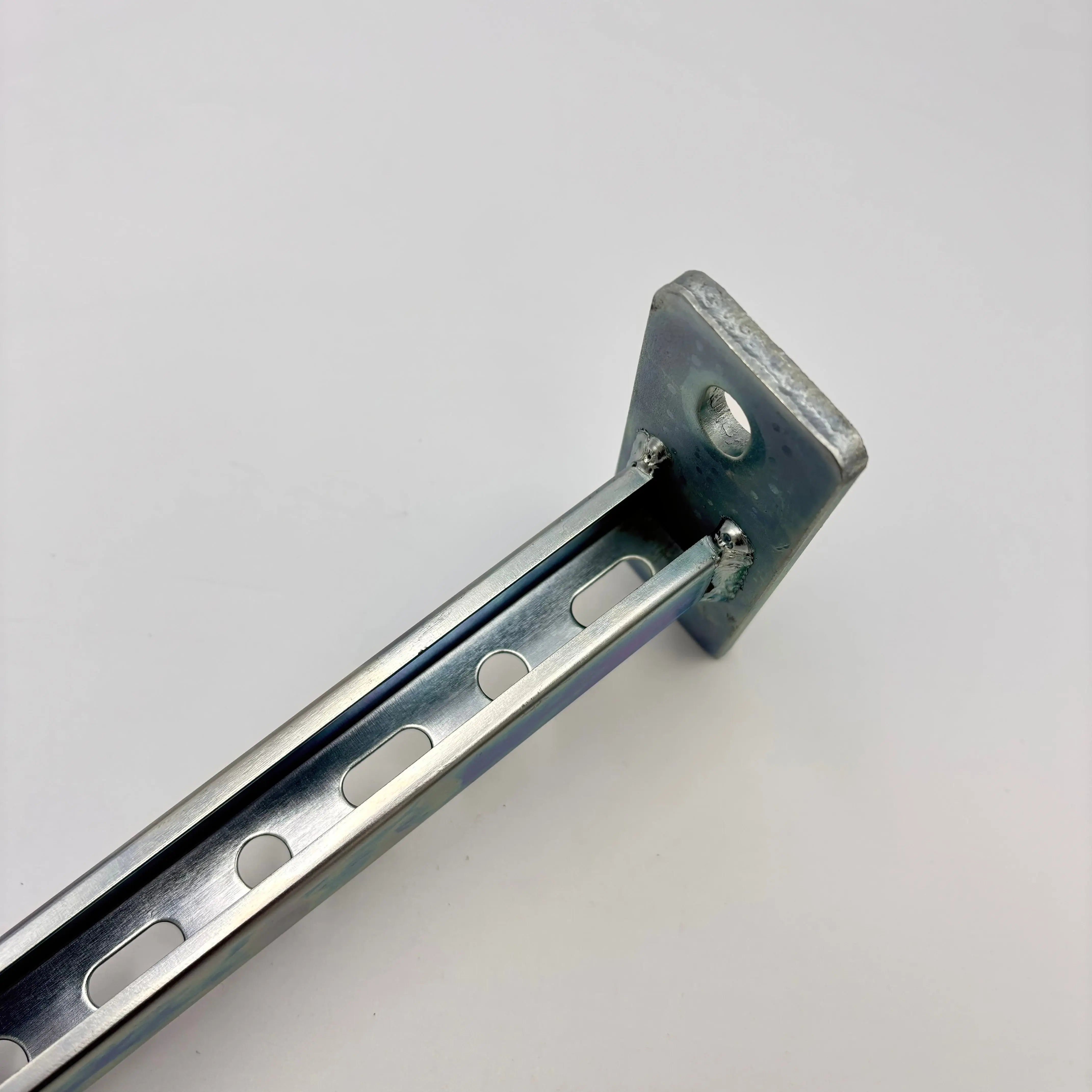

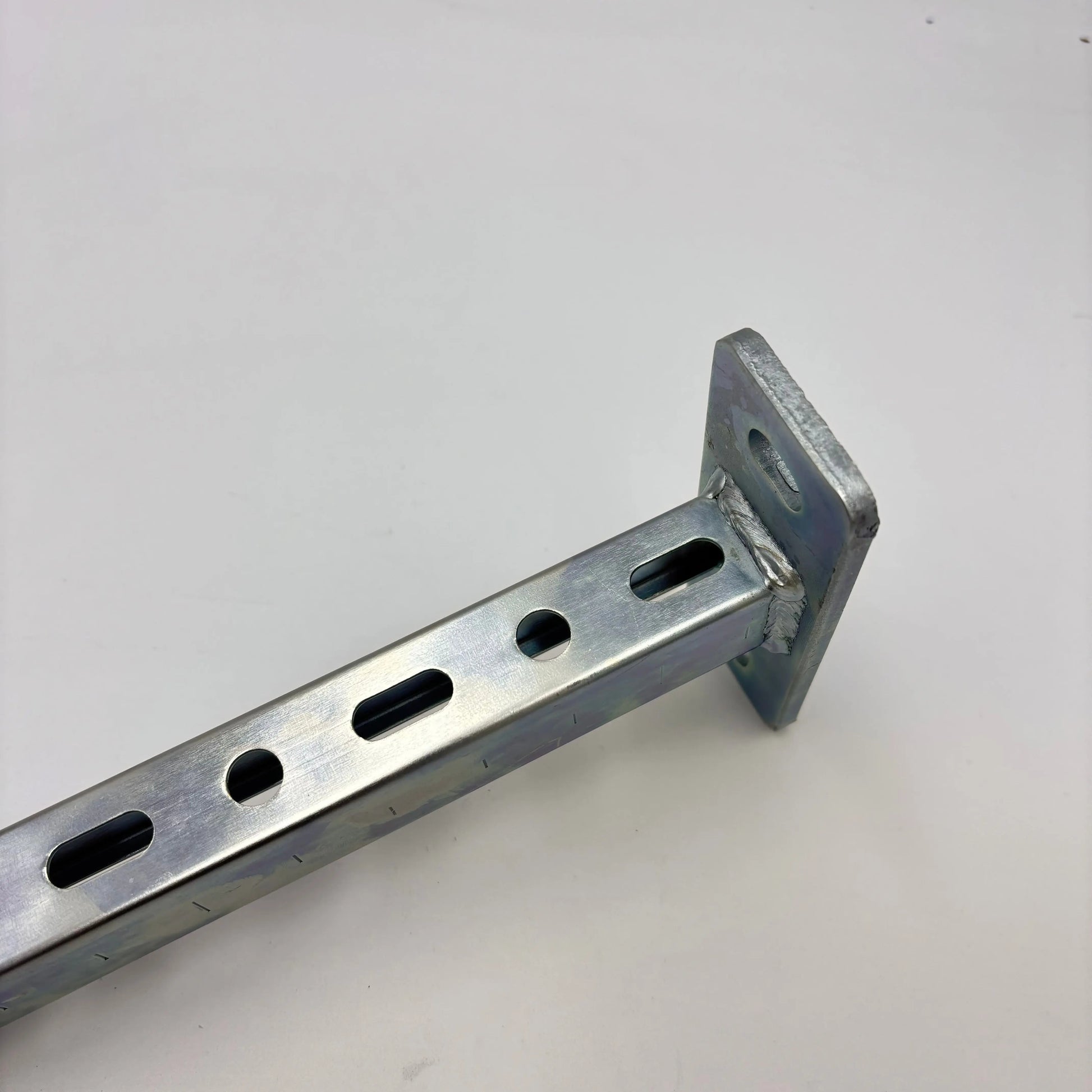

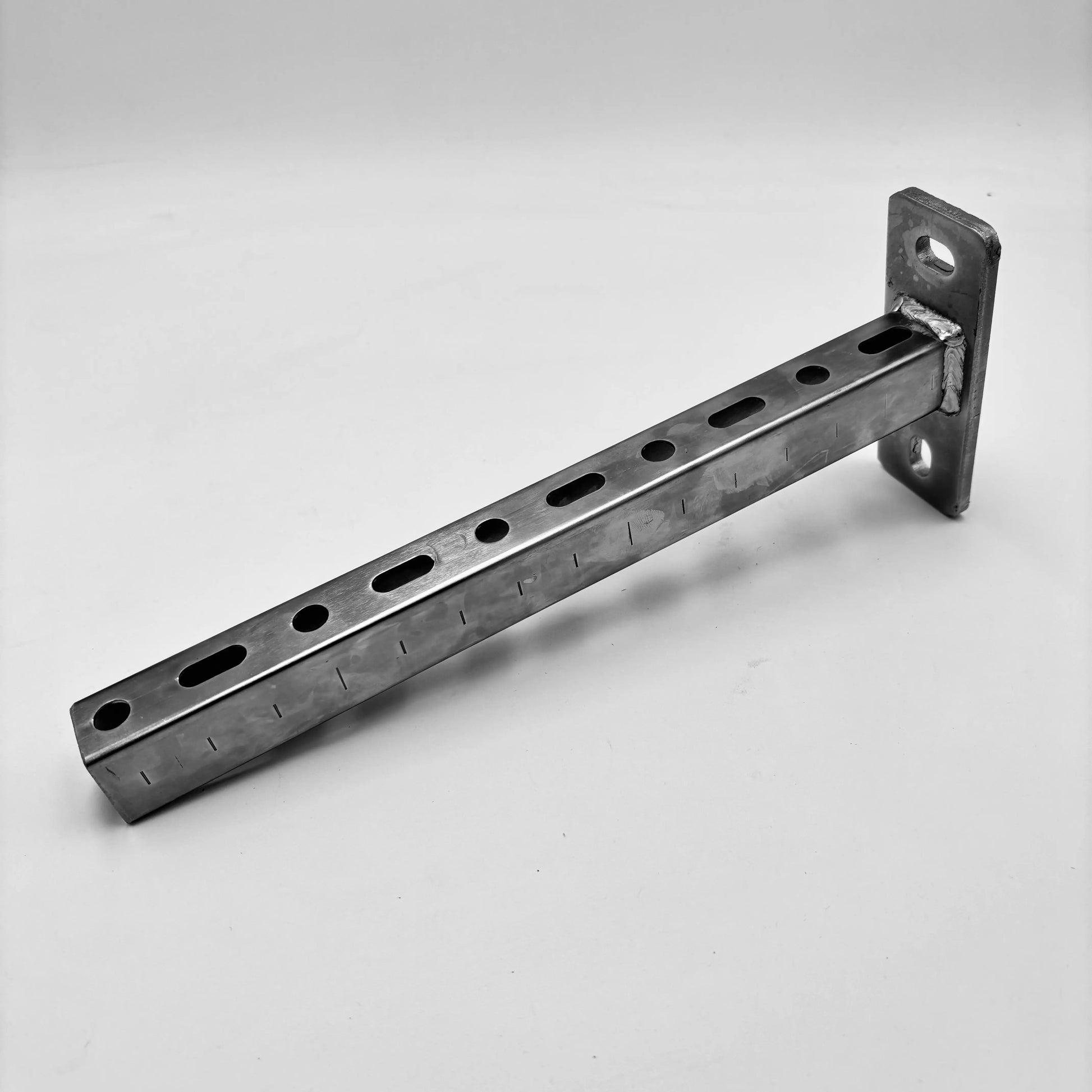

Wall-mounted cantilever console for supporting Prevost PPS aluminum compressed air pipe. Used with Prevost PPS1 CI pipe clamps to carry the main loop off a wall or structural face. Four lengths cover drops and main runs from 1/2 in through 6 in pipe.
Available Variants & SKUs
All variants and part numbers for this product are listed below for easy reference and ordering.
| SKU | Length | Length (metric) | Unit weight | GTIN / EAN 13 |
|---|---|---|---|---|
| CS 200L | 7.87 in | 200 mm | 0.55 lb (0.25 kg) | 3660058619554 |
| CS 300L | 11.81 in | 300 mm | 1.12 lb (0.51 kg) | 3660058619592 |
| CS 400L | 15.75 in | 400 mm | 1.34 lb (0.61 kg) | 3660058619646 |
| CS 500L | 19.69 in | 500 mm | 1.59 lb (0.72 kg) | 3660058619684 |
Specifications
| Manufacturer | Prevost Corporation (Prevost SAS) |
| Type | Metal support bracket, wall-mounted cantilever console |
| System | Prevost Piping System (PPS) aluminum compressed air network |
| Used with | Prevost PPS1 CI pipe clamps |
| Mounting hardware | CS VIS1B or CS VIS2 threaded stud, M8 (sold separately) |
| Packaging | Sold individually |
Load rating
Maximum distributed load: confirmation pending from the manufacturer. Prevost introduced the CS 200L / 300L / 400L / 500L range in its 2026 catalog, replacing the earlier CS 180L / 310L / 420L / 500 range, and has not yet published a distributed-load figure for the current parts. We have requested the rating in writing from Prevost and will post it here as soon as we have it.
Published load figures for the superseded CS 180L / 310L / 420L / 500 brackets do not apply to these parts. The brackets differ in length and mass and the ratings are not transferable. If you need a load rating for engineering sign-off, call us at 864-894-1400 and we will obtain it from Prevost for your specific part number.
Pipe clamp spacing
Prevost published guidance for the distance between two pipe clamps, by pipe diameter and ambient temperature. Use it to work out how many support points your run needs.
| Pipe OD | Up to 68 °F (20 °C) | 86 °F (30 °C) | 104 °F (40 °C) |
|---|---|---|---|
| 1/2 in (16 mm) | 6 ft 7 in (2.0 m) | 6 ft 7 in (2.0 m) | 4 ft 11 in (1.5 m) |
| 3/4 in (20 mm) | 8 ft 2 in (2.5 m) | 6 ft 7 in (2.0 m) | 4 ft 11 in (1.5 m) |
| 1 in (25 mm) | 9 ft 10 in (3.0 m) | 8 ft 2 in (2.5 m) | 6 ft 7 in (2.0 m) |
| 1 1/4 in (32 mm) | 11 ft 6 in (3.5 m) | 9 ft 10 in (3.0 m) | 8 ft 2 in (2.5 m) |
| 1 1/2 in (40 mm) | 13 ft 1 in (4.0 m) | 11 ft 6 in (3.5 m) | 9 ft 10 in (3.0 m) |
| 2 in (50 mm) | 11 ft 6 in (3.5 m) | 9 ft 10 in (3.0 m) | 8 ft 2 in (2.5 m) |
| 2 1/2 in (63 mm) | 11 ft 6 in (3.5 m) | 9 ft 10 in (3.0 m) | 8 ft 2 in (2.5 m) |
| 3 in (80 mm) | 11 ft 6 in (3.5 m) | 9 ft 10 in (3.0 m) | 8 ft 2 in (2.5 m) |
Source: Prevost PPS technical manual (PPS MT20GB-1220). Metric values are Prevost figures; imperial equivalents converted by Warthog.
Data sheet
Download the metal support bracket data sheet (PDF)
Cross reference
These part numbers replace the previous-generation Prevost metal support brackets CS 180L, CS 310L, CS 420L and CS 500. If you have an older drawing or bill of materials calling out those numbers, order by length from the table above.
NOTE: Actual product may differ from pictured. Prevost reserves the right to change product specifications without notice.
