ABAC AS-5251TM 5 HP Rotary Screw Air Compressor - 71 Gallon Tank Mount, 125 PSI, 20.3 CFM, 63 dBA
| Shipping | |
|---|---|
Shipping Method |
|
| Specifications (As Configured) | |
 Vendor |
ABAC
|
 SKU |
4152044119
|
 Model |
|
 Horsepower |
|
 Max PSI |
|
Gallons |
|
 Voltage |
|
 Phase |
|
| Dimensions | |
 Weight |
485.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|

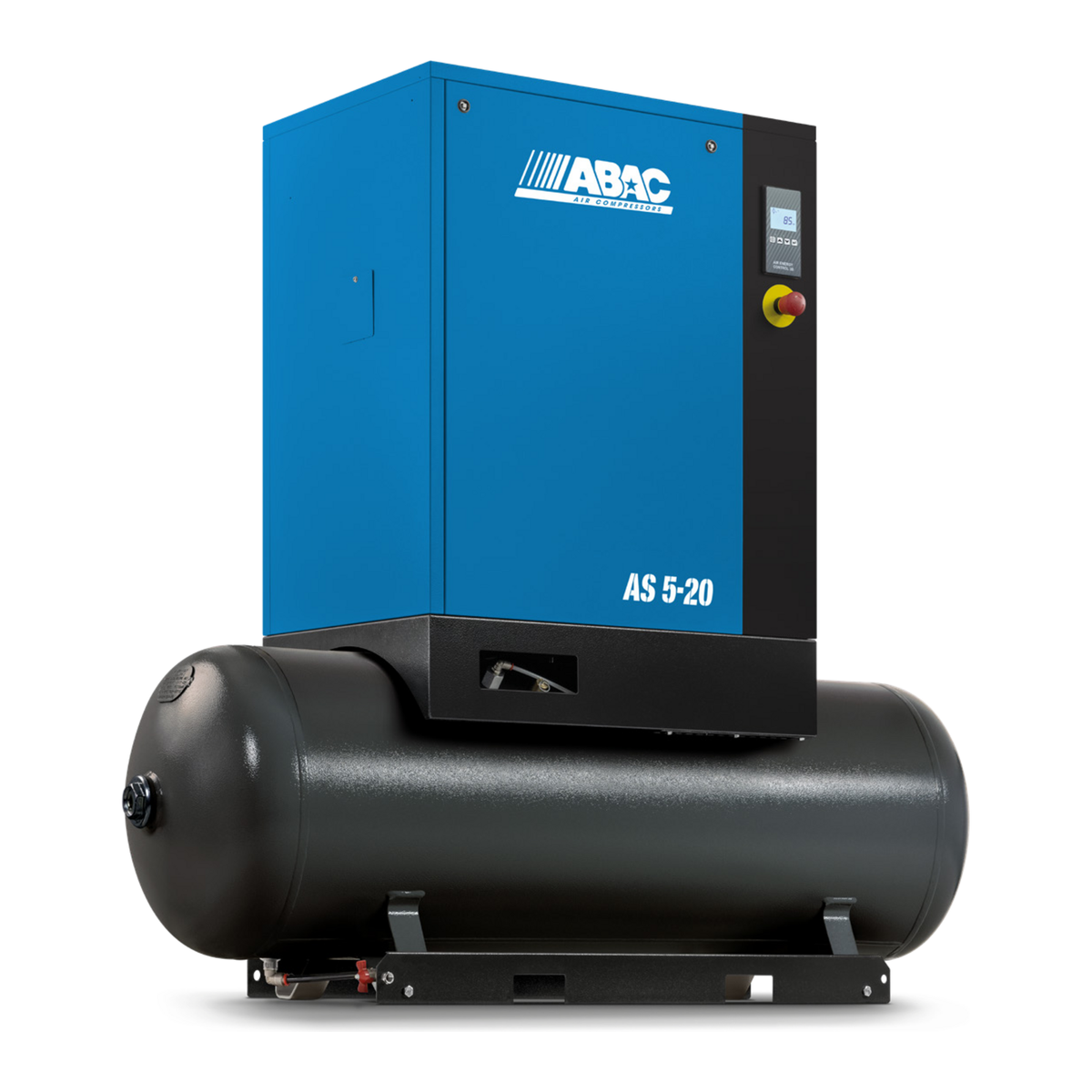

The ABAC AS-B 5 HP tank mount is a rotary screw air compressor built for shops that run air continuously rather than in bursts. It delivers 20.3 CFM at 125 PSI and runs at 63 dBA, quiet enough to sit in the work area instead of a separate compressor room. The compressor arrives already mounted on a 71 gallon air receiver, so it lands as a single package with no separate tank to source or plumb. Choose 230V single-phase (AS-5251TM) or 208-230-460V three-phase (AS-5253TM).
Key specifications
- Models: AS-5251TM / AS-5253TM
- Motor: 5 HP
- Air delivery: 20.3 CFM
- Working pressure: 125 PSI
- Noise level: 63 dBA
- Mounting: tank mount on a 71 gallon air receiver
- Power supply: 230/1/60 or 208-230-460/3/60
- Digital controller with menu driven operation and programmed maintenance
- Vertical oil separation technology
Typical applications
Automotive service bays, tire shops, small production and fabrication floors, cabinet and woodworking shops, and any operation where a piston compressor is cycling too hard to keep up. A rotary screw is built for continuous running, so it holds a steady line pressure through a full shift instead of recovering between jobs.
Part of the ABAC AS-B 5 to 20 HP screw range from the Atlas Copco group. The tank mount build is the simplest way into screw air: receiver and compressor ship as one unit on a single footprint, and a dryer can be added downstream when air tools or finishing work need moisture control.
NOTE: Actual product may be different from pictured!
