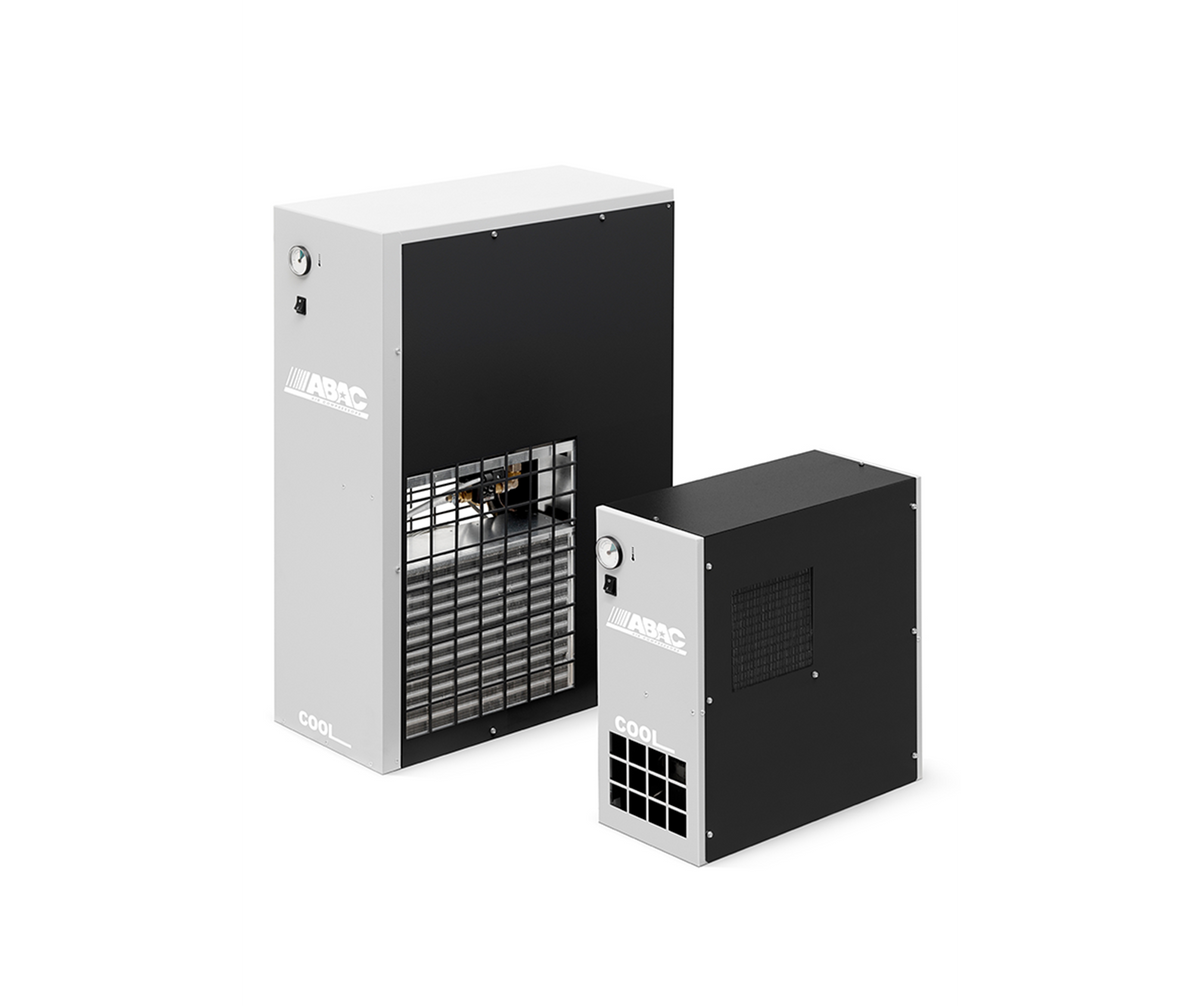

ABAC COOL 100 Refrigerated Air Dryer - 230V, 60 Hz, 232 PSI Max, R-134a

The ABAC COOL 100 is a refrigerated air dryer rated at 100 CFM that pulls moisture out of compressed air before it reaches your tools, air lines and finishing work. It is the first size in the ABAC COOL range to run on 230V 60 Hz power, and the largest that still fits the compact 9 x 22 x 22 in cabinet, so it dries a full shop air main from a footprint of only 1.4 square feet. At a 232 PSI maximum working pressure it sits behind any reciprocating or rotary screw compressor in the ABAC range without becoming the weak link.

Key specifications

• Model: COOL 100 (part number 4102006318)
• Type: refrigerated compressed air dryer, hot gas bypass design, vertical layout
• Air treatment capacity: 100 CFM (3,000 l/min, 180 m3/h)
• Maximum working pressure: 232 PSI (16 bar)
• Power supply: 230V, 60 Hz, single phase
• Nominal electrical power: 583 W
• Inlet and outlet connections: 1 in. female
• Refrigerant: R-134a
• Pressure dew point: 50 F at ABAC reference conditions of 95 F incoming air and 77 F room temperature
• Maximum operating temperature: 122 F
• Room temperature range: 41 F to 104 F
• Weight: 66 lb
• Dimensions (L x W x H): 9 x 22 x 22 in, footprint 1.4 sq ft
• Condensate removal: automatic timer drain
• Monitoring: front panel pressure dew point indicator with green target zone, main on and off switch
• Brand: ABAC, part of the Atlas Copco group

Typical applications

Paint and body shops, cabinet and woodworking shops, production cells, laser and plasma tables, packaging lines, pneumatic control systems, tire inflation and injection molding: anywhere water in the air line is blowing out finishes, rusting tools and fittings, or freezing an outdoor drop in winter. A refrigerated dryer chills the compressed air so the water condenses, drains it away, and sends dry air down the line, which is the most straightforward way to stop moisture damage downstream of a compressor.

How the COOL range works

ABAC builds the COOL range around a combined air to air and air to refrigerant heat exchanger with an integrated water separator, a capillary tube and refrigerant filter ahead of the evaporator, and a hot gas bypass valve that holds refrigeration capacity steady as demand rises and falls so the evaporator cannot freeze at light load. A timer drain clears the condensate on its own, and the front panel dew point indicator shows a green target zone so an operator can read air quality at a glance without a gauge or a meter.

Sizing and installation

Size the dryer to the compressor it follows, not to the pipe it bolts into. At 100 CFM the COOL 100 covers a 20 HP rotary screw air compressor such as the AS-20 rated 60.6 CFM at 125 PSI with room to spare, suits a 25 HP screw at 150 PSI, and comfortably handles the largest two stage reciprocating machines including the 20 HP Ironman duplex units at 64 CFM. Step down to the COOL 75 if 115V power is all that is available at the install point, and step up to the COOL 125 when the shop grows past 100 CFM of real demand.

Those capacity ratings hold at ABAC's reference conditions, so a hot room or hot incoming air will cut them: allow for it, or fit an aftercooler ahead of the dryer if it sits close to the compressor discharge. Give the unit a dry, well ventilated spot between 41 F and 104 F and keep incoming air below 122 F. Pair it with a coalescing filter upstream for oil carryover and a particulate filter downstream when your work calls for cleaner air. Compare sizes across the full refrigerated air dryer lineup, or see the rotary screw air compressors this dryer is most often paired with. Call us for the COOL 100 flow rating against your own compressor output and duty cycle before you pipe it in.
