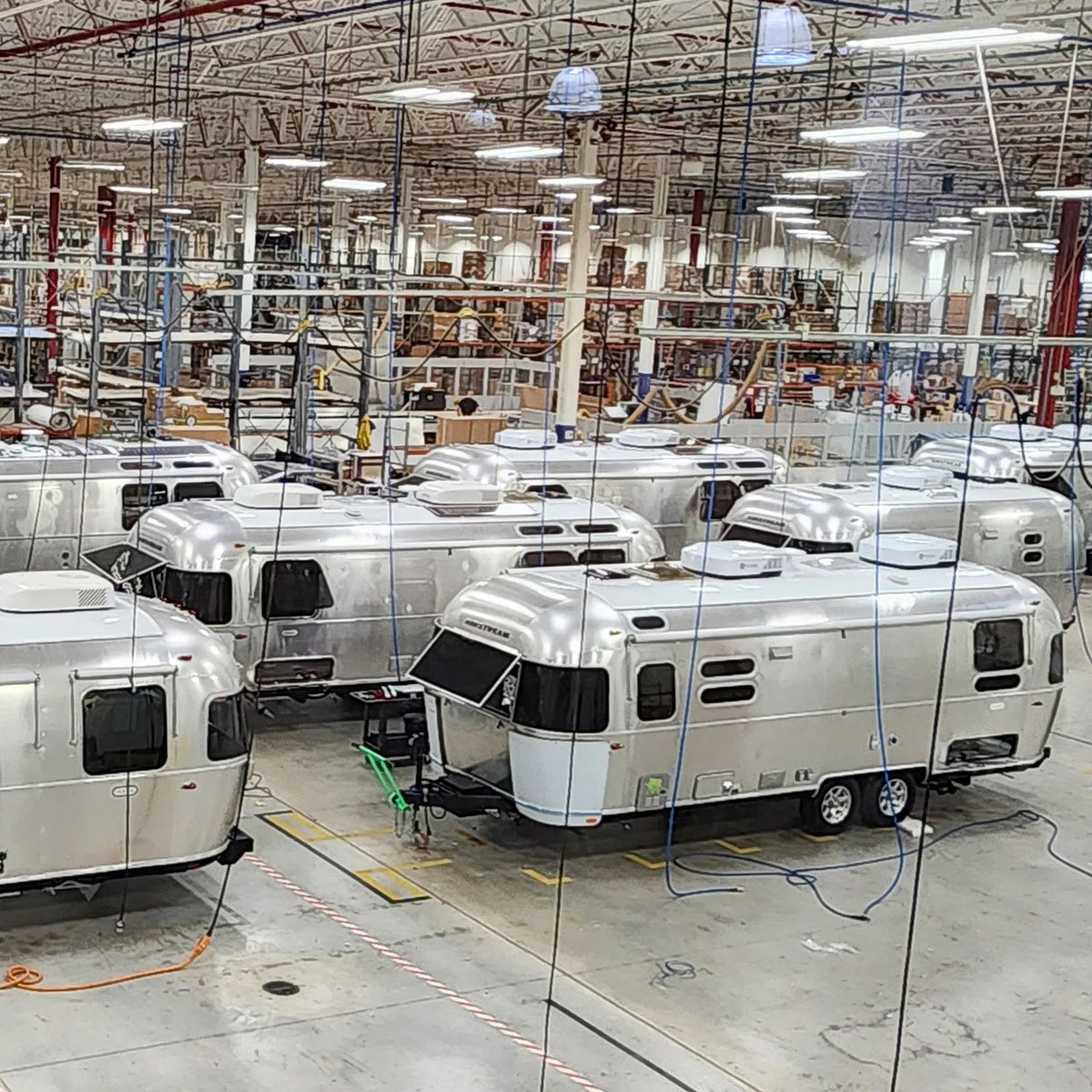

Count the quick disconnects in your plant. In a mid size RV line it is usually somewhere north of two hundred, and every one of them is a wear part that gets connected and disconnected thousands of times a year.

That number is why a plant with good compressors and good piping can still have a terrible air system. Everything upstream can be right and you still lose pressure, time and money at the last six feet.

This is the delivery end of compressed air for RV manufacturing, which covers the compressor and header. Start there if you have not sized the system.

What a Bad Drop Layout Actually Costs

Four things, and only one of them shows up on an energy bill.

• Leaks. Couplers wear, O rings fail, whips crack at the ferrule. Two hundred connection points leaking a little each adds up to a compressor's worth of air in a plant that has not looked at it in a few years.
• Walk time. An operator who has to step away from the station to reach a drop, or drag a hose from the next bay, does that fifty times a shift. That is pure takt time you are not getting back.
• Trips and snags. Hose on the floor around a chassis is a trip hazard and a thing that catches on a pallet jack and pulls a fitting apart.
• Shoulder and back load. An operator holding a heavy tool plus eight feet of hanging hose all shift is carrying weight your ergonomics assessment probably did not count.

None of those are solved by a bigger compressor, and all of them are solved by the same thing: a drop at every station, properly made up.

One Drop Per Station, Not One Per Area

The single most common layout mistake is drops placed where they were convenient to pipe rather than where people work.

If two stations share a drop, you get a hose running between them, a tee somebody added, and a pressure problem when both tools fire. Put a drop at each station even though it costs more pipe, because the pipe is cheap compared with the floor space and the time you are buying back.

Build each drop the same way, every time:

1. Take off the top of the header. Condensate stays in the main instead of running down into the tool.
2. Ball valve at the top of the drop. So a station can be isolated for service, or at night, without shutting the line.
3. Drop down, then a drip leg below the takeoff with a drain, if the plant does not have a dryer or the drop is in an unheated bay.
4. Filter, regulator and gauge at the drop. Set to what that station's tool actually needs, not header pressure.
5. Reel or balancer at the point of use.
6. One coupler standard, plant wide.

Standardizing that assembly means a maintenance tech can fix any drop from one bin of parts, which is worth more than it sounds on a plant floor.

Reel, Balancer or Whip

Option	Best for	Watch out for
Spring retractable reel	Stations where the tool moves around the unit	Retraction speed. A reel that snaps back is a hazard and breaks fittings
Reel with a tool balancer	Heavy tools used in one spot, overhead work	Balancer capacity has to match the tool, not the hose
Fixed coiled whip	Light tools, fixed position, low budget	Coils drag on the floor and catch. Fine at a bench, poor on a line
Motor driven reel	Long hose, heavy hose, high cycle counts	Cost, and it needs power at the station

A few specifics that matter more on a line than in a shop:

• Shorter hose than you think. Fifteen or twenty feet covers a station. Fifty feet of hose on a reel is extra pressure drop, extra weight and extra hose to tangle. Buy the length the job needs.
• Size the ID for the tool, not the reel. A nailer on three eighths is fine. A sander or a larger tool on three eighths is starved, and the operator will blame the compressor.
• Latching matters. A ratchet that holds at the working length means the operator is not fighting spring tension all shift.
• Mount high enough to clear the unit, and angle the reel so the hose pays out toward the work rather than across the aisle.

Our hose reel buyer's guide goes deeper on reel construction and what to look for.

The Coupler Problem, Which Is Bigger Than It Looks

Mixed coupler interchanges are endemic in plants that have grown over time. Somebody buys a box of industrial interchange, somebody else buys automotive, and now there are two incompatible standards that look nearly identical on the shelf.

What happens next is the expensive part. An operator forces a plug into a coupler it does not match, it partially seats, and it leaks continuously from then on. Nobody reports it because the tool still works.

• Pick one interchange and standardize the whole plant on it.
• Purge the wrong ones out of the crib rather than letting them get used up.
• Colour code if you genuinely need two standards for different pressures.
• Replace couplers on a schedule at high cycle stations rather than waiting for failure.

Our coupler interchange guide explains why the plug that looks right will not connect, and it is worth putting in front of whoever does your purchasing.

Zoning the Line, Which the Drops Make Easy

If each drop has a ball valve and each line has one at its head, you have most of a zoning scheme already.

A one shift plant is pressurized roughly 128 hours a week with nobody using air, and during those hours every one of your two hundred disconnects is leaking on your bill. Shutting each line at its head valve on the lockup walk costs nothing and it is the largest single energy saving available in a plant like yours. We wrote that up in compressed air zoning.

One caution worth repeating: never put the fire sprinkler air supply on a zone valve, and check for anything that holds a load pneumatically before you shut a line down.

Safety at the Last Six Feet

• Whipchecks across hose to hose and hose to tool connections on larger hose.
• Tool retainers so a bit or a driver cannot leave the tool.
• Safety nozzles on any blow-off, because the 30 psi dead-end limit applies at the station as much as anywhere. See compressed air safety.
• Inspect whips at the ferrule on the same schedule you change couplers. That is where they fail.
• Keep hose off the floor. A reel is a safety device as much as a convenience one.

What Plants Get Wrong

• Drops where the pipe was easy, not where people work. Then a hose runs across the aisle forever.
• Fifty feet of hose on every reel. Pressure drop, weight and tangle for no benefit.
• Two coupler standards in one building. Guaranteed partially seated connections and permanent leaks.
• No valve at the drop. Any station repair means shutting more than it should.
• Regulators all at header pressure. Energy and tool wear across every station.
• Taking off the bottom or side of the header. Water goes straight into the tool.
• Reels that retract at full speed. Broken fittings and a real injury risk.

Frequently Asked Questions

How many air drops does an RV assembly line need?

Plan on one per station rather than one per area. Shared drops create hoses running between stations, added tees, and pressure problems when two tools fire at once. The extra pipe is cheap compared with the floor space, trip hazards and walk time a shared drop costs you every shift.

What length hose should be on a line reel?

Usually shorter than people specify. Fifteen to twenty feet covers a station on most RV lines. Longer hose adds pressure drop, weight on the operator and something to tangle, with no benefit if the tool never travels that far. Size the inside diameter for the tool rather than for the reel.

Why do our air tools keep losing pressure at the station?

Check the last six feet before you look at the compressor. Undersized hose ID, a partially seated coupler from a mixed interchange, a reel with fifty feet of hose on it, and a regulator set wrong will each cost you pressure at the tool while the header reads fine. Put a gauge at the tool end and compare it with the drop.

Are hose reels worth it over coiled whips on a production line?

On a line, generally yes. Coils drag on the floor, catch on equipment and create trip hazards, and they do not hold the hose out of the way when the tool is parked. Reels keep hose off the floor, reduce snag damage and take weight off the operator, and a balancer on top of a reel is worth considering for heavier tools.

How much air are our quick disconnects leaking?

More than you would guess in a plant with a couple of hundred of them, because each one is a wear point that gets cycled thousands of times a year. The fastest way to find out is to read compressor loaded hours over a weekend with no production. Whatever the machine does during that time is leaks, and a large share of it will be at the drops.

Where to Start

Walk one line with two questions. Is there a drop at every station, and is there one coupler standard in the building? Those two answers predict most of what is wrong at the point of use, and both are fixable with parts rather than capital.

Browse hose reels, or the couplers and hose that go with them. Send us your station count and what tools run at each and we will put a standard drop package together.
