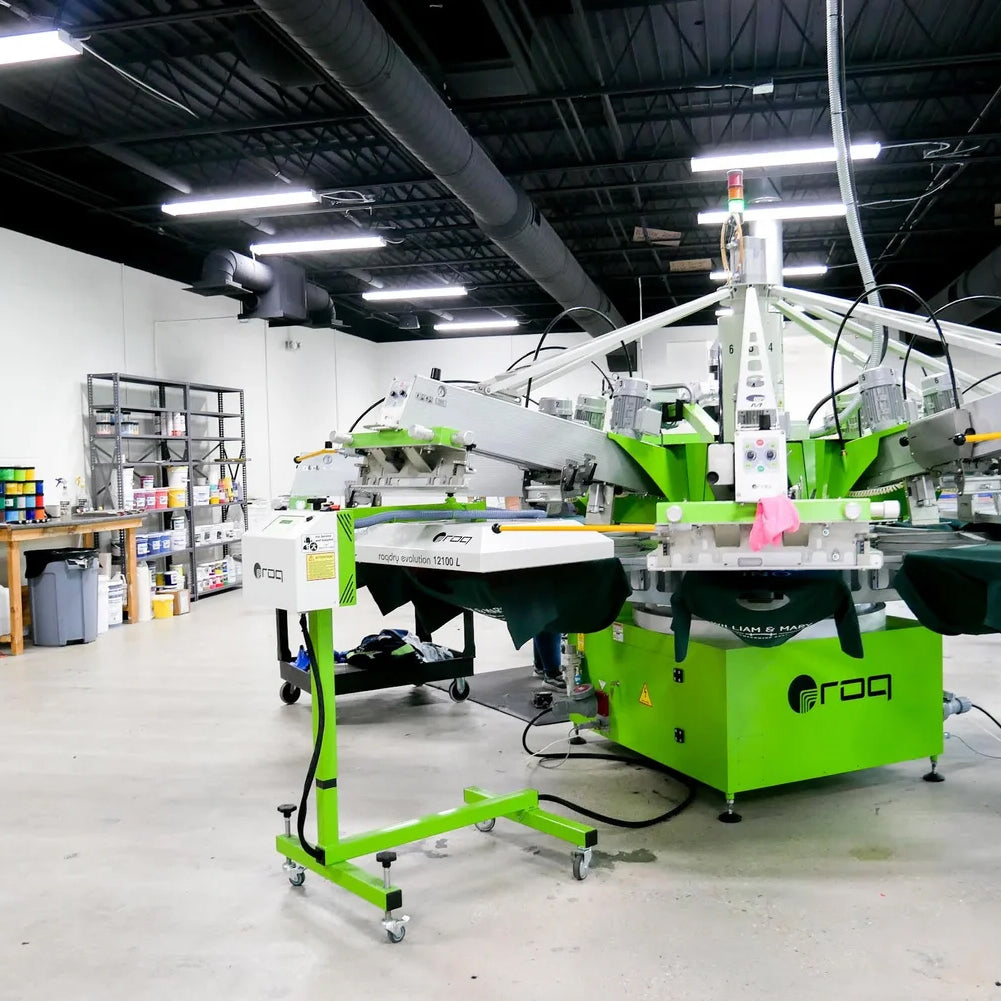

You bought a six color auto, hooked it to the same compressor that used to run a manual shop's heat press and a staple gun, and now the press indexes fine for twenty shirts and then slows down. The operator blames the machine. It isn't the machine. The press is asking for air faster than the compressor can make it, and every time tank pressure sags below what the indexer wants, the cycle stretches.
Compressed air for screen printing is one of the few utilities in a print shop where getting it wrong costs you production every single hour, not just once. Here is how to size it, treat it, and lay it out so the press runs the same at 4 p.m. as it did at 7 a.m.
Why a Print Shop Is Different From a Generic Shop
Most small shops use air in bursts. Somebody grabs an impact wrench, pulls 5 CFM for eight seconds, and walks away. An automatic press is the opposite. It is a continuous, rhythmic load that never takes a break during a run. Every index, every squeegee chop, every flood bar lift, every pallet lock pulls a measured gulp of air, and it repeats five hundred times an hour.
That changes two things. First, your compressor duty cycle is high, which pushes most print shops out of piston territory and into a rotary screw. Second, a continuously running compressor makes a lot of hot, wet air, and hot wet air is exactly what ruins a print day.
How Much CFM a Press Actually Pulls
Press makers publish this, and you should use their number rather than a rule of thumb. For scale, M&R lists the Hornet line at roughly 8 to 12 CFM depending on configuration, and the larger Gauntlet 4 line at roughly 18 to 23 CFM. Both are rated at about 100 psi. Anatol's hybrid Vector uses servo drive for the index and reserves air for the squeegee and flood chop, so it asks for noticeably less.
So a single mid size auto is a 10 to 25 CFM machine. That is the starting number, not the finishing number.
| Equipment | Typical air demand | Notes |
|---|---|---|
| Small automatic press (6 to 8 station) | 8 to 12 CFM at 100 psi | Use the data plate, not the horsepower |
| Large automatic press (10 to 16 station) | 18 to 23 CFM at 100 psi | Doubles if you run two autos |
| Pneumatic screen clamps and lifts | 1 to 3 CFM intermittent | Small but spiky |
| Air pallet and platen locks | Under 1 CFM | Leaks here are constant |
| Blow off gun at the dryer or screen room | 4 to 10 CFM while open | Biggest hidden draw in most shops |
| Pneumatic ink pump or sprayer | 3 to 8 CFM | Check duty, some run nonstop |
Sizing the Compressor Without Overbuying
Add up the published CFM for every machine that can run at the same time, then add your blow off and screen room draws, then add headroom. The common advice in the industry is to double the press rating. That is generous but it is not crazy, because you are buying three things at once: capacity for the press, capacity for everything else, and enough margin that the compressor is not running loaded one hundred percent of the time in August.
A practical approach that we see work:
- One small auto plus a manual shop: 7.5 HP rotary screw, roughly 25 to 28 CFM at 125 psi.
- One large auto plus dryer blow off and a screen room: 10 HP, roughly 35 to 40 CFM.
- Two autos running together: 15 to 20 HP, or two smaller machines in lead lag so one can come off line for service.
Note the pressure column. Press specs are written at 100 psi at the machine. If your compressor cuts out at 125 psi and you lose 10 psi across a dirty filter and another 8 across undersized pipe, you are not delivering 100. Size the machine so that after all losses you still have 100 psi at the last press in the line. Our rotary screw air compressors are the normal landing spot for a shop at this scale, and if you want to walk the sizing math in general terms, start with what size air compressor do I need.
Why Piston Compressors Struggle Here
A good two stage piston at 7.5 HP can make the CFM. What it cannot always do is make it all day. Most are rated around a 50 to 75 percent duty cycle, and a production auto will hold you above that for hours. The compressor gets hot, carries more oil into the discharge, and the tank fills with water. If you are a one auto shop printing two or three days a week, a piston is honest and affordable. If the press runs every day, a rotary screw is the cheaper machine over five years.
Dry Air Is Not Optional in a Print Shop
Here is the part most shops skip until it bites them. A compressor takes in whatever humidity is in the room and concentrates it. A 10 HP machine running hard on a humid summer day can put several gallons of water a day into your air lines. In a print shop that water shows up in three ugly ways:
- Spitting blow off guns. You blow lint off a shirt before it goes under the head and instead you put a water spot on the garment. On a dark tee with a white base that is a reprint.
- Sticky indexing. Water washes lubricant out of cylinders and valves, so the press gets lazy and the registration drifts.
- Rust in the lines. Black iron pipe plus condensate equals scale, and scale ends up in your solenoid valves.
A refrigerated dryer gets you to roughly a 35 to 40 degree F pressure dew point, which is dry enough for everything inside a heated building. That is the right call for the vast majority of print shops. You only need a desiccant dryer if your air lines run through an unheated space or outdoors, because a 38 degree dew point will still drop water the moment the pipe gets colder than that. Browse air dryers and size the dryer for the compressor's full output, not the press's draw, since all of the air goes through it. If you want the long version of the choice, read refrigerated vs desiccant air dryer.
Filtration Order That Works
Keep it simple. A general purpose particulate filter ahead of the dryer protects the dryer. A coalescing filter after the dryer takes out oil aerosol and the last of the liquid water. If you run water based or discharge inks and you are nervous about oil carryover marking a shirt, add an activated carbon filter at the drop that feeds your blow off guns rather than filtering the entire plant to that level. Full details on the order live in our air filters category.
There is no ISO 8573-1 class that the apparel industry is required to hit. Nobody audits a print shop for air quality. Practically, aim for something in the neighborhood of ISO 8573-1 Class 1.4.1 at the press drops and you will never think about it again.
Piping and Layout: Where Shops Lose Their Pressure
A print shop floor is long and narrow more often than not, with the compressor stuck in a back corner or a closet and the presses out front. That is the exact geometry that punishes undersized pipe.
Three rules that cover most of it:
- Go one size up on the main. If a calculator says 3/4 inch, run 1 inch. Pipe is cheap once, pressure drop is expensive forever.
- Take every drop off the top of the main. Air comes off the top, water stays in the bottom of the pipe and goes to a drip leg with a drain on it.
- Loop it if you can. A loop feeds the far end of the shop from two directions and cuts the effective run roughly in half.
Do not use PVC. It is not rated for compressed air, OSHA has cited shops for it, and when it fails it throws plastic shrapnel. Aluminum push to connect systems are popular in print shops for a reason: a crew can install a whole shop over a weekend and modify it when you move the press.
The Mistakes Print Shops Make Over and Over
- Sizing to the press alone. The blow off gun at the end of the dryer belt, left zip tied open because it is convenient, can eat 10 CFM continuously. That is a third of a 10 HP machine, spent on nothing.
- Buying on horsepower instead of CFM. Two 10 HP machines from different makers can differ by several CFM. The rating plate and the CAGI sheet tell the truth.
- Putting the compressor in a closet with no ventilation. A 10 HP machine rejects about 30,000 BTU per hour into that room. Starve it for air and it will trip on high temperature in July.
- Skipping the dryer to save money up front. One ruined run of 400 pieces costs more than the dryer.
- Ignoring leaks. A print shop is full of quick disconnects, old hose, and cylinders. Leaks in a typical shop run 20 to 30 percent of total output and they run on nights and weekends too.
A Simple Target Spec
| Shop size | Compressor | Storage | Treatment |
|---|---|---|---|
| Manual shop, heat press, screen room | 5 HP two stage piston | 60 to 80 gallon | Water separator plus coalescing filter |
| One auto, part time production | 7.5 HP piston or screw | 80 to 120 gallon | Refrigerated dryer, two stage filtration |
| One auto, daily production | 7.5 to 10 HP rotary screw | 120 gallon wet plus dry receiver | Refrigerated dryer, two stage filtration |
| Two autos plus finishing | 15 to 20 HP screw, or two in lead lag | 240 gallon or more | Refrigerated dryer sized to full flow |
Frequently Asked Questions
What size air compressor do I need for an automatic screen printing press?
Start with the press manufacturer's published CFM at 100 psi, which is commonly 8 to 12 CFM for a small auto and 18 to 23 CFM for a large one. Add the CFM for blow off guns, screen clamps and any pneumatic ink pumps, then add headroom so the compressor is not running fully loaded all day. For most single auto shops that lands on a 7.5 or 10 HP rotary screw.
Do I really need an air dryer for screen printing?
Yes if you print production. Water in the line spits out of blow off guns onto garments, washes lubricant out of press cylinders, and rusts steel pipe. A refrigerated dryer to about a 38 degree F pressure dew point handles any shop whose air lines stay inside a heated building.
Will a piston compressor run an auto press?
It can, if your production is intermittent. Pistons are typically rated for a 50 to 75 percent duty cycle, and a press running continuous production will push past that. If you print most days of the week, a rotary screw costs less to own once you count the heat, the oil carryover and the rebuilds.
What pressure should I set the compressor to?
Work backward from the press. If the press wants 100 psi at the machine, set the compressor high enough that after losses through the dryer, filters and piping you still have 100 at the farthest drop. On a clean, properly sized system that usually means a 115 to 125 psi cut out. Running higher than you need just costs energy and feeds leaks.
Can one compressor run two automatic presses?
Yes, if you size it for both running simultaneously plus everything else. Many shops at that size run two smaller compressors in lead lag instead, which gives you redundancy on a day when one machine needs service and keeps you printing.
Where to Start
If your press is stalling, measure before you buy. Watch the compressor's loaded percentage during a real run and watch the gauge at the press, not at the tank. Nine times out of ten the answer is either a compressor that is one size too small, a dryer that was never installed, or a half inch pipe feeding a machine that needs an inch. Getting compressed air for screen printing right is not complicated, but it does have to be done in the right order: capacity, then treatment, then distribution.
