Nearly all the electricity you feed a compressor comes back out as heat. Not most of it. Nearly all of it, because compressing air and then cooling it back down is a process whose main output, thermodynamically speaking, is a warm room.

That is why the compressor that ran fine all winter starts tripping on high temperature in July. Nothing failed. The room simply stopped being able to get rid of what the machine has always produced.

Compressor room ventilation is a calculation, not a judgment call, and it takes about five minutes to do. Here is how.

The Heat Number

Start with how much heat you have to move.

CAGI quotes a conversion factor of 2,545 BTU per brake horsepower hour, which is the standard figure for turning compressor horsepower into heat. The working formula adds a margin for motor inefficiency:

Heat load (BTU/hr) = motor horsepower x 2,545 x 1.25

For a 100 horsepower air cooled rotary screw:

100 x 2,545 x 1.25 = 318,125 BTU/hr

That is the number your room has to reject, every hour the machine runs loaded. For scale, a typical residential furnace is around 80,000 BTU/hr. You have four of them running in a closet.

The Fan Number

Now convert heat into airflow. The standard sensible heat formula:

CFM = BTU/hr divided by (1.08 x temperature rise in degrees F)

The 1.08 is a constant that bundles the specific heat and density of air at standard conditions. The temperature rise is how much warmer you are willing to let the room get above the outside air coming in.

Using the 100 horsepower example at a 15 degree rise:

318,125 divided by (1.08 x 15) = about 19,600 CFM

That is a serious fan, and it is the number that surprises people who were planning on a louver and a bathroom exhaust.

Choosing the Temperature Rise

This is the one judgment in the calculation, and it drives the answer more than anything else.

Temperature rise	CFM for the 100 HP example	When it makes sense
10 F	About 29,500	Hot climate, or the room already runs close to the machine's limit
15 F	About 19,600	The common design choice
20 F	About 14,700	Moderate climate with headroom on ambient
25 F	About 11,800	Only with a genuinely cool worst case outside temperature

The constraint is not the rise, it is the resulting room temperature on your worst day. Work it backwards. If your design outside air is 95 F and you allow a 20 degree rise, the room reaches 115 F. Check that against the maximum ambient on your compressor's data plate before you buy the fan, because that is the number that decides whether you trip in August.

The Rules That Make or Break It

The calculation gives you a fan size. These decide whether the fan actually does anything.

• Inlet low, exhaust high. Hot air rises. An exhaust fan near the floor fights physics all day.
• The inlet opening has to be at least as big as the exhaust. A powerful fan with a small inlet just creates negative pressure, and the room never actually changes its air. This is the single most common failure, because the fan is visible and the inlet is an afterthought.

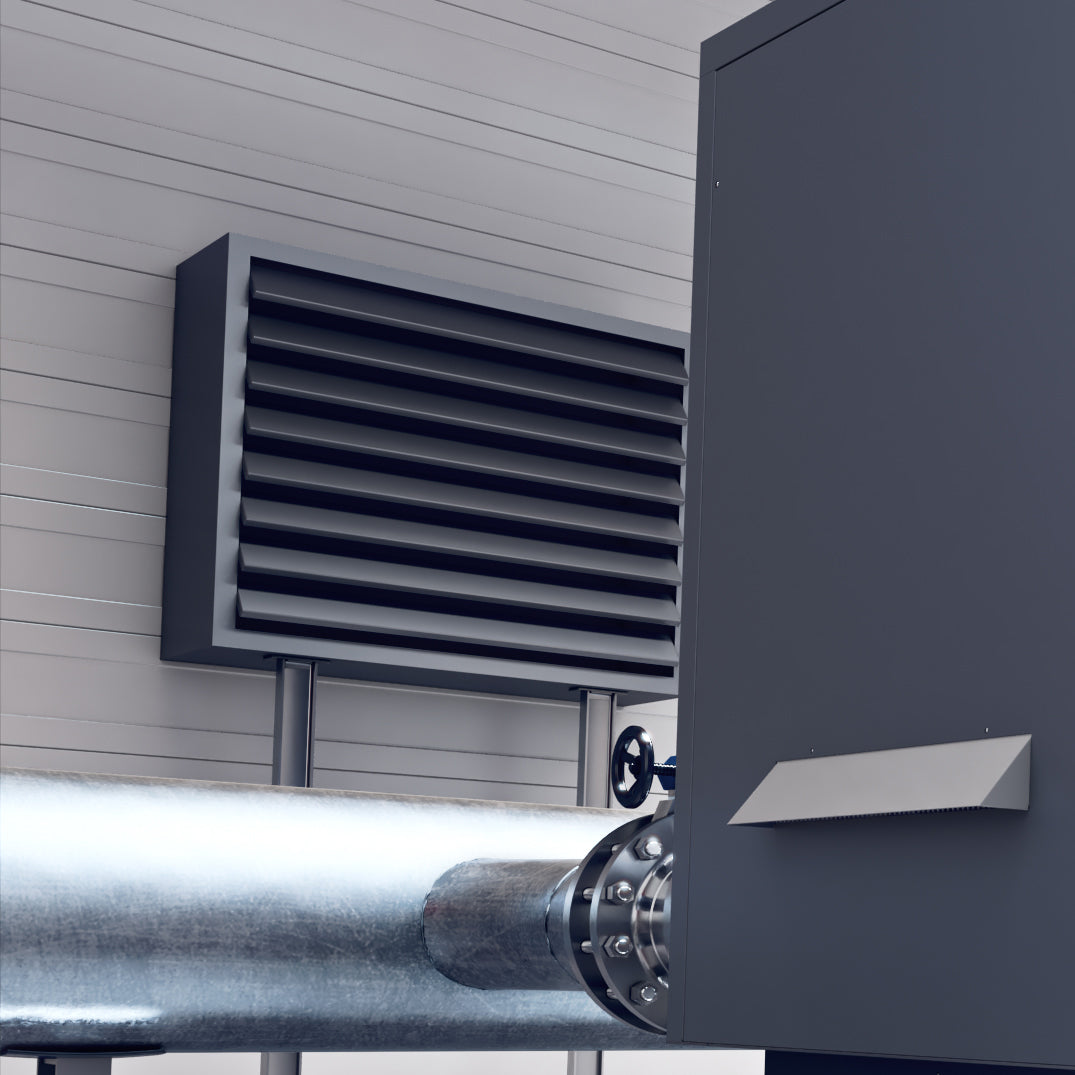

• Derate for louvers and screens. A louver with a bird screen can cut free area by half or more. Size the opening on free area, not on the hole in the wall.
• Put the airflow across the machine. Inlet on one side, machine in the middle, exhaust on the other. Air that takes a shortcut from inlet to exhaust across the ceiling does nothing for the compressor.
• Duct the package discharge if you can. Many packaged screws are built to have their cooler discharge ducted straight outside, which removes most of the heat before it ever enters the room and shrinks the fan you need. If your machine supports it, this is the best answer available.
• Thermostat the fan. Full flow in January pulls the room below what the machine wants, and cold is its own problem. A two speed or thermostatically controlled fan handles both seasons.
• Count everything in the room. The dryer rejects heat too, and so does a second compressor. Add them to the heat load rather than sizing on the biggest machine alone.

What Happens When It Is Undersized

The symptoms arrive in a predictable order, and they get blamed on the compressor rather than the room.

1. Discharge temperature creeps up across the summer. Nobody notices because nobody writes it down.
2. High temperature warnings that clear themselves. The machine is telling you.
3. Shutdowns on the hottest afternoons, always at the worst time.
4. Oil degrades faster. Heat is what ages compressor oil, so intervals shorten and varnish shows up.
5. Downstream moisture gets worse. Hotter air into the aftercooler means a higher approach temperature and more water carried into the system.

If any of that sounds familiar, the controller has the evidence. Our piece on reading your compressor controller covers how to see the trend, and overheating causes and fixes covers the other candidates once you have ruled the room in or out.

The Winter Half

A room that is correctly ventilated for August can be too cold in January, and cold causes its own failures: condensate freezing in drain lines, oil too thick at startup, and refrigerated dryers running outside their design envelope.

The fix is control rather than compromise. Thermostatic control on the fan, a motorized damper on the inlet, and a recirculation path if the room genuinely needs heat. On a machine of any size, the heat you are throwing out the wall is worth looking at for heat recovery rather than just exhausting.

A Worked Example You Can Copy

Two machines in one room, a 50 horsepower screw and a 25 horsepower screw, plus a refrigerated dryer. Design outside air 95 F. Compressor rated for 104 F maximum ambient.

1. Heat load: (50 + 25) x 2,545 x 1.25 = about 238,600 BTU/hr. Add an allowance for the dryer from its data sheet.
2. Allowable rise: 104 minus 95 leaves 9 degrees, and you want margin, so design to a rise of about 7 F.
3. Fan: 238,600 divided by (1.08 x 7) = about 31,600 CFM.
4. Reaction: that is a very large fan for a small room, which tells you the real answer is to duct the cooler discharge outside, or to find a cooler source of inlet air, rather than to move the whole heat load through the room.

That step four is the point of doing the arithmetic. When the number comes out absurd, it is telling you the layout is wrong, not that you need a bigger fan.

What People Get Wrong

• Sizing the fan and forgetting the inlet. The most common error by a wide margin.
• Using the gross opening instead of free area. Louvers and screens cost you half.
• Exhaust low, inlet high. Backwards, and it will not work.
• Counting one machine in a room with three heat sources.
• Designing to average summer rather than worst case. You only trip on the hot days.
• Not checking the resulting room temperature against the data plate ambient.
• Running full ventilation in January. Cold is a different failure mode, not a free bonus.

Frequently Asked Questions

How do I calculate compressor room ventilation?

Two steps. Heat load in BTU per hour equals motor horsepower times 2,545 times 1.25, where 2,545 is the CAGI conversion for BTU per brake horsepower hour and 1.25 covers motor inefficiency and margin. Then CFM equals that heat load divided by 1.08 times your allowable temperature rise in degrees F. A 100 horsepower machine at a 15 degree rise works out to roughly 19,600 CFM.

How much heat does an air compressor produce?

Nearly all the electrical energy you put in comes back out as heat. Using the standard figures, a 100 horsepower air cooled rotary screw rejects about 318,125 BTU per hour. For scale that is comparable to four residential furnaces running continuously in the same room.

What temperature rise should I design for?

Fifteen degrees F is the common choice, but the real constraint is the room temperature that results on your worst day. Take your design outside air temperature, add the rise, and check the total against the maximum ambient on the compressor data plate. If design outside air is 95 F and the machine is rated for 104 F, you only have 9 degrees to work with regardless of what is conventional.

Why does my compressor only overheat in summer?

Because the heat load has not changed and the room's ability to reject it has. Ventilation sized for mild weather runs out of margin when the inlet air is 20 degrees warmer. Check the discharge temperature trend across the year before assuming the machine is at fault, because a seasonal pattern points at the room rather than the compressor.

Is it better to duct the compressor discharge outside?

Usually yes, where the machine supports it. Many packaged rotary screws are designed to have their cooler discharge ducted directly outdoors, which removes most of the heat before it enters the room at all and dramatically reduces the ventilation fan you need. If your calculated fan size looks absurd for the room, ducting is normally the right answer rather than a bigger fan.

Where to Start

Do the arithmetic for your room this week. Horsepower times 2,545 times 1.25, divided by 1.08 times your allowable rise. Then go and measure the free area of your inlet opening, because in most rooms that is where the design actually failed, and it is cheaper to fix than anything else on this page.
