Save 33%
High Flow Safety Coupler by Prevost
High Flow Safety Coupler by Prevost
Regular price
$40.00
Sale price
$40.00
Regular price
$60.00
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
ESI 071201
|
| Dimensions | |
 Weight |
0.26 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|

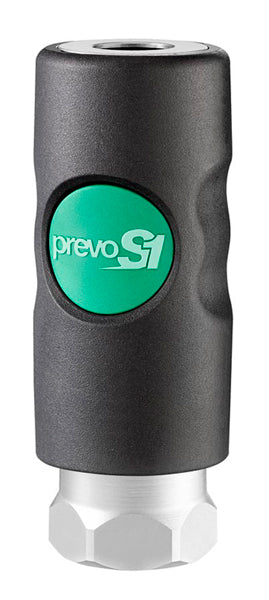

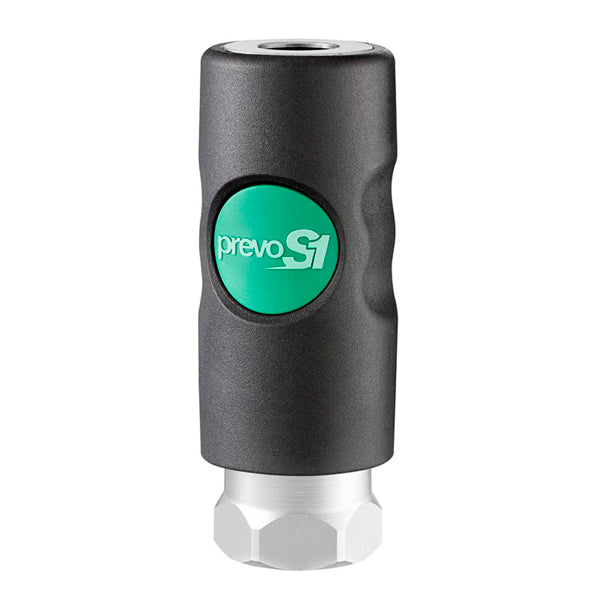

Female Coupler High Flow 3/8″ Body (must be ordered in quantities of 10)
10 Pack: FEMALE COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
10 Pack: MALE COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
10 pack: HOSE STEM COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
THREAD SWIVEL COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
360 deg. rotation on 2 axis
NPT female thread Reference 1/4″ FNPT ESI 071201SW
https://www.youtube.com/watch?v=VS5Zkz5-wpUhttps://youtu.be/--silowEhMM?si=z2-e-nPza9oaDLf2
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :3/8″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
| A (inch) | B (inch) | C (mm) | Reference |
|---|---|---|---|
| 2.768 | 1.27 | 23 | ESI 071201 |
| 2.827 | 1.27 | 23 | ESI 071202 |

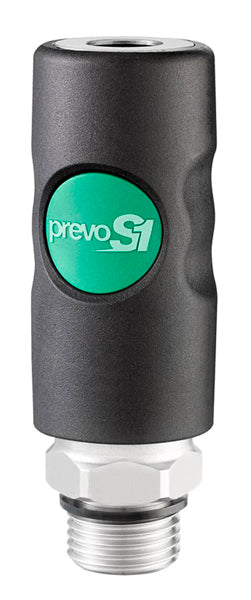

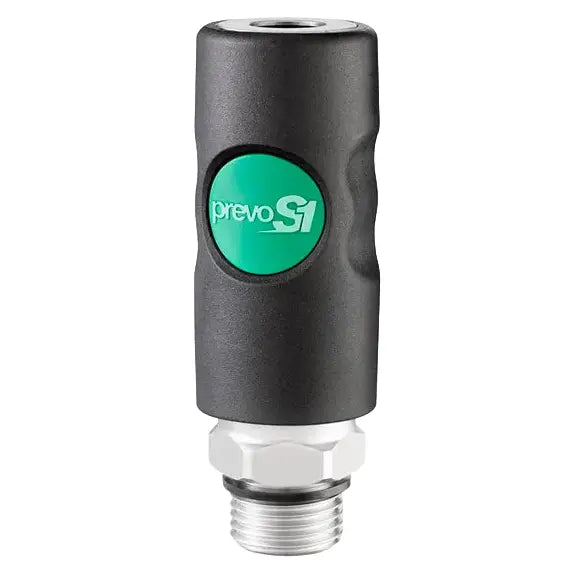

10 Pack: MALE COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :3/8″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
| A (inch) | B (inch) | C (mm) | Reference |
|---|---|---|---|
| 3.299 | 1.27 | 23 | ESI 071251 |
| 3.299 | 1.27 | 23 | ESI 071252 |
| 3.457 | 1.27 | 23 | ESI 071253 |

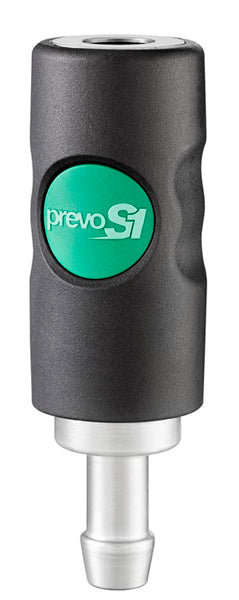

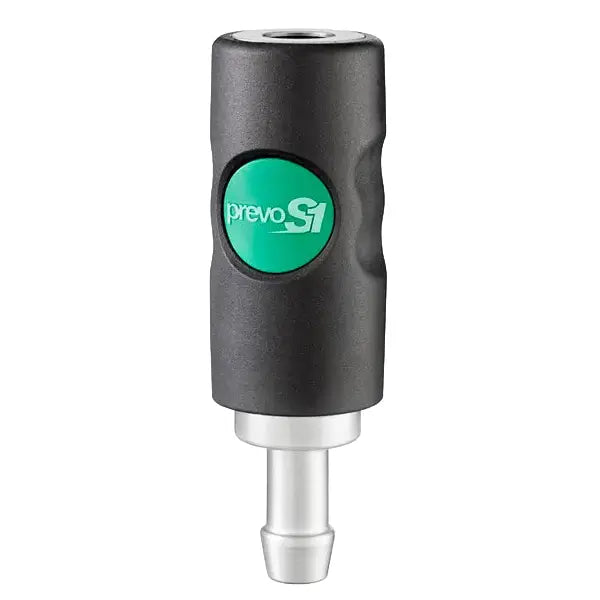

10 pack: HOSE STEM COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
- Technology :”One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :3/8″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
| For hose ID | Reference |
|---|---|
| 1/4″ Hose Barb | ESI 071806 |
| 3/8″ Hose Barb | ESI 071810 |
| 1/2″ Hose Barb | ESI 071813 |
| A (inch) | B (inch) | C (inch) | Reference |
|---|---|---|---|
| 3.437 | 1.27 | 0.89 | ESI 071806 |
| 3.437 | 1.27 | 0.89 | ESI 071810 |
| 3.634 | 1.27 | 0.89 | ESI 071813 |
THREAD SWIVEL COUPLER HIGH FLOW 3/8″ BODY
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :3/8″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
360 deg. rotation on 2 axis
NPT female thread Reference 1/4″ FNPT ESI 071201SW
| A (inch) | B (inch) | C (inch) | Reference |
|---|---|---|---|
| 7.244 | 1.299 | 5.421 | ESI 081202SW |
https://www.youtube.com/watch?v=VS5Zkz5-wpUhttps://youtu.be/--silowEhMM?si=z2-e-nPza9oaDLf2
NOTE: Actual product may be different from pictured!
