Automotive (Truflate) Safety Quick Couplers By Prevost (PREVOS1)
Automotive (Truflate) Safety Quick Couplers By Prevost (PREVOS1)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
USI 061201
|
 Model |
|
| Dimensions | |
 Weight |
0.22 lb
|
| Downloadable Files | |
 Brochure PDF |
|
1/4″ BODY Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
3/8″ BODY Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :3/8″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static

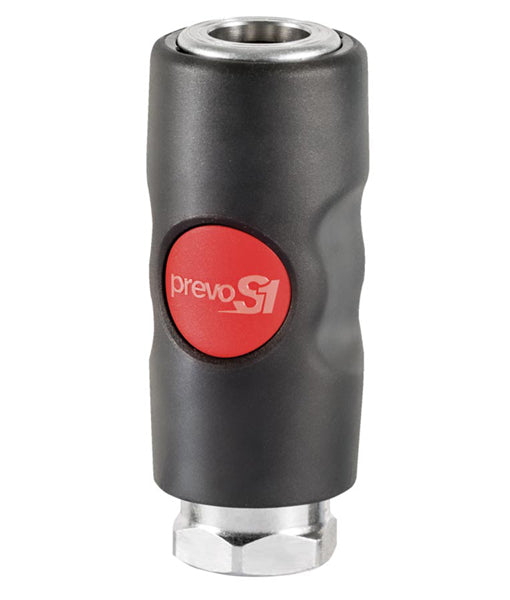

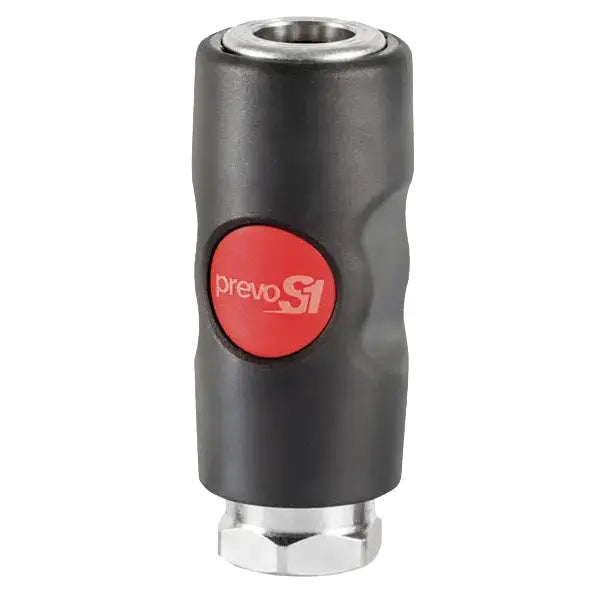

NPT female thread Reference 1/4″ FNPT USI 081201 3/8″ FNPT USI 081202 1/2″ FNPT USI 081203
| A (inch) | B (inch) | C (mm) | Reference |
|---|---|---|---|
| 3.244 | 1.299 | 23 | USI 081201 |
| 3.244 | 1.299 | 23 | USI 081202 |
| 3.598 | 1.299 | 23 | USI 081203 |

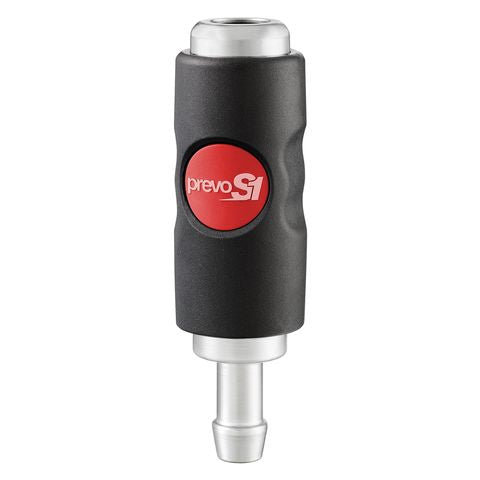

HOSE STEM COUPLER AUTOMOTIVE 1/2″ BODY – STAINLESS
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :0 to 232 psi
- Flow rate at 100 psi :148 cfm (Delta P = 8.70 psi)
- ID Passage :1/2″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Body : Stainless steel
For hose ID Reference 3/8″ Hose Barb USI 111810 1/2″ Hose Barb USI 111813 3/4″ Hose Barb USI 111819
| A (inch) | B (inch) | C (inch) | Reference |
|---|---|---|---|
| 5.374 | 1.457 | 0.394 | USI 111810 |
| 4.74 | 1.457 | 0.492 | USI 111813 |
| 6.358 | 1.457 | 0.728 | USI 111819 |

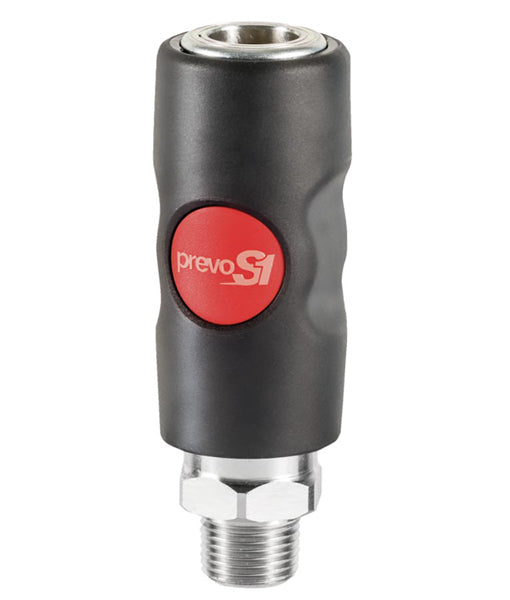

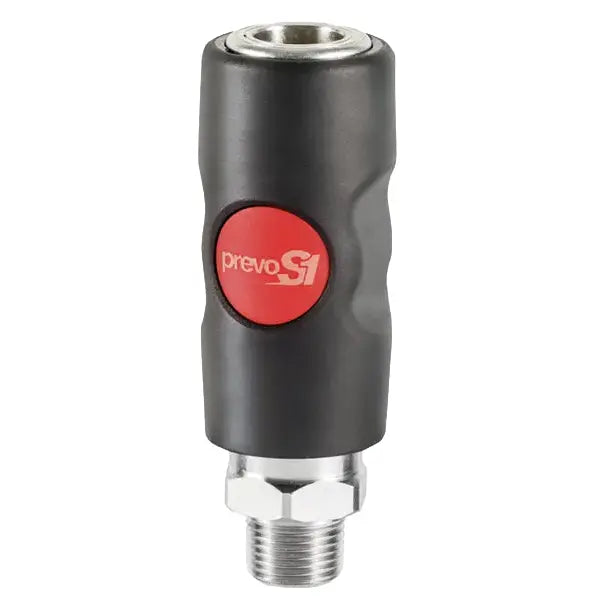

MALE COUPLER AUTOMOTIVE 1/4″ BODY
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :34 cfm (Delta P = 10 psi)
- ID Passage :1/4″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
NPT male thread Reference 1/4″ MNPT USI 061251 3/8″ MNPT USI 061252 1/2″ MNPT USI 061253
| A (inch) | B (inch) | C (mm) | Reference |
|---|---|---|---|
| 3.228 | 1.181 | 20 | USI 061251 |
| 3.228 | 1.181 | 20 | USI 061252 |
| 3.465 | 1.181 | 23 | USI 061253 |
MALE COUPLER AUTOMOTIVE 3/8″ BODY
Technical specifications
- Technology :“One push” safety system (avoids hose whip)
- Operating pressure :29 to 174 psi
- Flow rate at 100 psi :81 cfm (Delta P = 10 psi)
- ID Passage :3/8″ body size
- Temperature : 5 deg. F to 158 deg. F
- Construction :Composite body
- Highlight :Non scratch
Anti-static
NPT male thread Reference 1/4″ MNPT USI 081251 3/8″ MNPT USI 081252 1/2″ MNPT USI 081253
| A (inch) | B (inch) | C (mm) | Reference |
|---|---|---|---|
| 3.717 | 1.299 | 23 | USI 081251 |
| 3.717 | 1.299 | 23 | USI 081252 |
| 3.874 | 1.299 | 23 | USI 081253 |
NOTE: Actual product may be different from pictured!
