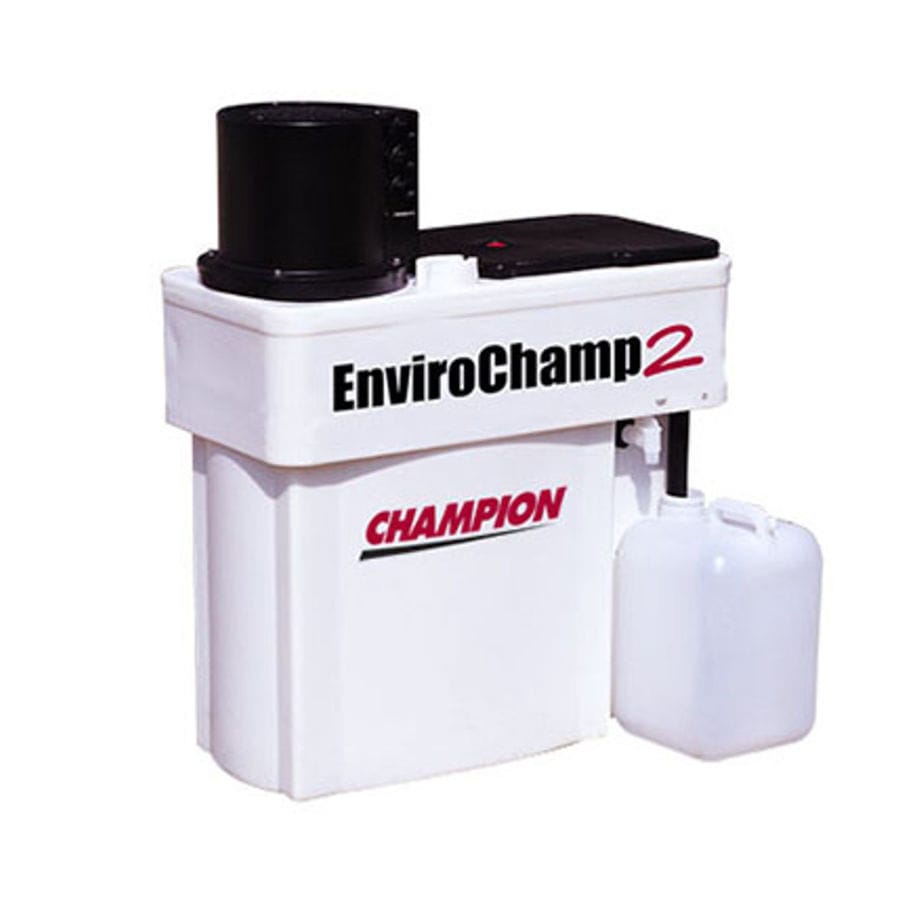

Champion CSP EnviroChamp 2 Oil/Water Separator - Compressed Air Condensate Treatment

The Champion CSP EnviroChamp 2 is a gravity and carbon-adsorption oil/water separator that treats the oily condensate drained from your compressed air system so the water leaving your shop is clean enough to send to a sanitary drain. Six models cover everything from a single small rotary screw package up to a multi-compressor plant room, and every unit is designed for real summertime conditions of 90°F at 90% relative humidity. When properly maintained, the EnviroChamp 2 discharges water containing less than 15 ppm of residual oil.

Select your model from the dropdown above.

Why You Cannot Drain Compressed Air Condensate to the Sewer

Every compressor, aftercooler, receiver tank, filter and refrigerated dryer in a plant produces condensate, and that condensate carries lubricant carried over from the compression chamber. A single 100 HP rotary screw can drop 20 gallons or more of oily water per day in humid weather. Discharging that to a municipal sewer or a storm drain violates the Clean Water Act and most local pretreatment ordinances, and hauling it away as regulated waste costs hundreds of dollars a drum. An oil/water separator removes the lubricant on site, leaving water you can legally drain and a small volume of concentrated oil you dispose of once or twice a year.

How the Four-Stage EnviroChamp 2 Works

1. Expansion and sediment chamber - Incoming condensate is depressurized and slowed so rust, pipe scale and sediment settle out before they can foul the carbon. The chamber lifts out for cleaning.
2. Separation filter - Coalesces small oil droplets into larger ones so they float free to the surface and gravity-drain to the oil collection container.
3. Pre-adsorption element - Breaks contaminant-formed emulsions that gravity alone will not release, so the carbon bed sees a much lighter oil load.
4. Activated carbon bed - A wide, deep carbon bed adsorbs the last traces of dissolved and emulsified hydrocarbon, polishing the discharge to under 15 ppm.

Model Selection Chart

*Vessel capacity and configuration are as published in the Champion air treatment price list. The nominal air system capacity column reflects the published rating basis for this separator platform at 90°F and 90% relative humidity, on a rotary screw compressor running a fully demulsible lubricant with a refrigerated dryer installed. Actual capacity varies with lubricant chemistry, ambient conditions and dryer type. Contact our compressed air engineers to confirm sizing before you order.

Key Features at a Glance

• Under 15 ppm oil in the discharge water when properly maintained.
• Rated for 90°F at 90% RH - sized for the worst day of the year, not a laboratory average.
• Four-stage treatment - expansion and sediment chamber, separation filter, pre-adsorption element, activated carbon bed.
• Three 1/2" NPT condensate inlets on a rotatable diffuser, so several drain lines land on one unit and the diffuser turns to suit the installation.
• Adjustable oil outlet tube - set the lubricant level precisely for best separation, and the recovered oil collects in a removable jug.
• Pop-up flow indicator - stays up until manually reset, so a restricted flow condition cannot go unnoticed between shifts.
• Sample valve and test jars - draw a sample from two thirds of the way down the carbon depth and compare it to tap water. Cloudy means order carbon, and you still have legal headroom.
• No electricity and no compressed air consumed - a gravity device, so there is nothing to meter and nothing to leak.
• Modular above 600 SCFM - CSP120, CSP180 and CSP240 manifold multiple 60 gallon vessels behind a DISTRIBUTOR, so you add capacity later without replacing what you own.

Shared Technical Specifications

Lubricant Compatibility - Read This Before You Buy

The EnviroChamp 2 is a gravity separator. It only works if the lubricant in your compressor will release from water, which means it must be a fully demulsible fluid. Champion specifies RotorLub 4000, RotorLub 4000 FG and RotorLub 8000; PAO and POE based fluids from other manufacturers generally work as well. It is not suitable for emulsifying lubricants such as polyglycol, ATF, or motor oils carrying heavy additive packages, because those hold oil in suspension and will pass straight through to the carbon bed and blind it prematurely. If you are unsure what is in your sump, check the fluid data sheet or call us before ordering.

Ideal Applications

Machine shops and fabrication plants running one or more rotary screw compressors, automotive and truck service facilities, food and beverage plants under a municipal pretreatment permit, woodworking shops, plastics processors, printing plants, hospital and laboratory air systems, and any facility that has been cited for oily discharge or is preparing for a wastewater inspection. Pair one with zero-loss demand drains at the compressor, receiver, dryer and each coalescing filter to route every drop of condensate in the plant through a single treatment point.

Sizing, Drains and the DISTRIBUTOR

Size the separator to the total air flow whose condensate reaches it, not to compressor horsepower alone. Champion recommends adding the M3550 DISTRIBUTOR whenever the demand-style drain valves feeding a unit can collectively deliver more than 43 oz on a CSP15, 64 oz on a CSP30, or 96 oz on a CSP60. A large demand drain dumps its whole charge in a second or two, and that surge stirs the carbon bed and shortens its life. The DISTRIBUTOR collects the surge and feeds it in evenly. On CSP120, CSP180 and CSP240 the DISTRIBUTOR is included, because its second job is splitting flow evenly across the manifolded vessels.

Service and Element Replacement

The EnviroChamp 2 is maintained on condition rather than on a fixed calendar. Change the carbon when the sample jar comparison shows cloudy water against clean tap water, or when the pop-up flow indicator trips. Drain the oil container whenever it fills. The easiest way to service a unit is with the matching CSP replacement filter kit, which bundles the expansion chamber element, separation filter, pre-adsorption filter and carbon for one model into a single part number. Individual replacement elements are also stocked if you only need one stage. In cold climates, add the M3554 or M3555 heater so the vessel cannot freeze in an unheated compressor room.

Why Buy from Air Compressor Store

Air Compressor Store is an authorized Champion Pneumatic distributor. Every CSP EnviroChamp 2 ships with the full factory warranty, and our certified compressed air engineers will help you size the unit, lay out the drain piping and pick the right replacement interval for your lubricant. We stock the full M35xx element range so a carbon change never puts you out of compliance while you wait on a part.

Frequently Asked Questions

Can I legally drain the water that comes out of this?

In most jurisdictions yes, but the limit is set locally. A properly maintained EnviroChamp 2 discharges under 15 ppm of residual oil, which is inside the typical municipal pretreatment limit. Check your specific permit, and use the sample valve to document compliance.

Does it need power or compressed air?

No. It is a gravity device with no moving parts and consumes neither electricity nor compressed air. The only electrical option is the freeze-protection heater.

How do I know when to change the carbon?

Draw a sample from the sample valve and hold it next to a jar of tap water. Clear means the carbon is still working. Cloudy means order a replacement. The valve draws from two thirds of the way down the carbon depth, which gives you lead time to get the part in before the discharge goes out of limit. A tripped pop-up flow indicator is the other signal.

What happens if I use the wrong lubricant?

An emulsifying lubricant such as polyglycol or ATF keeps oil suspended in the water instead of letting it float. The gravity stages cannot release it, the carbon bed takes the full load, and it blinds quickly. Use a fully demulsible fluid.

Why does my model come with a DISTRIBUTOR?

CSP120, CSP180 and CSP240 are multiple 60 gallon vessels working in parallel. The DISTRIBUTOR splits incoming condensate evenly across them and absorbs surges from demand drains. It is also sold separately as M3550 for single-vessel installations with high-capacity drains.

How often do I empty the oil container?

It depends entirely on your carryover rate. Most shops check it weekly and empty it every one to three months. The recovered oil is a small, concentrated volume that goes out with your used oil.
