Leeson 5 HP 1740 RPM 184T ODP 208 V Single Phase Air Compressor Motor, 131560
| Specifications (As Configured) | |
|---|---|
 Vendor |
Leeson
|
 SKU |
131560.00
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
184T
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
105.0 lb
|

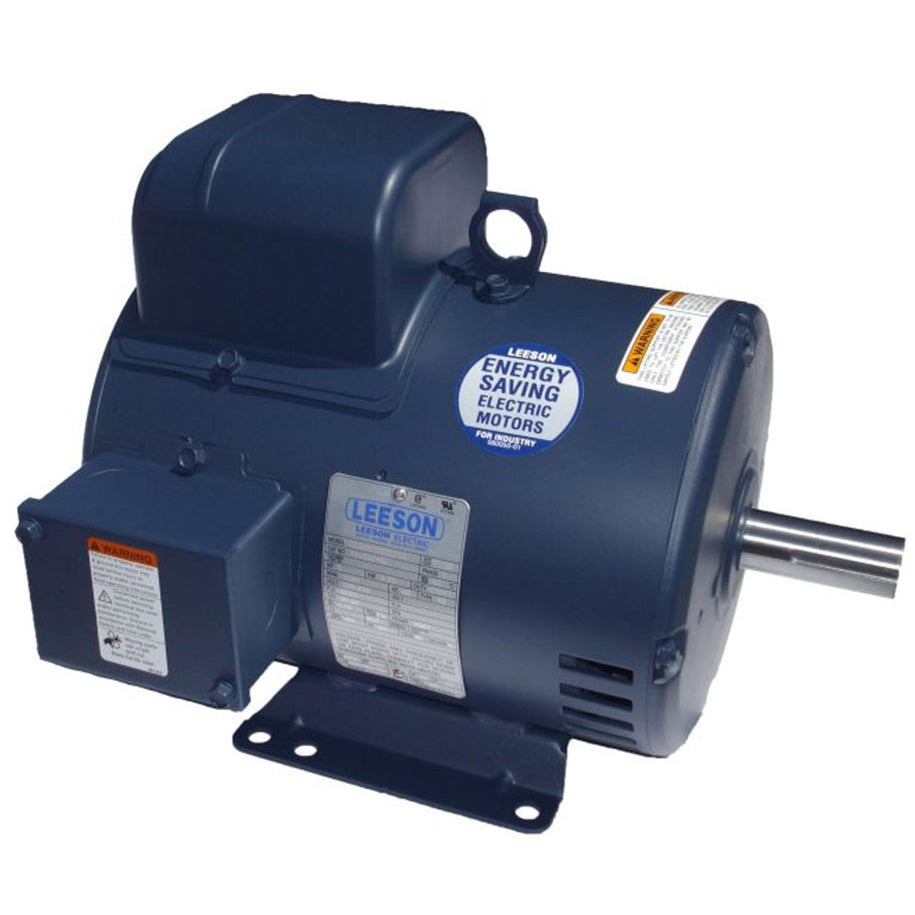

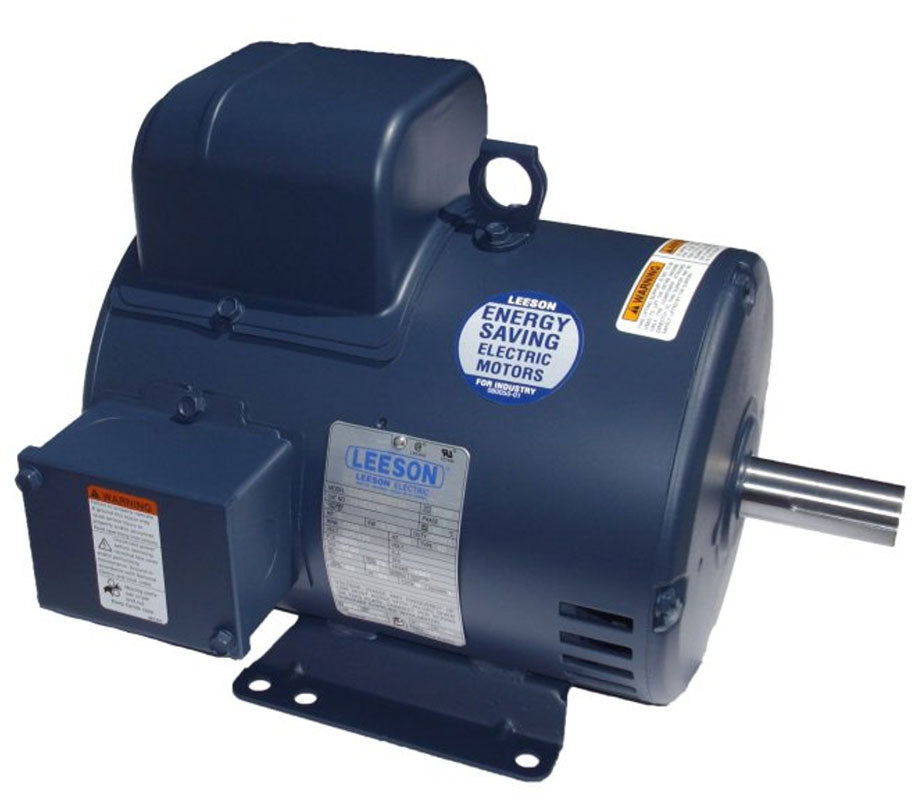

Leeson 131560 5 HP Single Phase Compressor Motor, 184T, 1740 RPM, 208 V
The Leeson 131560.00 is the 208 V only version of Leeson's 5 HP single phase compressor duty motor: 184T frame, 1 1/8 inch shaft, 1740 RPM, open drip proof, capacitor start and run, 23.2 full load amps with a 1.15 service factor at 208 V. It exists for shops fed from a 208Y/120 V three phase panel, where single phase loads see 208 V rather than 230 or 240 V. A dual voltage motor run at 208 V loses its service factor and runs warm under a two stage pump; this motor is wound for 208 V and keeps the full 1.15 overload margin.
Which 5 HP motor to order
Measure the voltage at the compressor disconnect before ordering. 208 V single phase: this motor. 230 or 240 V single phase: the Leeson 131537 dual voltage motor or the Baldor L1410T. Three phase: see the air compressor motors collection. Check that the old motor is a 184T frame with a 1 1/8 inch shaft so the pulley and the mounting holes line up, and feed it from a 40 A circuit with a starter or pressure switch rated for 23 A. Fits the 5 HP two stage pumps on most 60 and 80 gallon stationary compressors, including the Champion R-Series.
NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.
Frame: 184T
RPM: 1740
Shaft Diameter: 1-1/8
Full Load Amp: 23.2
Voltage: 208
Service Factor: 1.15@208v
NOTE: Actual product may be different from pictured!
