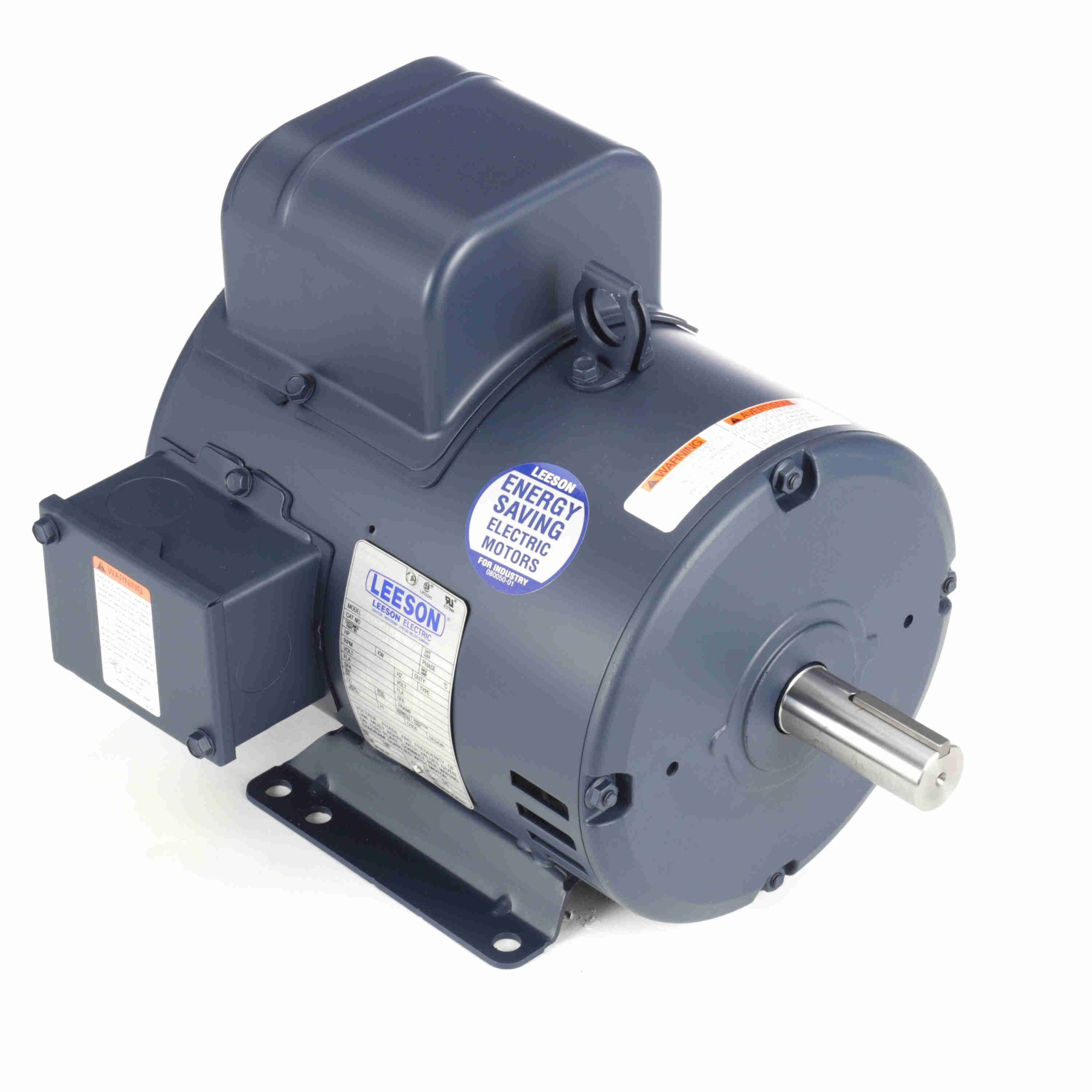

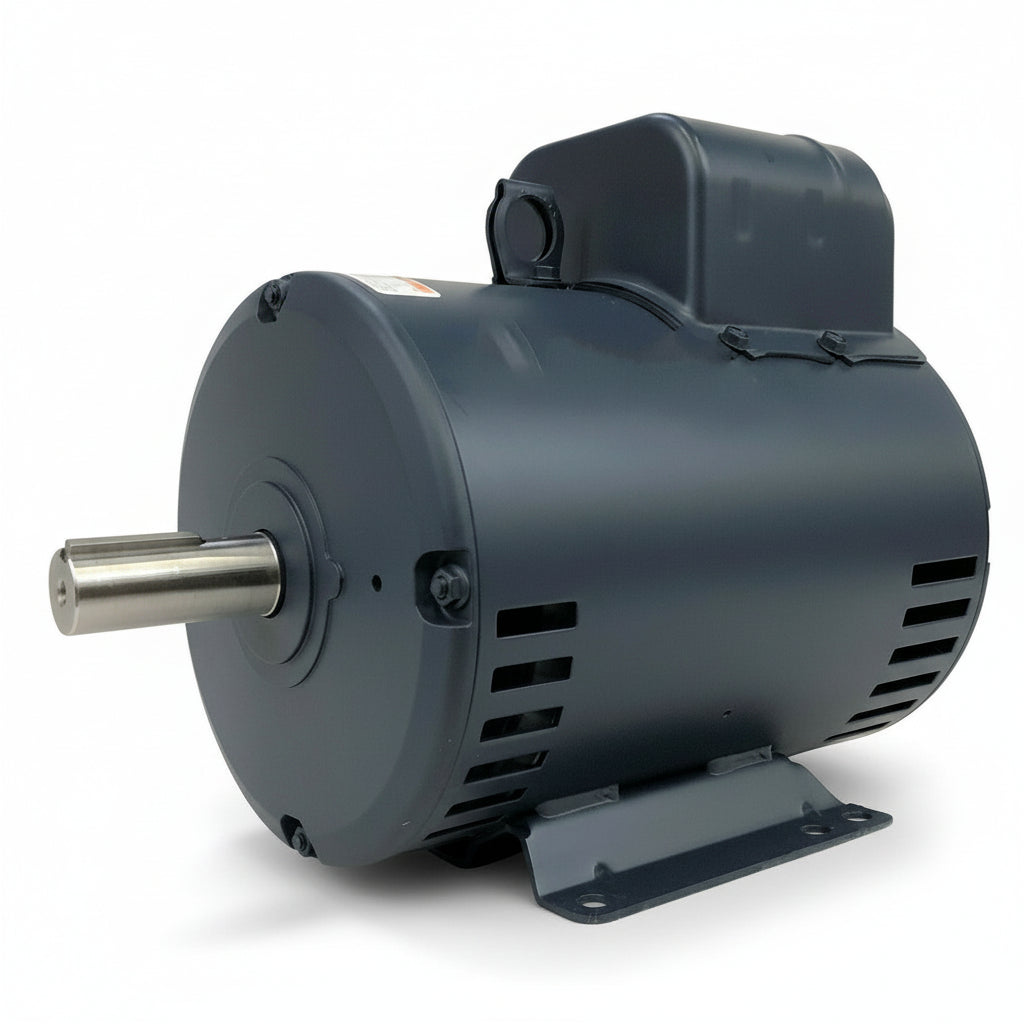

5HP LEESON 1740 RPM 184T DP 208-230V 1PH Air Compressor Motor

Replacement for V208M2

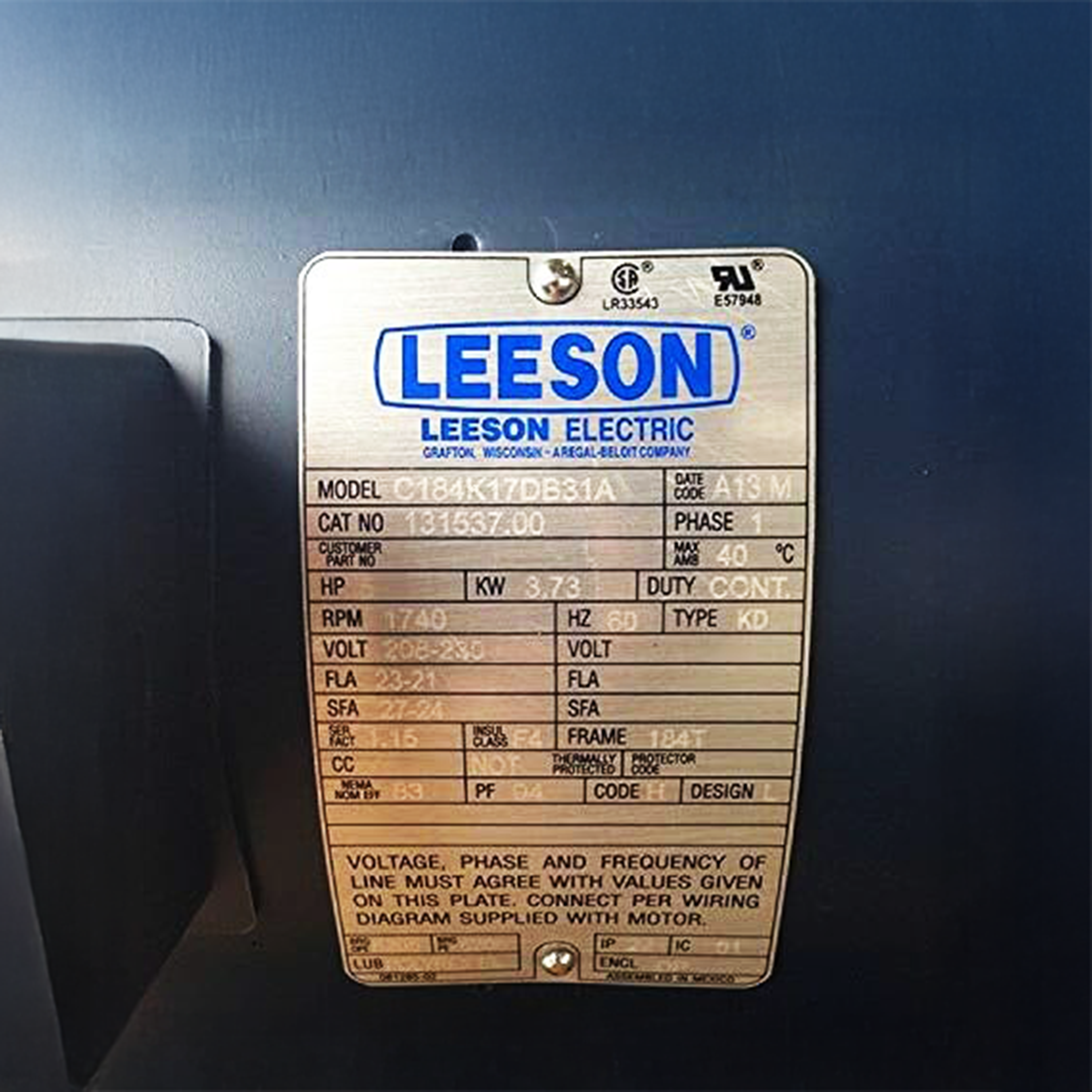

NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.

Frame: 184T
RPM: 1750
Shaft Diameter: 1-1/8
Full Load Amp: 23.0-21.0
Voltage: 208-230
Service Factor: 1.15(1.00@208v)

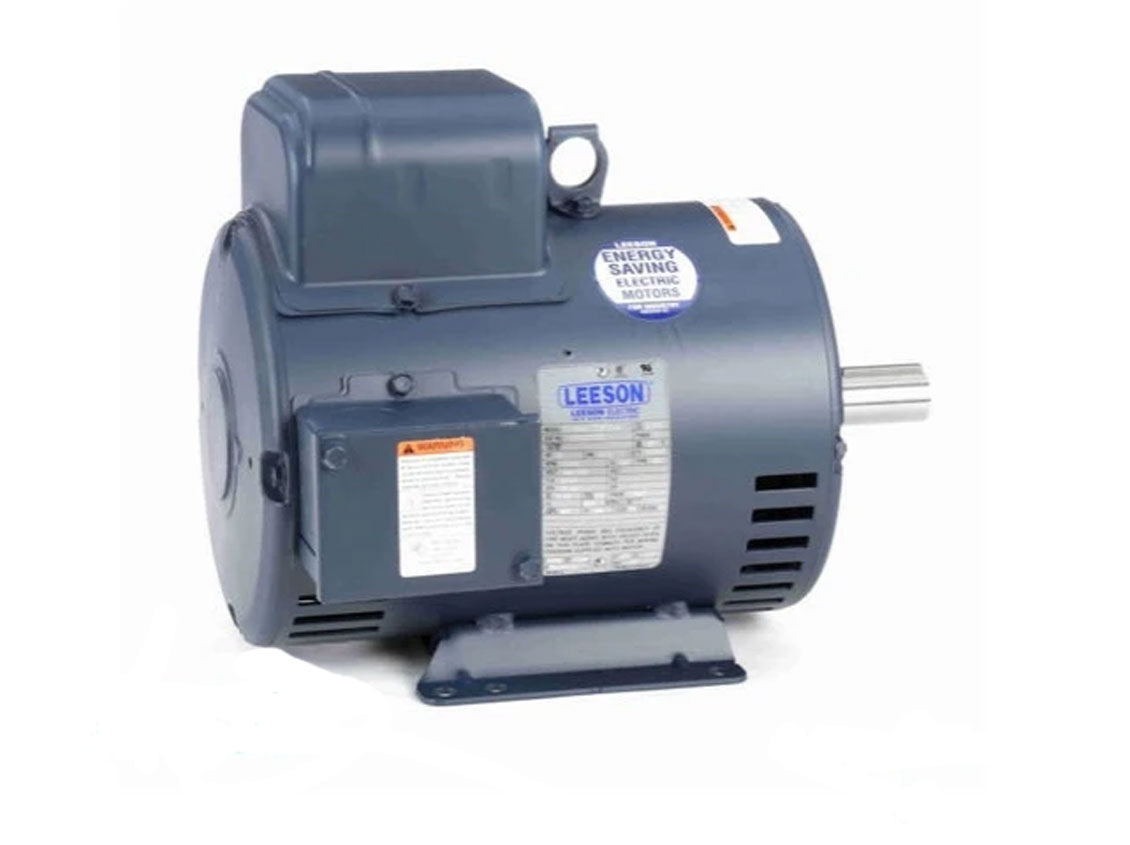

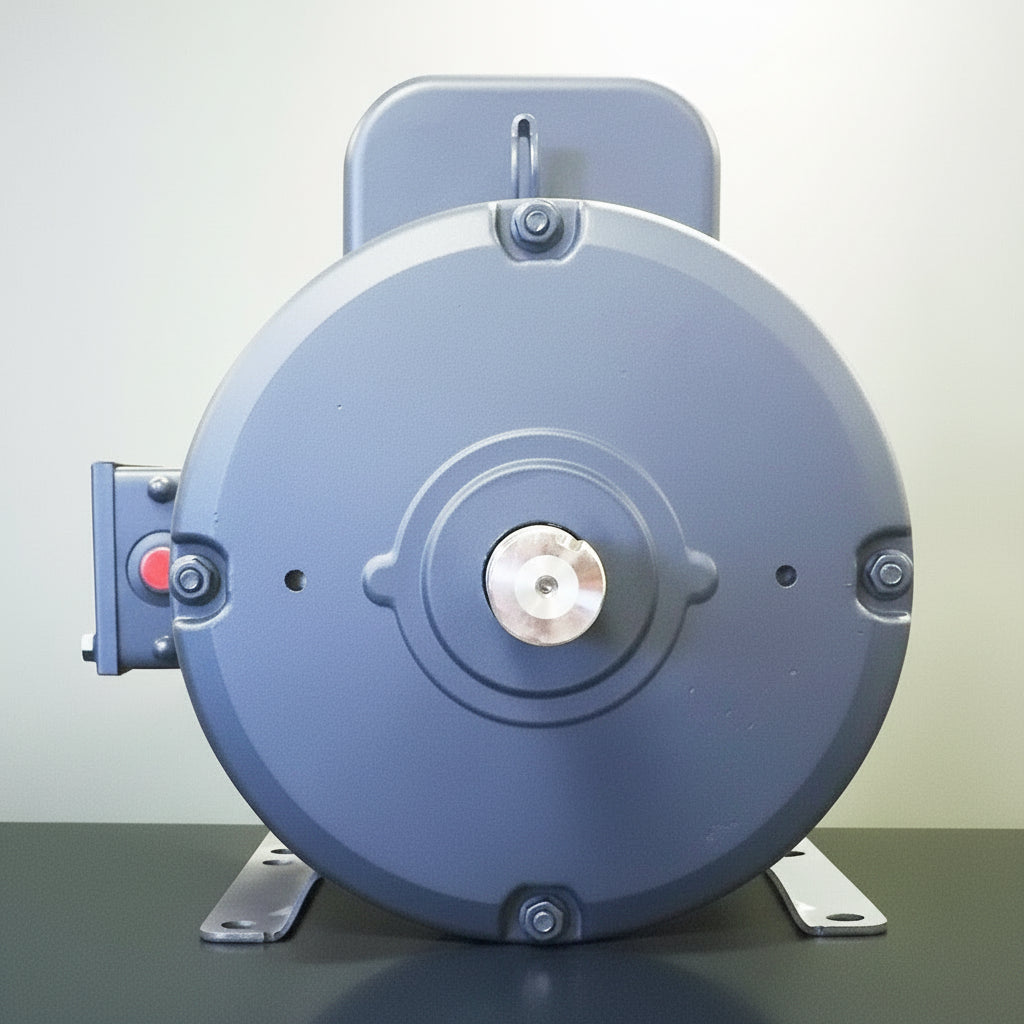

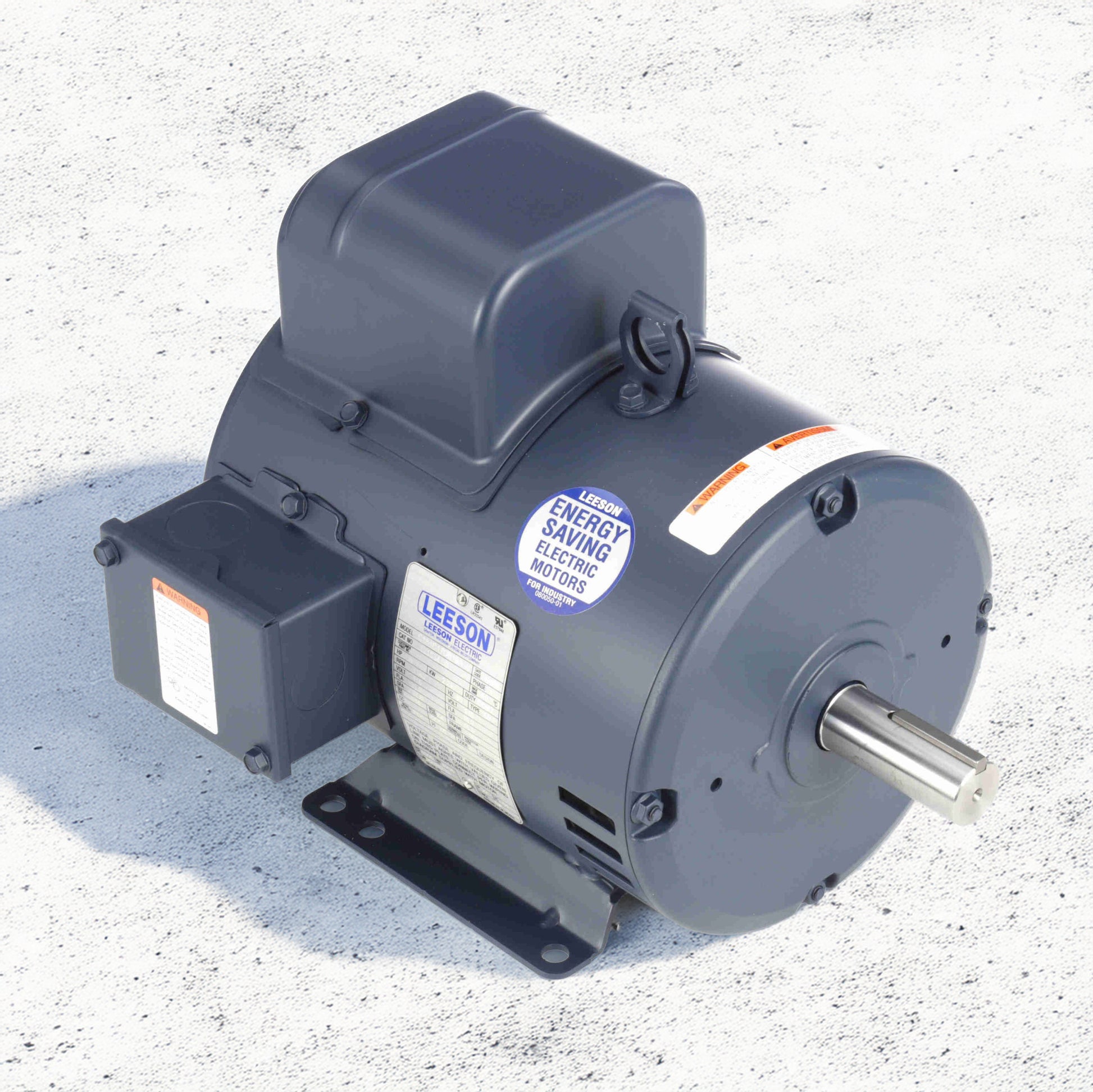

The 5HP LEESON 1740 RPM 184T DP 208-230V 1PH Air Compressor Motor (Product ID / Model: 131537.00) is a heavy-duty, single-phase replacement motor engineered specifically for industrial and commercial air compressor use. With a true 5 horsepower output, 1740 RPM operating speed, and a standard 184T frame, it’s designed to drop into many common compressor platforms that require a tough, reliable 208–230V motor.

Built around a rigid, rolled-steel 184T frame, this motor features a capacitor-start / capacitor-run design that delivers strong starting torque for belted compressor loads. The open drip proof (DP/ODP) enclosure allows air to move freely across the windings, making it ideal for clean, dry mechanical rooms, shops, and compressor houses where airflow and cooling are easily maintained.

Key Performance Specifications

• Horsepower: 5 HP
• Voltage: 208–230V, single phase, 60 Hz
• Speed: 1740 RPM (4-pole design)
• Frame: 184T, rigid base mount
• Enclosure: DP / ODP (Open Drip Proof)
• Full Load Amps: approx. 23.0–21.0A at 208–230V
• Service Factor: 1.15 for additional overload margin
• Shaft: 1-1/8" diameter, extended shaft suitable for compressor pulleys
• Duty: Continuous, compressor-duty rated

Top Reasons to Choose the LEESON 131537.00 Motor

1. Built for Compressor Duty
   Designed specifically for air compressors, pumps, and other belted loads that demand high breakdown torque and rugged construction.
2. Strong Starting Under Load
   Capacitor-start / capacitor-run design provides high locked-rotor torque, helping the motor start reliably even when driving a heavily loaded compressor pump.
3. Continuous-Duty Reliability
   Class F insulation, continuous-duty rating, and a 40°C ambient design support long runtimes in demanding shop and industrial environments.
4. Straightforward Replacement Fit
   Standard NEMA 184T dimensions and common shaft size make this a practical drop-in replacement for many existing 5 HP single-phase compressor motors.
5. Low-Maintenance Construction
   Ball bearings and a rolled-steel frame are designed to handle belt tension, vibration, and everyday wear in compressor applications.

Typical Applications

• Stationary piston air compressors
• Light industrial rotary compressor packages (where compatible)
• Shop air systems, spray booths, and maintenance bay compressors
• Other belt-driven machinery requiring a robust 5 HP, 1740 RPM, 184T single-phase motor

What You Get With This 5HP Leeson Air Compressor Motor

• Dependable power: Smooth, consistent 1740 RPM operation for stable compressor performance
• Flexible installation: Electrically reversible rotation to match existing pulley layouts
• Industry-trusted brand: Leeson is widely used in industrial and commercial environments for its long service life and solid build quality

If you’re replacing a tired or failed 5 HP motor on your air compressor and need a 208–230V single-phase, 184T frame, 1740 RPM solution, the LEESON 131537.00 Air Compressor Motor is a proven, compressor-duty choice that helps minimize downtime and keep your shop’s air system running reliably day after day.
