Quincy QGS Rotary Screw Air Compressor
| Specifications (As Configured) | |
|---|---|
 Vendor |
Quincy
|
 SKU |
4152026569
|
OLD SKU |
|
 Model |
|
 Horsepower |
|
 Max PSI |
|
 Max CFM |
|
 Material |
|
| Dimensions | |
 Weight |
666.0 lb
|
Dimension |
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|

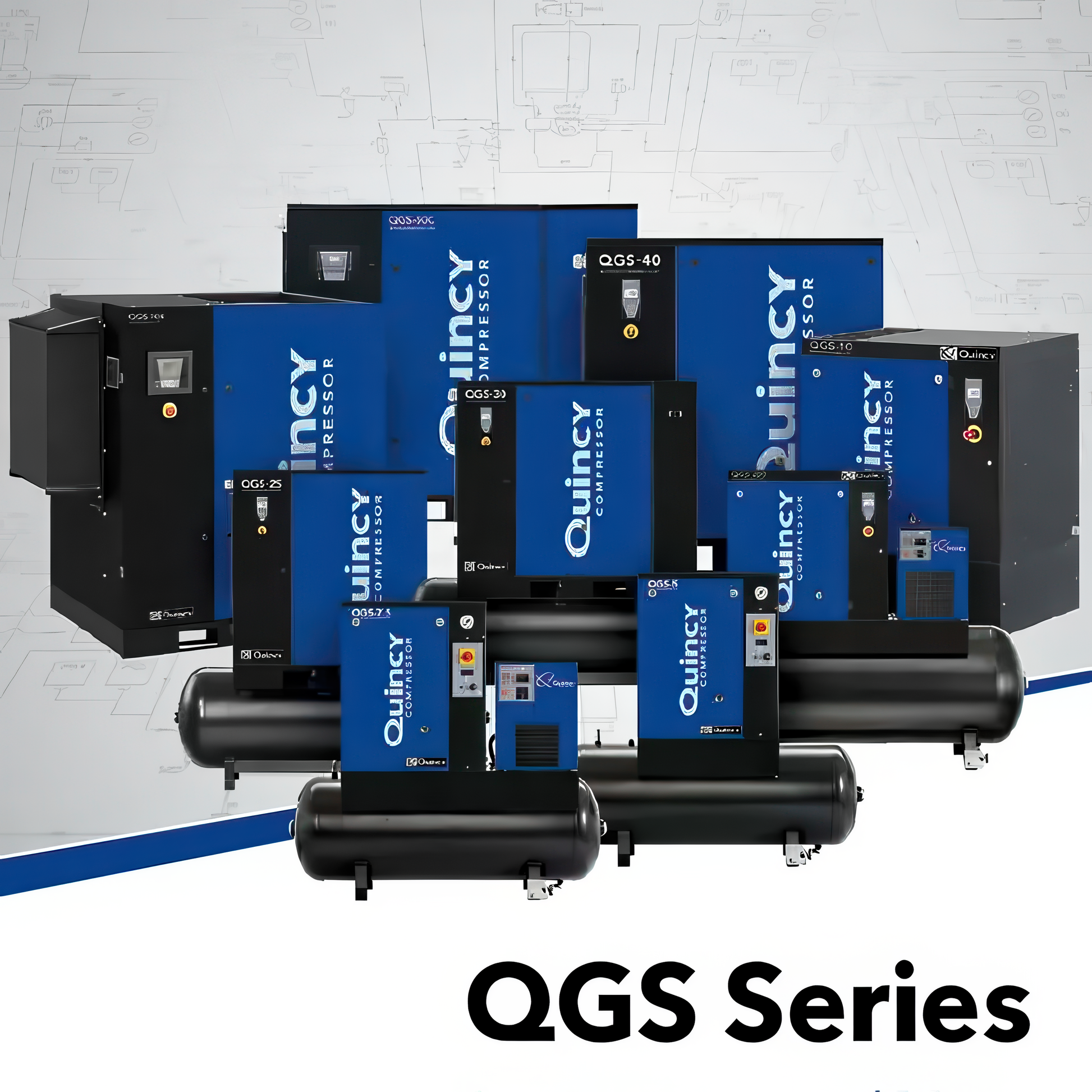

The Quincy QGS is a fixed speed, oil injected rotary screw air compressor sold in ten sizes from 5 to 50 HP. It is the economical way into rotary screw air for a shop that runs air most of the day and is tired of a piston compressor's noise, heat and oil carryover: automotive and tire shops, cabinet shops, fabrication, powder coating, small manufacturing and plant maintenance. Compared with a two stage piston of the same horsepower, a QGS runs quieter, delivers air continuously without a duty cycle, and puts far less oil into the line.
How to pick a model

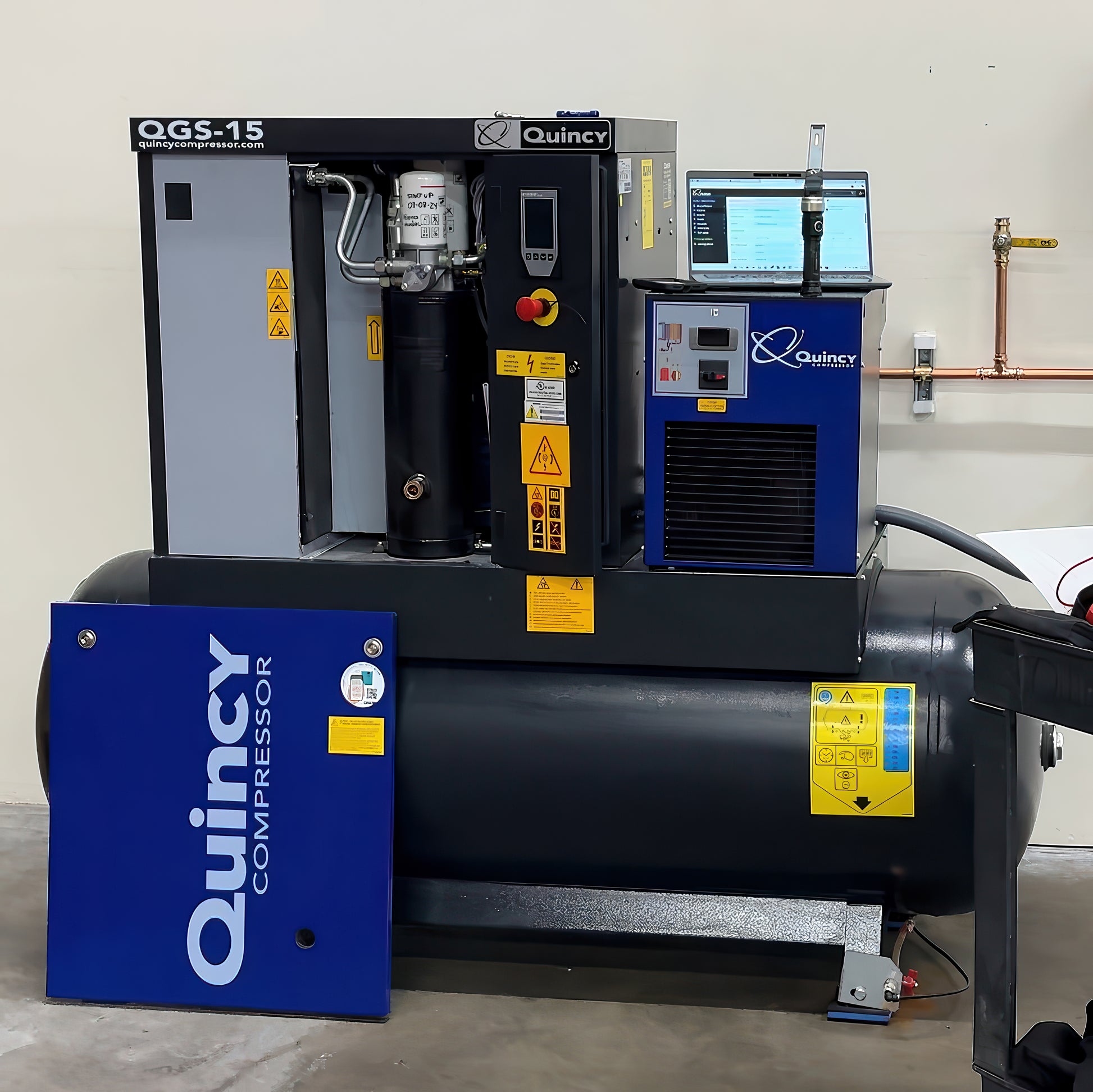

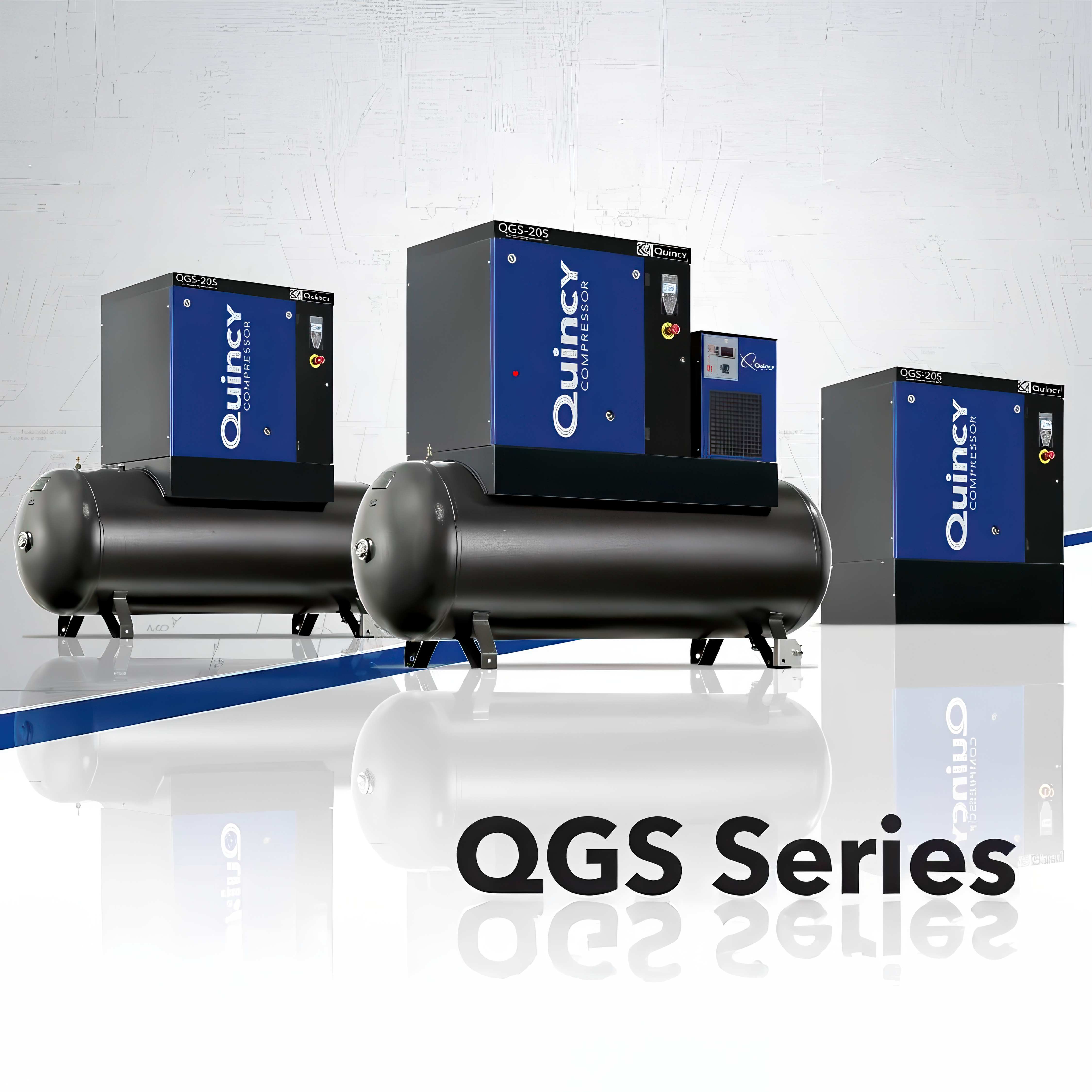

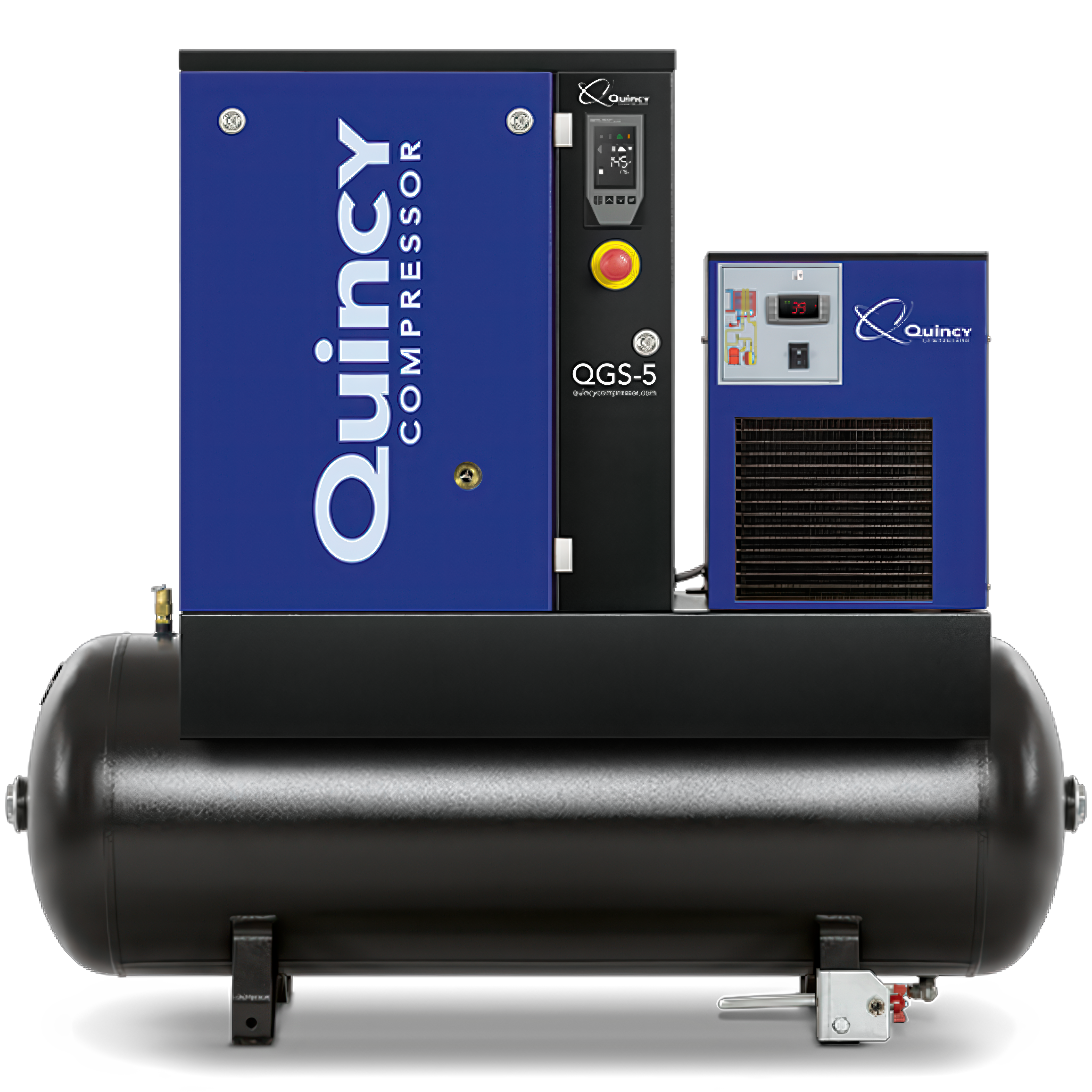

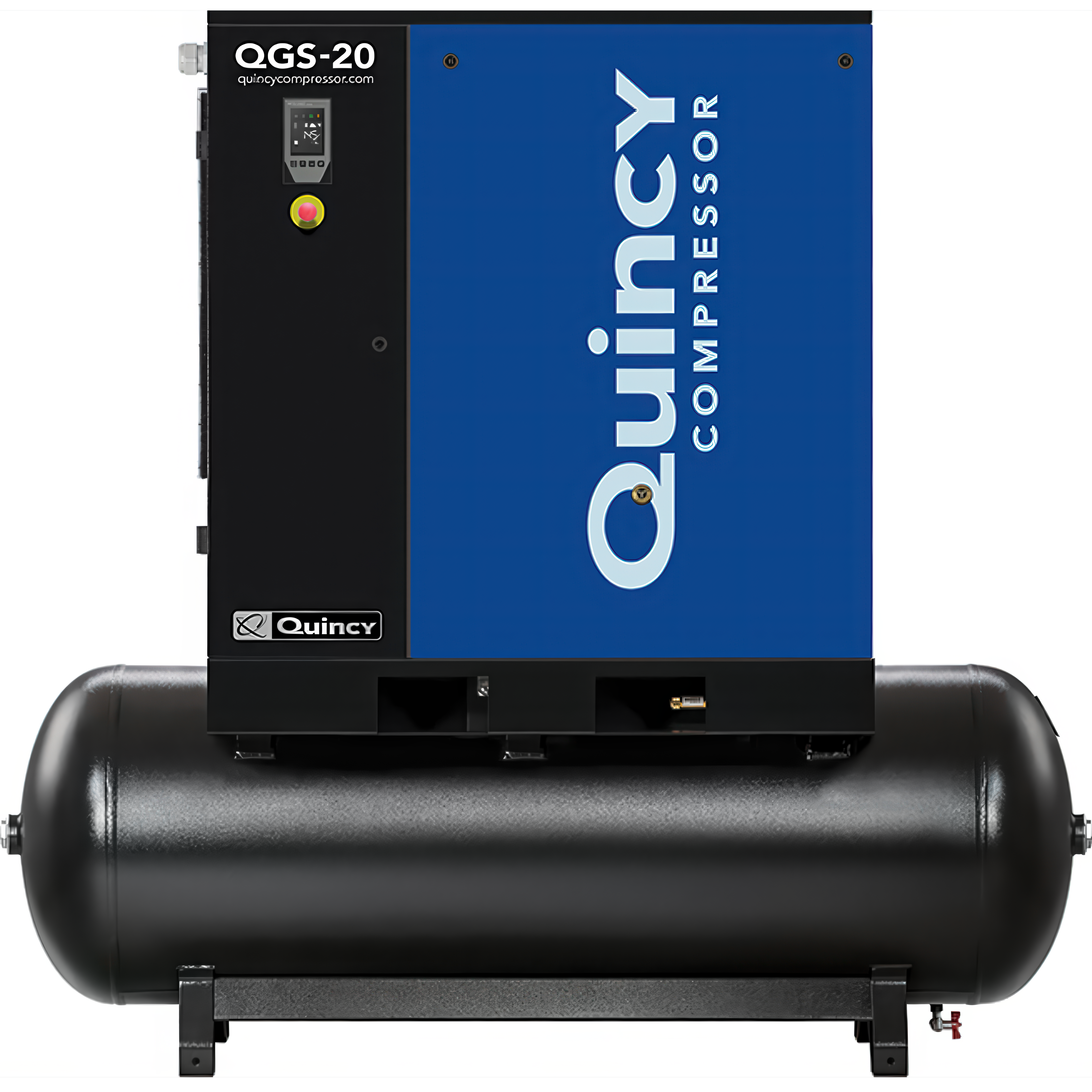

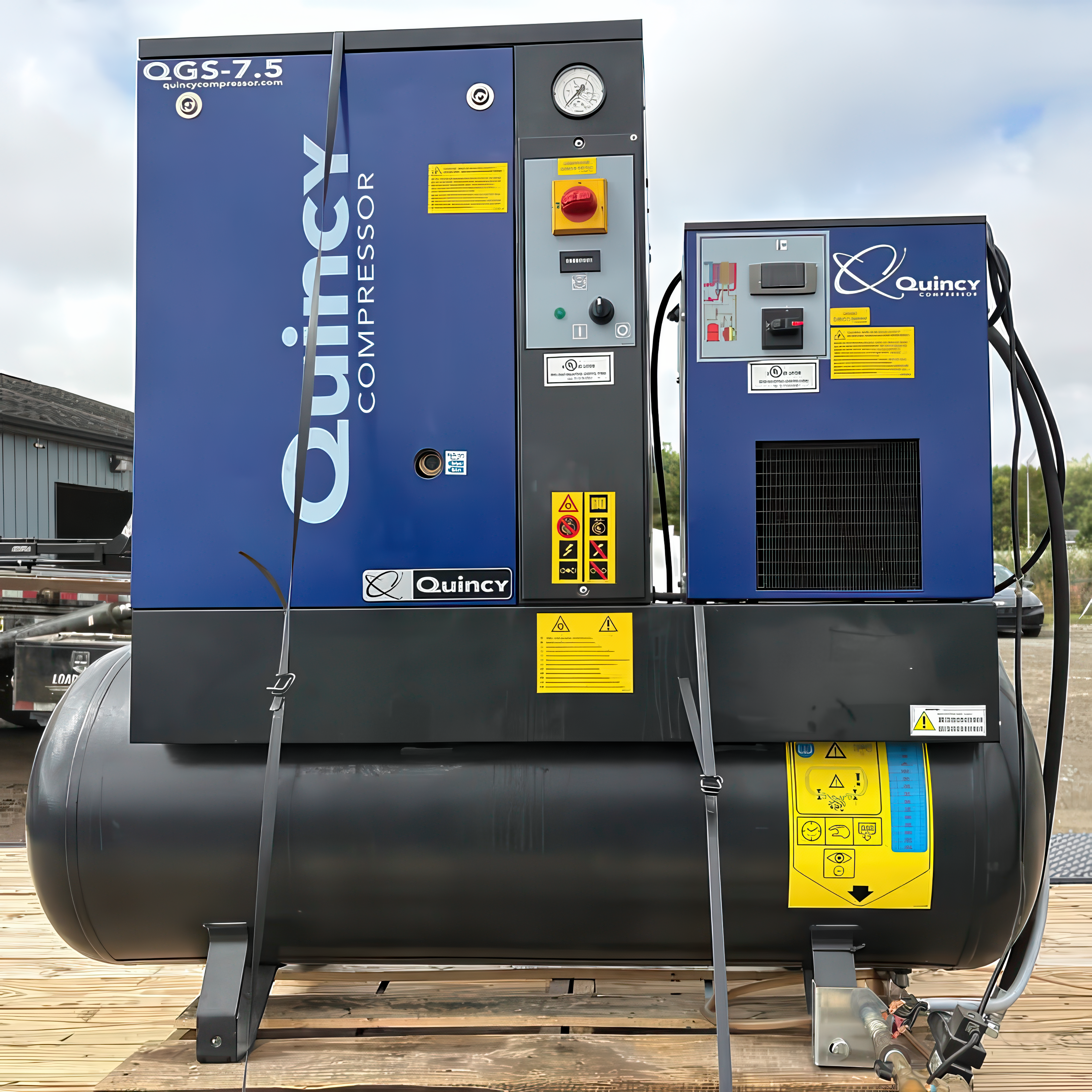

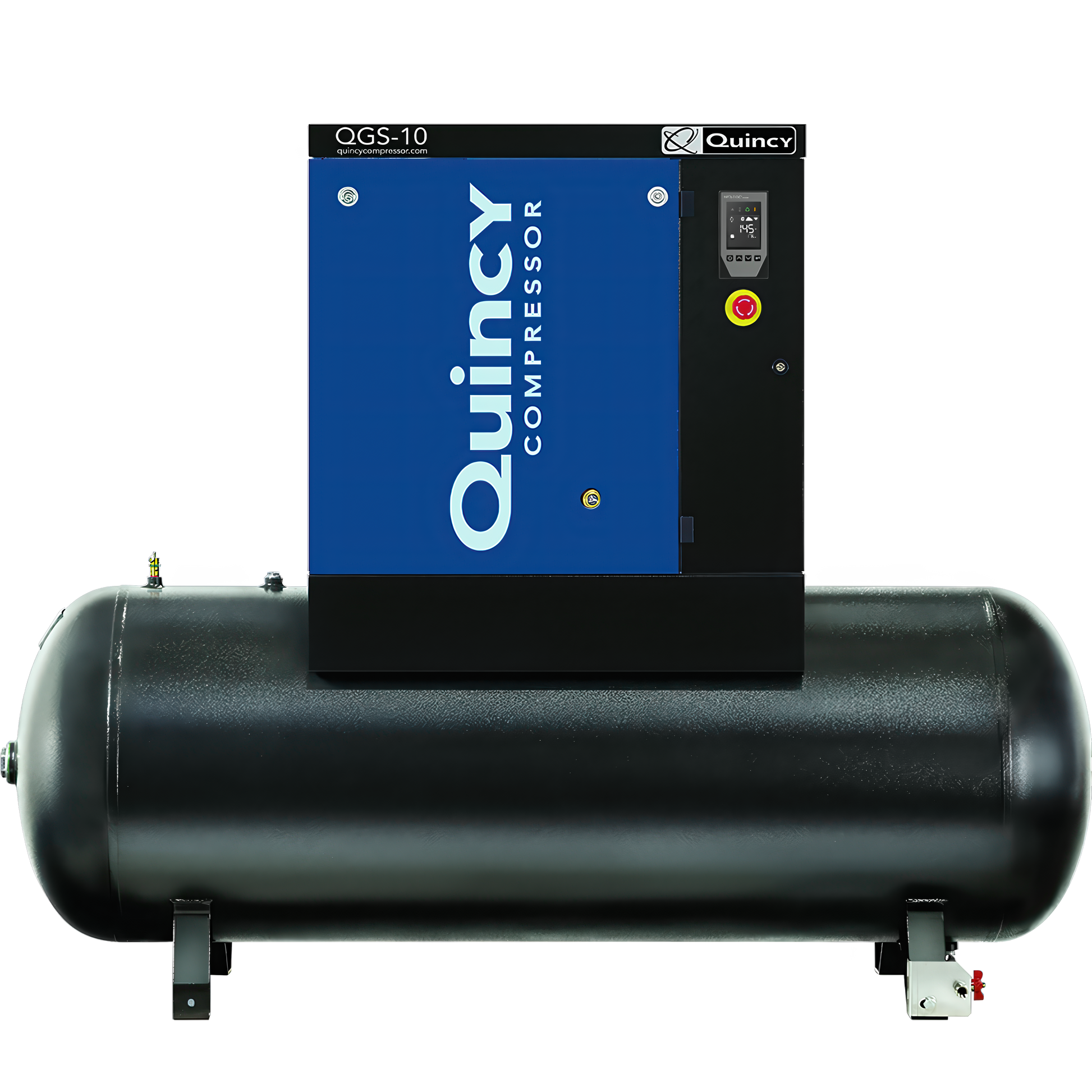

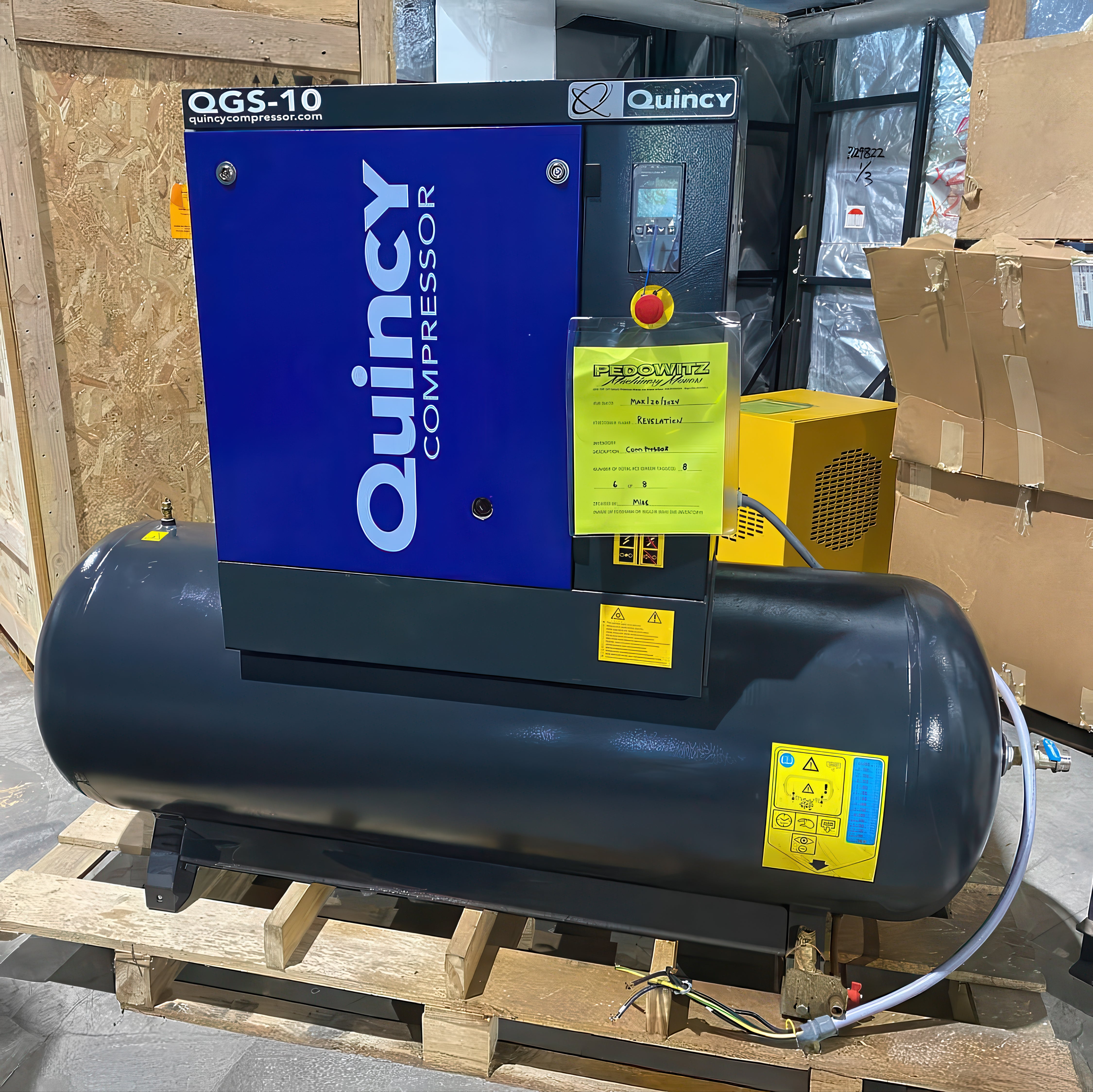

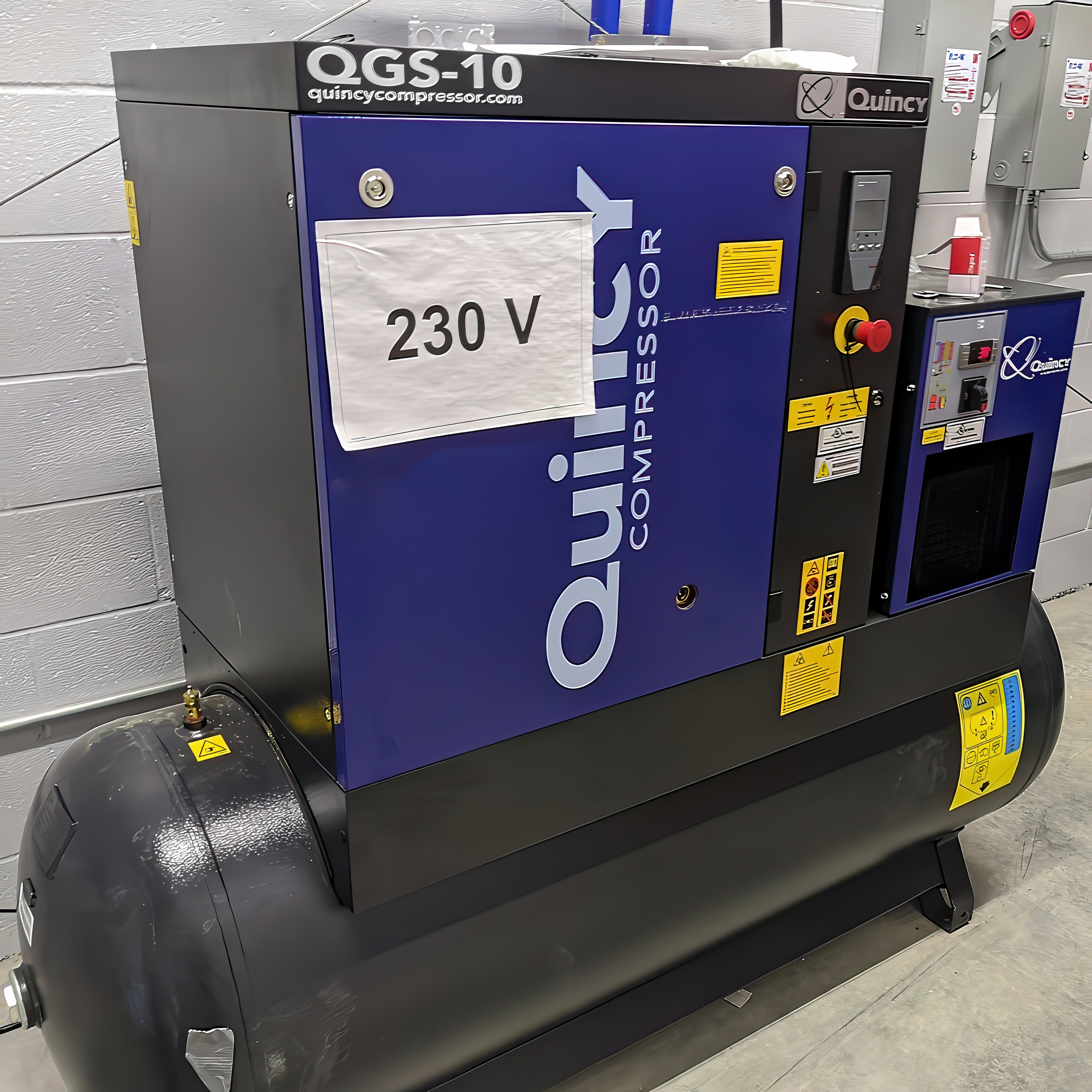

Size by delivered CFM with 20 to 30 percent headroom over your tool load. The QGS-5 delivers 16.8 CFM at 145 PSI and the QGS-7.5 25.3 CFM at 150 PSI; from 10 HP up the pressure rating is 125 PSI: QGS-10 38.8 CFM, QGS-15 54.9, QGS-20S 60.9, QGS-20 82.2, QGS-25 99.4, QGS-30 113.8, QGS-40 154.9 and QGS-50C 203.1 CFM. Note the two 20 HP machines: the QGS-20S is a smaller airend on a 20 HP motor built down to a price, the QGS-20 is the full 82 CFM package. Choose base mounted if you already own a receiver, or the tank mounted version (60 gallon on the 5 and 7.5, 132 gallon on 10 through 30 HP) for a complete package. Order with dryer to get an integrated refrigerated dryer on the same skid; otherwise a stand alone refrigerated dryer is easier to service and can be sized separately.
Power and install

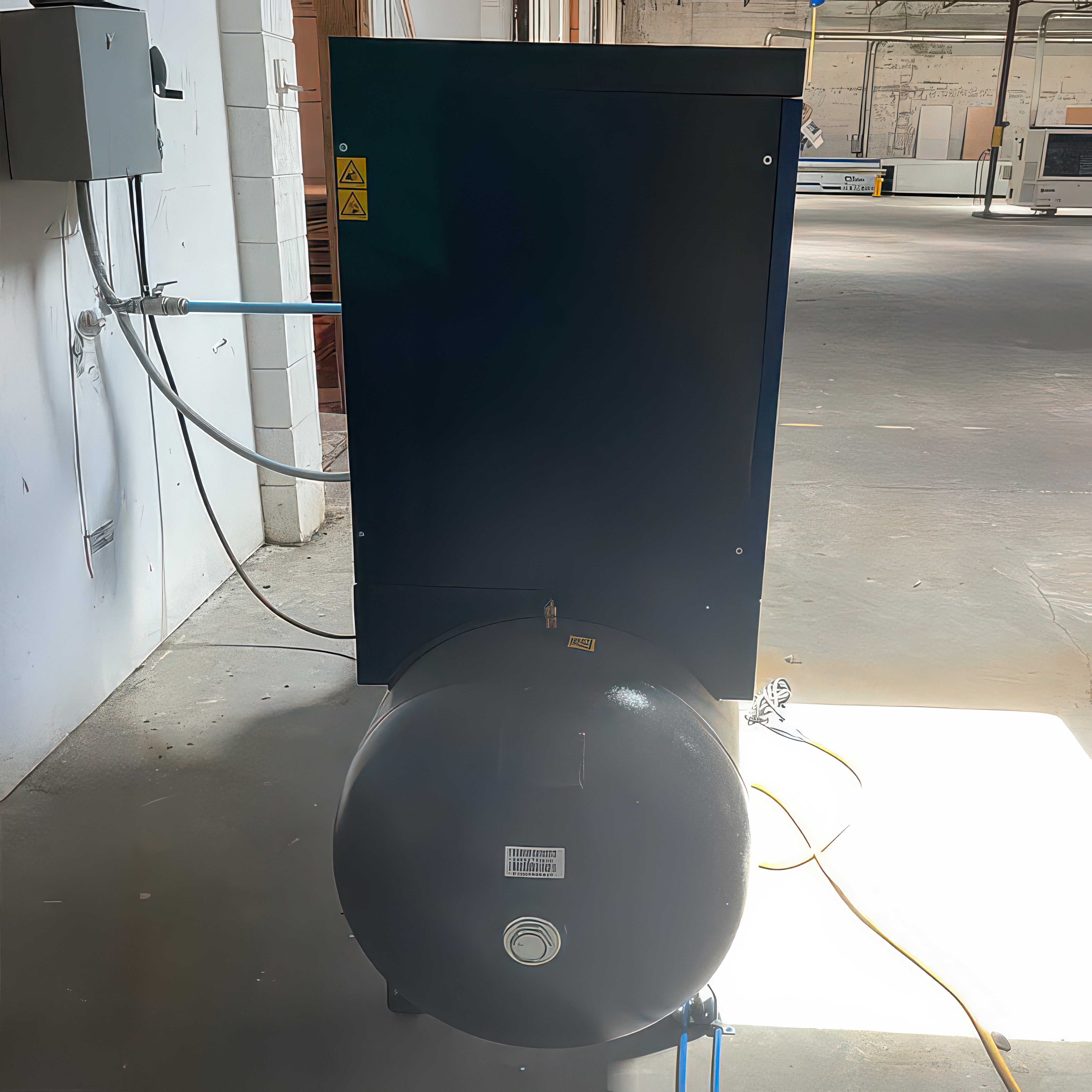

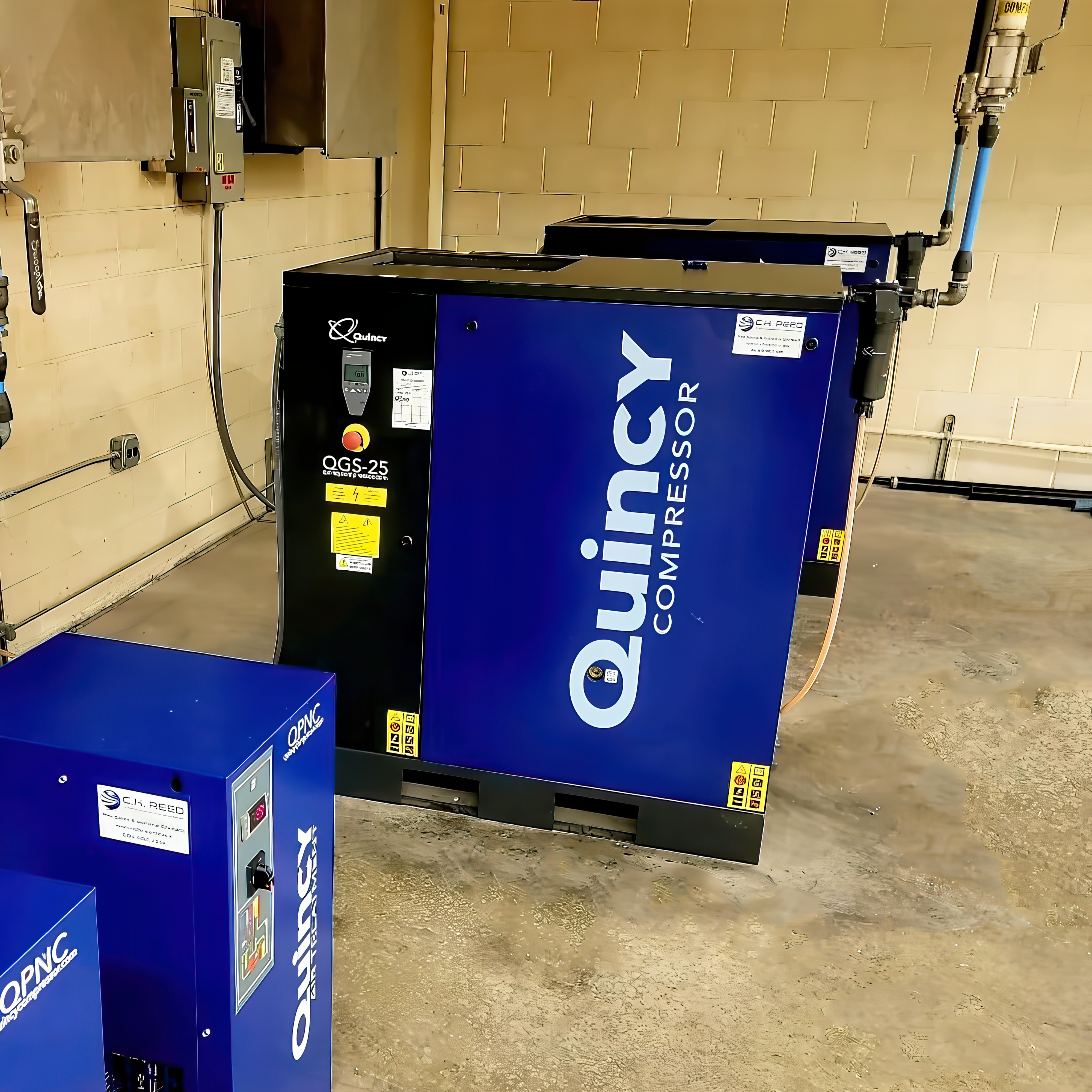

Three phase units are tri-volt, 208, 230 or 460 V, selected at install. The QGS-5 and QGS-7.5 tank mounted versions are also offered in 230 V single phase, the only QGS sizes that are. A rotary screw wants a clean, cool room with the cooling exhaust able to escape, about three feet of service clearance, and a receiver of at least 60 gallons on base mounted units so it does not short cycle. Pipe out through a flex connector into the receiver, then filtration, then the shop loop.
What to pair it with
A coalescing filter after the dryer, a zero loss drain on the receiver, and Quincy maintenance kits on the service schedule. If demand swings widely through the day, compare the variable speed QGSV. See every Quincy rotary screw, the full rotary screw range, or the under 20 HP and 20 to 50 HP pages.
Models, part numbers and configurations
| SKU | Old SKU | Model | Description |
|---|---|---|---|
| 4152051912 | 4152051912 | QGS 5 BM-3 | 5 HP | QGS-5 | 16.8 CFM @ 145 PSI / Base Mounted / Tri-Volt | 3 Phase |

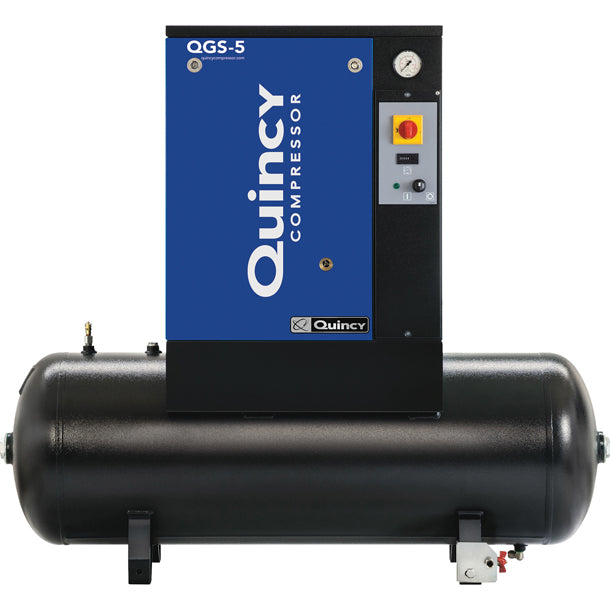

| 4152051913 | 4152051913 | QGS 5 TM - 3 | 5 HP | QGS-5 | 16.8 CFM @ 145 PSI / 60 Gal Tank / Tri-Volt | 3 Phase |
| 4152051925 | 4152051925 | QGS 5 TM-1 | 5 HP | QGS-5 | 16.8 CFM @ 145 PSI / 60 Gal Tank / 230V | 1 Phase |

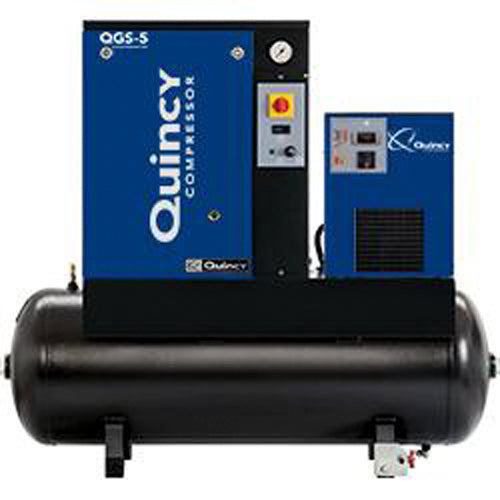

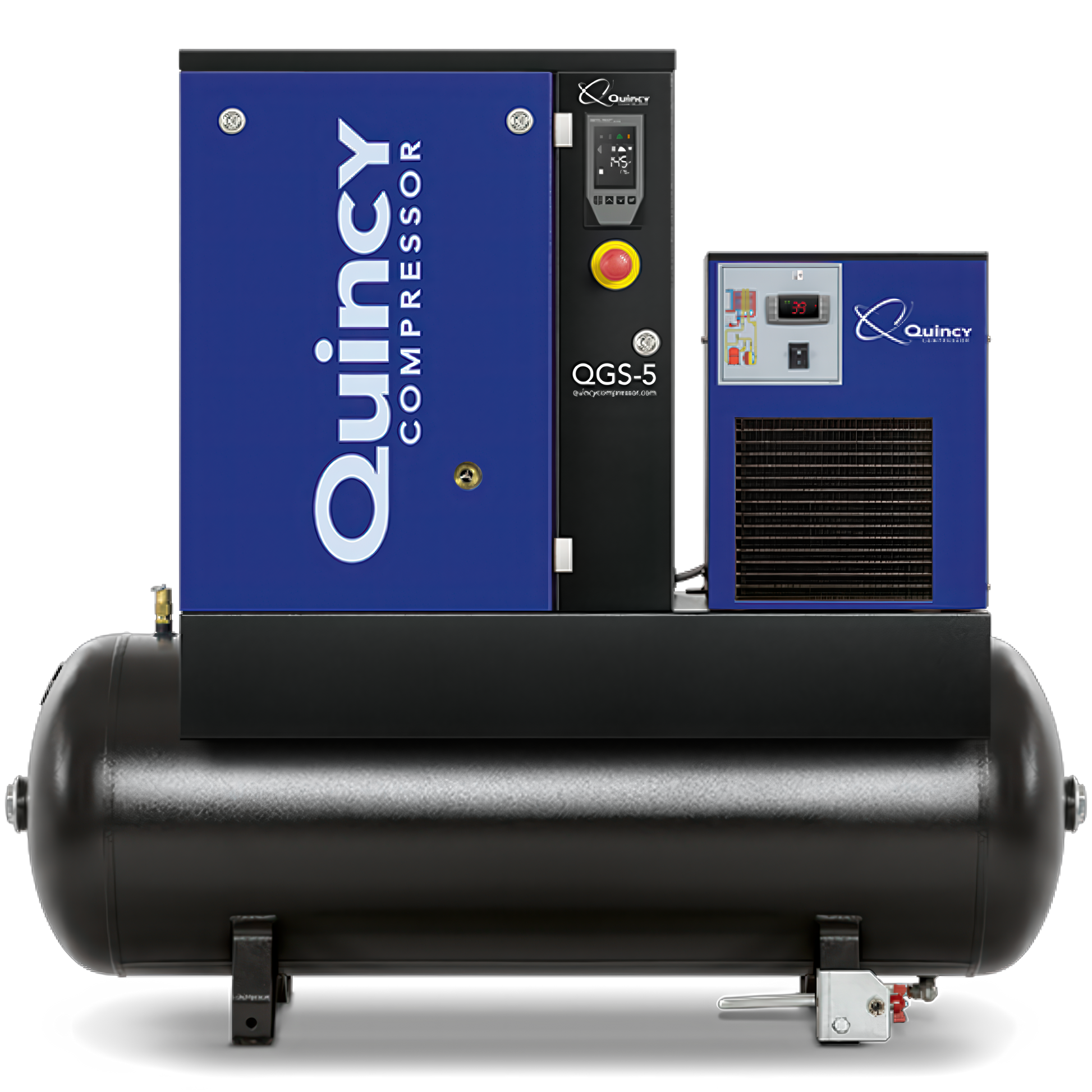

| 4152051914 | 4152051914 | QGS 5 TMD-3 | 5 HP | QGS-5 | 16.8 CFM @ 145 PSI / 60 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152051926 | 4152051926 | QGS 5 TMD-1 | 5 HP | QGS-5 | 16.8 CFM @ 145 PSI / 60 Gal Tank w/ Dryer / 230V | 1 Phase |
| 4152051915 | 4152051915 | QGS 7.5 BM-3 | 7.5 HP | QGS-7.5 | 25.3 CFM @ 150 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152051916 | 4152051916 | QGS 7.5 TM - 3 | 7.5 HP | QGS-7.5 | 25.3 CFM @ 150 PSI / 60 Gal Tank / Tri-Volt | 3 Phase |
| 4152051928 | 4152051928 | QGS 7.5 TM-1 | 7.5 HP | QGS-7.5 | 25.3 CFM @ 150 PSI / 60 Gal Tank / 230V | 1 Phase |
| 4152051917 | 4152051917 | QGS 7.5 TMD-3 | 7.5 HP | QGS-7.5 | 25.3 CFM @ 150 PSI / 60 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152051929 | 4152051929 | QGS 7.5 TMD-1 | 7.5 HP | QGS-7.5 | 25.3 CFM @ 150 PSI / 60 Gal Tank w/ Dryer / 230V | 1 Phase |
| 4152021936 | 4152021936 | QGS 10 BM-3 | 10 HP | QGS-10 | 38.8 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |

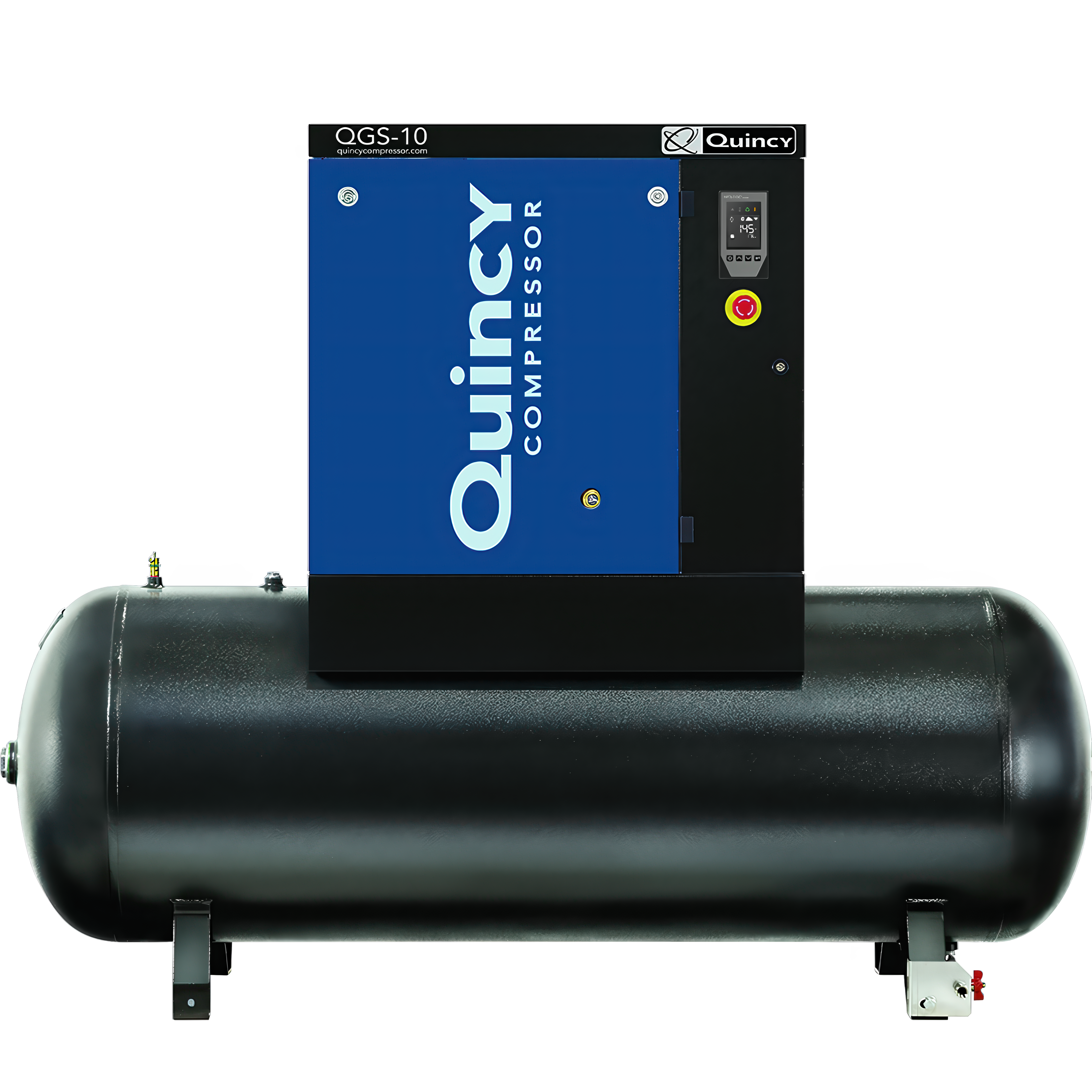

| 4152021972 | 4152021972 | QGS 10 TM-3 | 10 HP | QGS-10 | 38.8 CFM @ 125 PSI / 132 Gal Tank / Tri-Volt | 3 Phase |
| 4152021980 | 4152021980 | QGS 10 TMD-3 | 10 HP | QGS-10 | 38.8 CFM @ 125 PSI / 132 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152021940 | 4152021940 | QGS 15 BM-3 | 15 HP | QGS-15 | 54.9 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152021976 | 4152021976 | QGS 15 TM-3 | 15 HP | QGS-15 | 54.9 CFM @ 125 PSI / 132 Gal Tank / Tri-Volt | 3 Phase |
| 4152021984 | 4152021984 | QGS 15 TMD-3 | 15 HP | QGS-15 | 54.9 CFM @ 125 PSI / 132 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152021944 | 4152021944 | QGS 20s BM-3 | 20 HP | QGS-20S | 60.9 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152021996 | 4152021996 | QGS 20s-TM-3 | 20 HP | QGS-20S | 60.9 CFM @ 125 PSI / 132 Gal Tank / Tri-Volt | 3 Phase |
| 4152022000 | 4152022000 | QGS 20s TMD-3 | 20 HP | QGS-20S | 60.9 CFM @ 125 PSI / 132 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152026501 | 4152026501 | QGS 20 BM-3 | 20 HP | QGS-20 | 82.2 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152026513 | 4152026513 | QGS 20 BMD-3 | 20 HP | QGS-20 | 82.2 CFM @ 125 PSI / Base Mounted w/ Dryer / Tri-Volt | 3 Phase |
| 4152026525 | 4152026525 | QGS 20 TM-3 | 20 HP | QGS-20 | 82.2 CFM @ 125 PSI / 132 Gal Tank / Tri-Volt | 3 Phase |
| 4152026537 | 4152026537 | QGS 20 TMD-3 | 20 HP | QGS-20 | 82.2 CFM @ 125 PSI / 132 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152026505 | 4152026505 | QGS 25 BM-3 | 25 HP | QGS-25 | 99.4 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152026529 | 4152026529 | QGS 25 TM-3 | 25 HP | QGS-25 | 99.4 CFM @ 125 PSI / 132 Gal Tank / Tri-Volt | 3 Phase |
| 4152026517 | 4152026517 | QGS 25 BMD-3 | 25 HP | QGS-25 | 99.4 CFM @ 125 PSI / Base Mounted w/ Dryer / Tri-Volt | 3 Phase |
| 4152026541 | 4152026541 | QGS 25 TMD-3 | 25 HP | QGS-25 | 99.4 CFM @ 125 PSI / 132 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152026509 | 4152026509 | QGS 30 BM-3 | 30 HP | QGS-30 | 113.8 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152026521 | 4152026521 | QGS 30 BMD-3 | 30 HP | QGS-30 | 113.8 CFM @ 125 PSI / Base Mounted w/ Dryer / Tri-Volt | 3 Phase |
| 4152026533 | 4152026533 | QGS 30 TM-3 | 30 HP | QGS-30 | 113.8 CFM @ 125 PSI / 132 Gal Tank / Tri-Volt | 3 Phase |
| 4152026545 | 4152026545 | QGS 30 TMD-3 | 30 HP | QGS-30 | 113.8 CFM @ 125 PSI / 132 Gal Tank w/ Dryer / Tri-Volt | 3 Phase |
| 4152028076 | 4152028076 | QGS 40 BM-3 | 40 HP | QGS-40 | 154.9 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152028080 | 4152028080 | QGS 40 BMD-3 | 40 HP | QGS-40 | 154.9 CFM @ 125 PSI / Base Mounted w/ Dryer / Tri-Volt | 3 Phase |
| 4152016900 | 4152016900 | QGS 50 C BM-3 | 50 HP | QGS-50C | 203.1 CFM @ 125 PSI / Base Mounted / Tri-Volt | 3 Phase |
| 4152016908 | 4152016908 | QGS 50 C BMD-3 | 50 HP | QGS-50C | 203.1 CFM @ 125 PSI / Base Mounted w/ Dryer / Tri-Volt | 3 Phase |
NOTE: Actual product may be different from pictured!
