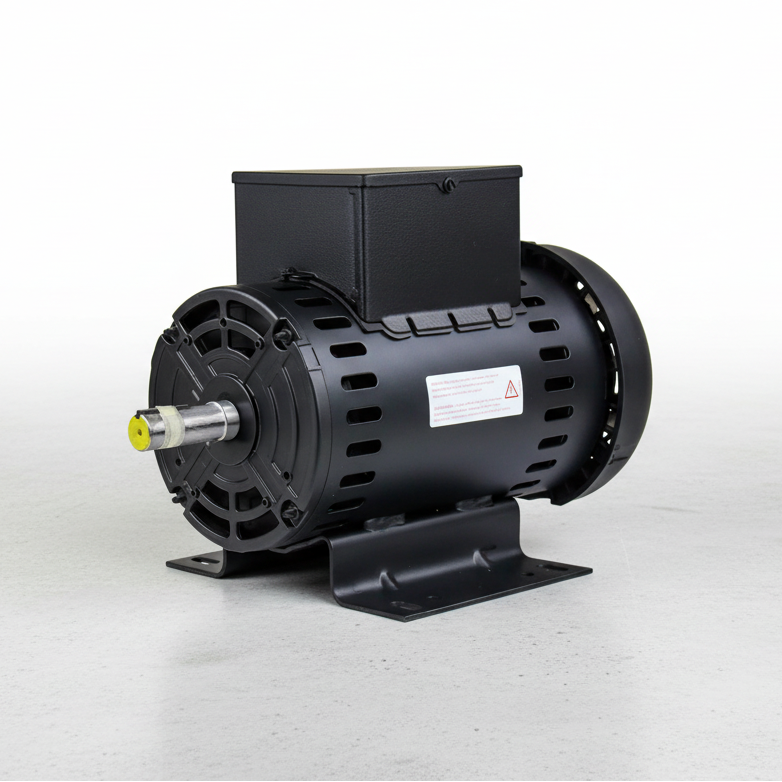

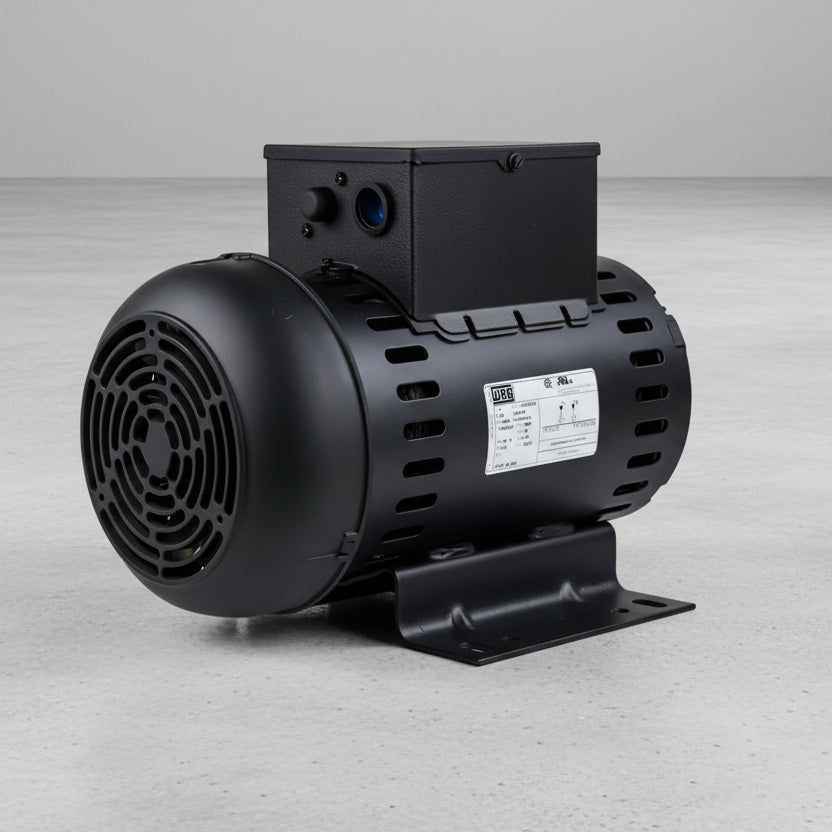

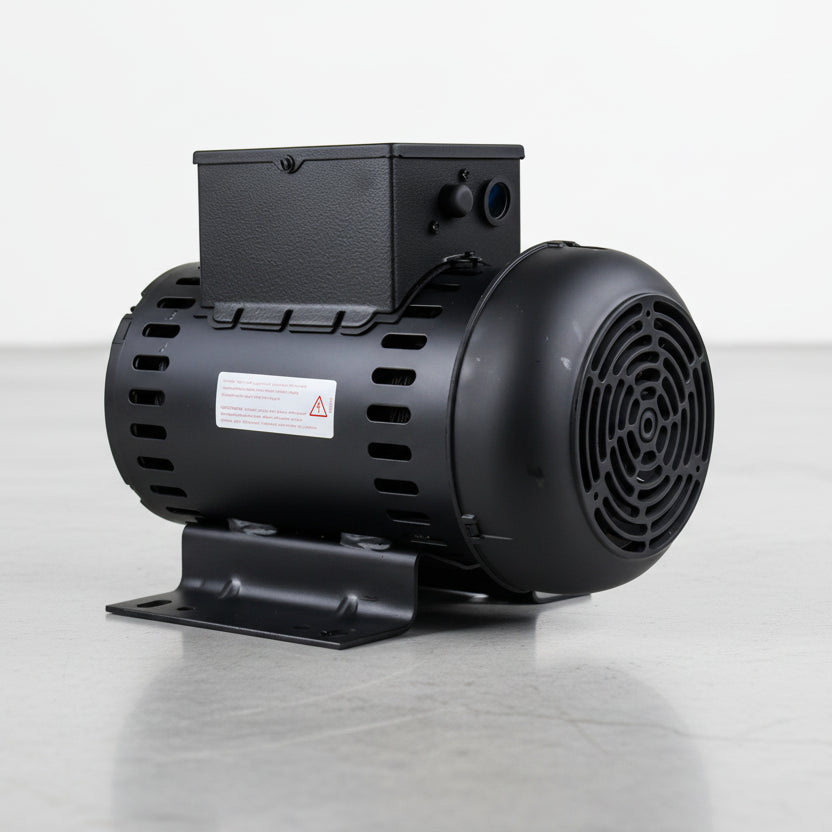

WEG 5 HP Rolled-Steel Compressor-Duty Motor (184Y Frame)
| Specifications (As Configured) | |
|---|---|
 Vendor |
WEG
|
 SKU |
00536OS1CCDW184Y-S
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
182Y and 184Y
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
80.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |
 Brochure PDFClick to Download
|
|
 Brochure PDF |
|

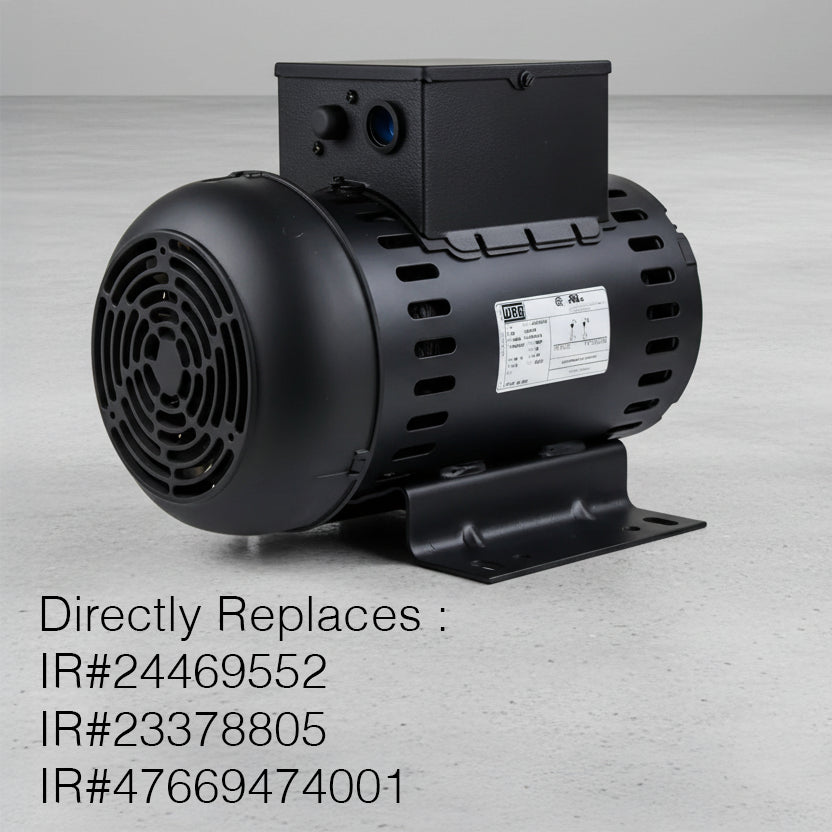

Our WEG 00536OS1CCDW184Y-S is a 5 HP rolled-steel, compressor-duty electric motor that directly replaces the following Ingersoll Rand motors:
- IR# 24469552
- IR# 23378805
- IR# 47669474001

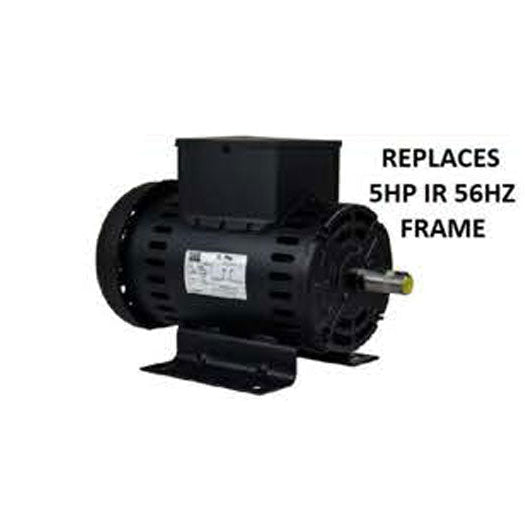

Ingersoll Rand does not follow NEMA dimensional standards on their smaller 5 HP compressor series. IR's 56HZ frame does not match any other manufacturer's 56HZ motor, but it exactly matches a 184Y frame motor.
- Frame: 182/4Y
- RPM: 3450
- Shaft diameter: 7/8"
- Full load amps: 22.4–20.7
- Voltage: 208–230
- Service factor: 1.15 (1.00 @ 208 V)
Need help finding a replacement motor? Email or text us a picture of the data plate of the motor you are replacing. If the nameplate is not available, please provide: HP, frame size, RPM, phase, voltage, enclosure type (ODP or TEFC), shaft diameter, and service factor. Never assume the incoming voltage — always check it before ordering a replacement motor.
NOTE: Actual product may be different from pictured!
