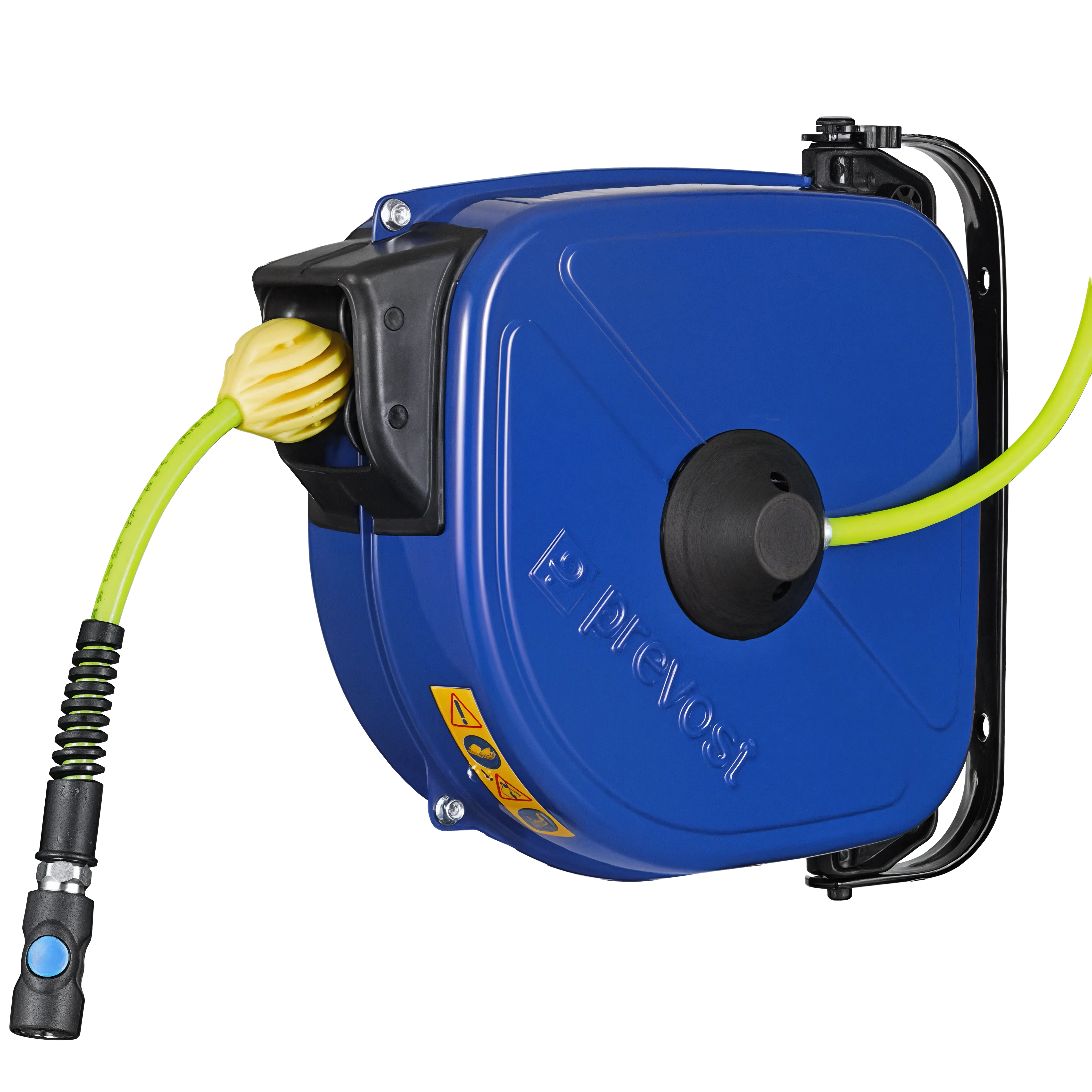

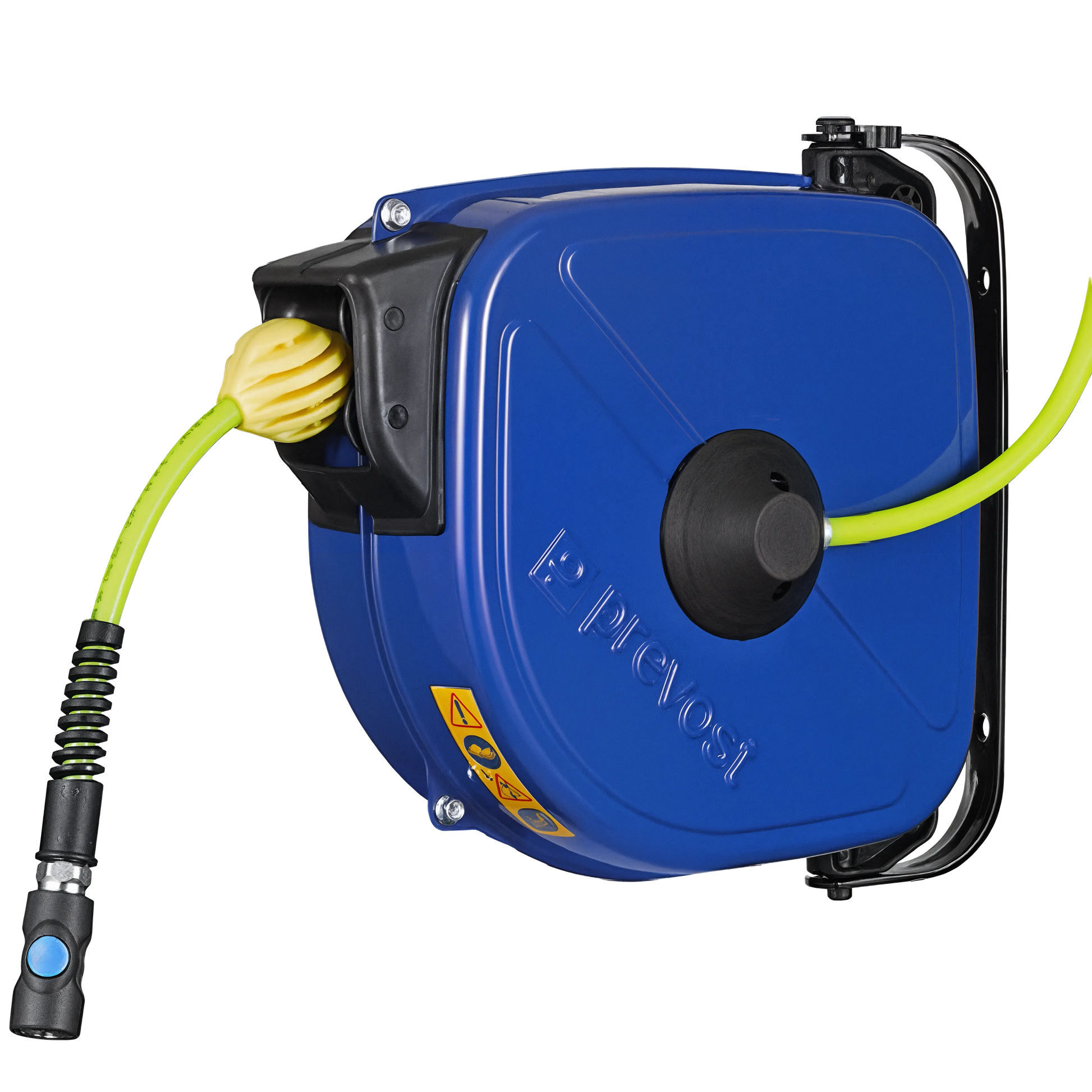

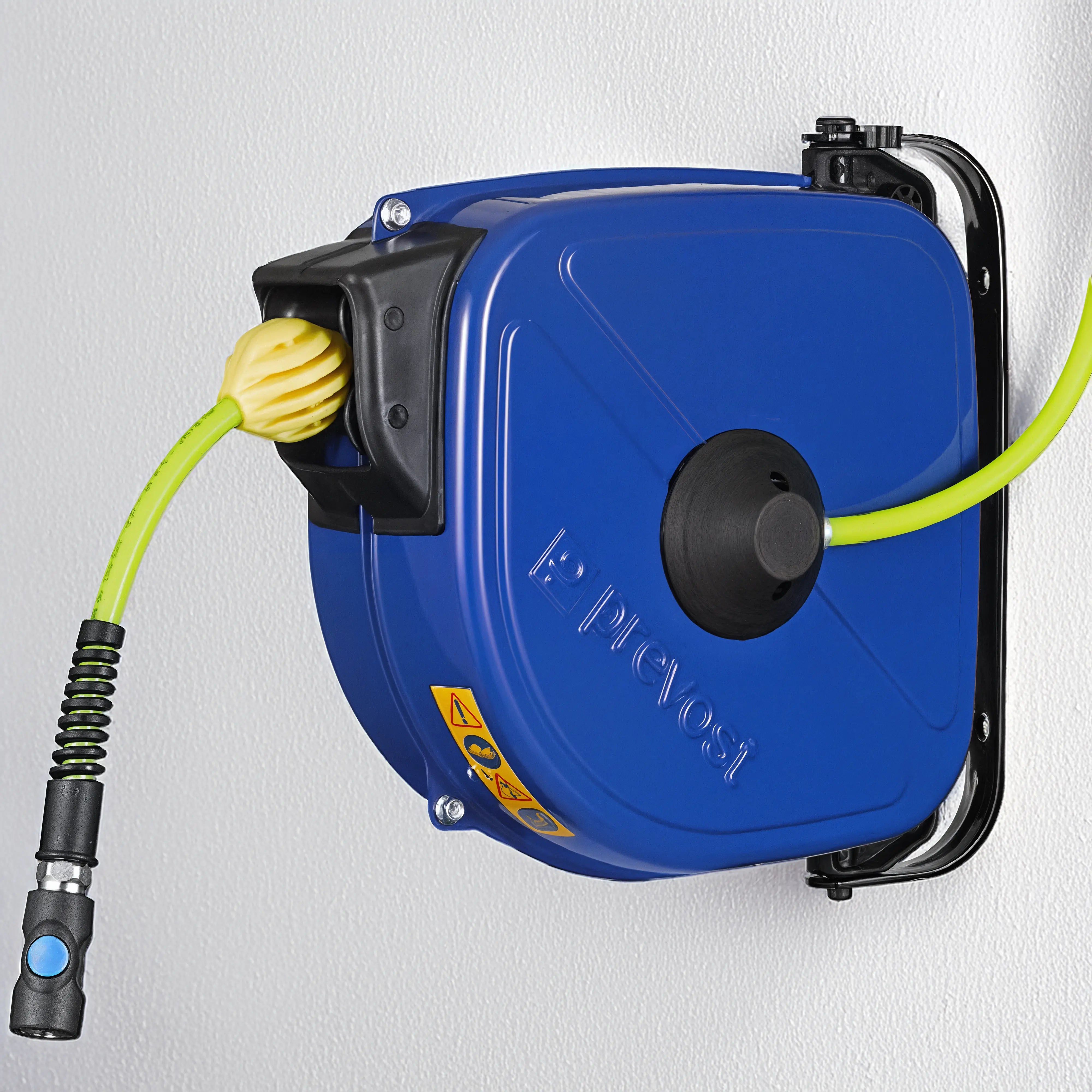

DRFB Series Safety Retraction Hose Reel by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
DRFB 1012ES
|
3/8 IN ID with 40 FT of Hose
180° swiveling bracket
Inlet: 3.3 ft hose
Temperature: 5°F to 149°F
Pressure: 174 psi
DRFB SERIES HOSE REEL W/ SAFETY RETRACTION – GALVANIZED STEEL – POLYURETHANE/PVC HOSE
The Prevost DRFB Series features a controlled hose return system with an integrated braking mechanism, so the hose reels in smoothly and progressively instead of snapping back — eliminating hose whip and protecting both operators and equipment. A locking system holds the hose at the desired length, and the high-visibility yellow hose improves safety on busy workstations.
Technical specifications
- Technology: Controlled slow-retract braked spring mechanism with ratchet stop
- Max operating pressure: 174 psi
- Construction: Galvanized steel case with UV-resistant polyester powder coating
- Hose: High-visibility yellow polyurethane / PVC
- Connection: 3.3 ft of inlet supply hose on 360° rotating swivel
- Equipped with: PrevoS1 safety quick coupling and 180° swivel bracket
180 Degree swiveling bracket
Inlet: 3.3 ft hose
Temperature: 5 Degree F to 149 Degree F
Pressure: 174 psi
Prevost DRFB Series Hose Reel
| Reference | ID (in) | Length (ft) | Coupler | Flow rate (cfm) | Fixed inlet (in) | Weight (lb) | A (inch) | B (inch) |
|---|---|---|---|---|---|---|---|---|
| DRFB 1012ES | 3/8″ | 40′ | ESI 07 | 28 | 3/8″ | 14.99 | 14.567 | 13.268 |
NOTE: Actual product may be different from pictured!
