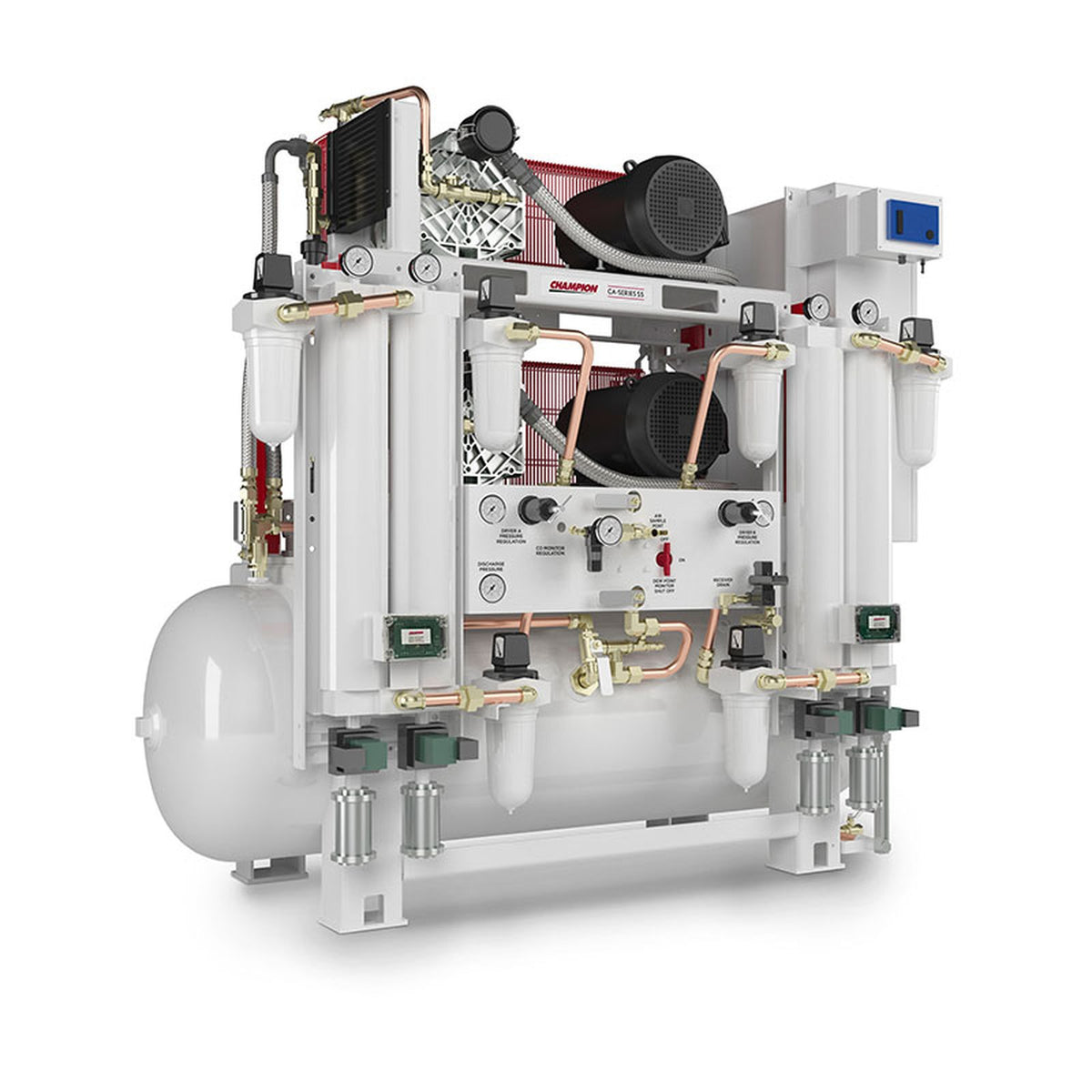

Champion CA-Series S Oil-Free Rotary Scroll Medical Air System | Duplex, Triplex and Quadraplex, 5-10 HP

Champion CA-Series S Oil-Free Rotary Scroll Medical Air Systems

The Champion CA-Series S medical air system is a 100% oil-less rotary scroll plant built specifically for hospital and clinical medical air. Air never touches lubricant anywhere in the compression path, so there is no oil carryover to manage, no oil analysis programme and no oil-removal filtration train to maintain downstream. Champion builds these packages to NFPA 99 and CSA requirements, with every multiplex system rated on full system output with one compressor held in reserve, which is how NFPA 99 expects a medical air source to be sized.

Three airend sizes are offered, CA-S5 at 5 HP, CA-S7 at 7.5 HP and CA-S10 at 10 HP, each available as a duplex, triplex or quadraplex system. Duplex systems come on a base with a remote 80 gallon receiver, or tank-mounted on an 80, 120 or 240 gallon horizontal vinyl (epoxy) lined receiver. Triplex and quadraplex systems stack three or four airends and motors on a common base and ship with a remote 80 gallon receiver as standard.

Every system on this page is quoted from the Champion August 15 2026 price list. Compare-at is the published list price, and the Warthog price is what we sell it for. Lead times, freight and site-specific accessories are confirmed when we write the order.

Model Selection Chart

ICFM is rated on full system operation with one compressor in reserve, per NFPA 99. Dimensions are Champion published figures from the CA-Series medical brochure, 3rd Ed. 2/17. Weight is the estimated package weight printed in the August 2026 price list.

Model	Configuration	Identification Number	ICFM @ 116 PSIG	ICFM @ 140 PSIG	L x W x H (in)	Est. Weight (lb)	List Price
CA-S5	Duplex - Base Mount, Remote 80 Gal Receiver	BCAS5D-M	14.1	12.7	72 x 48 x 43.5	800	$41,670
CA-S5	Duplex - 80 Gal Horizontal Tank	HCAS5D-8-M	14.1	12.7	65 x 34 x 61.5	1,300	$45,020
CA-S5	Duplex - 120 Gal Horizontal Tank	HCAS5D-12-M	14.1	12.7	69 x 34 x 65.5	1,400	$45,830
CA-S5	Duplex - 240 Gal Horizontal Tank	HCAS5D-24-M	14.1	12.7	86 x 40 x 71.5	1,600	$47,120
CA-S5	Triplex - Base Mount, Remote 80 Gal Receiver	BCAS5T-M	28.2	25.4	129 x 48 x 69	1,200	$60,900
CA-S5	Quadraplex - Base Mount, Remote 80 Gal Receiver	BCAS5Q-M	42.3	38.1	129 x 48 x 69	1,800	$81,520
CA-S7	Duplex - Base Mount, Remote 80 Gal Receiver	BCAS7D-M	22.4	16.2	72 x 48 x 51	900	$43,750
CA-S7	Duplex - 80 Gal Horizontal Tank	HCAS7D-8-M	22.4	16.2	65 x 34 x 61.5	1,300	$47,090
CA-S7	Duplex - 120 Gal Horizontal Tank	HCAS7D-12-M	22.4	16.2	69 x 34 x 65.5	1,400	$47,910
CA-S7	Duplex - 240 Gal Horizontal Tank	HCAS7D-24-M	22.4	16.2	86 x 40 x 71.5	1,600	$49,200
CA-S7	Triplex - Base Mount, Remote 80 Gal Receiver	BCAS7T-M	44.8	32.4	129 x 48 x 69	1,350	$71,230
CA-S7	Quadraplex - Base Mount, Remote 80 Gal Receiver	BCAS7Q-M	67.2	48.6	129 x 48 x 69	2,000	$102,240
CA-S10	Duplex - Base Mount, Remote 80 Gal Receiver	BCAS10D-M	32.3	27.8	73 x 48 x 53.5	900	$49,520
CA-S10	Duplex - 80 Gal Horizontal Tank	HCAS10D-8-M	32.3	27.8	65 x 34 x 61.5	1,300	$55,200
CA-S10	Duplex - 120 Gal Horizontal Tank	HCAS10D-12-M	32.3	27.8	69 x 34 x 65.5	1,400	$56,010
CA-S10	Duplex - 240 Gal Horizontal Tank	HCAS10D-24-M	32.3	27.8	86 x 40 x 71.5	1,600	$57,300
CA-S10	Triplex - Base Mount, Remote 80 Gal Receiver	BCAS10T-M	64.6	55.6	129 x 48 x 69	1,350	$91,930
CA-S10	Quadraplex - Base Mount, Remote 80 Gal Receiver	BCAS10Q-M	96.9	83.4	129 x 70 x 69	2,000	$106,750

What the Configurations Mean

• Duplex, base mount with remote 80 gallon receiver. Two airends and two motors on one base, with the receiver set remotely. This is the layout to pick when the mechanical room has floor space for a separate tank or when the tank has to live in another room.
• Duplex, 80 / 120 / 240 gallon horizontal tank. Two airends and two motors mounted directly on a horizontal ASME receiver. Vinyl (epoxy) lining is standard on all three tank sizes. Piping and wiring are included on tank-mounted medical systems, so the package arrives as one assembled plant.
• Triplex, base mount with remote 80 gallon receiver. Three airends and three motors stacked on a common base. Ships with the MediTrol Plus HMI control panel as standard.
• Quadraplex, base mount with remote 80 gallon receiver. Four airends and four motors on a common base, again with MediTrol Plus HMI standard. This is the largest configuration in the range.

Voltage is an order-entry choice, not a price axis. The CA-S5 and CA-S7 list identically for 208/230V single phase and 208/230/460/575V three phase. The CA-S10 is three phase only; no single phase row is published for it.

Shared Technical Specifications

Compression	Oil-less rotary scroll, single stage, 100% oil-free air
Duty cycle	Continuous, 100% duty
Rated pressure	116 PSIG or 140 PSIG, selected at order entry
Airend speed	CA-S5 3100 / 2900 RPM, CA-S7 3340 / 2650 RPM, CA-S10 3750 / 3216 RPM at 116 / 140 PSIG
Motor	Premium efficient TEFC
Control	Start-stop standard. MediTrol relay panel on duplex, MediTrol Plus HMI on triplex and quadraplex
Receiver	ASME coded, vinyl (epoxy) lined as standard. Bypass isolation valves on all tanks
Aftercooler	Air cooled, with moisture separator and trap
Drain	Electronic tank drain, standard
Inlet	Remote inlet connection point and remote inlet filter
Isolation	Inlet and discharge isolation valves, standard
Other standard equipment	Unique tip seal design, re-greasable bearings, integral cooling fan, belt guard, vibration isolators, ASME pressure relief valve, receiver sight and pressure gauges
Compliance	Designed for NFPA 99 and CSA compliant medical air service
Configurator	CASM3-10A (whole medical range)
Freight	Prepaid and add, ships from Princeton, Illinois 61356

Champion does not publish a sound level for the open-frame CA-Series S, medical or industrial. We will not quote a dBA figure we cannot source from the factory. If sound matters in your space, ask us and we will request the measured data from Champion before you commit.

Factory-Installed Options and Adders

Priced options are sold on a companion listing so you can add exactly what the job needs: Champion CA-Series S Medical Air System Factory-Installed Options and Adders. That listing carries galvanized and vinyl lined receiver coatings, larger 120 and 240 gallon remote receivers, the MediTrol Plus HMI upgrade for duplex systems, mounted and stand alone medical desiccant dryer systems with dew point and CO monitoring, and Massachusetts code fittings.

Included at no charge, so they are not sold as separate line items:

• Vinyl (epoxy) lined receiver on every tank-mounted duplex system
• Remote 80 gallon vinyl lined receiver on every base-mount duplex, triplex and quadraplex system
• MediTrol relay control panel on duplex systems
• MediTrol Plus HMI control panel on triplex and quadraplex systems
• Bypass isolation valves on all tanks, and the electronic tank drain
• Piping and wiring on tank-mounted medical systems

Also Available by Quote

The following are printed in the price book without a list price, so we quote them per order rather than sell them from the page:

• Massachusetts receiver risers: 306SIS4013 (30 gallon horizontal), 307SIS4013 (80 and 120 gallon horizontal), 308SIS4013 (240 gallon horizontal). The Massachusetts code fittings themselves are priced and are on the options listing.
• CA-S10 mounted medical desiccant dryer at 140 PSIG, and the CA-S10 stand alone medical desiccant dryer at 140 PSIG. Both print as Call on all CA-S10 configurations.
• Stand alone medical desiccant dryer on the CA-S5 duplex base mount. The book prints N/A there, while the CA-S7 and CA-S10 duplex base mount systems are priced. Ask us and we will confirm with the factory.

Ideal Applications

• Hospital and surgical centre medical air plants built to NFPA 99
• Dental and outpatient clinics needing certified oil-free breathing-quality air
• Laboratory and research air where hydrocarbon contamination cannot be tolerated
• Veterinary surgical suites and imaging facilities
• Any retrofit replacing an oil-lubricated medical plant where the oil-removal train has become the maintenance burden

Service, Parts and Accessories

Scroll airends are consumable by design: the tip seals and bearings are replaced on a schedule rather than run to failure, and the interval is shorter at 140 PSIG than at 116 PSIG. Champion sells the CA-Series scroll airends as service replacement assemblies, and we stock and quote them alongside intake filters and aftercooler parts. Champion Service Department is reachable on 815-875-3321.

Related Warthog listings: Champion CA-Series S open industrial scroll compressors, Scroll Air Compressors, Oil-Free Air Compressors, everything Champion.

Why Buy From Warthog

• We are an authorized Champion distributor buying from the factory price list, not a reseller marking up someone else's quote.
• Every price on this page comes from the Champion price list effective August 15 2026 and is checked against the current book each time it changes.
• We will tell you when a configuration does not exist rather than quoting you something that cannot be built.
• We size medical plants against the actual NFPA 99 reserve requirement, not against peak nameplate.
• Direct factory support on parts, warranty and commissioning.

Ordering Notes

• Identification Numbers shown are Champion's own factory order-entry numbers and are used here as the SKU. The configurator for the whole medical range is CASM3-10A.
• Rated pressure, 116 or 140 PSIG, is selected at order entry and does not change the base package price. It does change the desiccant dryer adder.
• Weights shown are the estimated package weights printed in the August 2026 price list. Champion's own brochure quotes higher approximate shipping weights that include crating: 1,124 to 3,011 lb on the CA-S5, 1,240 to 3,267 lb on the CA-S7 and 1,322 to 3,544 lb on the CA-S10. Freight is quoted on the crated figure.
• Freight is prepaid and add. Units ship from Princeton, Illinois.
• Rigging, electrical connection, medical gas certification and NFPA 99 verification testing are not included.

Frequently Asked Questions

Is this air certified medical grade out of the box?
The compressor delivers 100% oil-free air, which removes the hydrocarbon problem at source. NFPA 99 medical air still requires the full source assembly, dew point and carbon monoxide monitoring and site verification testing. The medical desiccant dryer system on the options listing includes dew point and CO monitoring, and we will walk the full source assembly with you before you order.

Why is the system rated with one compressor in reserve?
NFPA 99 requires a medical air source to meet peak demand with the largest single compressor out of service. Champion publishes the ICFM accordingly, so the figures in the chart above are usable capacity, not the sum of all airends.

What is the difference between MediTrol and MediTrol Plus?
MediTrol is the relay-based panel included with duplex systems. MediTrol Plus is the HMI panel, standard on triplex and quadraplex systems and available as a priced upgrade on any duplex. Both are mounted and wired at the factory.

Can I get a tank-mounted triplex or quadraplex?
No. Triplex and quadraplex systems are base mount only and ship with a remote 80 gallon receiver. Larger 120 and 240 gallon remote receivers are available as priced options.

Does the CA-S10 run on single phase?
No. Only 208/230/460/575V three phase is published for the CA-S10. The CA-S5 and CA-S7 are available in single or three phase at the same list price.

How loud is it?
Champion publishes no dBA figure for the open-frame CA-Series S. Scroll compressors are quiet relative to reciprocating machines of the same horsepower, but we will not put a number on this page that the factory has not published. Ask us and we will request it.

What are the external dimensions?
They are in the model selection chart above, taken from Champion's CA-Series medical brochure. The 2026 price list itself publishes weight and capacity but no dimensions, so if you need a certified dimensional drawing for a submittal we will request one from Champion.

What is the lead time?
Medical systems are built to order at Princeton, Illinois. Ask us for the current build slot before you set an install date.
