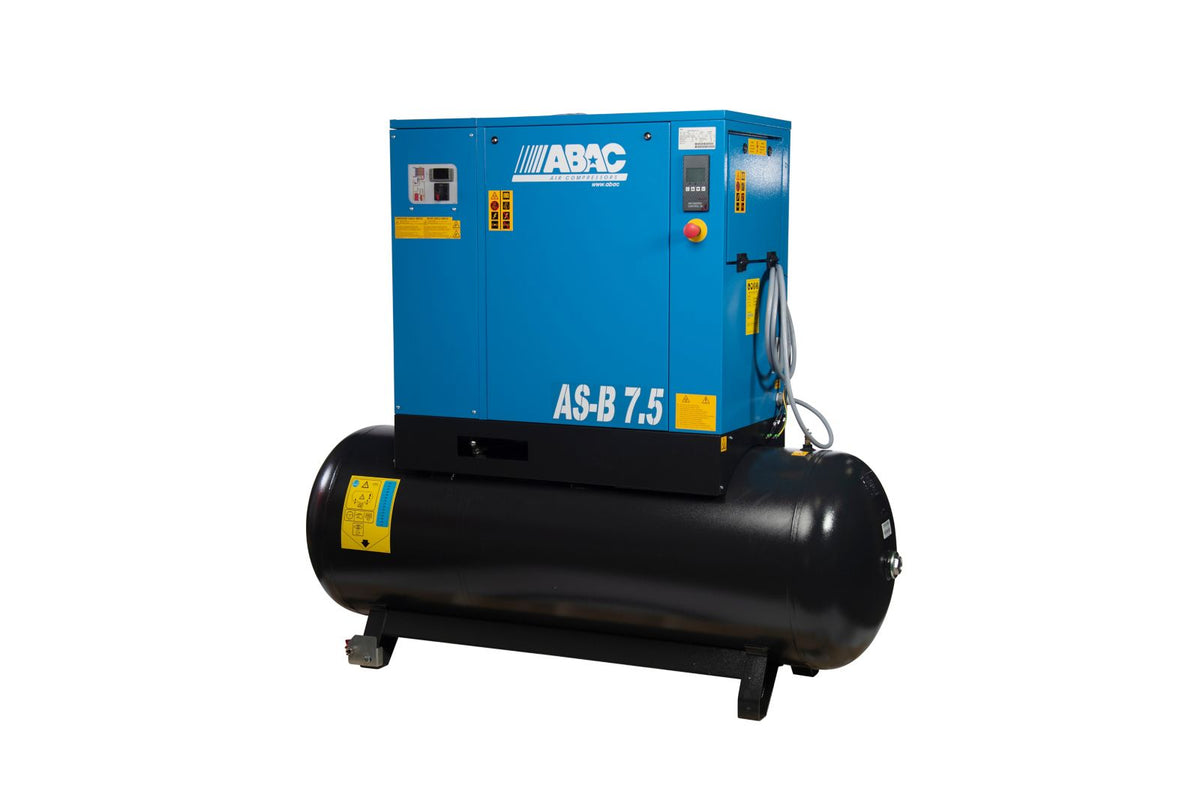

ABAC AS-7.5251TMD 7.5 HP Rotary Screw Air Compressor - 131 Gallon Tank Mount with Dryer, 125 PSI, 30.5 CFM, 67 dBA

The ABAC AS-B 7.5 HP tank mount with dryer is a complete compressed air station in one package. It delivers 30.5 CFM at 125 PSI and runs at 67 dBA, quiet enough to sit in the work area instead of a separate compressor room. Compressor, 131 gallon air receiver and refrigerated dryer arrive mounted and plumbed as a single unit, so there is no separate tank or dryer to source, site and pipe. Choose 230V single-phase (AS-7.5251TMD) or 208-230-460V three-phase (AS-7.5253TMD).

Key specifications

• Models: AS-7.5251TMD / AS-7.5253TMD
• Motor: 7.5 HP
• Air delivery: 30.5 CFM
• Working pressure: 125 PSI
• Noise level: 67 dBA
• Mounting: tank mount on a 131 gallon air receiver with integrated dryer
• Power supply: 230/1/60 or 208-230-460/3/60
• Digital controller with menu driven operation and programmed maintenance
• Vertical oil separation technology

Typical applications

Paint and finishing work, automotive service bays, tire shops, cabinet and woodworking shops, and small production floors where moisture in the air line causes rejects or tool wear. The integrated dryer removes water before it reaches the distribution piping, which matters anywhere air touches a finish, a pneumatic control or a precision tool. The 131 gallon receiver stores more air than the 71 gallon build, which helps when a shop draws in heavy bursts, such as several service bays pulling on impact tools at once.

Part of the ABAC AS-B 5 to 20 HP screw range from the Atlas Copco group. A rotary screw is built for continuous running, so it holds a steady line pressure through a full shift instead of recovering between jobs, and the 131 gallon tank mount with dryer build puts compressor, storage and air treatment on a single footprint.
