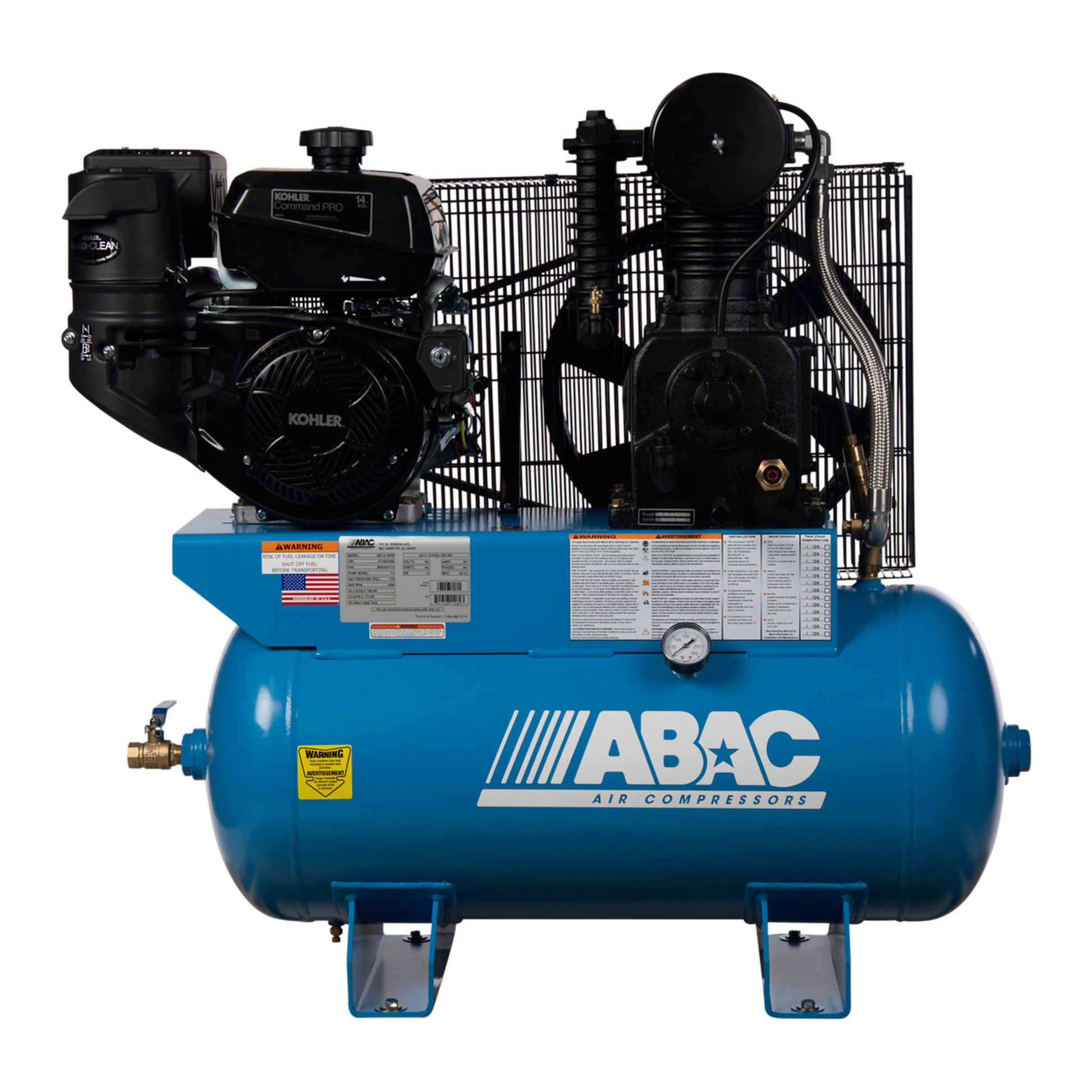

ABAC ABC14-30GK 14 HP Kohler Gas Drive Ironman Air Compressor - 30 Gallon Horizontal, 175 PSI, 25 CFM

The ABAC ABC14-30GK is the Kohler powered machine in the Ironman Engine range: a 14 HP Kohler gas engine driving a cast iron two-stage pump for 25 CFM at a maximum 175 PSI, mounted on a 30 gallon horizontal ASME receiver. It matches the airflow of the 13 HP Honda model, so the reason to choose it is the engine badge. Fleets that already stock Kohler filters, plugs and carburetor parts keep one parts shelf instead of two.

Key specifications

• Model: ABC14-30GK (part number 8090303713)
• Engine: 14 HP Kohler gas, 12V electric start with recoil backup
• Pump: C1 two-stage, cast iron cylinders
• Air delivery: 25 CFM at max pressure
• Maximum pressure: 175 PSI
• Tank: 30 gallon horizontal, ASME tank and safety valves, EZ pull tank drain
• Dimensions: 21 x 46 x 44 in
• Weight: 526 lbs
• Fully enclosed belt guard, discharge valve
• Warranty: 2 year full, assembled in the USA

How it compares

Across the Ironman Engine range the engine and the airflow move together. The 11 HP Honda ABC11-30GH delivers 23 CFM at 509 lbs, the 13 HP Honda ABC13-30GH delivers 25 CFM at 519 lbs, and the 16 HP Vanguard ABC16-30GV steps up to 32 CFM at 605 lbs. All four run 175 PSI on a 30 gallon horizontal tank. Pick on CFM first, then on the engine brand your crews already service. If weight matters more than pump life, the hybrid aluminum and cast iron T39 pump on the 13 HP Hybrid Pro gas model cuts the machine to 378 lbs at 22 CFM, but the fully cast iron Ironman pump is the one built for daily duty.

Typical applications

Contractor and utility fleets standardized on Kohler power, mobile service rigs, pipeline and tower crews, rental yards, and framing or roofing sites with no generator and no shore power. At 25 CFM it will keep a pair of impact wrenches, a chipping hammer or a grinder fed, and the 30 gallon ASME receiver stops the pump short cycling between tool triggers. The 12V electric start matters on cold mornings when nobody wants to pull a rope.

Part of ABAC's Ironman Engine range from the Atlas Copco group. See the rest of the gas engine compressors and our wider range of portable air compressors.
