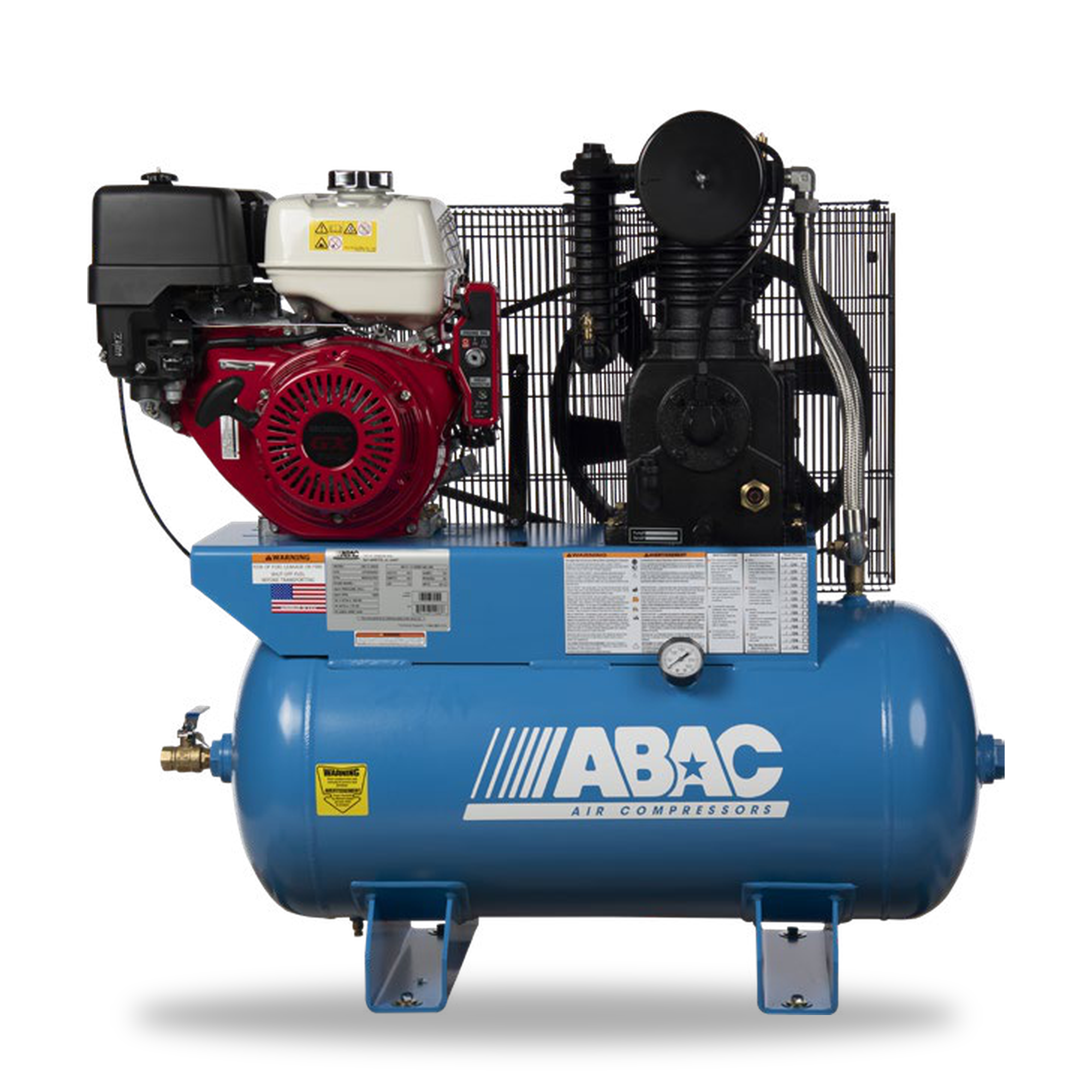

ABAC ABC11-30GH 11 HP Honda Gas Drive Ironman Air Compressor - 30 Gallon Horizontal, 175 PSI, 23 CFM

The ABAC ABC11-30GH is the entry point into the Ironman Engine range, where the pump is full cast iron rather than an aluminum block hybrid. That extra mass is what survives job site duty: heat, dust, vibration and long runtimes. An 11 HP Honda engine drives the C1 two-stage cast iron pump to 23 CFM at a maximum 175 PSI on a 30 gallon horizontal ASME tank, which is enough air for a framing crew, a mobile tire truck, or a service body running impact tools through the day.

Key specifications

• Model: ABC11-30GH (part number 8090303697)
• Engine: 11 HP Honda gas
• Pump: C1 two-stage, cast iron cylinders
• Air delivery: 23 CFM at max pressure
• Maximum pressure: 175 PSI
• Tank: 30 gallon horizontal, ASME tank and safety valves
• Dimensions: 20 x 44 x 42 in
• Weight: 509 lbs
• Fully enclosed belt guard, discharge valve
• Warranty: 2 year full, assembled in the USA

How it compares

Across the Ironman engine lineup the engine and the airflow move together on the same 30 gallon horizontal platform. The ABC11-30GH delivers 23 CFM at 509 lbs. The 13 HP Honda ABC13-30GH and the 14 HP Kohler ABC14-30GK both step up to 25 CFM, and the 16 HP Vanguard ABC16-30GV reaches 32 CFM for sandblasting and two operator work. Where weight matters more than pump life, the AB13-30GH uses the lighter T39 hybrid aluminum and cast iron pump at 378 lbs and 22 CFM. Choose on airflow first, then on the engine brand your crews already stock parts for.

Typical applications

Hammering, grinding, nailing and spray work on sites with no shore power: framing and roofing crews, mobile tire and fleet service, utility and pipeline crews, and rental fleets where the machine has to tolerate hard use. The 30 gallon ASME receiver keeps the pump from short cycling between tool triggers, and the gas engine means no generator and no cord run on remote work.

Part of ABAC's Ironman Engine range from the Atlas Copco group. See the rest of the gas engine compressors and our wider range of portable air compressors.
