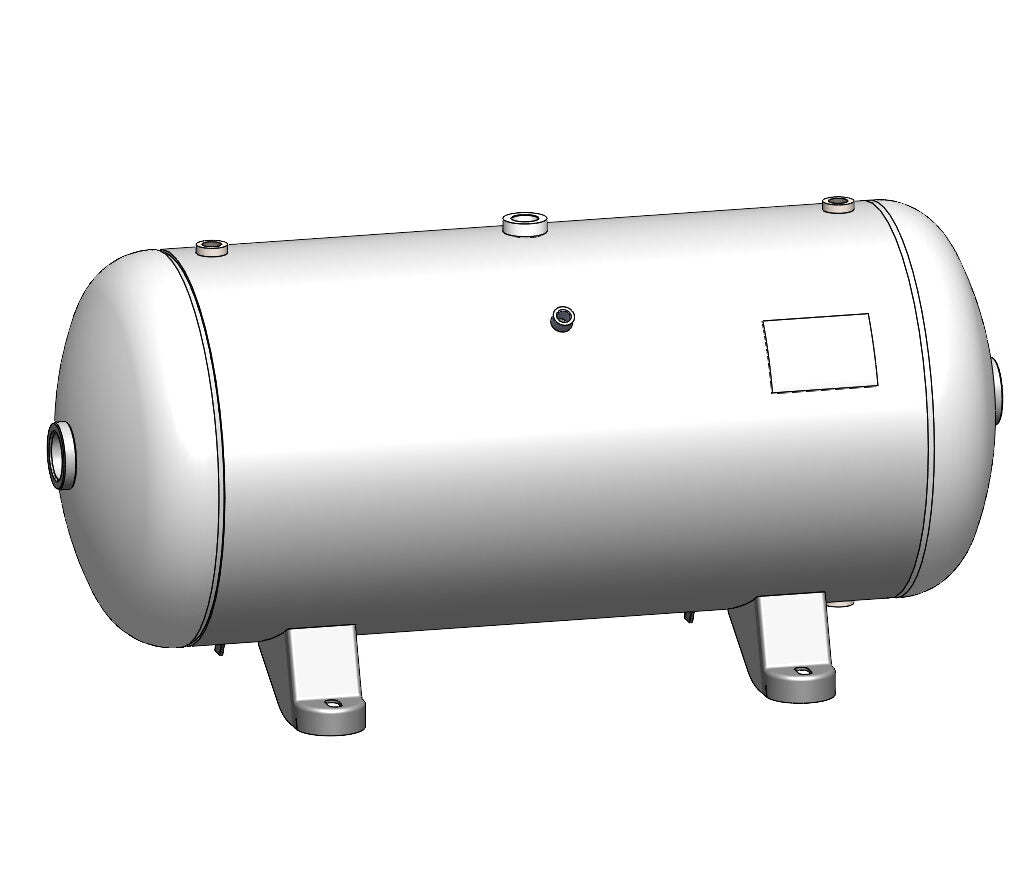

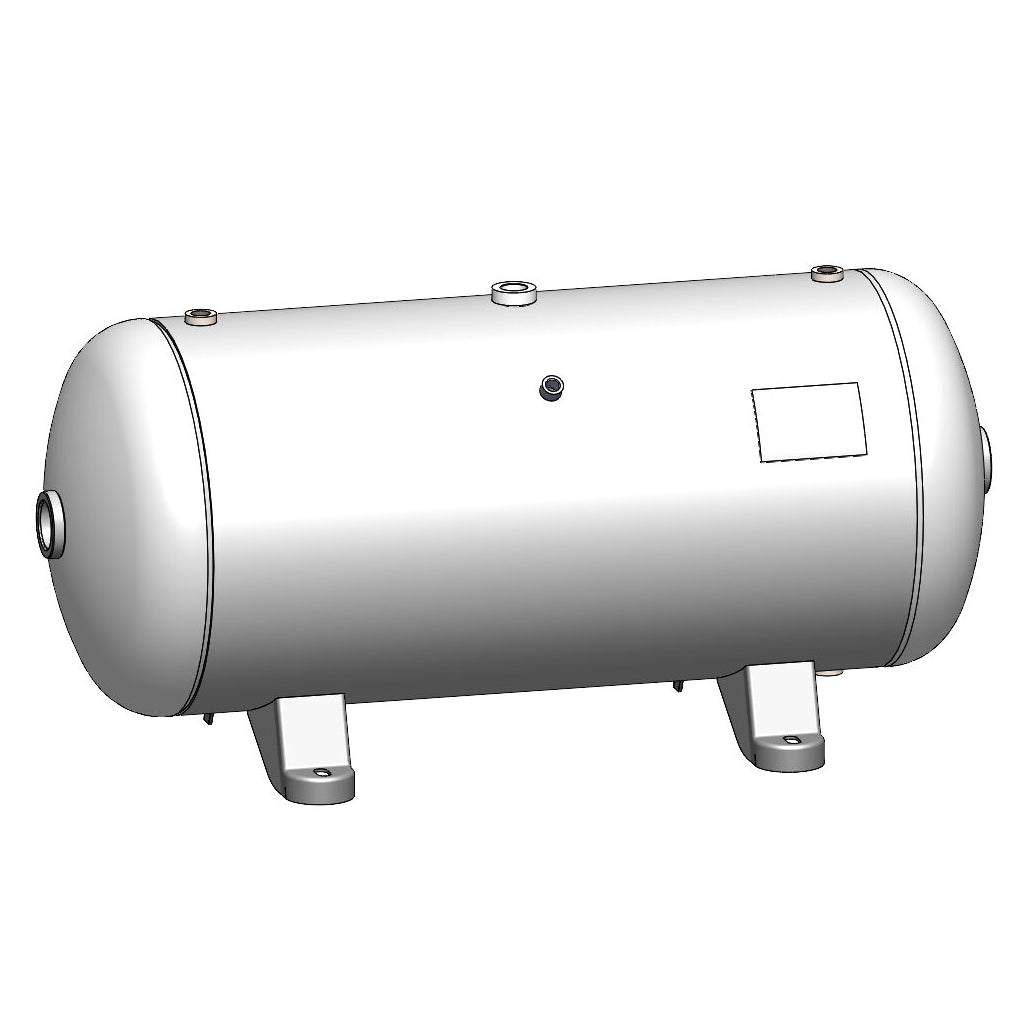

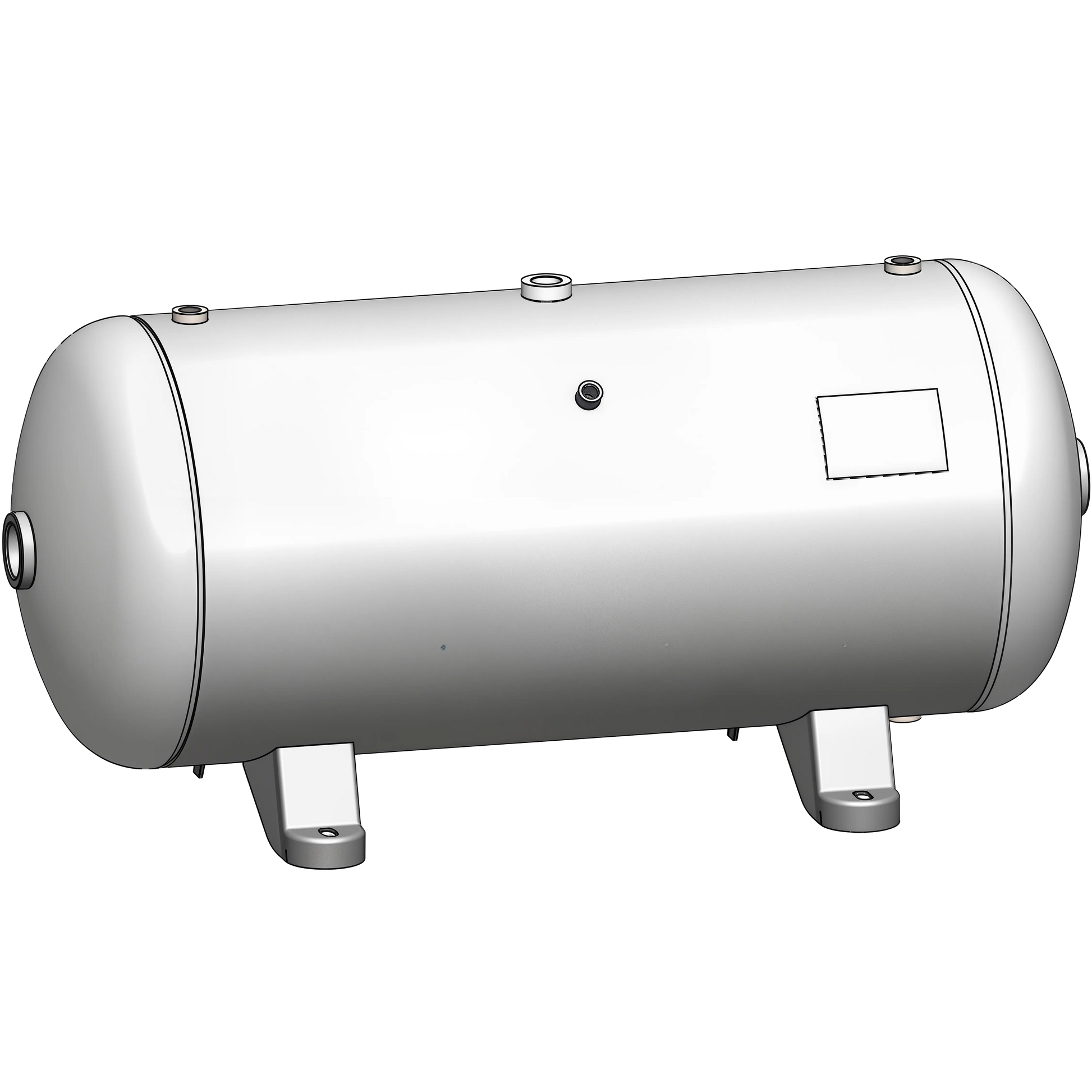

Morganton VES04848 30 Gallon Horizontal Air Tank on Feet, 200 PSI

The Morganton VES04848 is a 30 gallon ASME code horizontal air receiver rated for 200 PSI, with welded feet and no top plate. It is the plain storage version of the 30 gallon horizontal: nothing mounts on it, so it works as a stand alone receiver next to a small compressor, as an auxiliary tank at the end of a long shop line, as the buffer for a blast cabinet or tire machine, or as a bolt down reserve on a service truck. If you want to mount a pump and motor on the tank, use the 30 gallon horizontal with feet and top plate instead.

Sizing

At 3 to 4 gallons per CFM, a 30 gallon receiver suits compressors up to about 10 CFM on its own, which is the 2 to 3 HP piston range. Used as an auxiliary tank it adds 30 gallons of reserve to any system, which is enough to stop short cycling on a small unit or to feed a tool that draws more than the compressor makes for short bursts. 200 PSI working pressure covers every single stage and two stage piston compressor; set the relief valve at or below the compressor's cut out pressure.

What to add to the tank

Receivers ship bare. Fit a safety relief valve and pressure gauge kit rated at or below the tank's working pressure before it goes into service, and put a drain on the bottom port. A manual drain works if someone will open it every shift; otherwise use an electronic timer drain or a zero loss drain such as the EZ-12, which dumps condensate without venting compressed air. Pipe the drain to an oil water separator if the compressor is lubricated.

Finish

Grey primer is the standard finish and takes paint on site. Eleven powder coat colors are available from the table below for a tank that stays outside, lives on a truck, or has to match other equipment. See all 30 gallon air tanks and air compressor tanks.
