Air System Products EZ-12 Zero-Loss Drain

Air System Products EZ-12 Zero Loss Pneumatic Condensate Drain

The EZ-12 is a float operated, air piloted condensate drain that opens a full port ball valve when its reservoir fills and closes it again before any compressed air escapes. It needs no electricity, so it fits receivers, aftercooler separators, dryer and filter bowls and drip legs in places where running a timer drain's power cord is a nuisance, and it stops the air that a timer drain blows away on every cycle. Each cycle discharges about 12 ounces, and it is rated from 0 to 200 PSI, which covers everything up to a 200 PSI receiver.

Install notes

Mount it vertically below the point you are draining with a short, full size drop so condensate reaches it by gravity, and fit an isolation ball valve ahead of it so it can be serviced without blowing the tank down. There are two 1/2 inch inlets: one takes the condensate line and the other can be used as a balance line back to the top of the vessel so an air lock cannot stop the float, or plugged. Pipe the 3/8 inch outlet to an oil water separator, since compressor condensate carries oil. One EZ-12 per drain point is the rule; do not tee several into one drain.

Other float, timer and electronic zero loss drains are in the condensate drains collection. The manufacturer's description follows.

EZ Drain, Internal Pneumatic Operated Condensate Drain

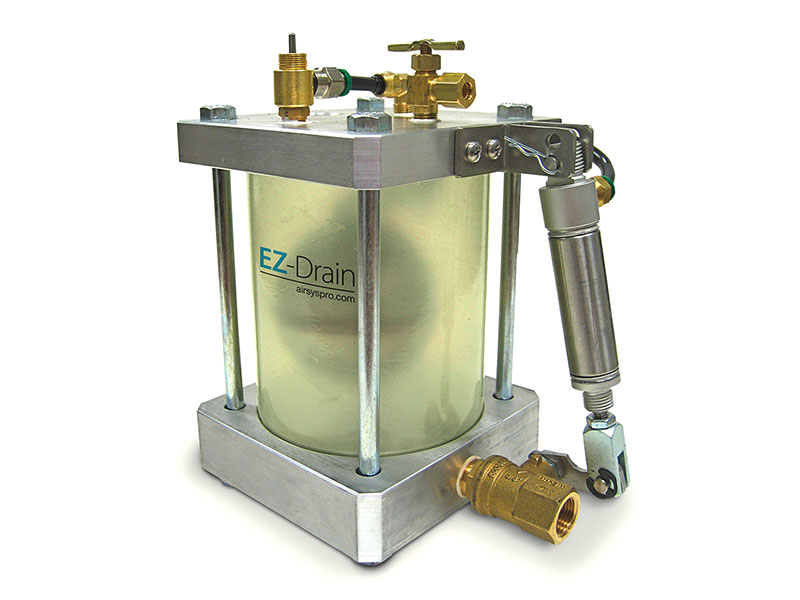

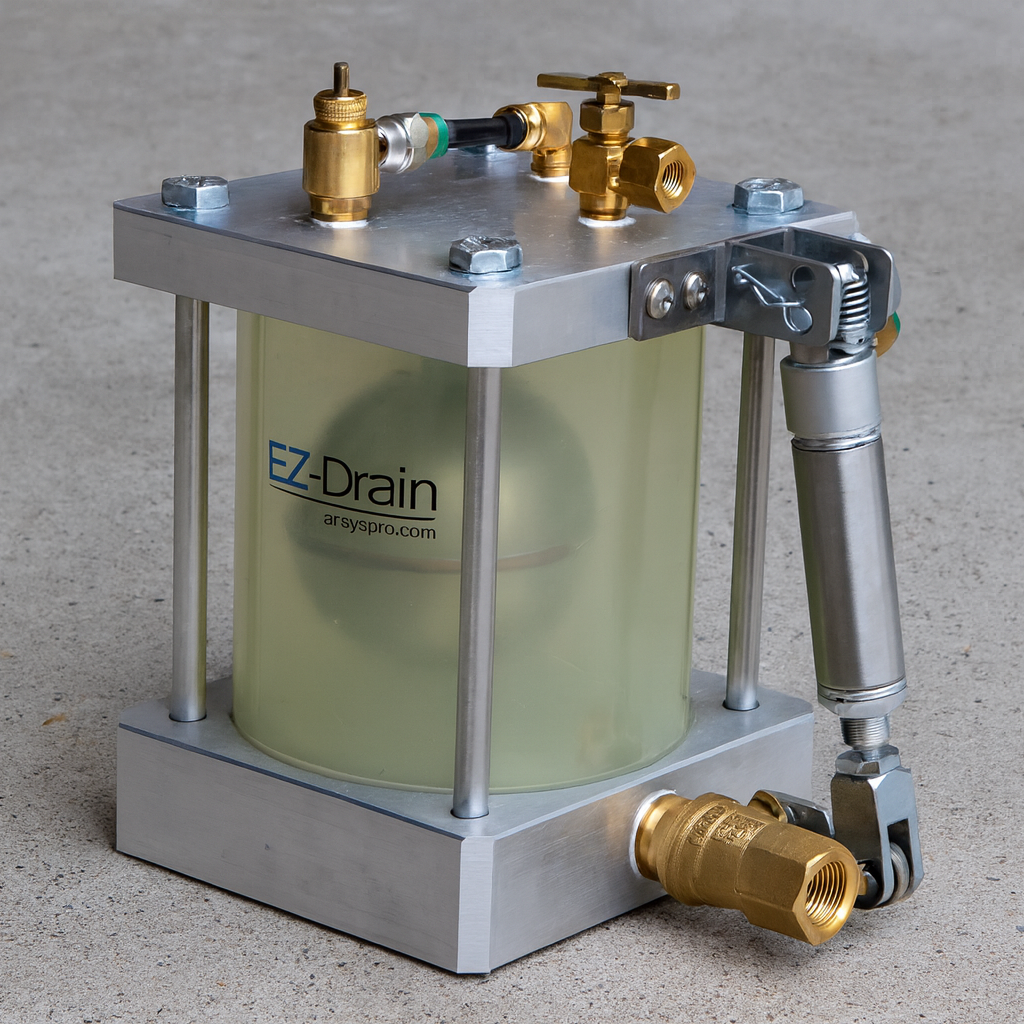

The EZ Drain is a fully automatic, zero-loss condensate drain designed for efficient removal of condensate from compressed air systems, without requiring any external power source. Its compact vertical design makes installation possible in tight spaces, while the translucent reservoir provides quick visual confirmation of operation. This drain is ideal for a wide range of applications, including aftercoolers, receivers, dryers, filters, and drip legs.

Specific to Model:

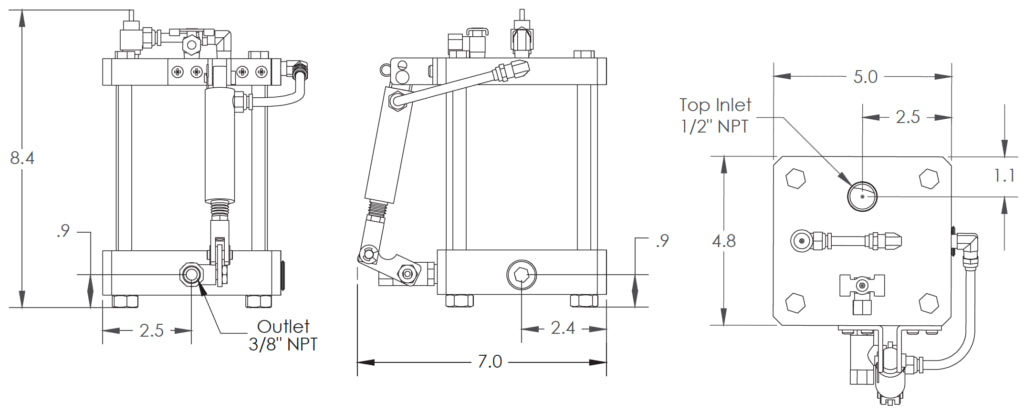

• Inlet: (2) 1/2″ NPT
• Outlet: 3/8″ NPT
• Power: No external power required
• Pressure: 0 to 200 PSI
• Operating Temperature: 33° to 180°F
• Weight: 8 lbs.
• Discharge: 12 ounces per cycle

Key Features

• Fully pneumatic, no electrical connection needed
• Easy to install and operate
• Compact vertical design for limited spaces
• Non-clogging operation for reliability
• Translucent reservoir for quick inspection
• Isolated trigger assembly prevents air loss
• Full-port ball valve for maximum flow
• Versatile for multiple compressed air system setups

Benefits

• Zero air loss during condensate discharge
• No strainers to clean, reduced maintenance
• Rapid discharge prevents blockage by contaminants
• Positive action ensures reliable operation
• Simple “quick check” of condensate level
• Can be easily integrated into various system configurations

How It Works

Condensate enters through one of two inlets. Inside, a stainless steel float is connected to a lever arm, which operates a filter-protected poppet assembly. As the reservoir fills, the float rises to a preset level, triggering the poppet to send control air to the valve actuator. This action opens the full-port drain valve, allowing condensate to discharge. Once emptied, the float drops, sealing the control air line and closing the ball valve, readying the system for the next cycle.

Construction Materials

• Reservoir: Composite
• Heads: Aluminum
• Valve: Bronze with stainless steel ball and stem
• Float: Stainless steel
• Seal: Viton®

The EZ Drain offers a maintenance-free, energy-efficient solution for removing condensate while protecting your compressed air system from damage and inefficiency.
