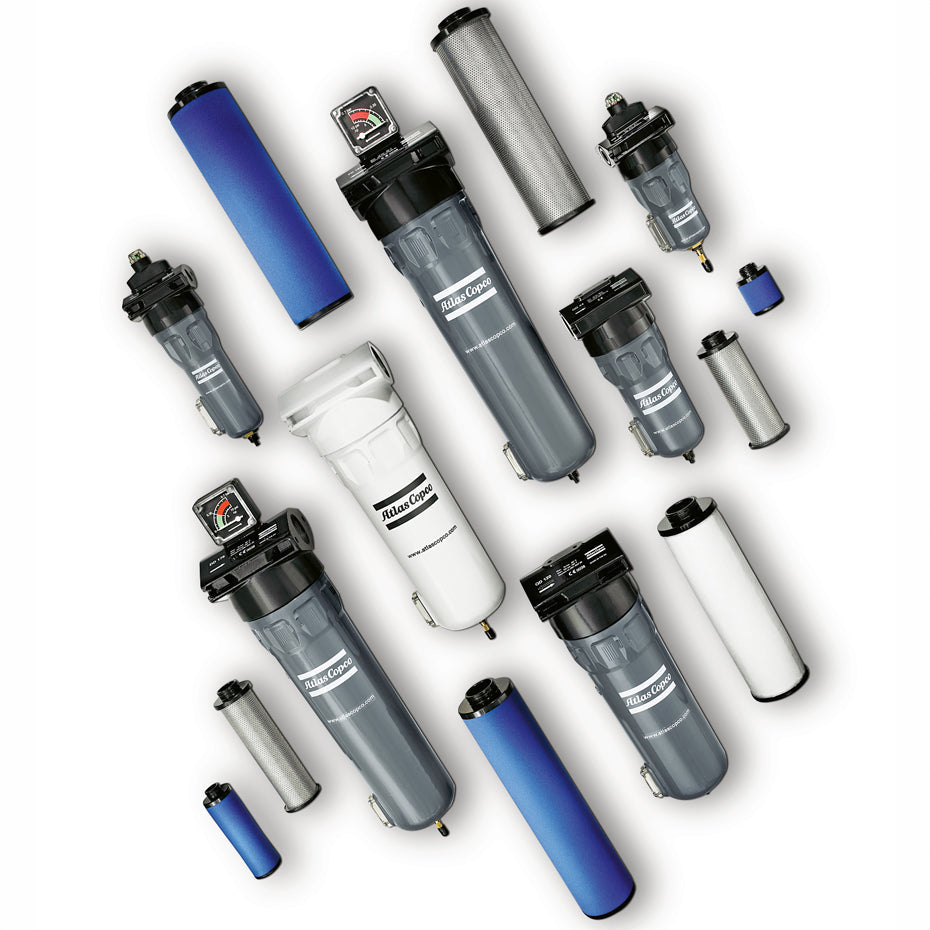

Almost every compressed air filter we see installed in the field was sized the same way: somebody looked at the pipe, saw two inches, and bought a two inch filter.

Pipe size is not a flow rating. It tells you what will thread on. It tells you nothing about how much air that housing can pass before the element starts costing you real money, and the gap between those two numbers is where a surprising amount of a plant's energy bill hides.

Compressed air filter sizing is one of the few places in a system where buying one size larger than you need is clearly, mathematically the right call. Here is why.

Pressure Drop Goes Up With the Square of Flow

This is the piece of physics that makes filter sizing different from most sizing decisions.

Pressure differential across a filter increases roughly with the square of the flow through it. Push twice the air through a given element and you do not get twice the pressure drop, you get about four times. Run the same logic backwards and it becomes an argument for a bigger housing: double the filter capacity for a given flow, and the pressure loss across it falls by a factor of four, roughly a 75 percent reduction.

That is an unusual deal. Going up one housing size is typically a modest percentage on the purchase price, and it permanently removes most of the pressure drop for the entire service life of that filter, through every element change, for as long as the plant runs.

What Pressure Drop Actually Costs

Put numbers on it so the argument is not abstract.

A clean coalescing filter typically sits around 2 psi. A loaded one can reach 6 psi before anyone changes it. That extra 4 psi accounts for roughly 2 percent of annual compressed air energy cost. The working rule people use is about 1 percent in energy for every 2 psi of differential.

Two percent does not sound dramatic until you remember what compressed air costs to make. On a 100 horsepower system running two shifts, a couple of percent is real money every year, and you are paying it to push air through an element that a larger housing would have passed almost for free.

Filter condition	Typical differential	Rough energy penalty
Clean, correctly sized	1 to 2 psi	Baseline
Clean, undersized housing	3 to 5 psi	About 1 to 1.5 percent
Loaded element, correctly sized	5 to 6 psi	About 2 percent, and time to change it
Loaded element, undersized housing	8 to 12 psi	3 percent and up, plus starved tools

Notice the compounding in the last row. An undersized filter does not just start high, it also reaches your change-out threshold sooner, so you buy elements more often as well as paying for the pressure.

The Rating Is at 100 PSIG, and Your System May Not Be

Here is the second mistake, and it is the one that catches careful people.

Filter flow ratings are published at a reference condition, almost always 100 psig inlet. Air is compressible, so at a lower operating pressure the same housing passes less actual flow for the same differential. If your plant runs at 80 psi, or 70 at the far end of a long header, the catalog number on that filter is not the number you have.

Every filter manufacturer publishes a correction factor table for exactly this. Find it, apply it, and size on the corrected figure rather than the headline one. The correction is not a nicety; at 70 psi it can take a meaningful bite out of rated capacity.

Three conditions to check before you pick a housing:

1. Your actual minimum operating pressure, not the compressor setpoint. Measure at the filter.
2. Your actual peak flow through that filter, not the compressor nameplate. A filter on a branch sees branch flow.
3. Inlet temperature, which matters more for the dryer behind the filter than the filter itself, but check it while you are there.

Sizing It, Step by Step

1. Find the real peak flow at that location. For a main filter it is total system flow. For a point of use filter it is what that machine or branch draws at peak, not an average.
2. Add headroom for growth. Filters outlive the equipment they were bought for. Twenty to thirty percent is normal.
3. Correct for your operating pressure using the manufacturer's table.
4. Pick the housing whose corrected rating comfortably exceeds that number, then look at the next size up and compare the price difference against the pressure drop difference. The larger one usually wins.
5. Check the grade, not just the size. A general purpose particulate filter, a coalescing filter and an activated carbon filter are different jobs. Size each for the flow it sees and sequence them correctly. Our guide on compressed air filter types covers which does what.
6. Do not stack filtration you do not need. Every stage is another pressure drop. Filter to the air quality you actually require and no further.

That last point is worth dwelling on, because it cuts the other way from everything else here. We sell filters, and we will still tell you that a carbon tower on a header feeding nothing but impact guns is a permanent energy cost buying you nothing. Decide your air quality target first. ISO 8573-1 air quality classes covers how to write that target down.

Where to Put Them

Sizing and placement interact more than people expect.

• Main filters carry everything. They are the ones most often undersized, because the person installing them matched the pipe.
• Point of use filters carry a fraction. A quarter inch filter at one machine is fine. The mistake there is the opposite one, an oversized housing that the element never fully uses.
• Filter after the dryer as well as before it. The after filter catches desiccant fines. It sees full flow, so size it accordingly.
• Keep the drain accessible. A coalescing filter with a plugged or ignored drain floods its element and the differential goes vertical.

Changing Them on Differential, Not on the Calendar

Sizing only pays off if you also change elements at the right time, and the right time is a pressure reading rather than a date.

Put a differential gauge on every main filter. Change the element when the differential reaches the manufacturer's limit, commonly in the 5 to 10 psi range depending on the grade. Changing earlier wastes elements. Changing later wastes energy continuously, and on a coalescing filter it eventually means carryover downstream, which is a far more expensive problem than the element.

Log the readings. The rate at which differential climbs tells you something about what is upstream, and a filter that loads much faster than it used to is usually pointing at a failing separator or a dirty intake. Our piece on when to replace filter elements covers the intervals in more detail.

What People Get Wrong

• Sizing on pipe connection. The original sin, and the reason most main filters in the field are a size small.
• Using the catalog rating at 100 psig for a system running at 80. Apply the correction factor.
• Sizing a main filter on average flow. It sees peak, and peak is what sets the differential.
• Never installing a differential gauge. Without one, element changes are guesswork in both directions.
• Treating one size up as an upsell. It is the rare case where the physics genuinely favors the bigger part.
• Over-filtering. Stages you do not need are pressure drop you pay for forever.
• Ignoring the drain. A flooded coalescer is an undersized filter no matter what it says on the housing.

Frequently Asked Questions

How do I size a compressed air filter?

Start from the actual peak flow at that location, add twenty to thirty percent for growth, then correct for your real operating pressure using the manufacturer's table, since ratings are published at 100 psig. Pick the housing whose corrected rating comfortably exceeds that number, then compare the next size up. Because differential rises with the square of flow, the larger housing usually costs little and saves pressure drop permanently.

Can I size a filter by pipe size?

No, though it is how most filters in the field got chosen. Pipe size tells you what threads on, not what the element can pass. A two inch housing from one manufacturer and a two inch housing from another can have quite different flow ratings and quite different pressure drops at the same flow.

Is it worth buying a larger filter than I need?

Usually yes, and the math is unusually clear. Pressure differential across a filter rises with roughly the square of flow, so doubling the capacity at a given flow cuts the pressure loss by about a factor of four. The price step between housing sizes is small compared with paying that differential in energy every hour the plant runs.

How much does filter pressure drop cost in energy?

The working figure is about 1 percent of compressed air energy cost for every 2 psi of differential. A coalescing filter that starts around 2 psi clean and reaches 6 psi loaded is adding roughly 2 percent over that extra 4 psi, which is why differential gauges and timely element changes pay for themselves.

When should I change a compressed air filter element?

On differential pressure, not on the calendar. Fit a gauge and change the element when it reaches the manufacturer's limit, commonly somewhere in the 5 to 10 psi range depending on grade. Log the readings, because a filter loading faster than it used to is usually telling you something about a separator or an intake upstream.

Where to Start

Walk to your main filter and look for a differential gauge. If there is not one, that is the first thing to fix, because without it you have no idea whether your filters are costing you anything. If there is one, read it, and if it is sitting above about 5 psi on a filter you believe is clean, that housing is undersized for the flow going through it.
