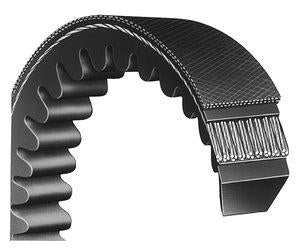

XPZ Cogged Metric V-Belt — 9.7mm Wide (DIN 7753)
Raw-edge molded-notch XPZ cogged metric wedge V-belt, 9.7 mm top width — built to the DIN 7753 / ISO 4184 narrow-section standard. The cogged (notched) underside flexes around small-diameter sheaves, runs cooler, and grips deeper than a classic wrapped belt, delivering high power transmission in a compact drive envelope. Choose your exact datum length below.
Key specifications
- Profile: XPZ (SPZX) narrow wedge, cogged / raw-edge
- Top width: 9.7 mm (0.382")
- Height / thickness: 8 mm
- Standard: DIN 7753, ISO 4184
- Construction: pre-stretched polyester tension cord, oil- and heat-resistant EPDM/rubber compound
- Minimum sheave diameter: ~56 mm
- Length designation: number in the part code is the datum length (Ld) in mm — e.g. XPZ-1250 = 1250 mm
- Available lengths: 562 mm to 3550 mm
Applications
Ideal for air compressors, pumps, fans, blowers, machine tools, and industrial drives that use metric SPZ/XPZ pulleys — anywhere higher power transfer is needed in limited space. The notched design also suits back-idler and serpentine layouts and reduces bending stress on tight-radius drives.
Order the XPZ cogged wedge belt in the precise datum length your drive requires. All lengths share the same 9.7 mm wide DIN 7753 profile, so cross-referencing SPZX and XPZ callouts is straightforward.
NOTE: Actual product may be different from pictured!
