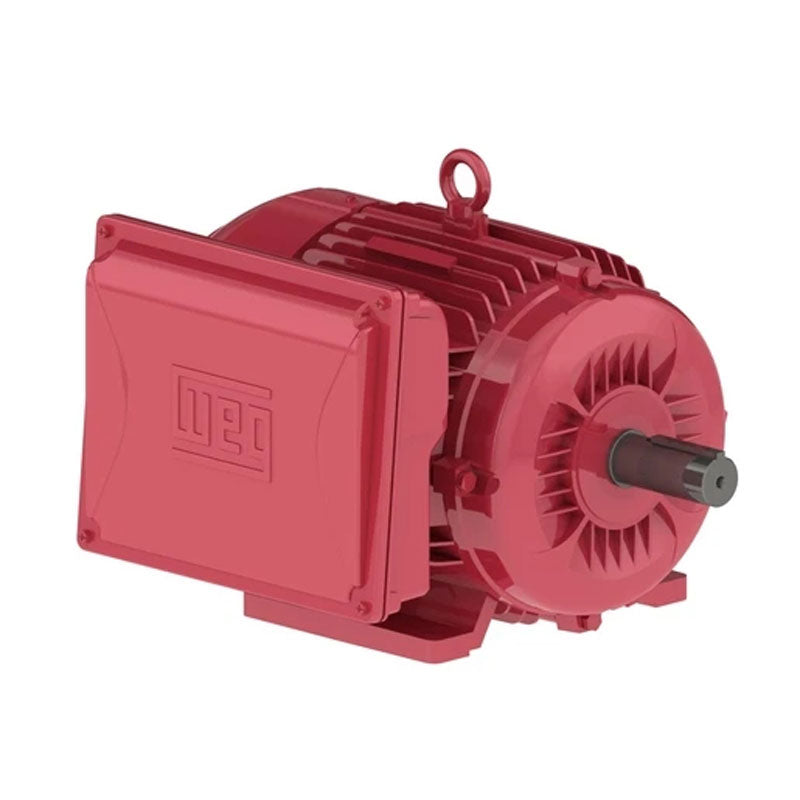

WEG W22 7.5 HP Single-Phase Farm Duty TEFC Motor — 215T Frame, 1750 RPM, 230V
| Specifications (As Configured) | |
|---|---|
 Vendor |
WEG
|
 SKU |
00718ES1DFD215T-W22
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
213T and 215T
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
200.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
The WEG W22 7.5 HP Single-Phase Farm Duty motor is purpose-built for agricultural and high-torque applications. Running at 1750 RPM (4-pole) on 230V single-phase power, it delivers the high starting and breakdown torque needed to drive augers, grain dryers, fans, and compressors, with a totally enclosed fan-cooled (TEFC) cast-iron build that stands up to dusty, wet, and corrosive farm environments.
Key specifications
- Output: 7.5 HP
- Speed: 1750 RPM (4-pole)
- Frame: 215T, rigid foot mount (B3)
- Voltage / phase: 230V, single-phase, 60 Hz
- Full-load current: 32A
- Enclosure: TEFC (IC411), IP55 ingress protection
- Farm-duty features: high starting torque, manual-reset overload protection, and V-ring shaft slingers for added sealing
- Construction: cast-iron frame, end shields, and conduit box
- Insulation: Class F, 1.15 service factor
- Part number / SKU: 00718ES1DFD215T-W22
Typical applications
Grain augers and dryers, ventilation and circulation fans, irrigation and transfer pumps, air compressors, and other heavy-duty single-phase farm and shop equipment.
Built on the WEG W22 cast-iron platform, this 7.5 HP single-phase farm duty TEFC motor combines rugged construction with the high torque agricultural duty demands.
NOTE: Actual product may be different from pictured!
